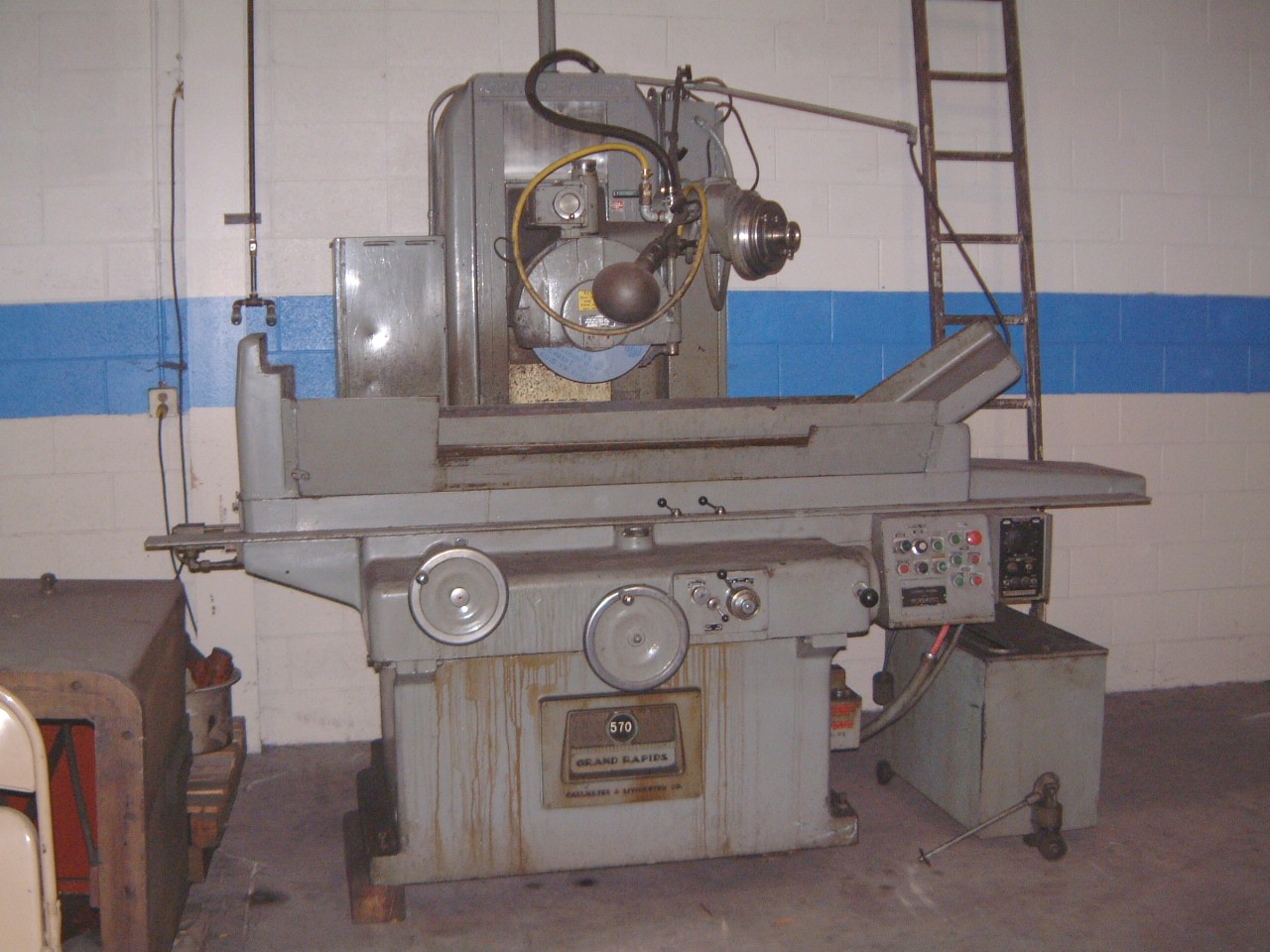

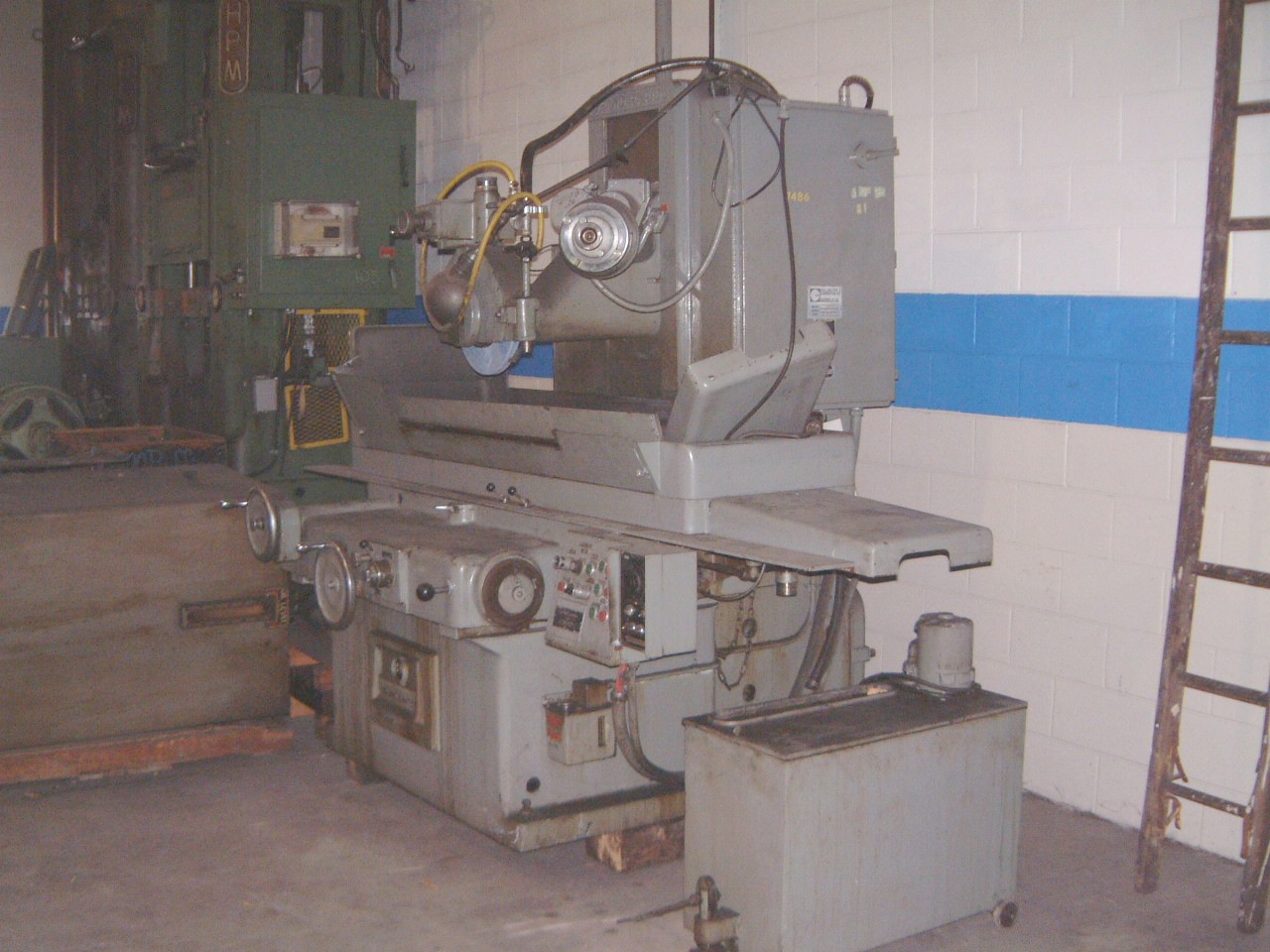

16" x 36" GALLMEYER & LIVINGSTON #570, INCREMENTAL DOWNFEED, 150 FPM, 14" x 1-1/2" x 5" WHL, 7.5 HP SPDL, 3 HP HYD, 1975

GENERAL SPECIFICATIONS:
MANUFACTURER GALLMEYER & LIVINGSTON
MODEL 570
SERIAL # 570-185
NEW (APPROX.) 1975
MAX. WIDTH 16"
MAX. LENGTH 36"
TABLE SPEEDS 3 - 150 FPM
TRAVELS (LONGITUDINAL) 47-1/2"
TRAVELS (CROSS) 17-3/4"
WHEEL SIZE 14" x 1-1/4" x 5"
VERTICAL WHEEL TRAVEL 19"
MAX. DIST. WHEEL TO TABLE 18"
SPINDLE MOTOR 7.5 HP
HYRAULIC MOTOR 3 HP
ELECTRICS 440/220V/60 HZ/3 PH
WEIGHT (APPROX.) 9,300 LBS

EQUIPPED WITH:
AUTO INCREMENTAL DOWN FEED
18" x 36" ELECTRO MAGNETIC CHUCK
COOLANT SYSTEM
