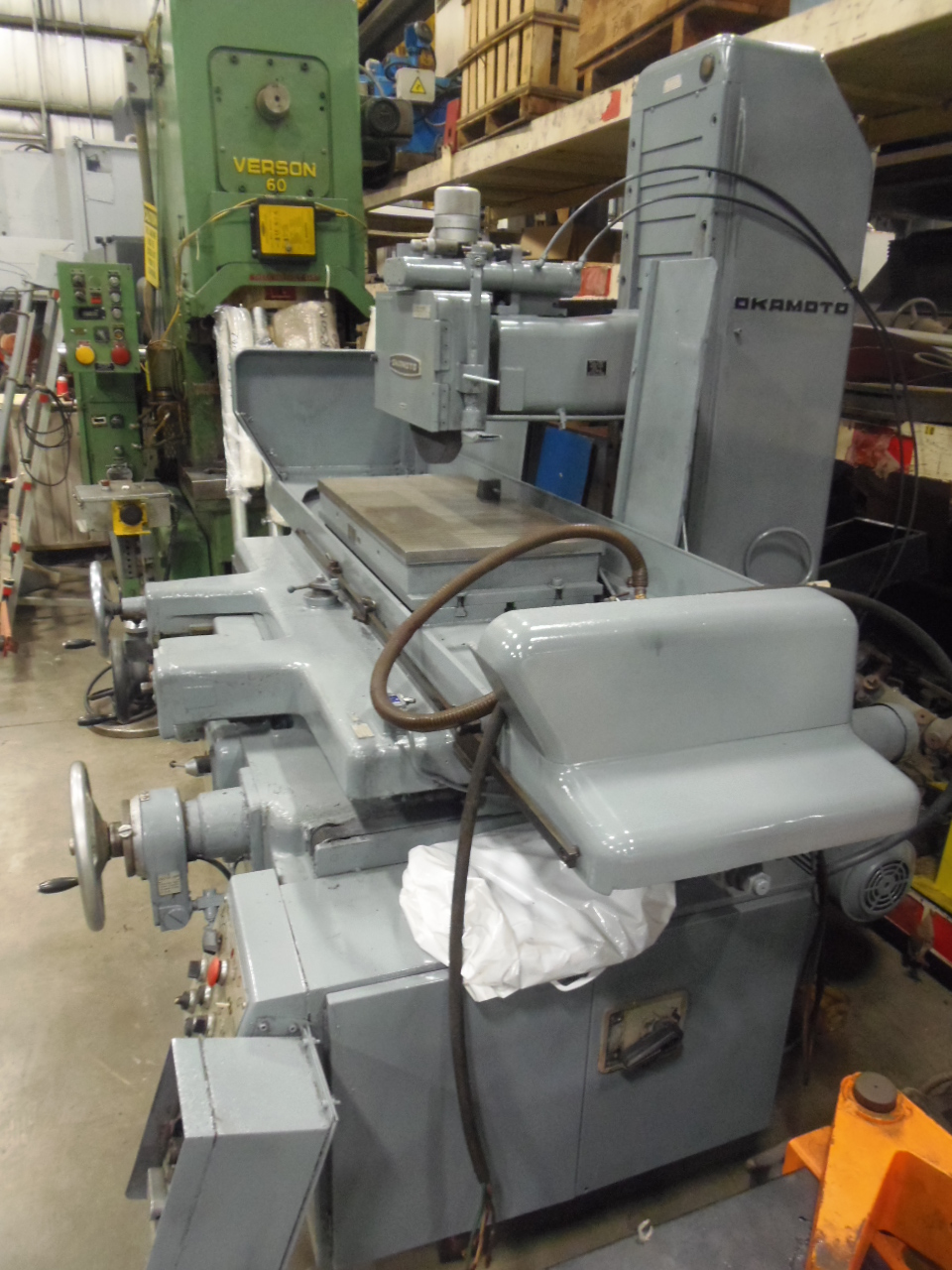

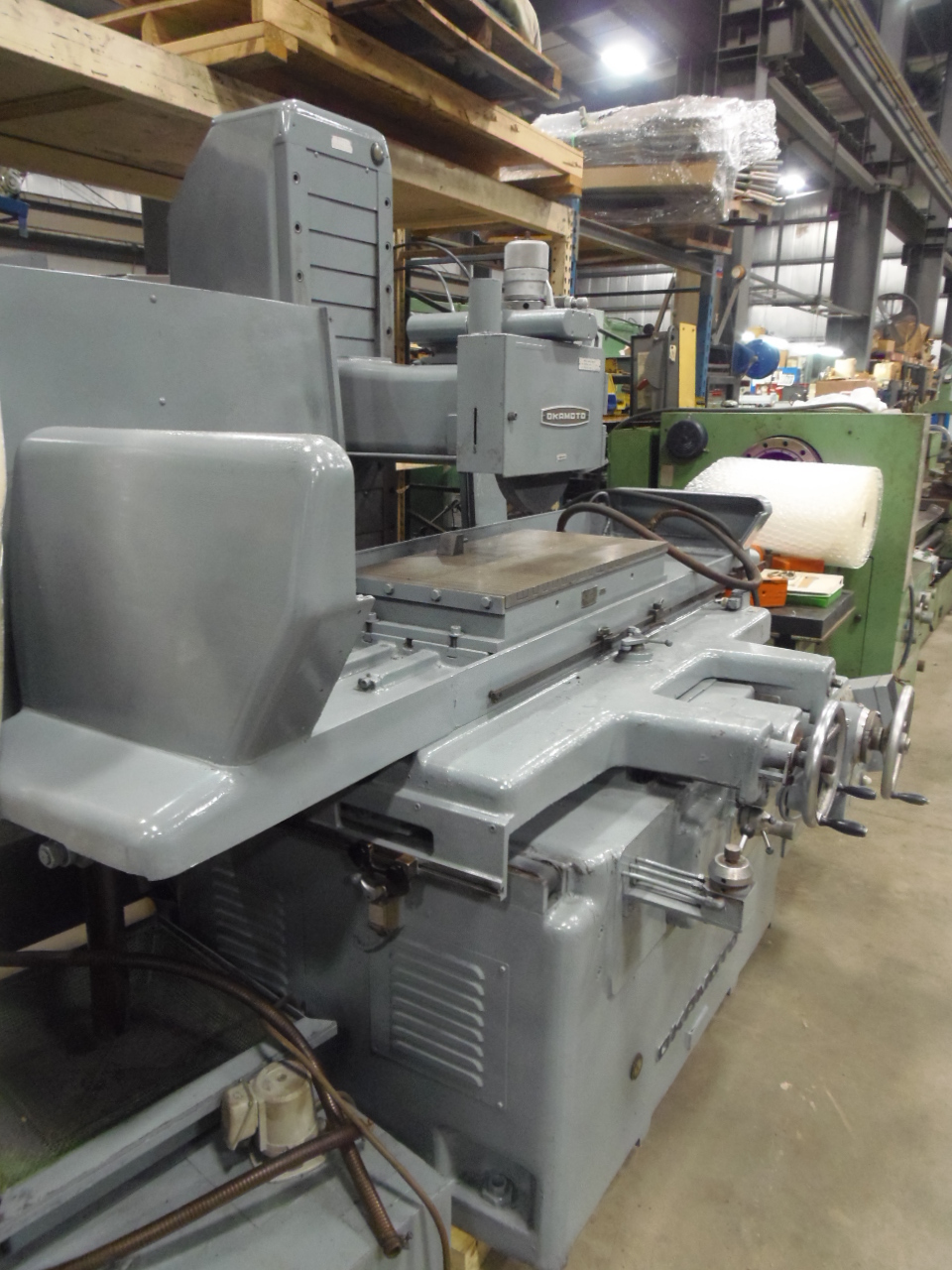

GENERAL SPECIFICATIONS:
MANUFACTURER........................... OKAMOTO
MODEL.................................. PSG-84
SERIAL NUMBER.......................... 8412
MAXIMUM GRINDING LENGTH................ 31.5"
MAXIMUM GRINDING WIDTH................. 16"
MAXIMUM HEIGHT 14" UNDER WHEEL......... 20.5"
MAXIMUM LONGITUDINAL MOVEMENT (MAN.)... 37.4"
(AUTO.).. 35"
MAXIMUM CROSS MOVEMENT (MAN.).......... 16.9"
(AUTO.)......... 16"

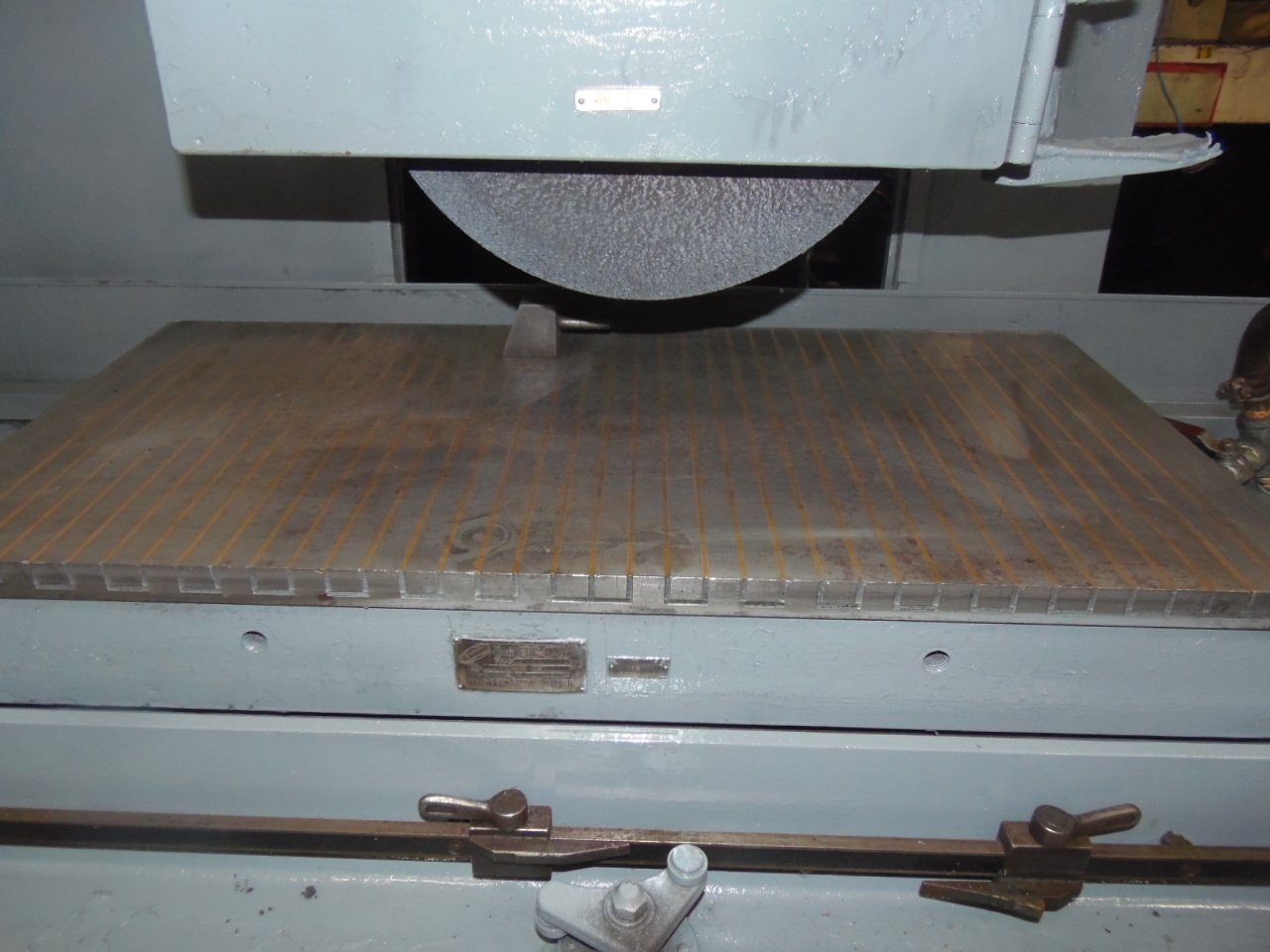

MAGNETIC CHUCK SIZE.................... 31.5" X 15.7"
FEEDS:
LONGITUDINAL FEED...................... 3 TO 83 FPM
MANUAL LONGITUDINAL FEED............... 2.47"
CROSS FEED:
HYDRAULIC INTERMITTENT............ 0.04" TO 0.275"
HYDRAULIC CONTINUOUS.............. .63" TO 3.3 FPM
HAND FEED PER REVOLUTION.......... 0.2"
GRADUATION OF WHEEL............... 0.001"
VERTICAL FEED OF WHEEL HEAD:
AUTO DOWN FEED (7 STEPS).......... 0.00015" - .0011"
HAND FEED PER REVOLUTION.......... 0.04"
GRADUATION OF HAND WHEEL.......... 0.0002"
RAPID FEED RATE................... 19 IPM
STANDARD GRINDING WHEEL SIZE...... 14" X 1-1/2" X 5"
SPINDLE WHEEL SPEED............... 1800 RPM
OVERALL DIMENSIONS APPROXIMATELY.. 74' X 103" X 73" H
WEIGHT APPROXIMATELY.............. 4,900 LBS.
EQUIPPED WITH:
WALKER VARIABLE CHUCK CONTROLS
AUTOMATIC DOWN FEED

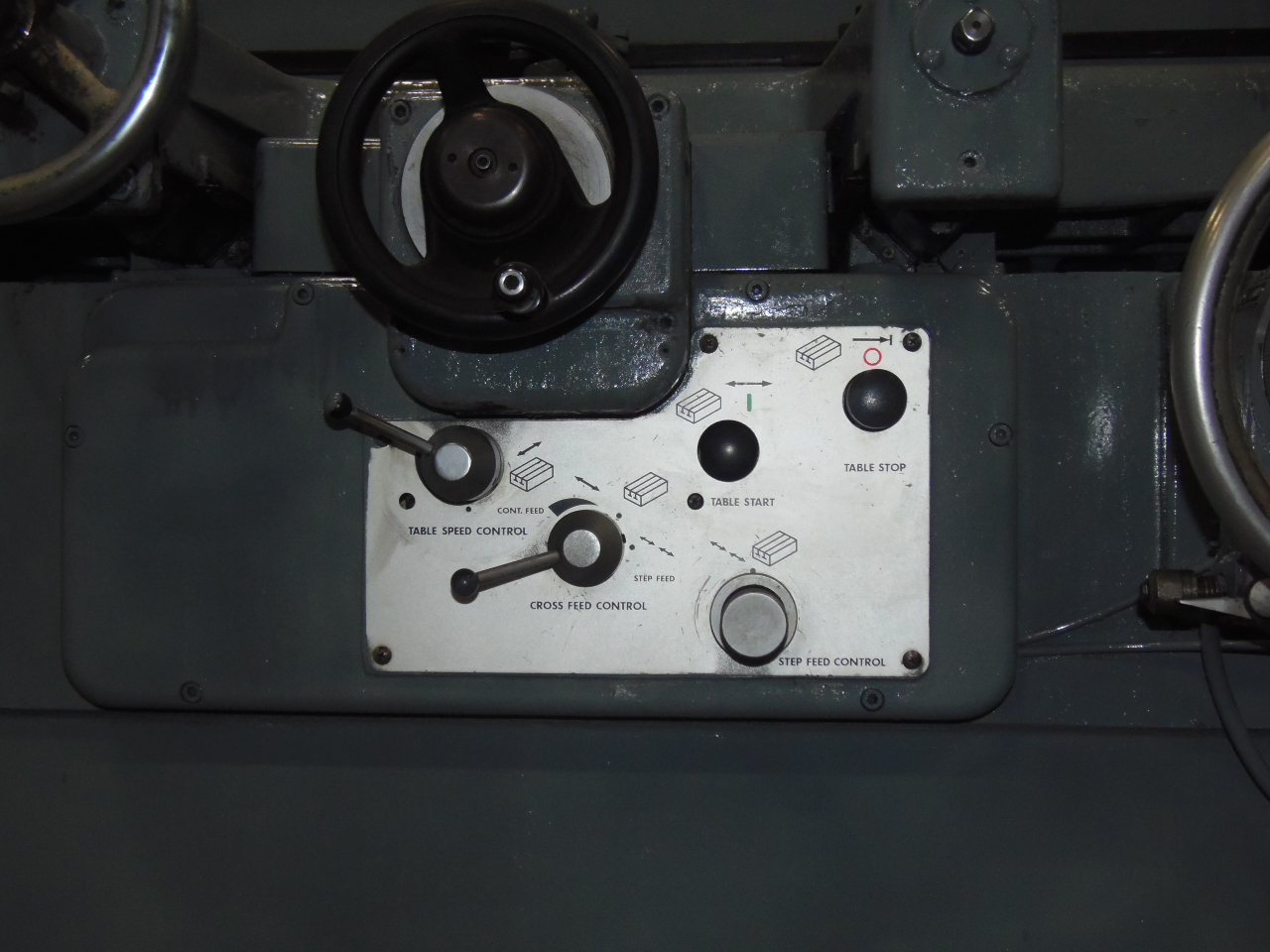

HYDRAULIC POWER LONGITUDINAL AND CROSS FEEDS
POWER WHEEL HEAD ELEVATION
SPINDLE DRIVE MOTOR AND CONTROLS 5 HP
WIRED 3/60/230/460 VOLT
HYDRAULIC PUMP MOTOR 3 HP
VERTICAL RAPID FEED MOTOR 1/4 HP

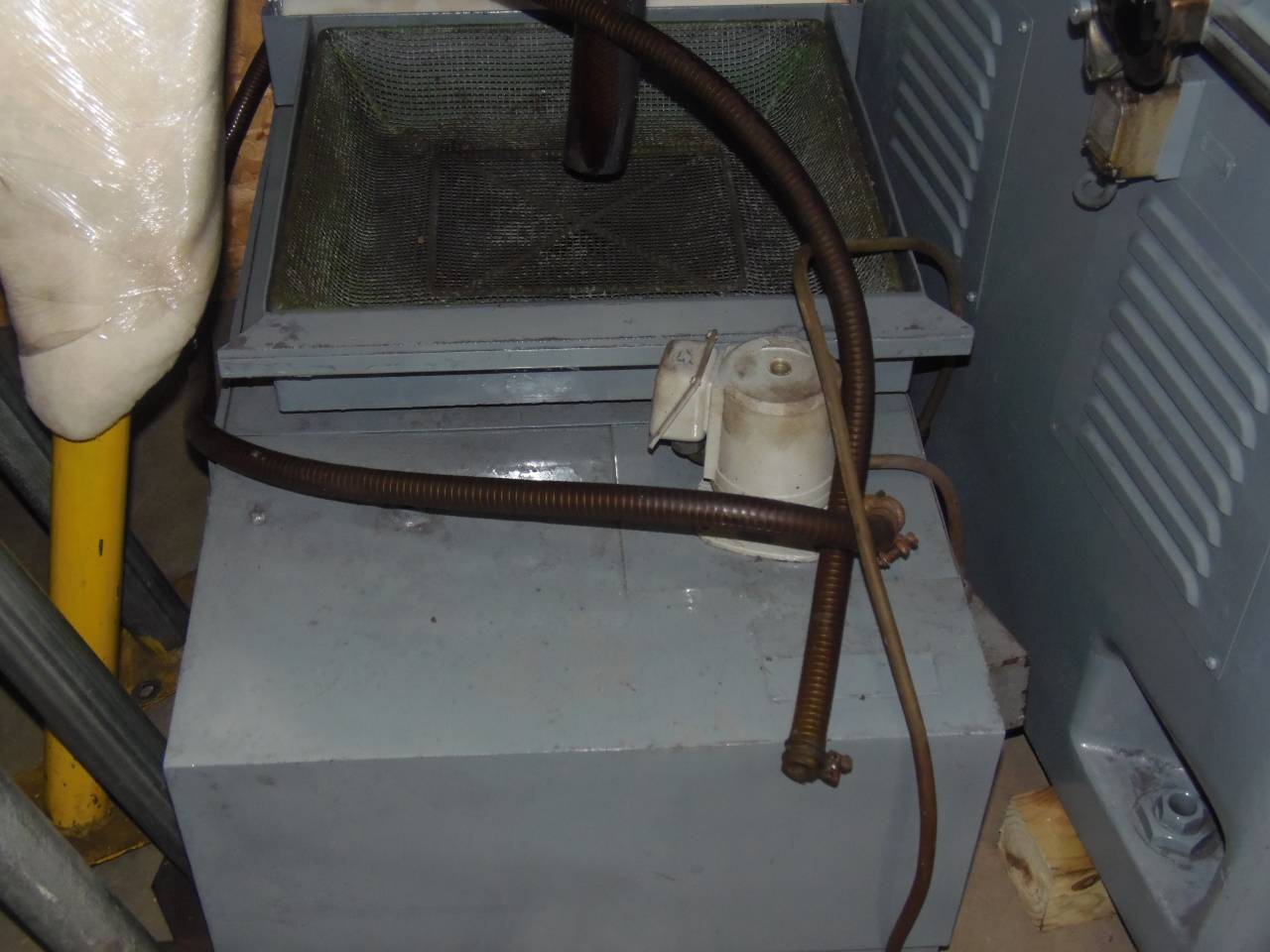

COOLANT PUMP AND TANK WITH MAGNETIC SEPARATOR

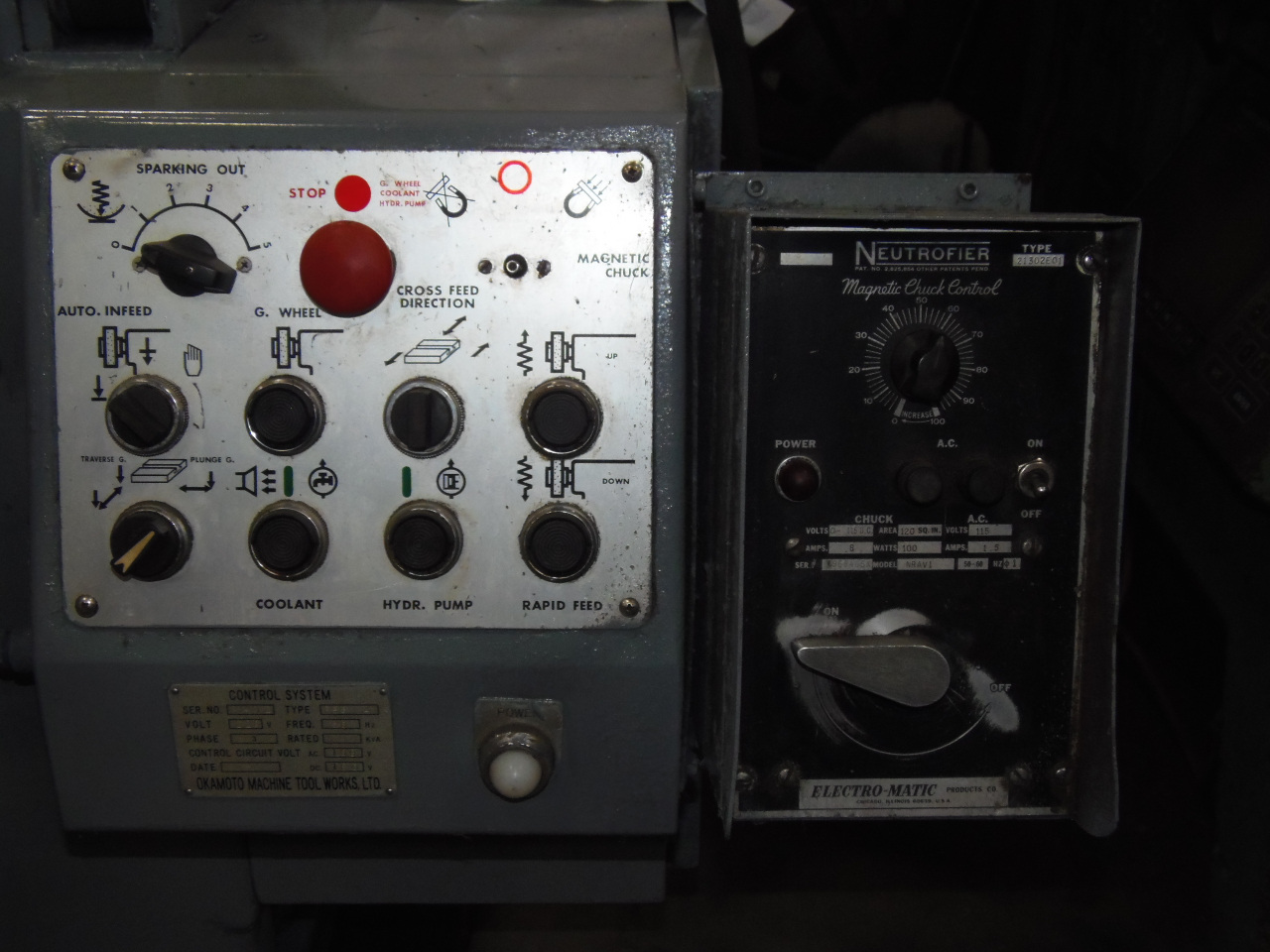

PUSH BUTTON CONTROL STATION
AUTOMATIC LUBRICATION SYSTEM
TABLE SPLASH GUARDS
