GENERAL SPECIFICATIONS:
MANUFACTURER......................... OKAMOTO
MODEL................................ ACC-1632DX
SERIAL............................... 68243
NEW (APPROX.)........................ 1993
GRINDING CAPACITY.................... 16"W x 32"L
VERTICAL CLEARANCE................... 21.5" (W/12" WHEEL)
LOAD CAPACITY........................ 1540 LBS.
KANETSU CHUCK SIZE................... 15.75" X 31.5"
MAX. MANUAL CROSS TRAVEL............. 18"
MAX. MANUAL LONGITUDINAL TRAVEL...... 38"
GRINDING WHEEL....................... 12"/14" x 1.5" x 5"
GRINDING WHEEL MOTOR................. 5 HP
DIMENSIONS (APPROX.)................. 130" x 85" x 82.5"
WEIGHT (APPROX.)..................... 8,800 LBS.
EQUIPPED WITH:

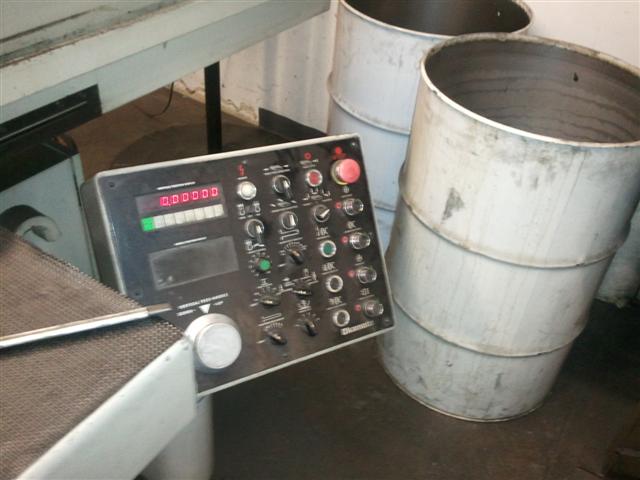

AUTO INCREMENTAL DOWN FEED USING LSI CONTROL SYSTEM
OVER THE WHEEL HYDRAULIC DRESSER
16 x 32 ELECTRO MAG CHUCK
COOLANT SYSTEM WITH PAPER FILTRATION
JUST CHECKED OUT FOR OPERATION AND ACCURACY
