Specifications
Equipped With
GENERAL SPECIFICATIONS:

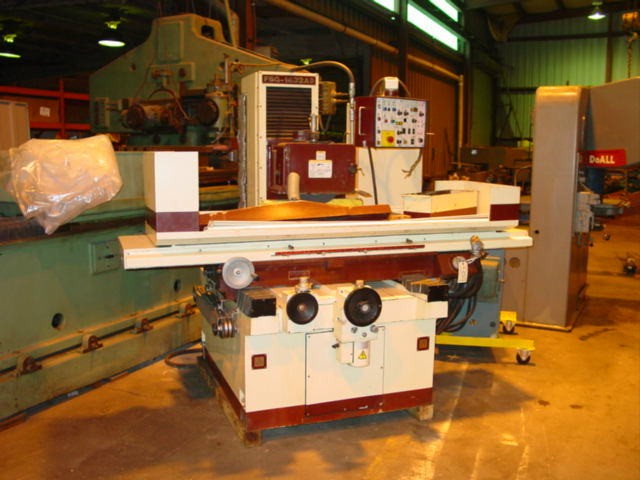

MANUFACTURER............................ CHEVALIER
MODEL #................................. FSG-1632AD
TABLE SIZE.............................. 15-3/4" X 31-1/2"
MAX. GRINDING LENGTH (LONGITUDINAL)..... 32"
MAX. GRINDING WIDTH (CROSSWISE)......... 16"
MAX. DIST. FROM TABLE SURFACE TO
SPINDLE CENTER LINE (NORMAL COLUMN).. 24-3/8"
STANDARD MAGNETIC CHUCK SIZE............ 15-3/4" X 31-1/2"
LONGITUDINAL TRAVEL, HYDRAULIC.......... 33-7/16"
MAX. TRAVEL, MANUAL..................... 35-3/8"
TABLE SPEED, INFINITELY VARIABLE........ 16 - 82 FPM
CROSS TRANSVERSE TRAVEL
RAPID TRAVLE (APPROX.)............... 60 HZ/12 FPM
AUTOMATIC TRAVERSE INCREMENT......... 1/8" - 1-1/4"
MAX. AUTOMATIC TRANSVERSE TRAVEL..... 16"
MAX. MANUAL TRANSVERSE TRAVEL........ 18"
HANDWHEEL PER REVOLUTION............. 0.25"
HANDWHEEL PER GRADUATION............. 0.0025"
MICRO FEED PER REVOLUTION............ 0.005"
MICRO FEED PER GRADUATION............ 0.00005"
WHEELHEAD VERTICAL
AUTOMATIC INFEED (FOR AD MDL ONLY)... 0.00005" - 0.002"
HANDWHEEL PER REVOLUTION............. 0.05"
HANDWHEEL PER GRADUATION............. 0.0005"
MICRO FEED........................... 0.00005" & 0.0001"
RAPID TRAVEL (APPROX.)............... 60 HZ/8 IPM
GRINDING SPINDLE DRIVE
SPEED................................ 60 HZ/1750 RPM
POWER RATING......................... 3.7 KW
STANDARD GRINDING
DIAMETER............................. 14"
WIDTH................................ 2"
BORE................................. 5"
FLOOR SPACE............................. 132" X 68" X 76"
WEIGHT (APPROX.)........................ 7,826 LBS.
RATED POWER (APPROX.)................... 7.4 KW
ELECTRICS............................... 230/460V, 3PH, 60CY
EQUIPPED WITH:
16" X 32" ELECTROMAGNETIC CHUCK COOLANT
DUST COLLECTOR
