GENERAL SPECIFICATIONS

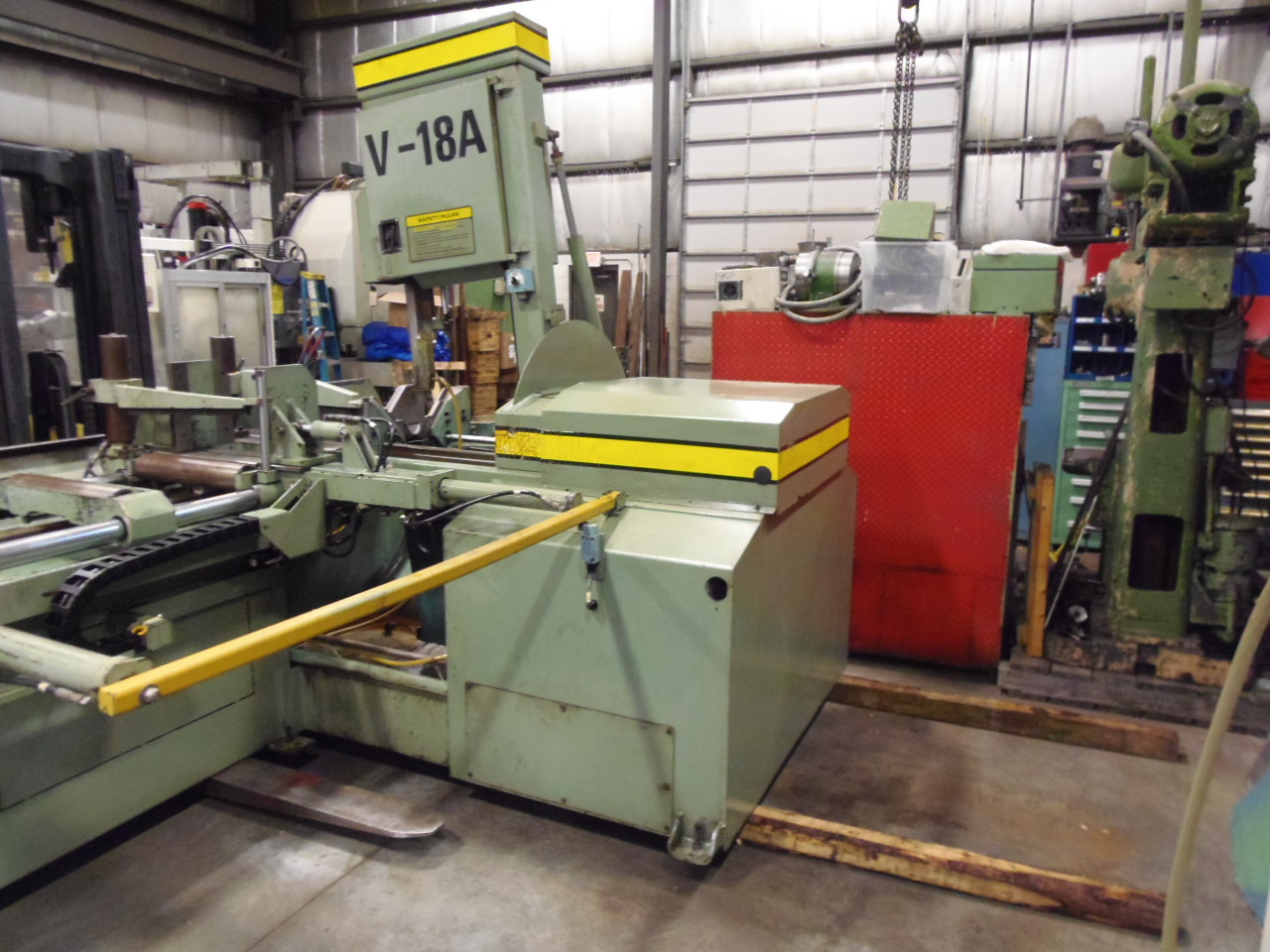

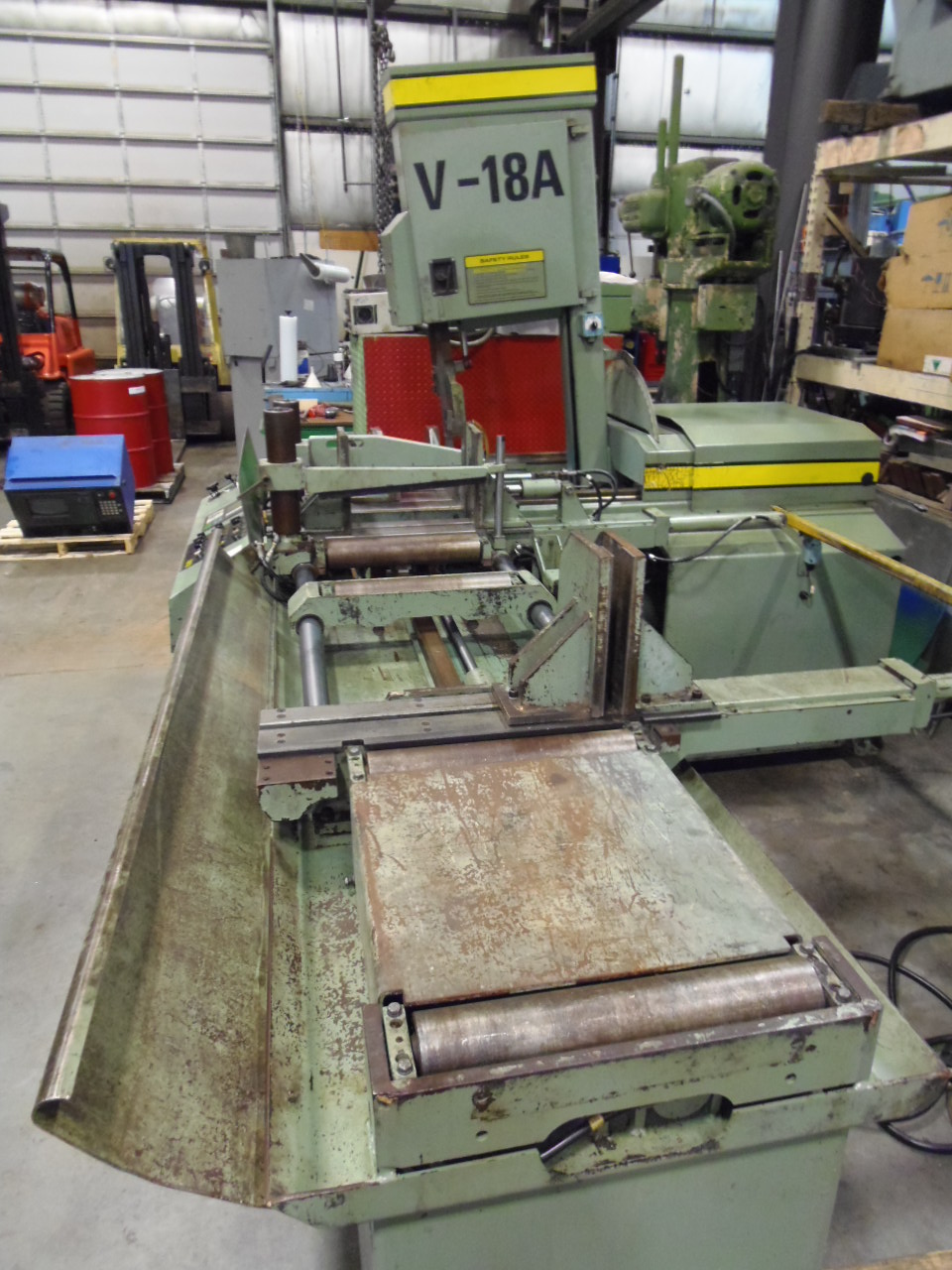

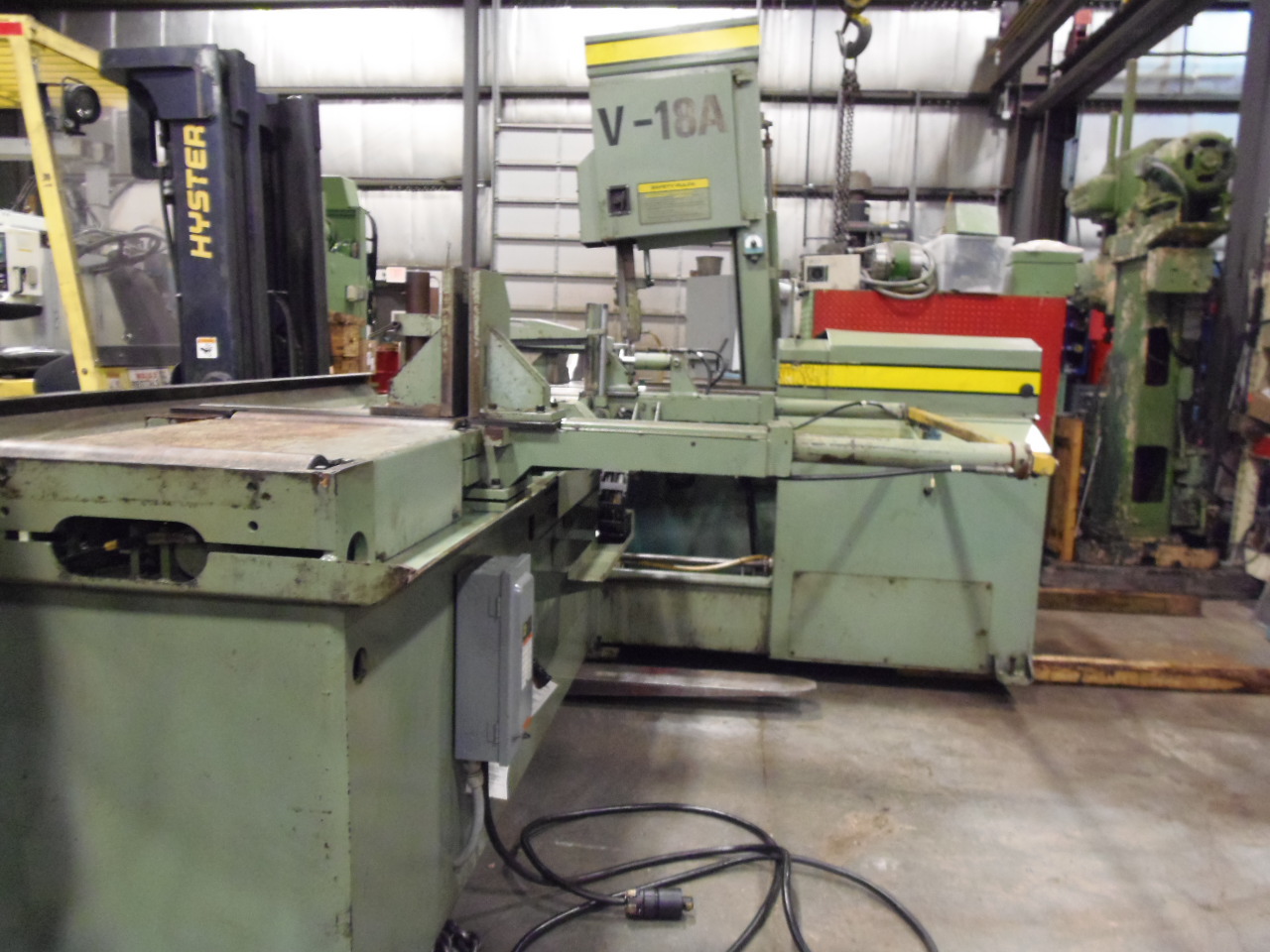

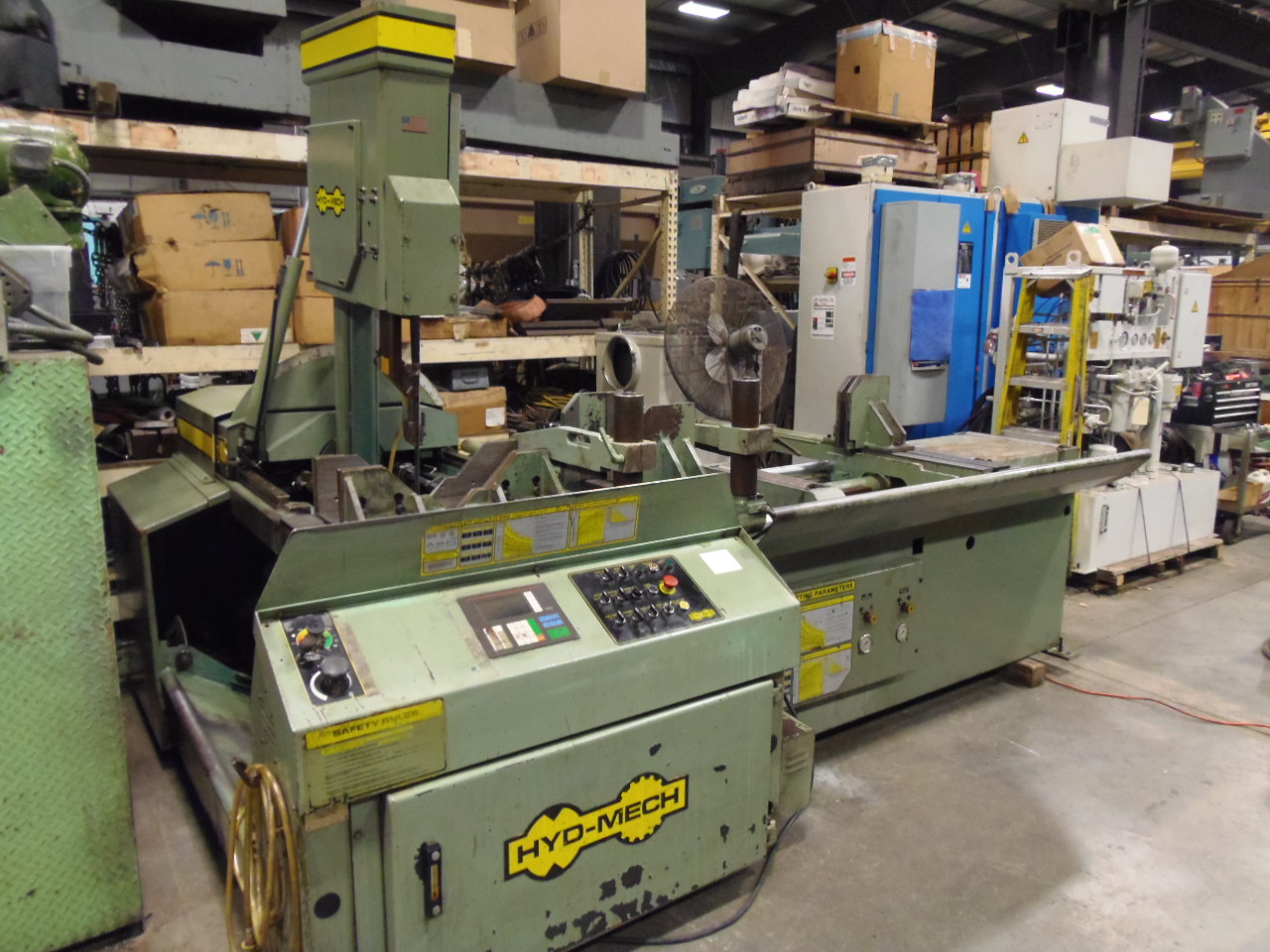

MAKE.................. HYD-MECH
MODEL................. V-18-APC
SERIAL NUMBER......... K1199195
AGE (YEAR)............ 1999
CUTTING CAPACITY AT 90 DEGREES:
RECTANGULAR........ 18" x 20"
ROUND.............. 18" DIAMETER
CUTTING CAPACITY AT 45 DEGREES:
RECTANGULAR........ 18" X 13"
ROUND.............. 13" DIAMETER
BLADE LENGTH.......... 14' X 11"
BLADE WIDTH........... 1.25"
BLADE SPEED........... 65-385 SFM
BLADE MOTOR........... 7.5 HP
MAX SHUTTLE STROKE.... 40" SINGLE STROKE
HYDRAULIC MOTOR....... 2 HP
HYDRAULIC TANK CAP.... 7 GAL.
TABLE HEIGHT.......... 38"
WORKLOAD.............. 8000 LBS.
DIMENSIONS............ 12' x 102" W x 6' H
WEIGHT (APPROX)....... 7,000 LBS>
EQUIPPED WITH:

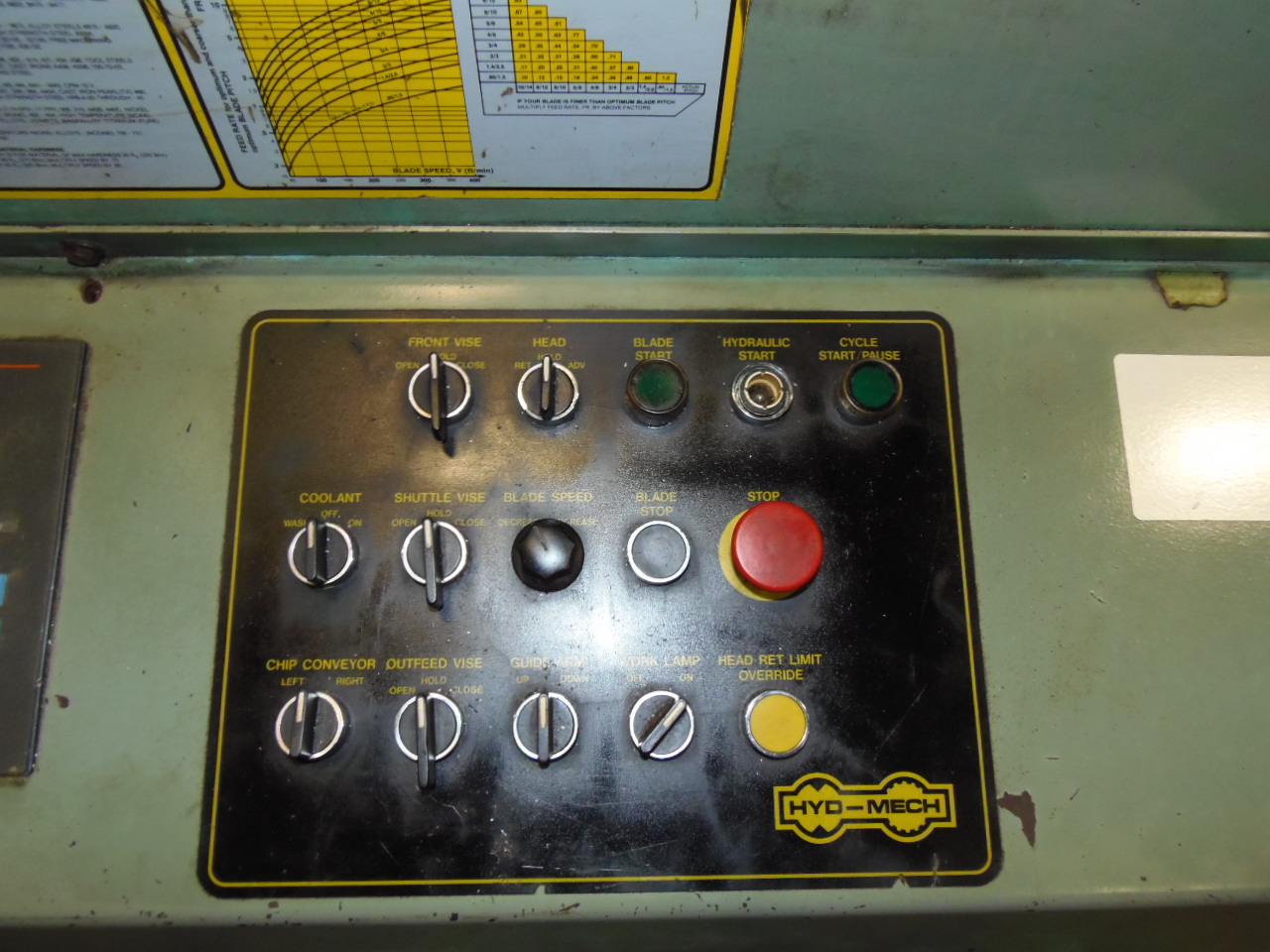

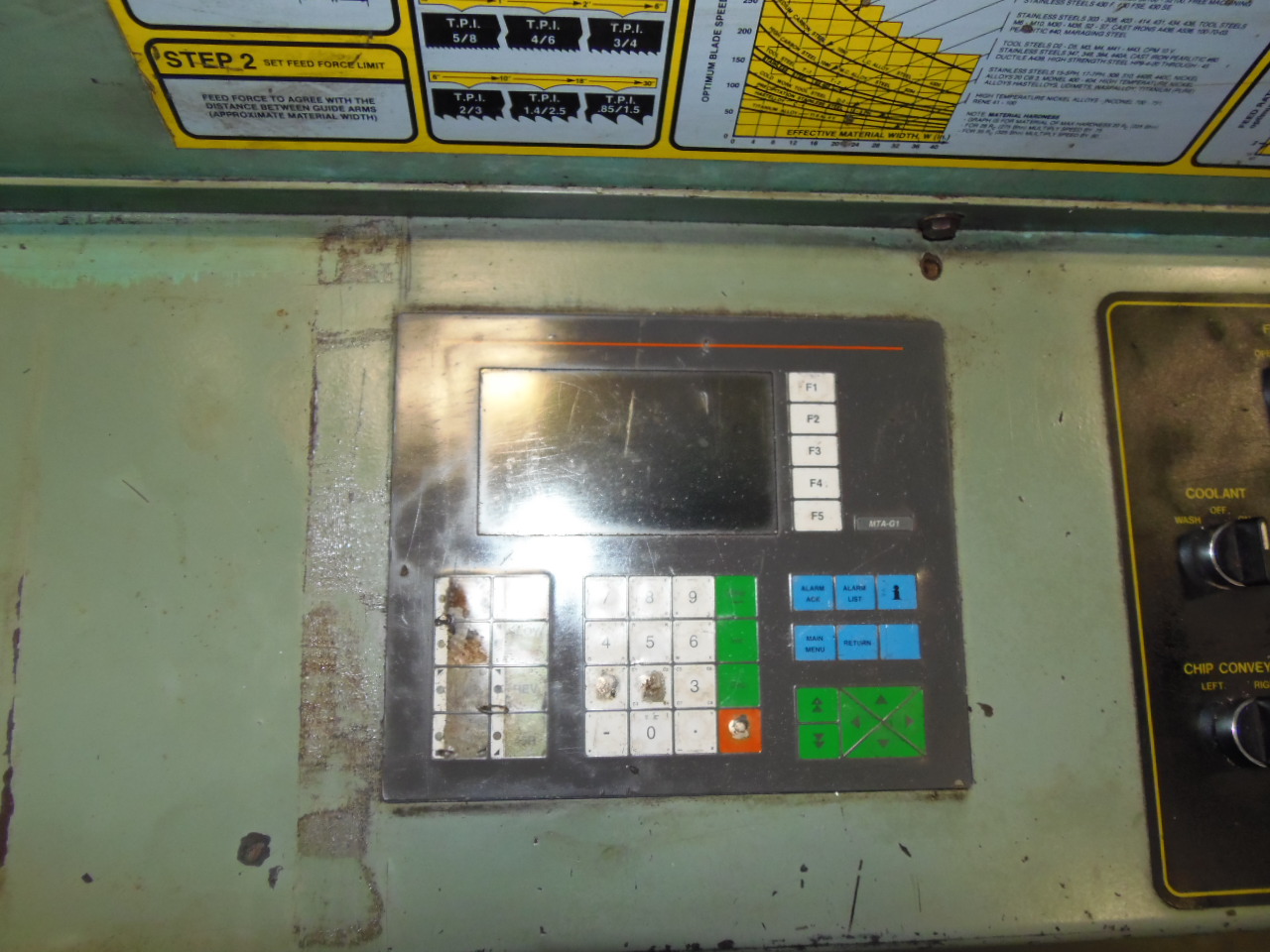

PLC CONTROL
BUNDLE CUTTING

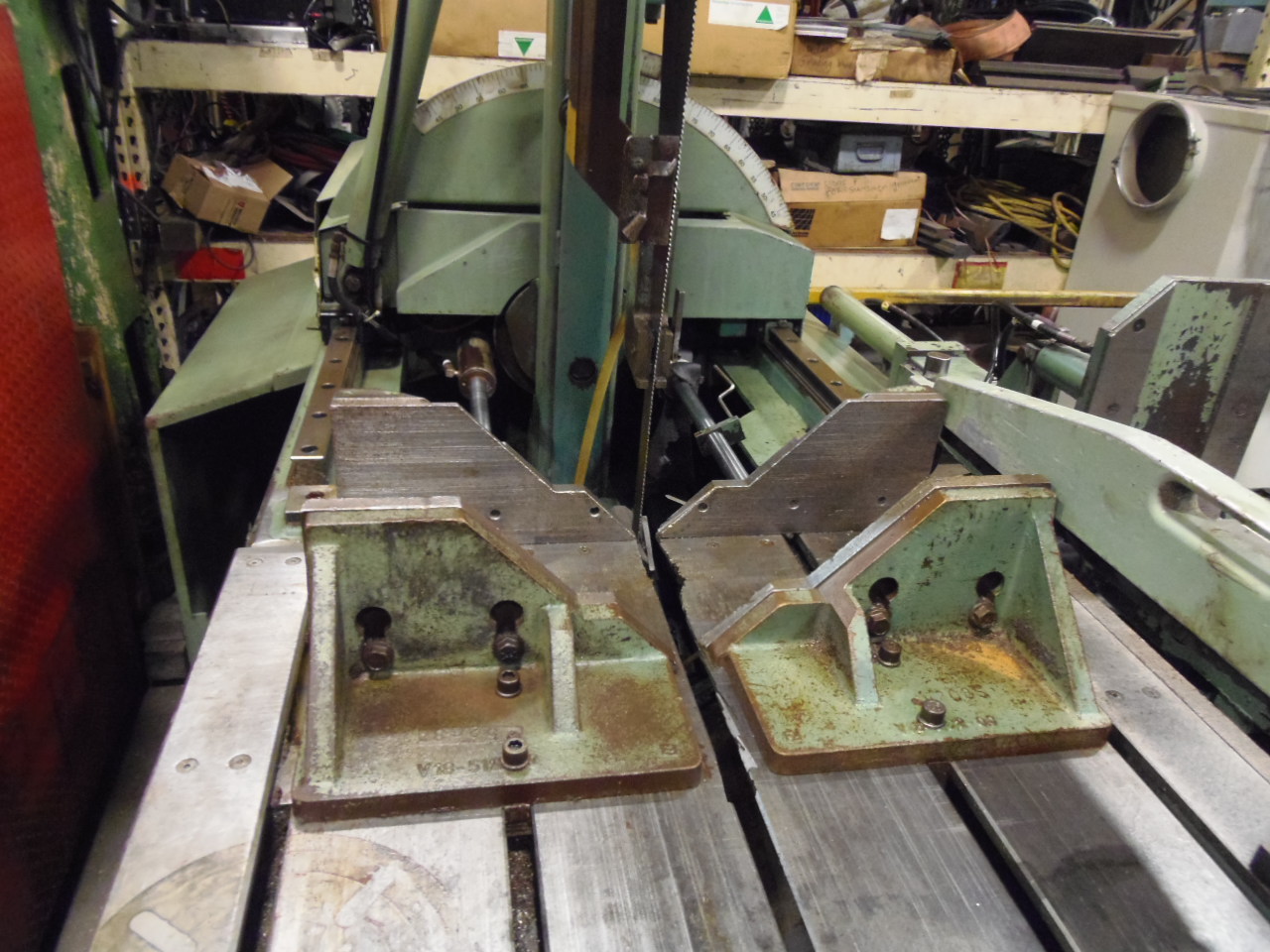

MITERING
ONE SET OF INFEED CONVEYOR 7'
SPECIFICATIONS SUBJECT TO VERIFICATION
