Specifications
Equipped With
PROMA ROLL FORMING LINE; LINE USED FOR MANUFACTURING PANELS FOR METAL BUILDINGS WITH A ROLL SPACE OF 18" TO 152"; INCLUDES THE FOLLOWING:

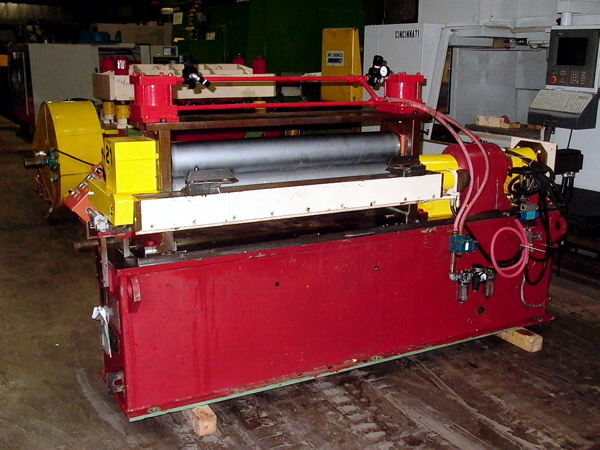

PROMA ROLL FEEDER 50 PR-01
MANUFACTURER........................PROMA
MODEL...............................50 PR-01
YEAR BUILT..........................JAN. 23, 1986
SERIAL#.............................468 DEVILB
CAPACITY............................????
ROLL LENGTH.........................50"
MAIN MOTOR HP.......................11.5 HP - 4000 RPM
INV# 8990

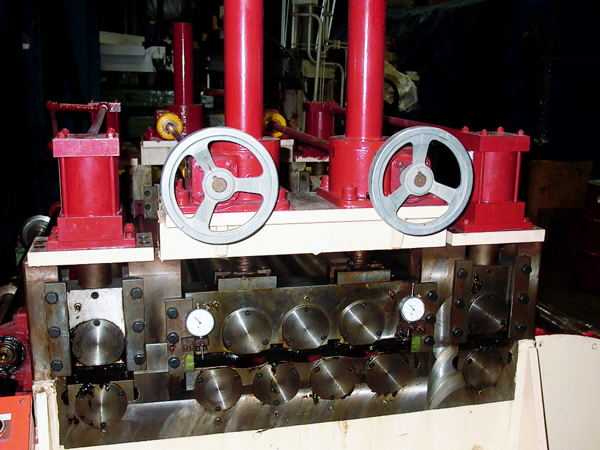

PROMA 4FL-7-02 FLATTENER
MANUFACTURER........................PROMA
MODEL...............................4FL-7-02
YEAR BUILT..........................JAN. 23, 1986
SERIAL#.............................467 DEVILB
CAPACITY............................????
ROLL LENGTH.........................50"
ROLL DIAMETER.......................4"
MAIN MOTOR HP.......................15 HP (DC)
NUMBER OF ROLLS.....................11
EQUIPPED WITH:
PEDESTAL CONTROL PANEL
INV# 8989

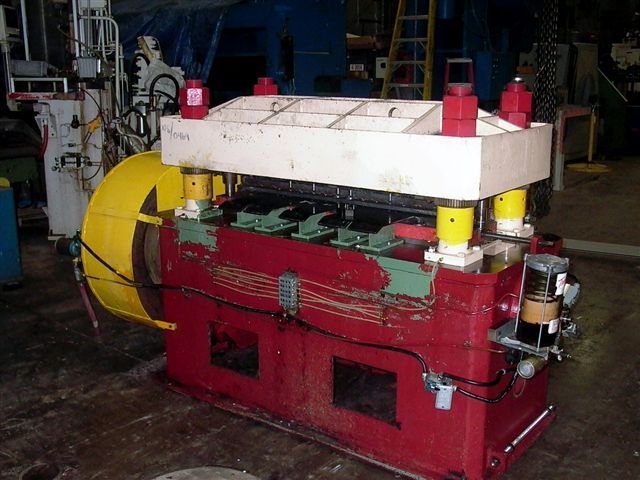

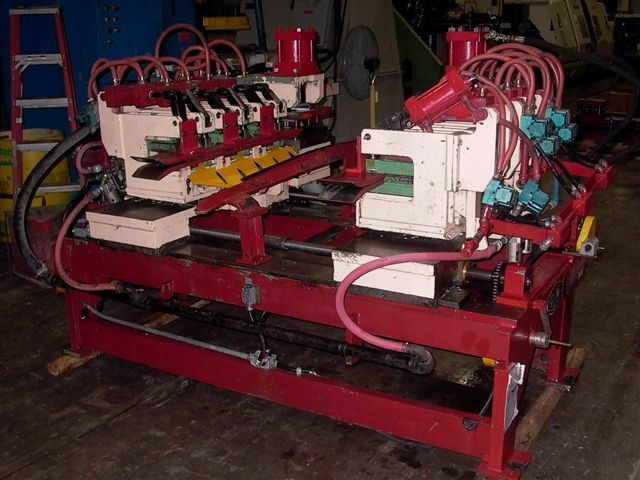

CYLINDER PUNCHING UNIT
GENERAL SPECIFICATIONS:
MANUFACTURER........................PROMA
MODEL...............................CPU-04
AGE APPROXIMATELY...................1986
SERIAL#.............................0469-DEVILB
MAX WIDTH...........................60" VARIABLE
EQUIPPED WITH:
6 UNIPUNCH PUNCHING SYSTEMS ON EACH SIDE OF UNIT
INV# 9017

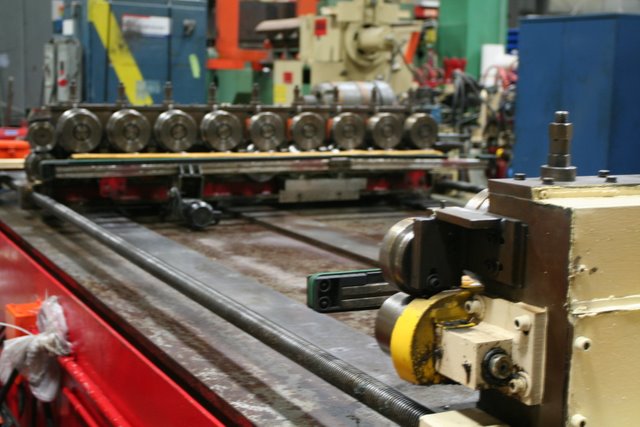

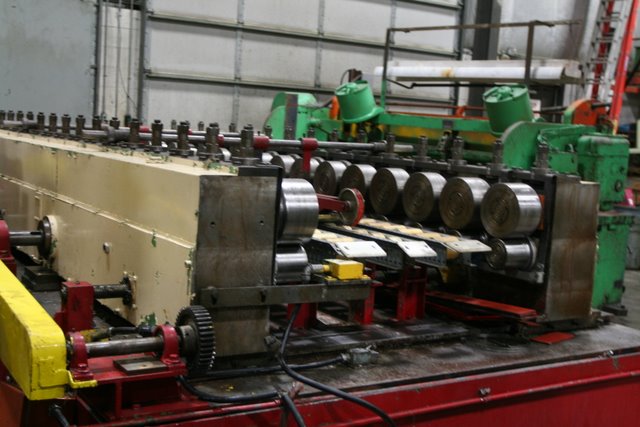

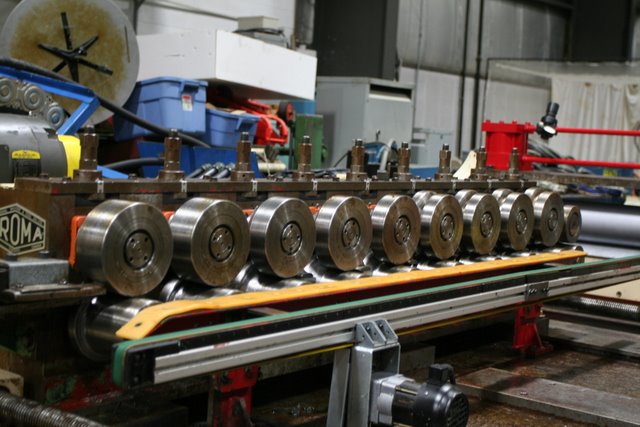

9 STAND 1 3/4 DH-02 ROLL FORMER
GENERAL SPECIFICATIONS
MANUFACTURER........................PROMA
AGE APPROXIMATELY...................1986
MODEL...............................1 3/4 DH-02
SERIAL#.............................472-DEVILB
NUMBER OF SPINDLES..................9
SPINDLE DIAMETER....................1 3/4"
SPINDLE KEYWAY......................1/4" X 1/8"
BASE TO SPINDLE BOTTOM..............6 5/8"
VERTICAL CENTERS....................4 1/2" TO 5 1/2"
HORIZONTAL CENTERS..................8"
MAIN MOTOR..........................10 HP
ROLL SPACE..........................18" TO 152"
SPINDLE GEAR RATIO..................1:1.5
DRIVE HOUSING REDUCTION RATIO.......30:1
INV# 9021

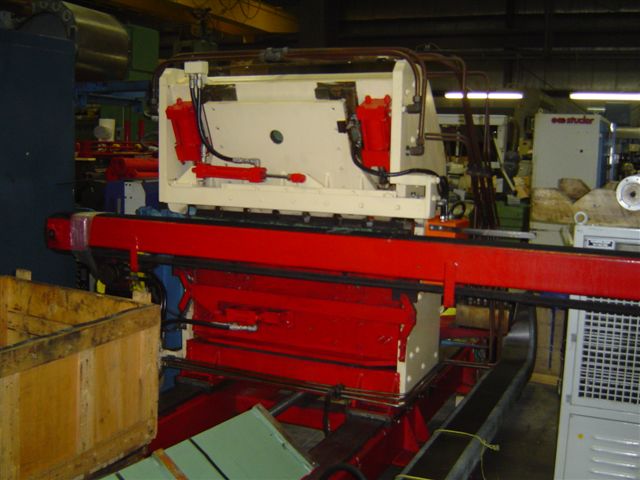

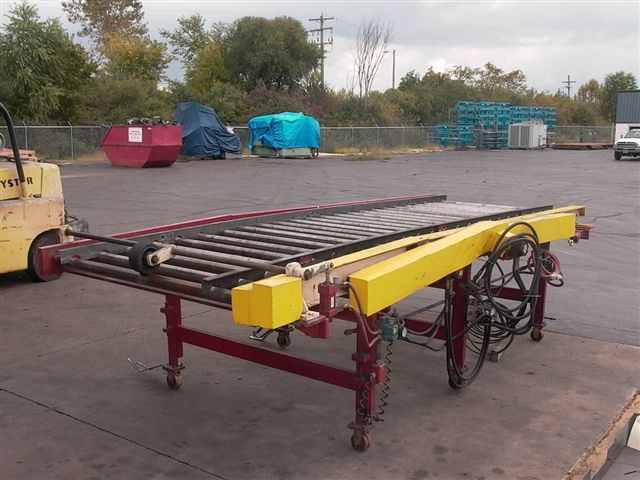

END BENDER UNIT
MANUFACTURER........................PROMA
MODEL...............................EB-01
AGE APPROXIMATELY...................1986
SERIAL#.............................473-DEVILB
RANGE OF MATERIAL (WIDTH)...........18" - 152"
END BENDER UNIT FOR USE WITH ROLL FORMER.
THIS ONE WAS BEING USED WITH A 1.75" DH-02 PROMA
INV# 9020
TEMPORARY SPECIFICATIONS SUBJECT TO FINAL INSPECTION
