Specifications
Equipped With
GENERAL SPECIFICATIONS:

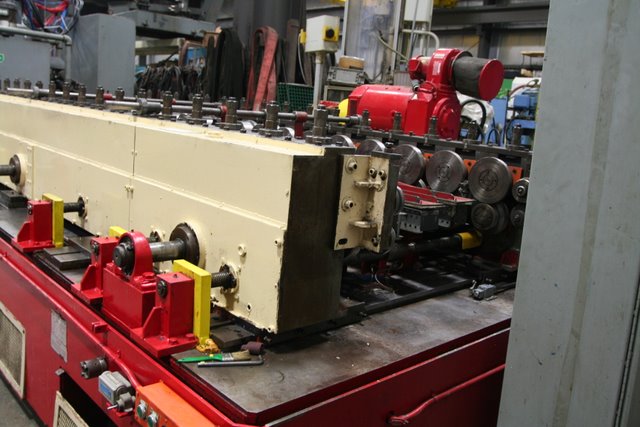

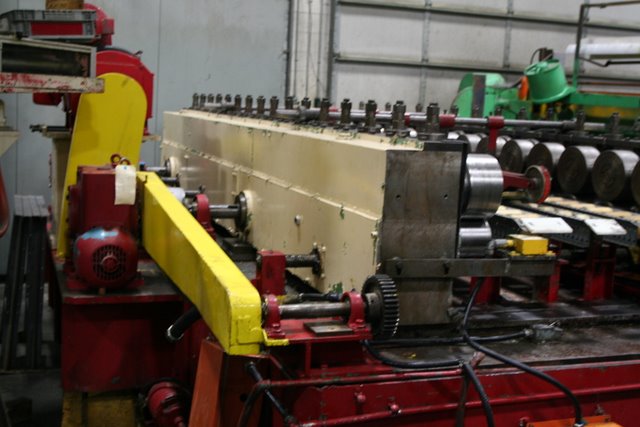

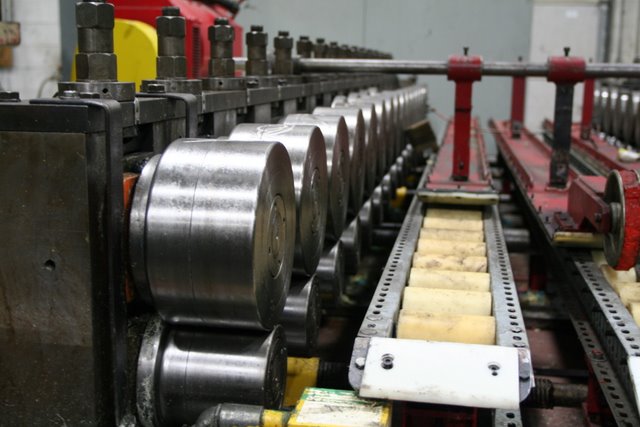

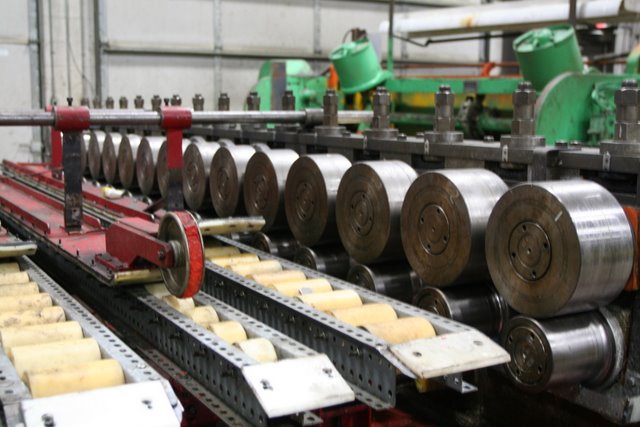

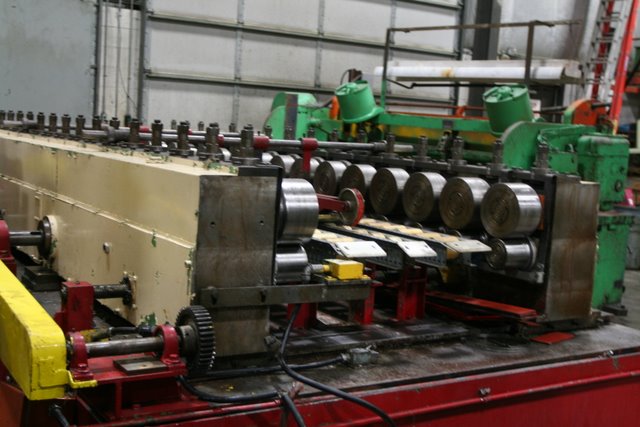

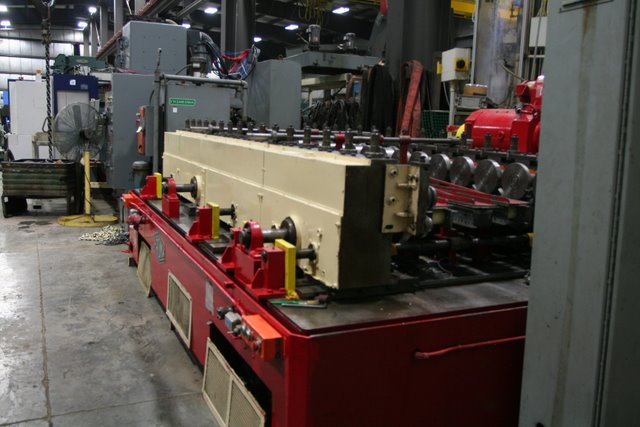

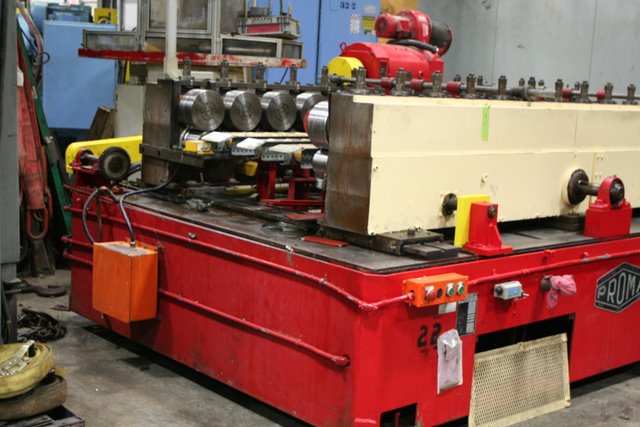

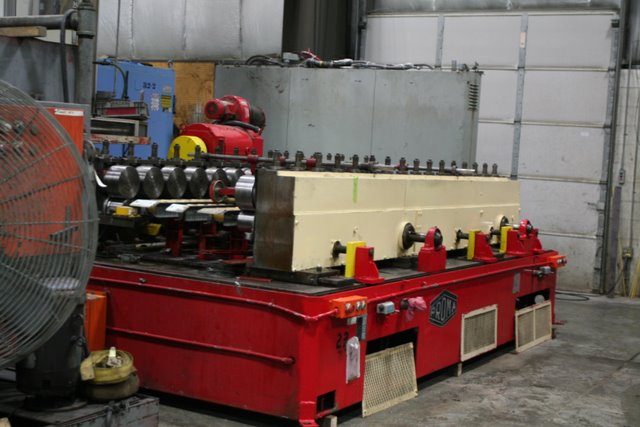

MANUFACTURER...................................PROMA
MODEL..........................................2 1/2 DH-08
SERIAL#........................................465 DEVILB
AGE APPROXIMATELY..............................1986
NO. OF STANDS..................................16
SPINDLE DIAMETER...............................2.5"
ROLL SPACE.....................................18" TO 51"
SPINDLE KEYWAY.................................3/8" AND 3/16"
BASE TO SPINDLE BOTTOM.........................11 3/4"
VERTICAL CENTERS...............................5 1/2" TO 6 1/2"
HORIZONTAL CENTERS.............................9.2"
SPINDLE GEAR RATIO.............................1:14
MAIN MOTOR.....................................50HP
DRIVE HOUSING REDUCTION........................30:1
