Specifications
Equipped With
GENERAL SPECIFICATIONS:

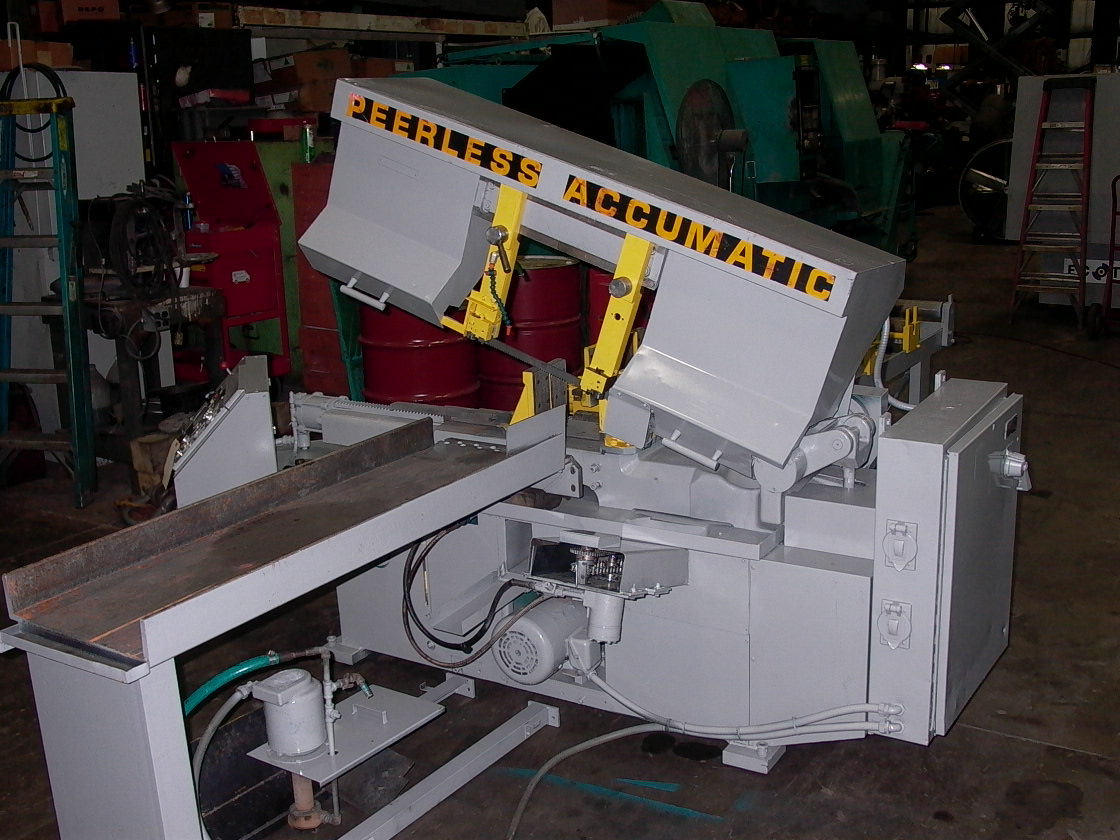

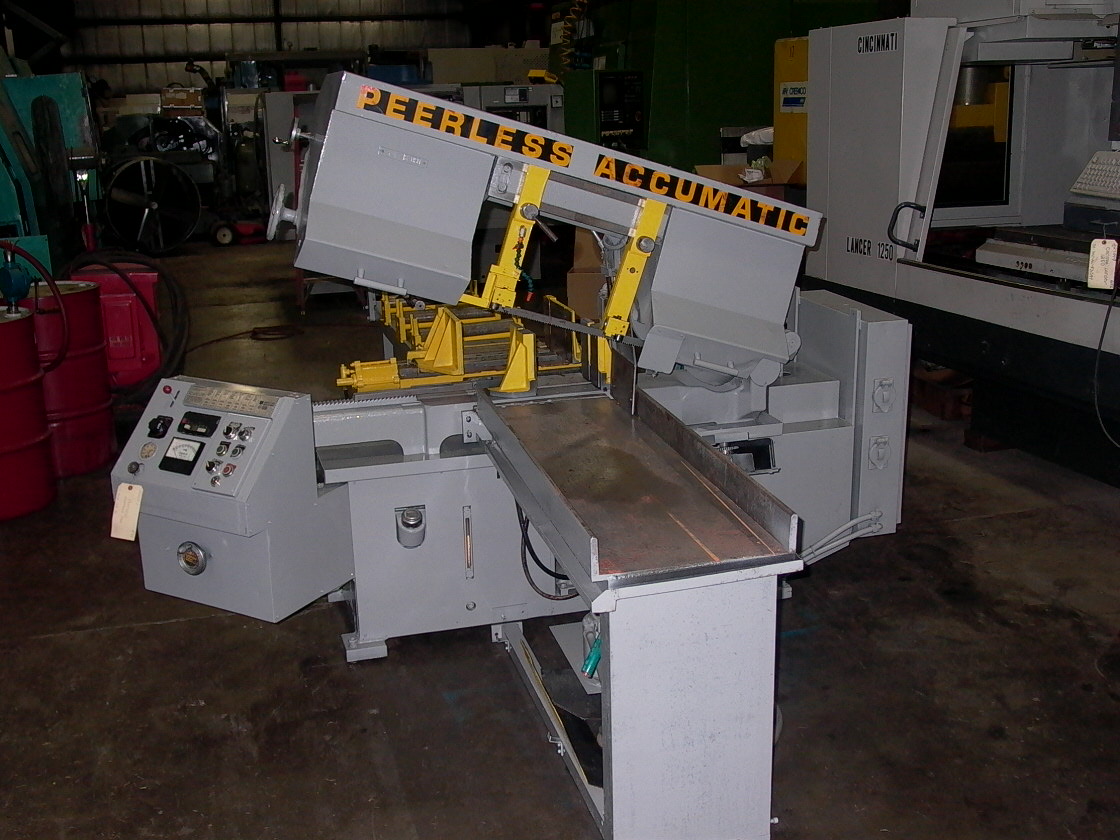

MANUFACTURER........................PEERLESS
MODEL...............................1400
NEW (APPROX.).......................1973
SERIAL #............................AC66-749-73
CAPACITY............................16" x 12"
BLADE SIZE..........................1" x 144"
BLADE THICKNESS.....................(.035)
WHEEL DIAMETER......................18"
BLADE SPEED.........................50 - 450 FPM
BLADE DRIVE MOTOR...................5 HP
HYDRAULIC PUMP MOTOR................1 HP
HYDRAULIC TANK CAPACITY.............11 GALLONS
COOLANT PUMP MOTOR..................1/10 HP
COOLANT TANK CAPACITY...............20 GALLONS
WORK TABLE HEIGHT...................29.5"
DIMENSIONS (APPROX.)................108" x 160" x 78.5"
WEIGHT (APPROX.)....................6,000 LBS.
ELECTRICS...........................440V/3PH
EQUIPPED WITH:

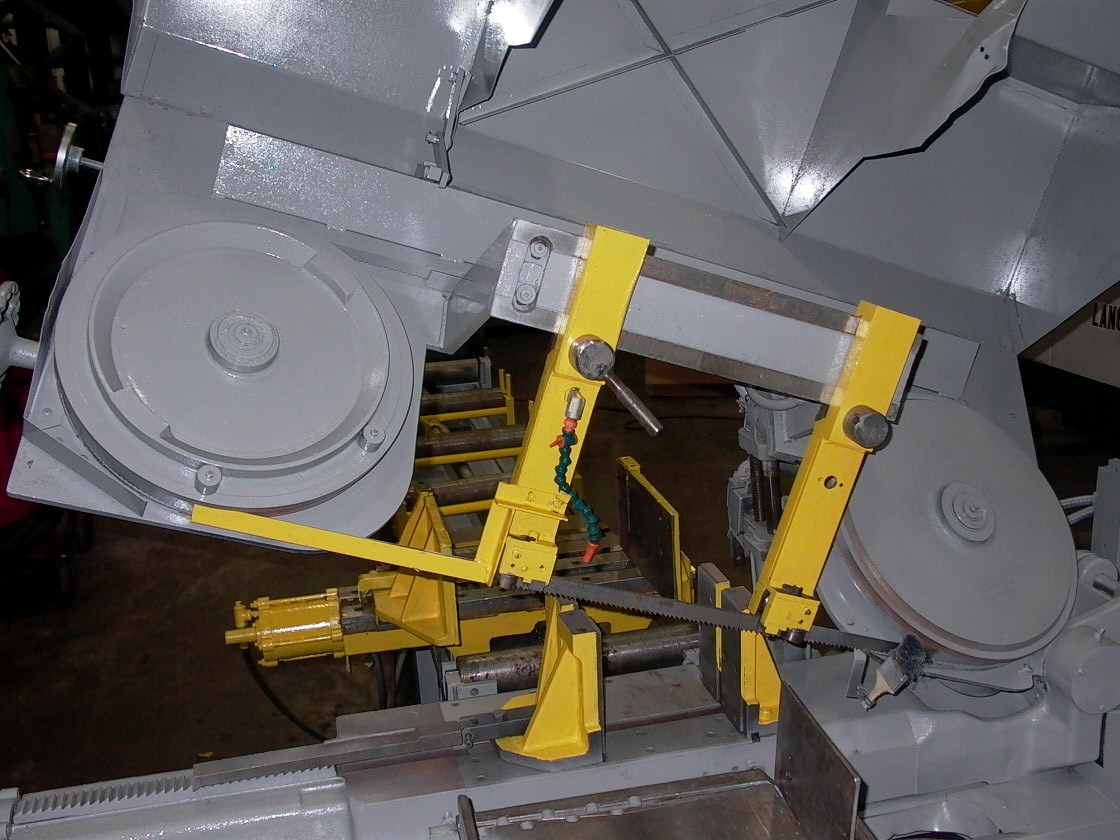

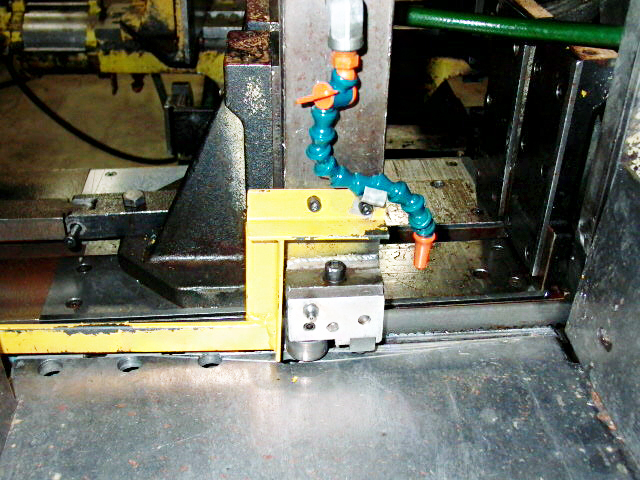

BALL BEARING MOUNTED BLADE GUIDES
VARY SPEED ON THE BLADE
AUTOFEED MECHANISM
COOLANT PUMP
CHIP CONVEYOR

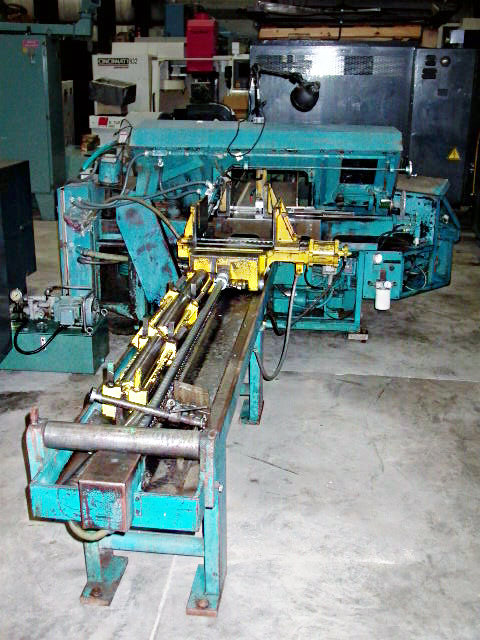

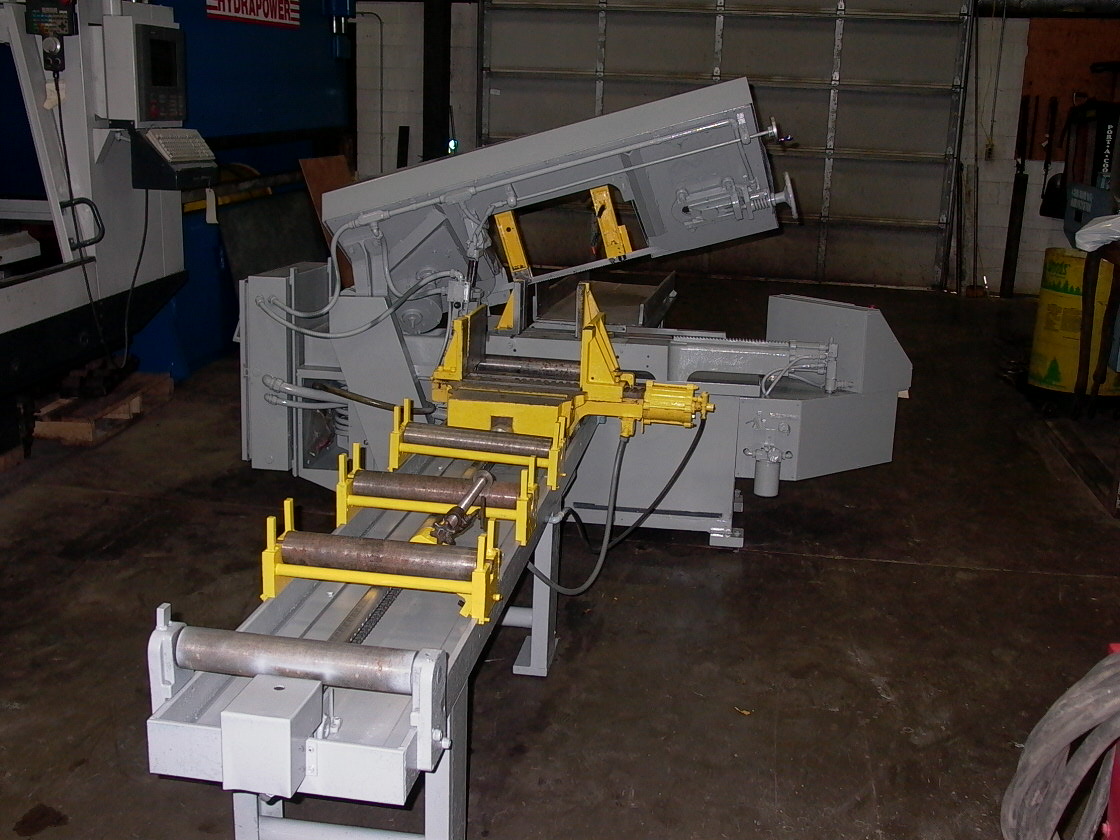

CONVEYOR CARRIAGE/ 1 HP GEAR REDUCTION UNIT W/ BRAKE
