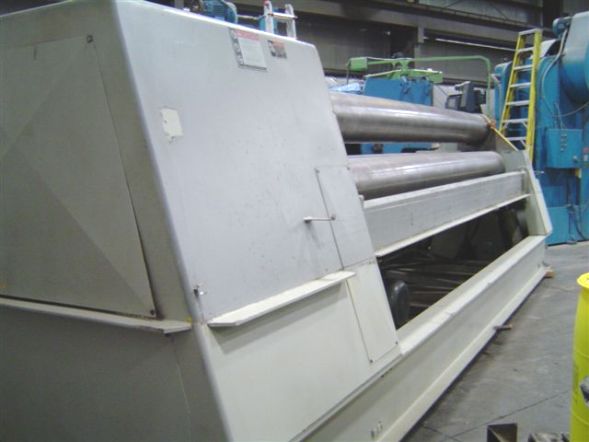

Specifications
Equipped With
GENERAL SPECIFICATIONS:
SERIAL#..................................60444-98
ROLL LENGTH..............................16 FT (406 MM)
ROLLING THICKNESS........................7/16" X 16' (11 X 406)
PREBENDING THICKNESS.....................7/16" (11 MM)
BENDING & PREBENDING BASED ON A36 MAT., 40,000 PSI YIELD
TOP & BOTTOM ROLL DIAMETER...............15" (381 MM)
HYDRAULIC MOTOR HORSEPOWER...............25
APPROX. WEIGHT...........................36,000 LBS
LENGTH X WIDTH X HEIGHT..................251" X 80" X 86"
STANDARD FEATURES:
o All steel structural welded frame construction.
o 1045 Carbon Rolls Hardened To 52-60 Rockwell, Finished To 32-40 RA
o Hydraulic driven rolls which provide instant start, stop and reverse.

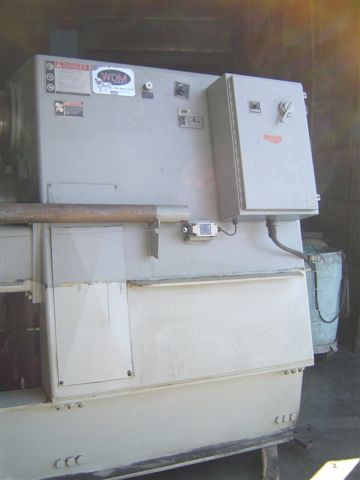

o NEMA 12 control cabinet with fusible disconnect and fuse control transformer
o Electrics meet NFPA 79 Specifications.
o Thermal overload protections.
o Three Roll Drive.
o Spherical roller bearings on all main bearings.
o LSHT type hydraulic drive motor with high volumetric and overall efficiency.
o Infinitely variable speed
o Safety cable around perimeter of machine.
o Machine is controlled by hydraulic directional valves located on machine drive housing.
o Rolls driven through planetary type speed reducers.
o LED type indicators to show roll position.
o Cone Rolling Attachment.

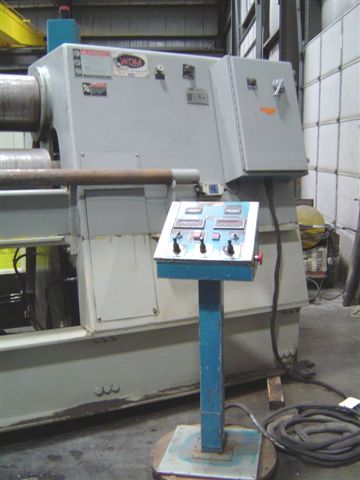

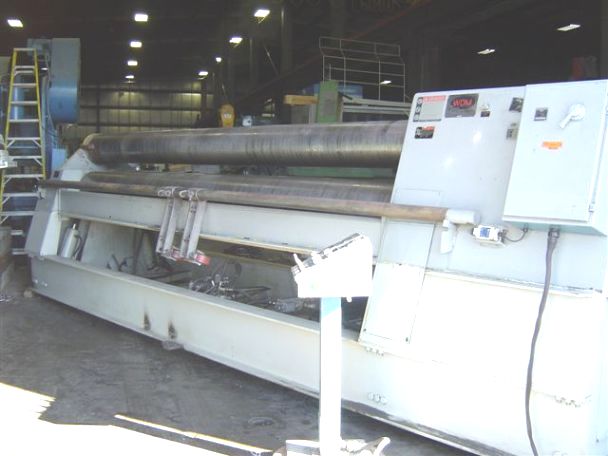

o Movable Control Console to replace standard manual valves.
o Ability to roll symmetrical steel sections without additional attachments.

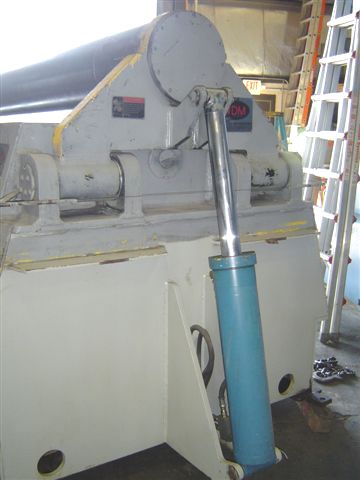

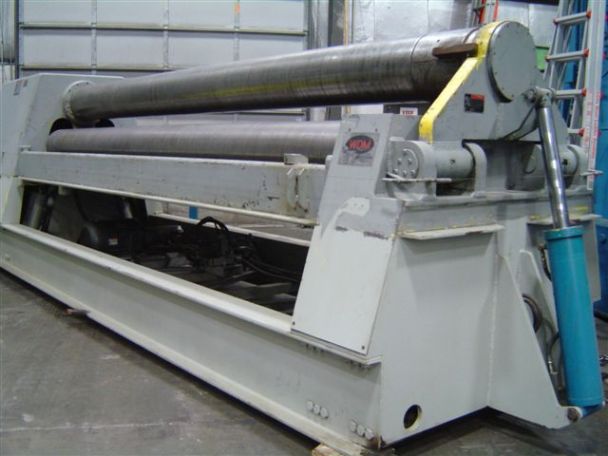

o Hydraulic Operated drop end support
o Components supplied by SKF, Torrington, Continental, Browning, Char-Lyn, Torque Hub, Morse, NTN, Telemechanique, Modular Controls, Hoffman, Red Lion, Hydra, Linn Gear,
o Both lower rolls are adjustable allowing for pinching material for initial rolling proceedure.
