GENERAL SPECIFICATIONS:
MANUFACTURER................... BOSCHERT
MODEL.......................... LB14
AGE............................ 1996
SERIAL NUMBER.................. 91
MACHINE WEIGHT................. 1700 LBS

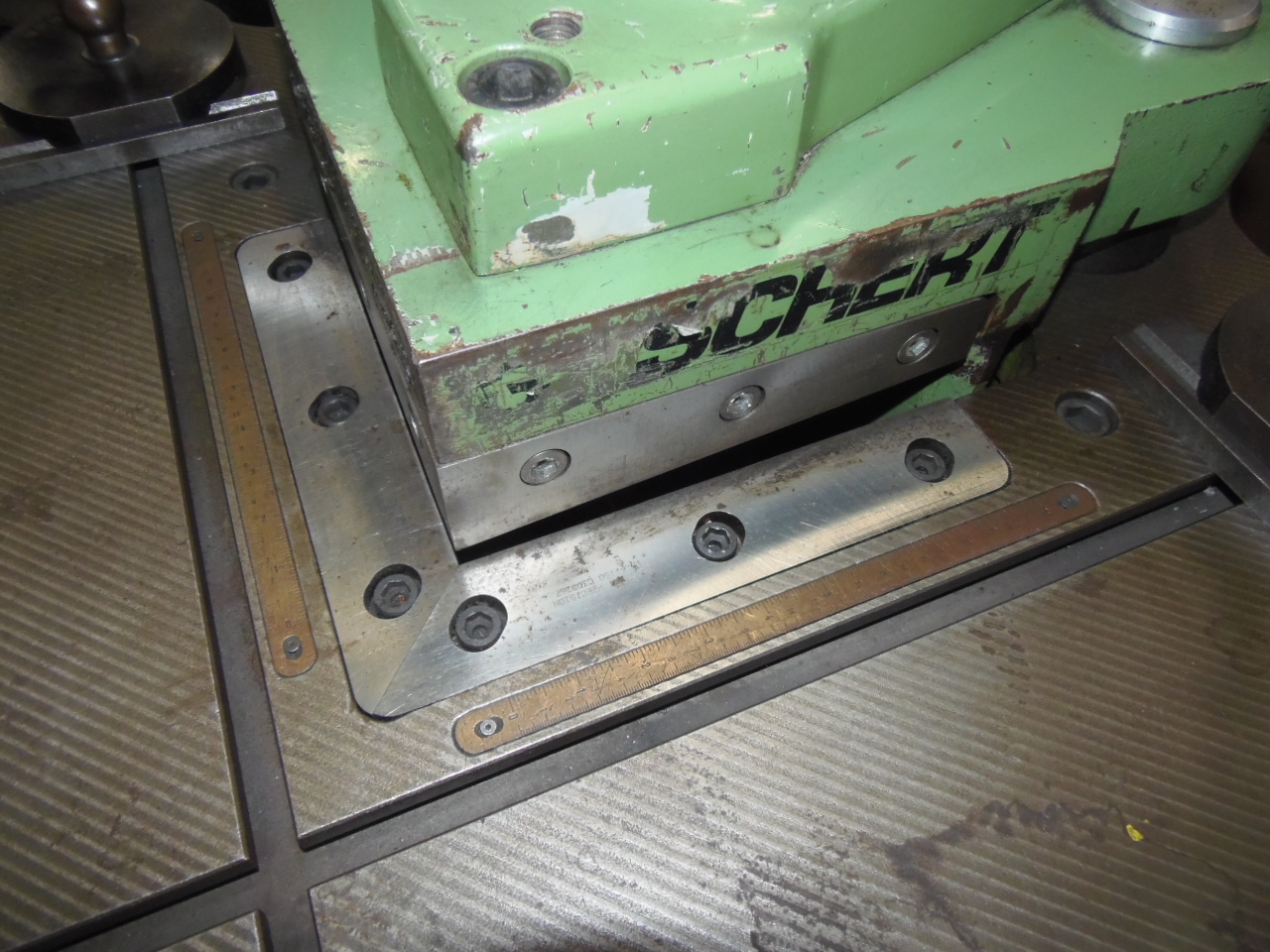

STATION 1
NOTCHING AT A FIXED 90 DEGREE ANGLE
MAX. STROKE IS 1.417"
WORKING STROKES 50 STROKES/MIN.
CUTTING LENGTH IS 8 7/8" X 8 7/8"
CAPACITY IN MILD STEEL IS 5/32"
CAPACITY IN STAINLESS IS 10 GA.

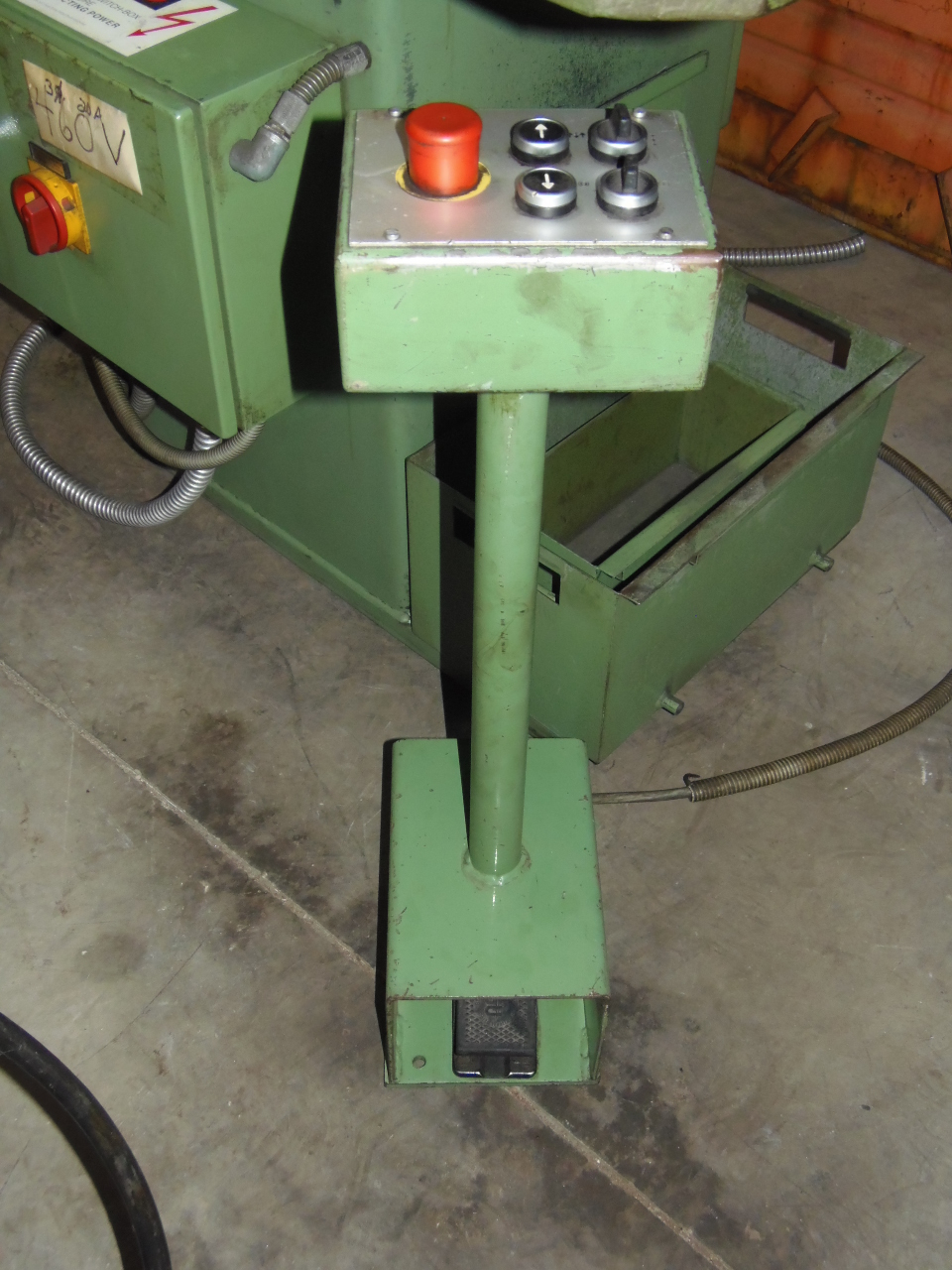

INCLUDES INTERNAL STOP BAR WITH SCALE FOR SHEARING, TWO TABLE STOPS WITH INTERCHANGEABLE BARS, CLEAR PLASTIC GUARD, MOVABLE FOOT SWITCH, AND STROKE SETTING FOR INC, SINGLE, OR CONTINUOUS.

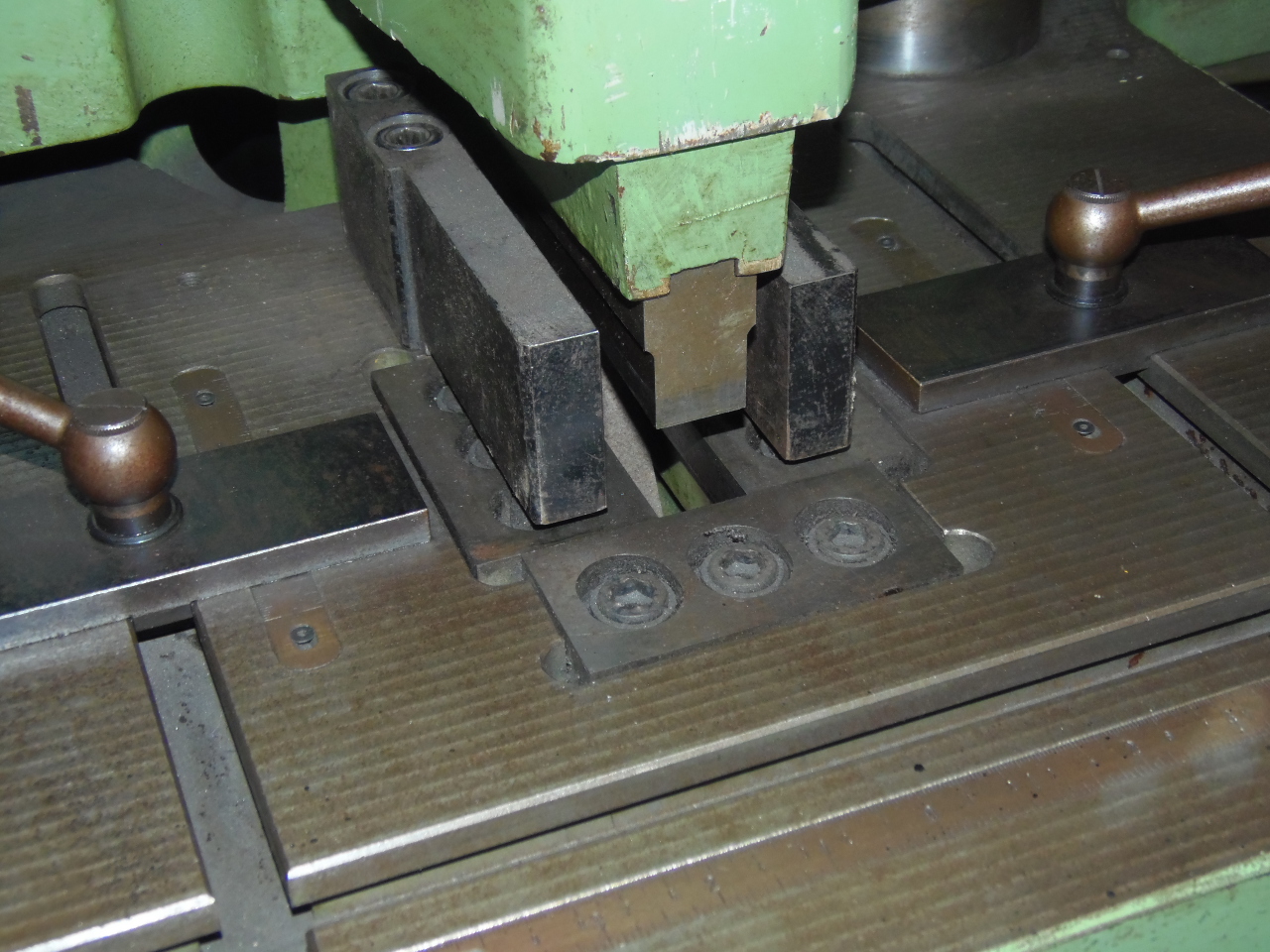

STATION 2 COPING
3.94" DEEP
.98" MINIMUM, NO LIMIT DEPENDING ON THE NUMBER OF STROKES
5/32" MILD STEEL
10 GAUGE STAINLESS
INCLUDES DEPTH STOPS, STRIPPER, T-SLOTS AND SCALES
INCLUDES MISC. MANUALS
