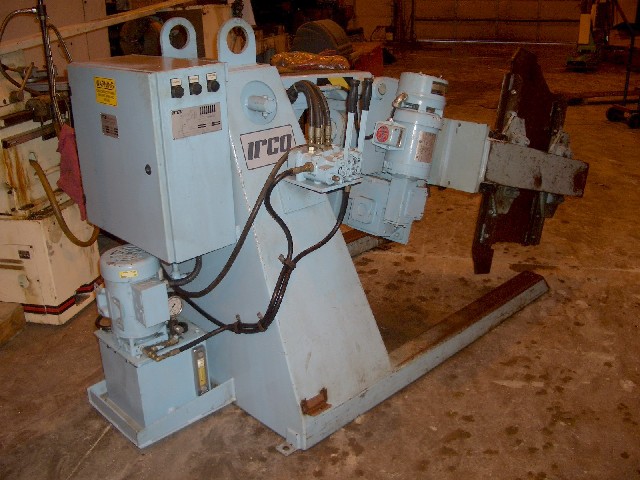

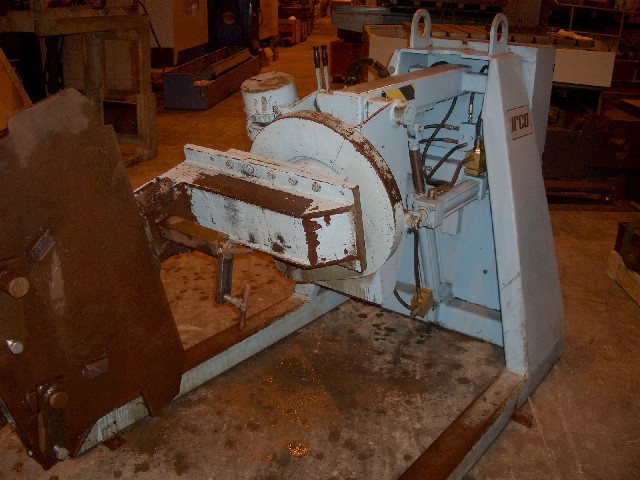

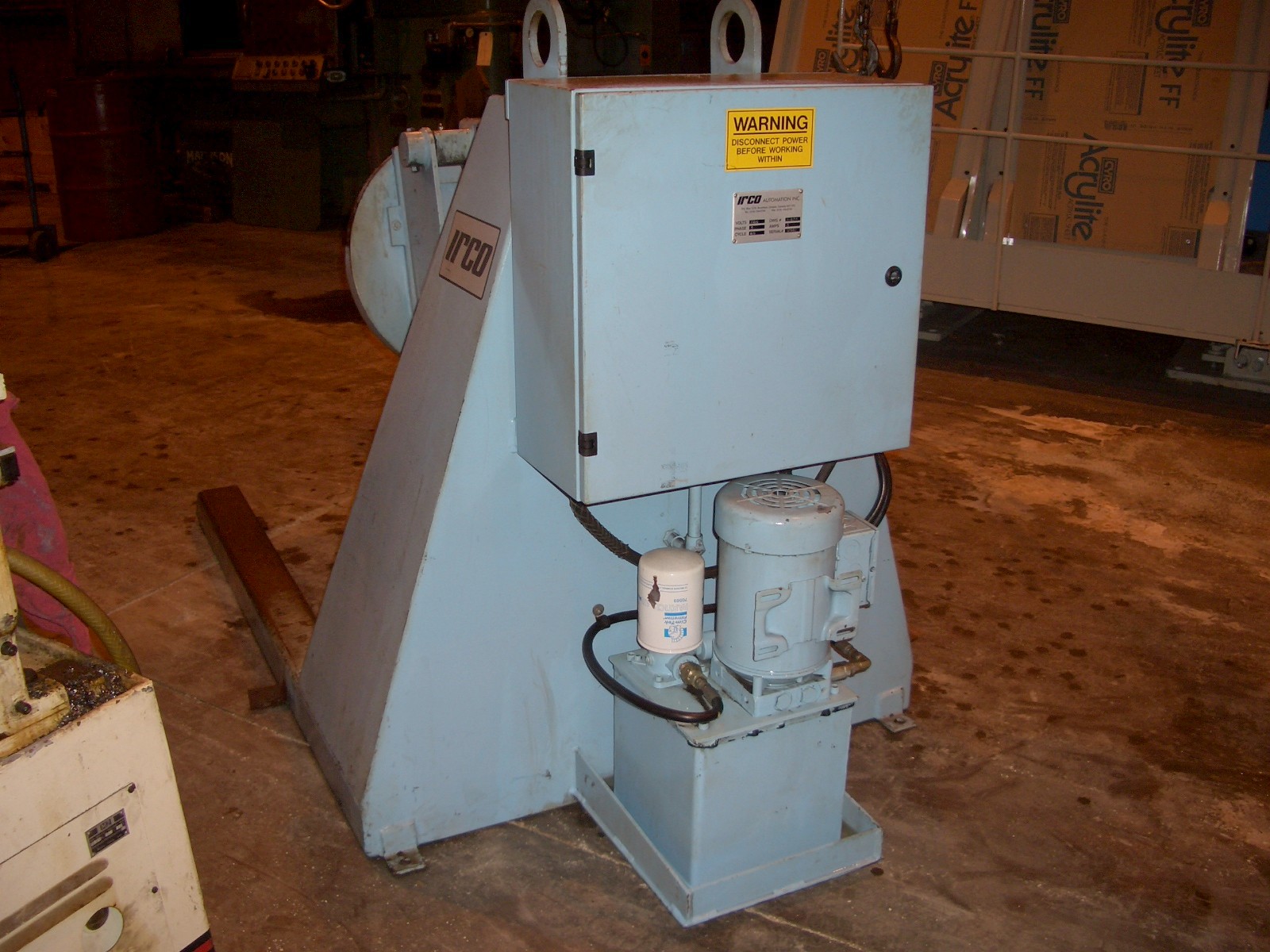

1500 LB. IRCO A-1.5 BEAM TYPE WELDING POSITIONER, POWER ROTATE, TILT AND ELEVATION, 2000

GENERAL SPECIFICATIONS:
MANUFACTURER IRCO
MODEL A-1.5
SERIAL# 12981
CAPACITY (24") 1,500 LBS.
(36") 1,000 LBS.
(48") 750 LBS.
(60") 600 LBS.
ROTATION 1.0 RPM VIA 1/2 HP AC MOTOR
ROTATIONAL TORQUE 9000 LB INCHES
TABLE TILT 0 TO 90 DEGREES
ELEVATION (VERTICAL) 30" TO 50"
(HORIZONTAL) 42" TO 62"
APPROXIMATE WEIGHT 2,700 LBS.

EQUIPPED WITH:
POWER ROTATE
POWER ELEVATION
POWER TILT
36" LONG LOAD BEAM TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
