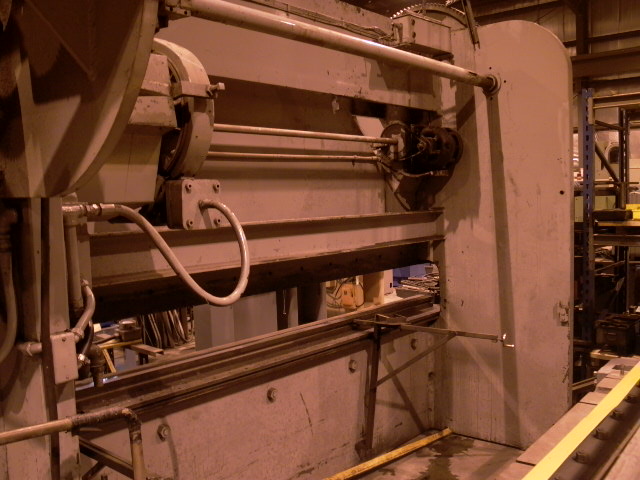

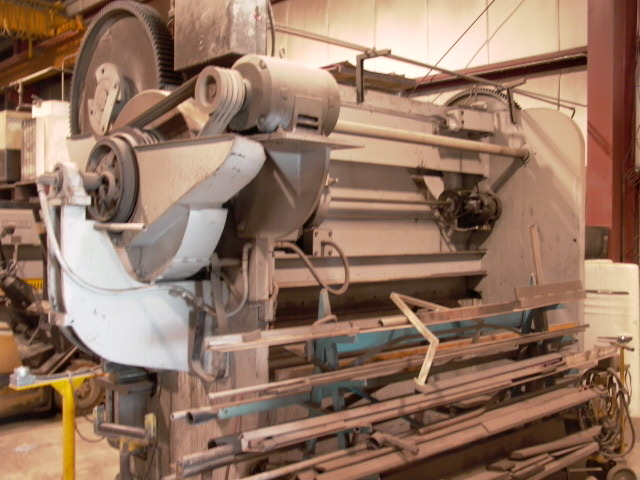

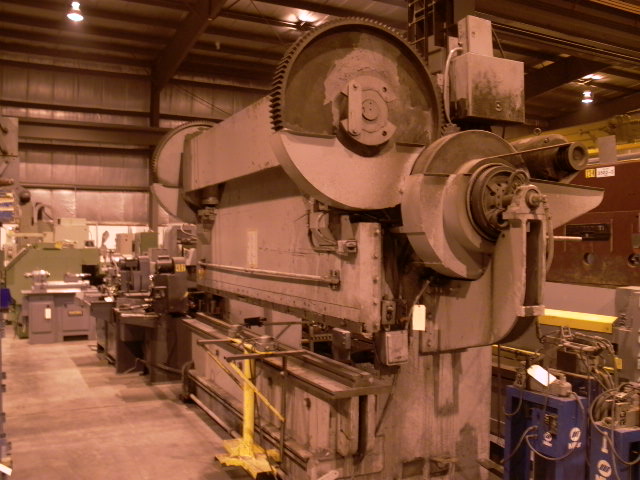

150 TON DRIES & KRUMP, 12' OA, 10'6" BH, 8" THR, 3" STR, 5" RAM, FLOOR MOUNT, AIR CLUTCH

GENERAL SPECIFICATIONS:
MANUFACTURER DRIES & KRUMP
MODEL 4510D
TONNAGE 150 TON
RATED CAPACITY 10' x 3/16"
OVERALL LENGTH 12'
DISTANCE BETWEEN END FRAMES 10'6"
DEPTH OF THROAT 8"
STROKE 3"
RAM ADJUSTMENT 5
DIE SPACE 12"
STROKES PER MIN 30
DIMENSIONS (APPROX.) 6'8"D x 12'6"L x 9'1"H

EQUIPPED WITH:
FLUSH FLOOR MOUNT
AIR CLUTCH TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
