Specifications
Equipped With
GENERAL SPECIFICATIONS:

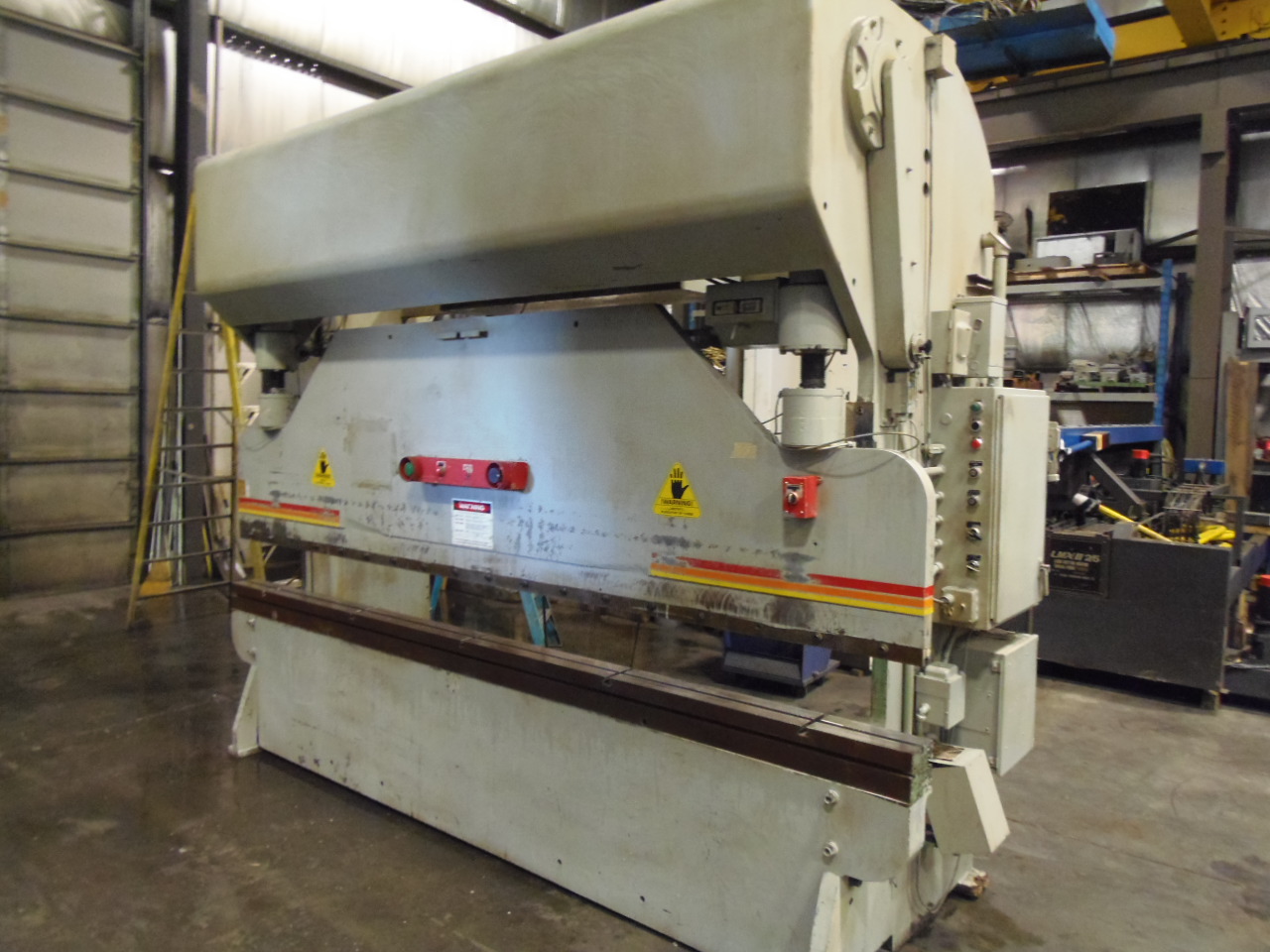

MANUFACTURER...................... DIACRO
MODEL............................. 150-12
CAPACITY.......................... 150 TON
O.A. LENGTH....................... 12'
LENGTH B.H........................ 10'6
BENDING CAPACITY (MILD STEEL)..... 3/16" AT 144"
MAIN MOTOR........................ 20HP
SPEED (MAX)....................... 22 SPM
LENGTH OF STROKE.................. 3"
RAM ADJUSTMENT.................... 5"
SHUT HEIGHT A.U.S.D............... 12"
THROAT CLEARANCE.................. 8"
DIE HOLDER HEIGHT................. 5 1/2"
DIMENSIONS........................ 48" X 146" X 116"H
WEIGHT APPROX..................... 24,300 LBS.
ELECTRICS......................... 230V /3/ 60HZ
EQUIPPED WITH:

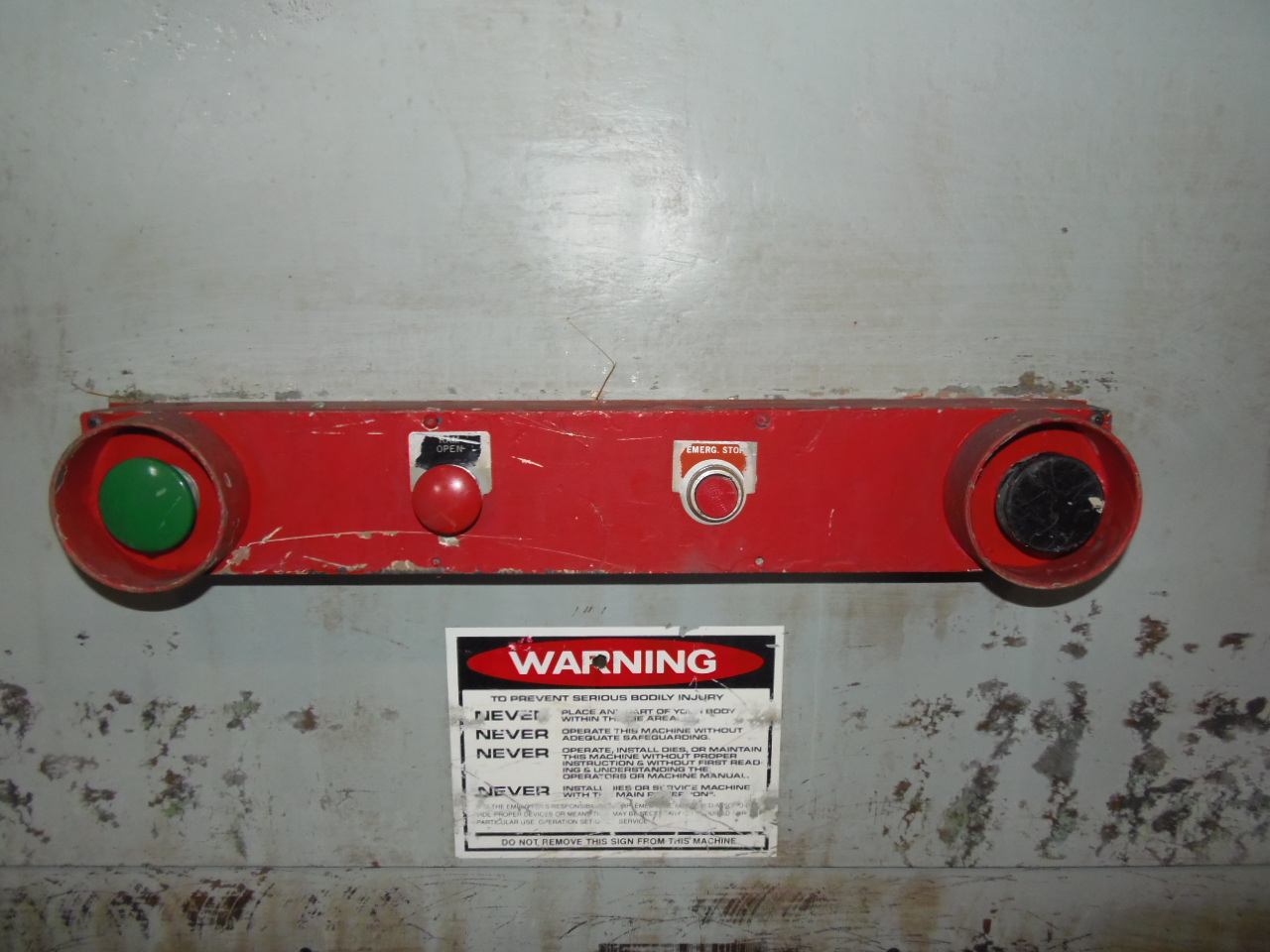

DUAL PALM BUTTONS
POWER RAM ADJUST WITH INDICATORS
FOOT PEDAL

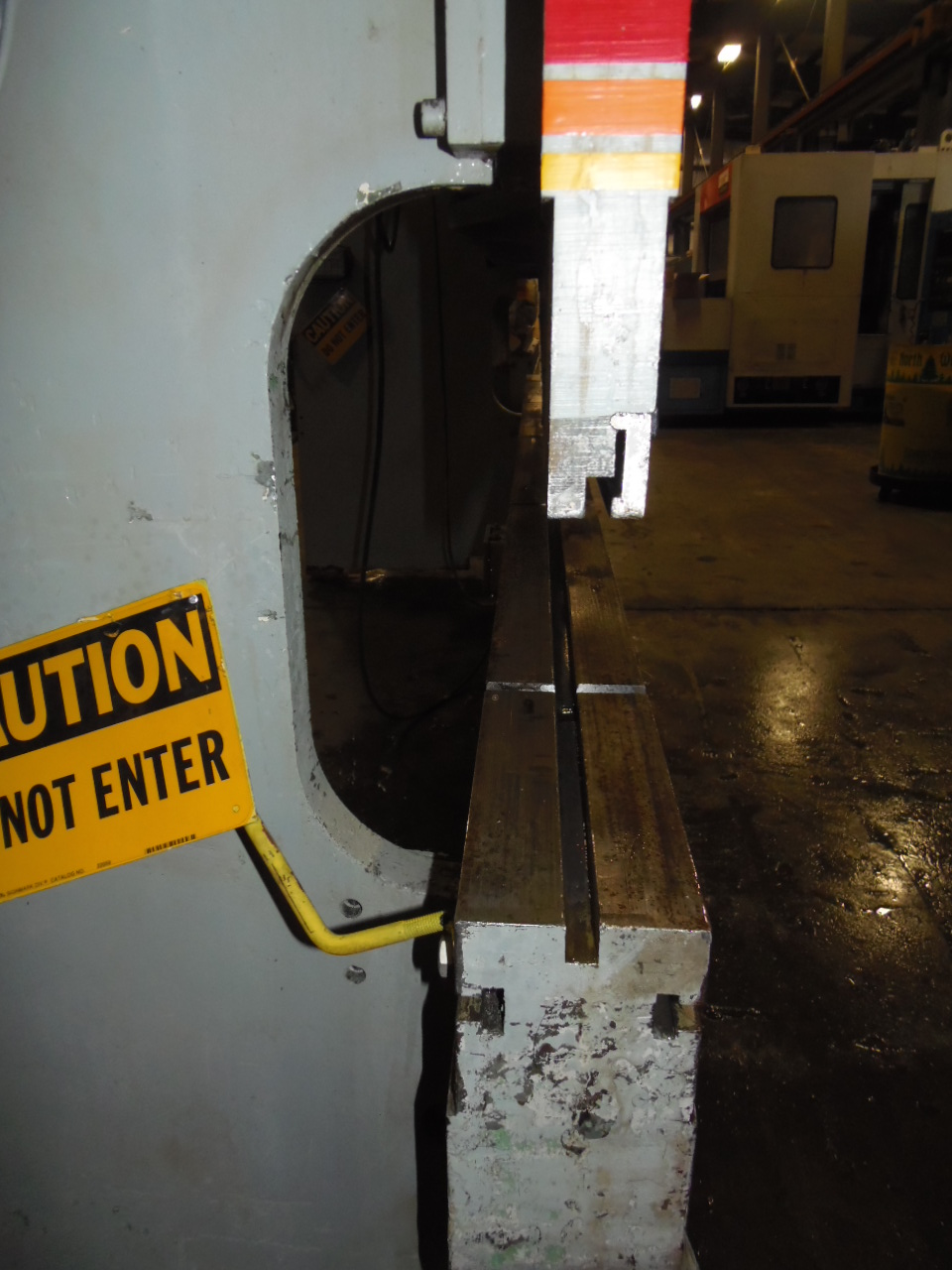

LOWER DIE RAIL

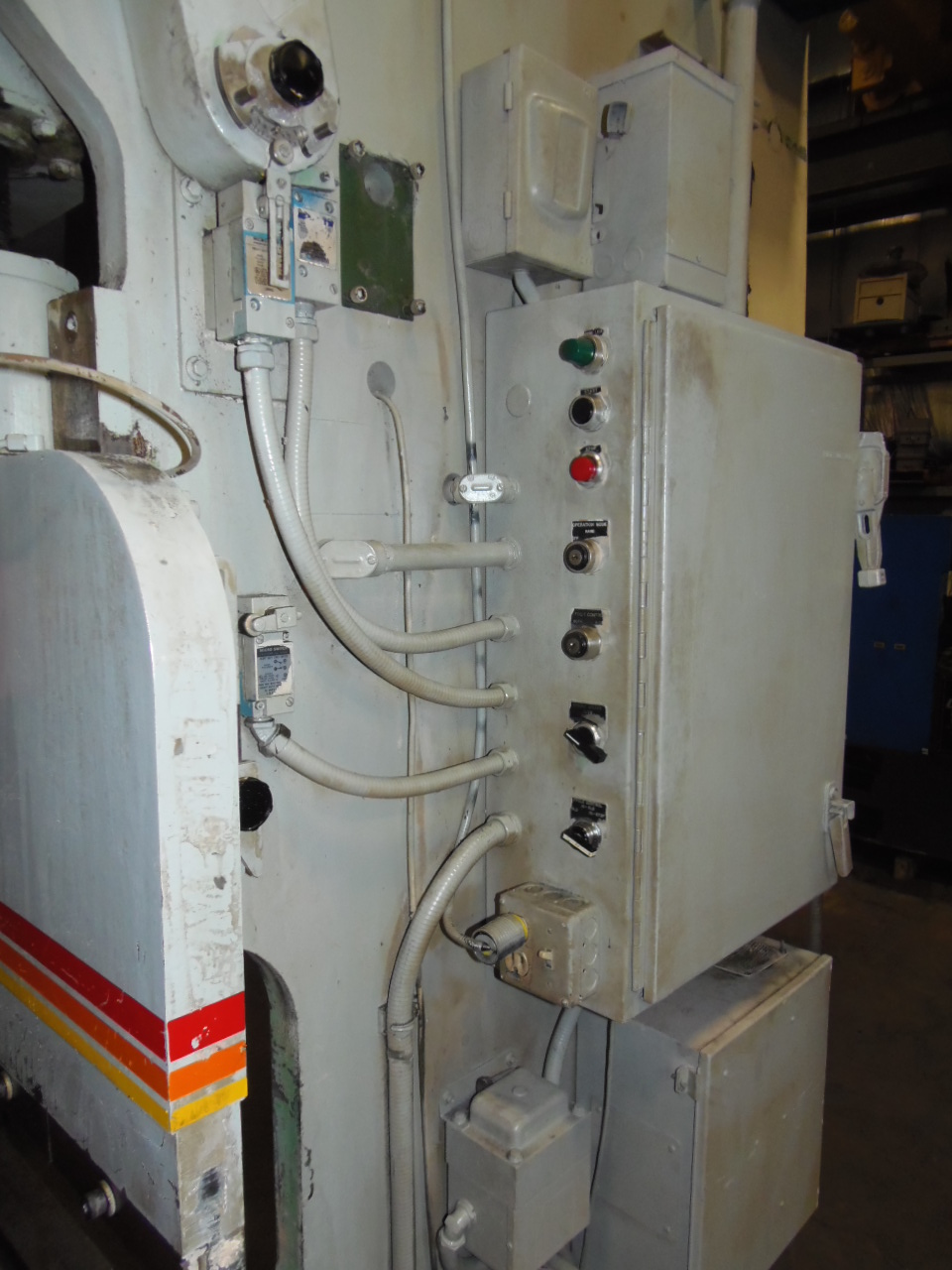

CONTROLS
STROKE SELECT-SETUP/AUTO RETURN/INCH
FOOT CONTROL-BOTH/RIGHT
OPERATION MODE-OFF/HAND/FOOT
CYCLE CONTROL-SLOW(SLO)/FAST THAN SLOW(HI-SLO)/FAST STOP SLOW(HI-STOP SLO)
MODE SELECT-OFF/SETUP/RUN
FLUSH FLOOR
