Specifications
Equipped With
GENERAL SPECIFICATIONS:

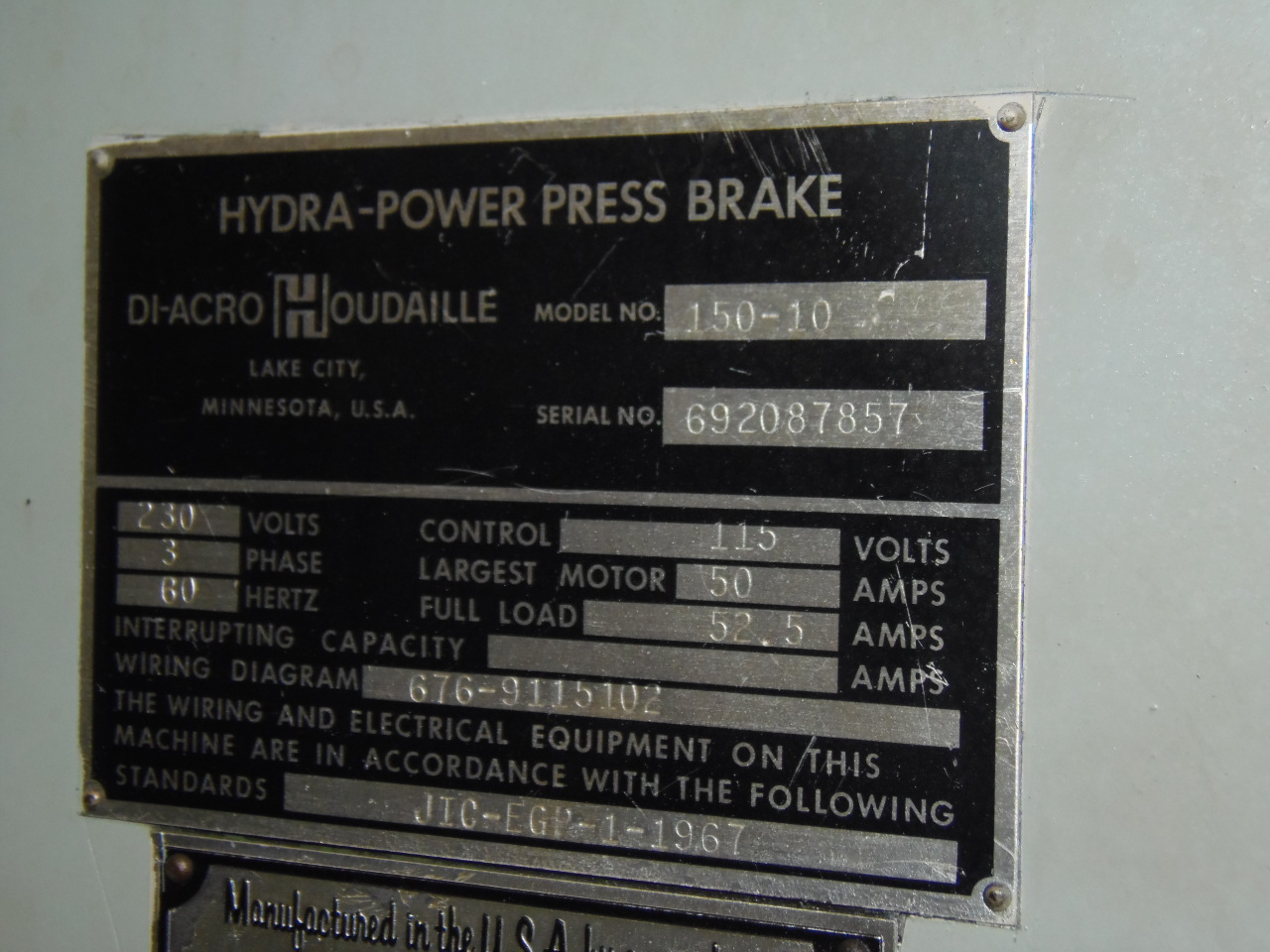

MANUFACTURER...................... DIACRO
MODEL............................. 150-10
SERIAL#........................... 692-0878-57
CAPACITY.......................... 150 TON
O.A. LENGTH....................... 10'
LENGTH B.H........................ 8'6
BENDING CAPACITY (MILD STEEL)..... 1/4" AT 96"
MAIN MOTOR........................ 20HP
SPEED (MAX)....................... 22 SPM
LENGTH OF STROKE.................. 3"
RAM ADJUSTMENT.................... 5"
SHUT HEIGHT A.U.S.D............... 12"
THROAT CLEARANCE.................. 8"
DIE HOLDER HEIGHT................. 5 1/2"
DIMENSIONS........................ 48" X 120" X 116"H
WEIGHT APPROX..................... 20,900 LBS.
ELECTRICS......................... 230V /3/ 60HZ
EQUIPPED WITH:
DUAL PALM BUTTONS
POWER RAM ADJUST

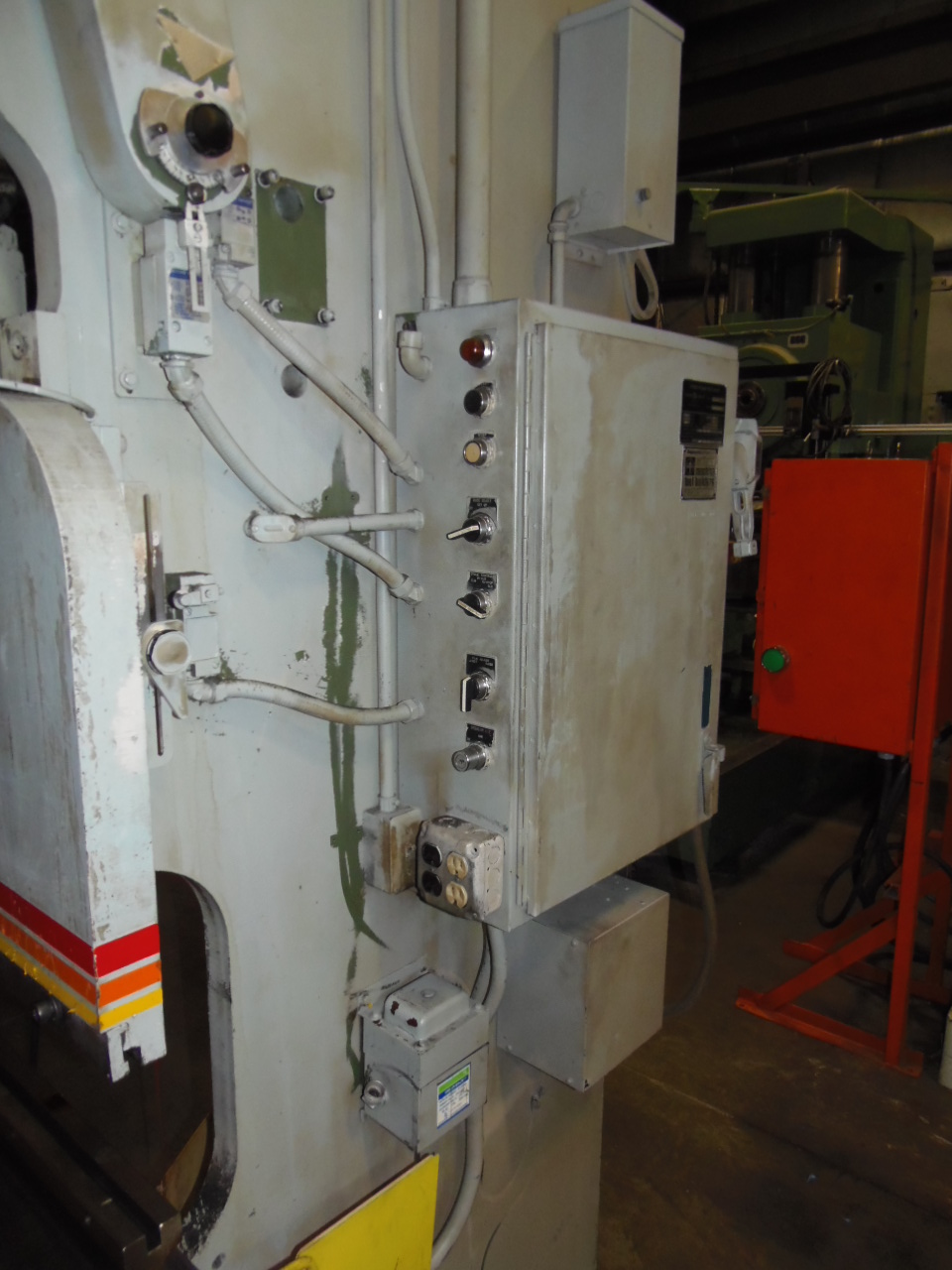

CONTROLS
CYCLE-SLOW(SLO)/FAST THAN SLOW(HI-SLO/FAST STOP SLOW (HI-STOP-SLO)
MODE SELECT-OFF/SETUP/RUN
OPERATION-OFF/HAND/FOOT
FOOT PEDAL

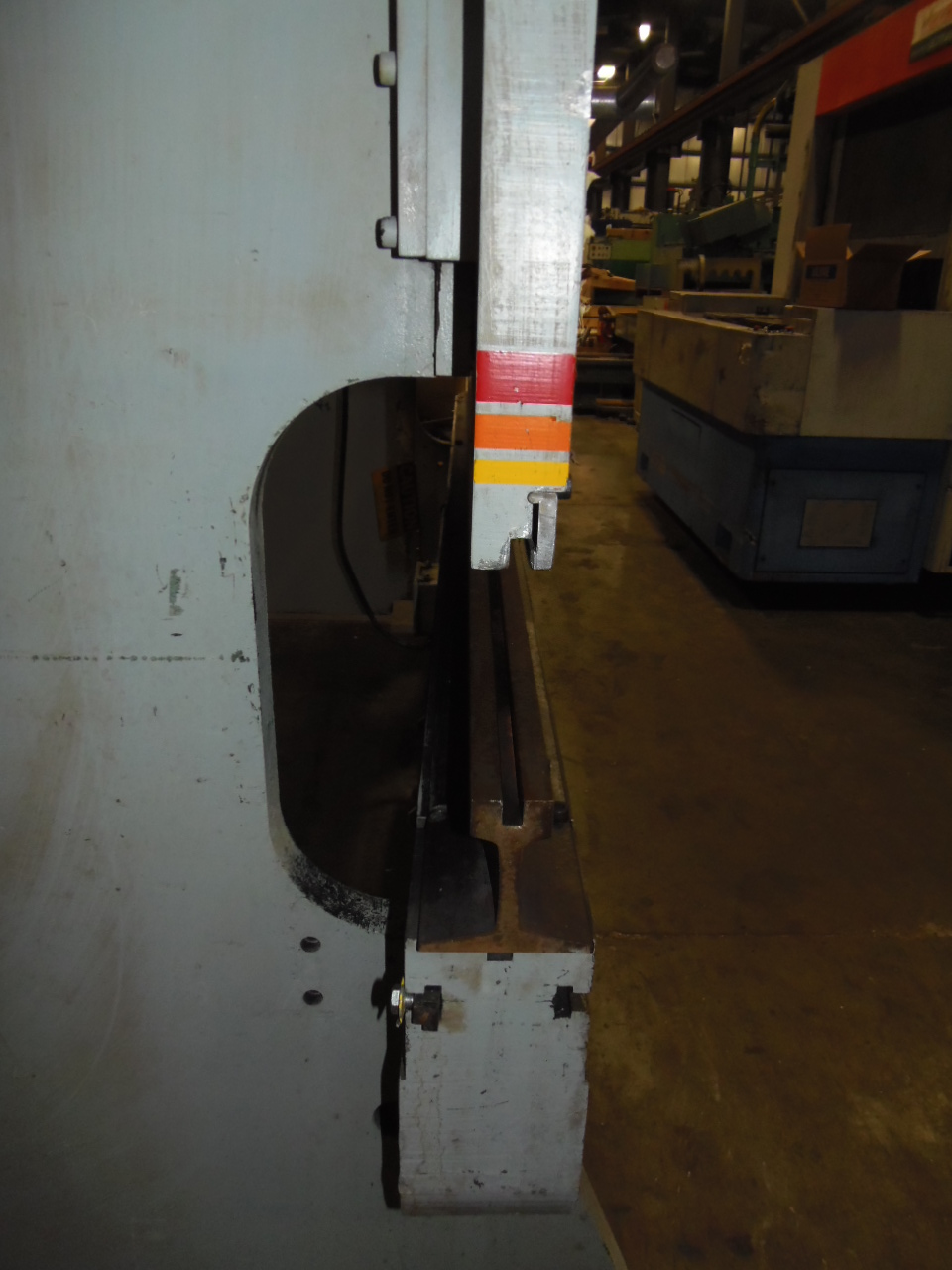

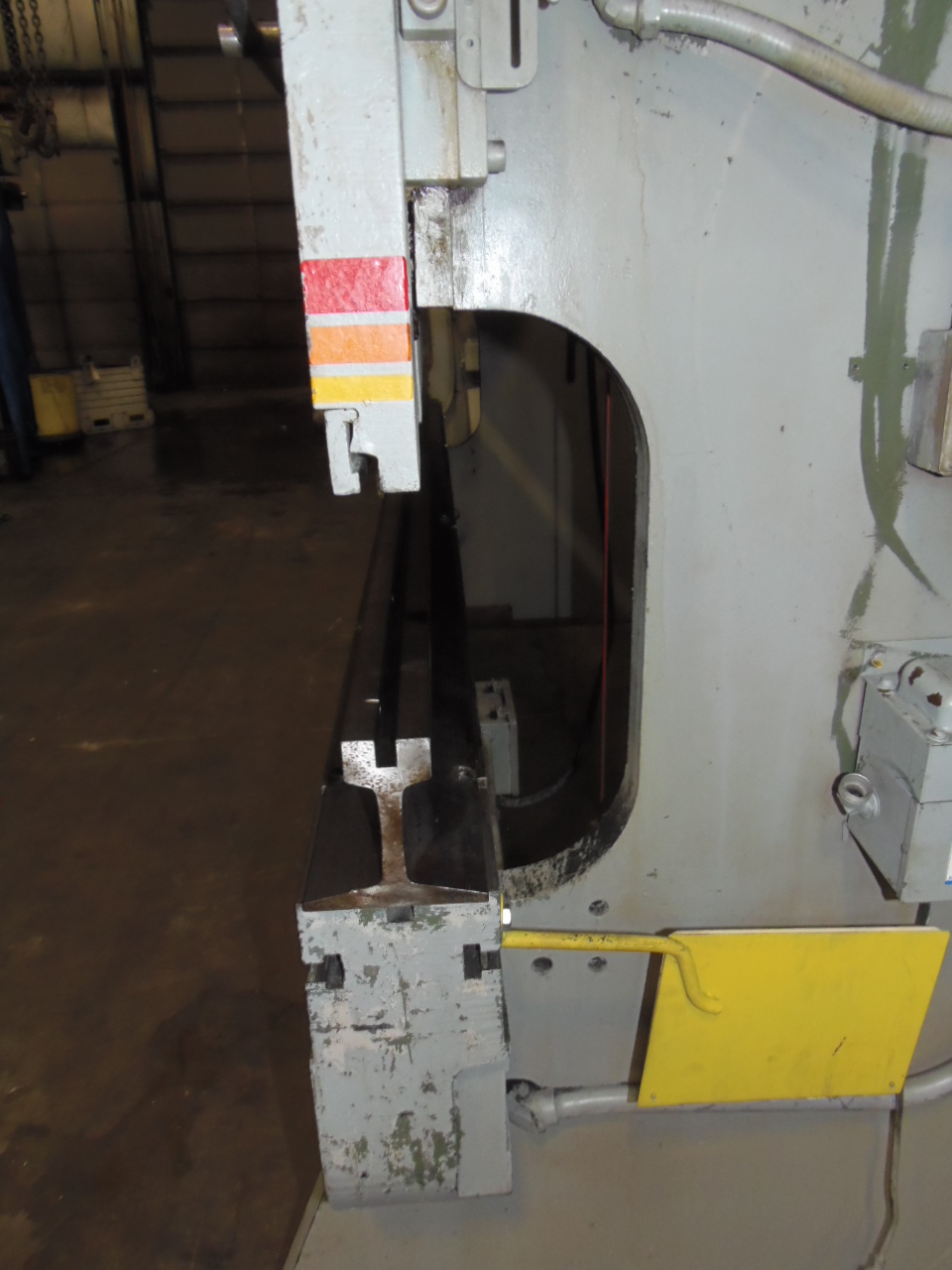

LOWER DIE RAIL
FLUSH FLOOR
