Specifications
Equipped With
GENERAL SPECIFICATIONS:

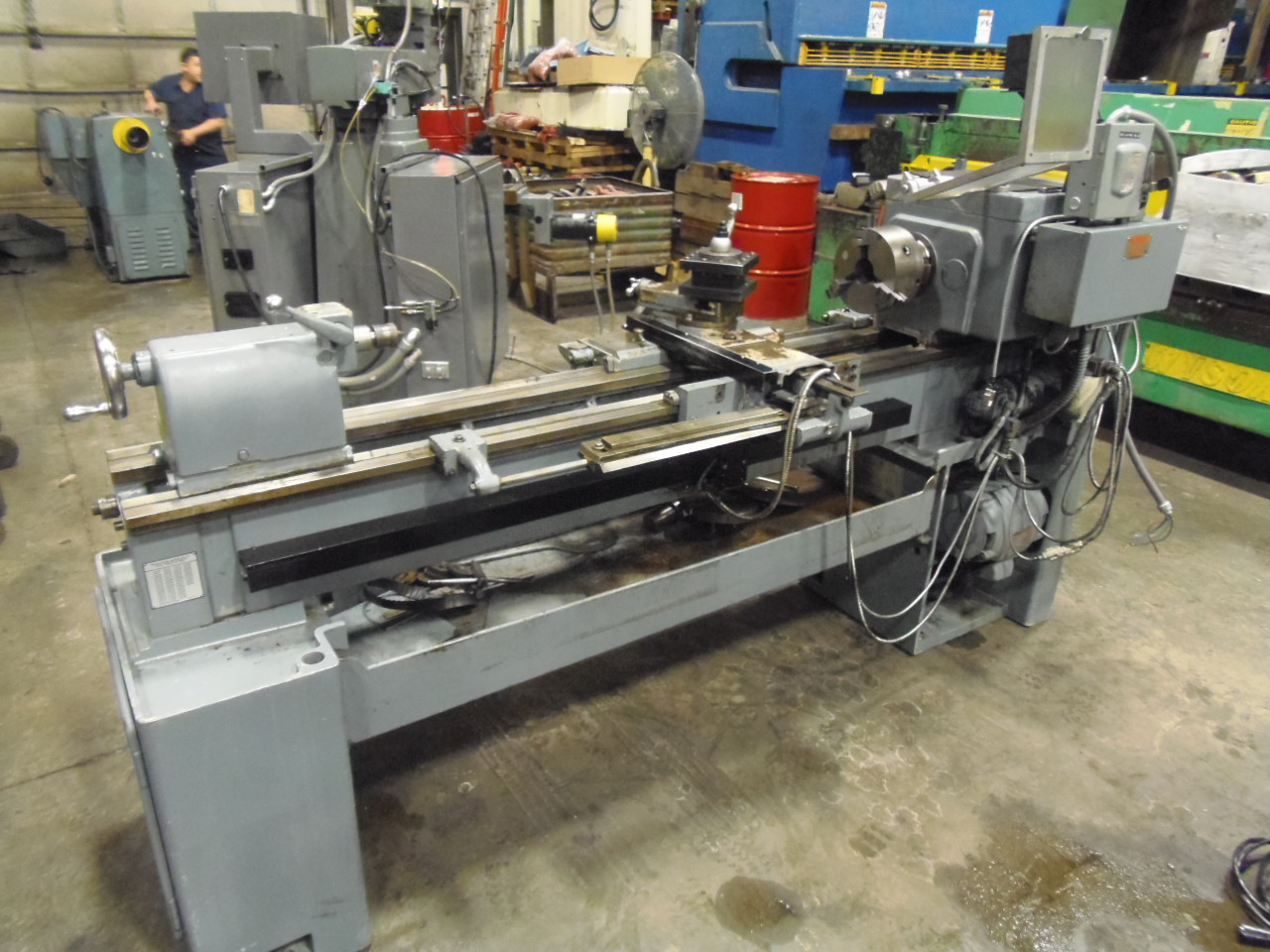

MANUFACTURER...................... LE BLOND
MODEL............................. REGAL 15C
SERIAL#........................... 7C-1910
AGE APPROXIMATELY................. 1971
SWING OVER BED.................... 15.5"
SWING OVER COMPOUND............... 9.5"
DISTANCE BETWEEN CENTERS.......... 42"
SPINDLE HOLE...................... 1 17/32"
SPINDLE SPEEDS.................... 45 TO 1800 RPM
FEEDS............................. .002 TO 120 IPR
INCH THREADING.................... 4 TO 224 TPI
EQUIPPED WITH:
8" 3 JAW CHUCK
TAPER ATTACHMENT

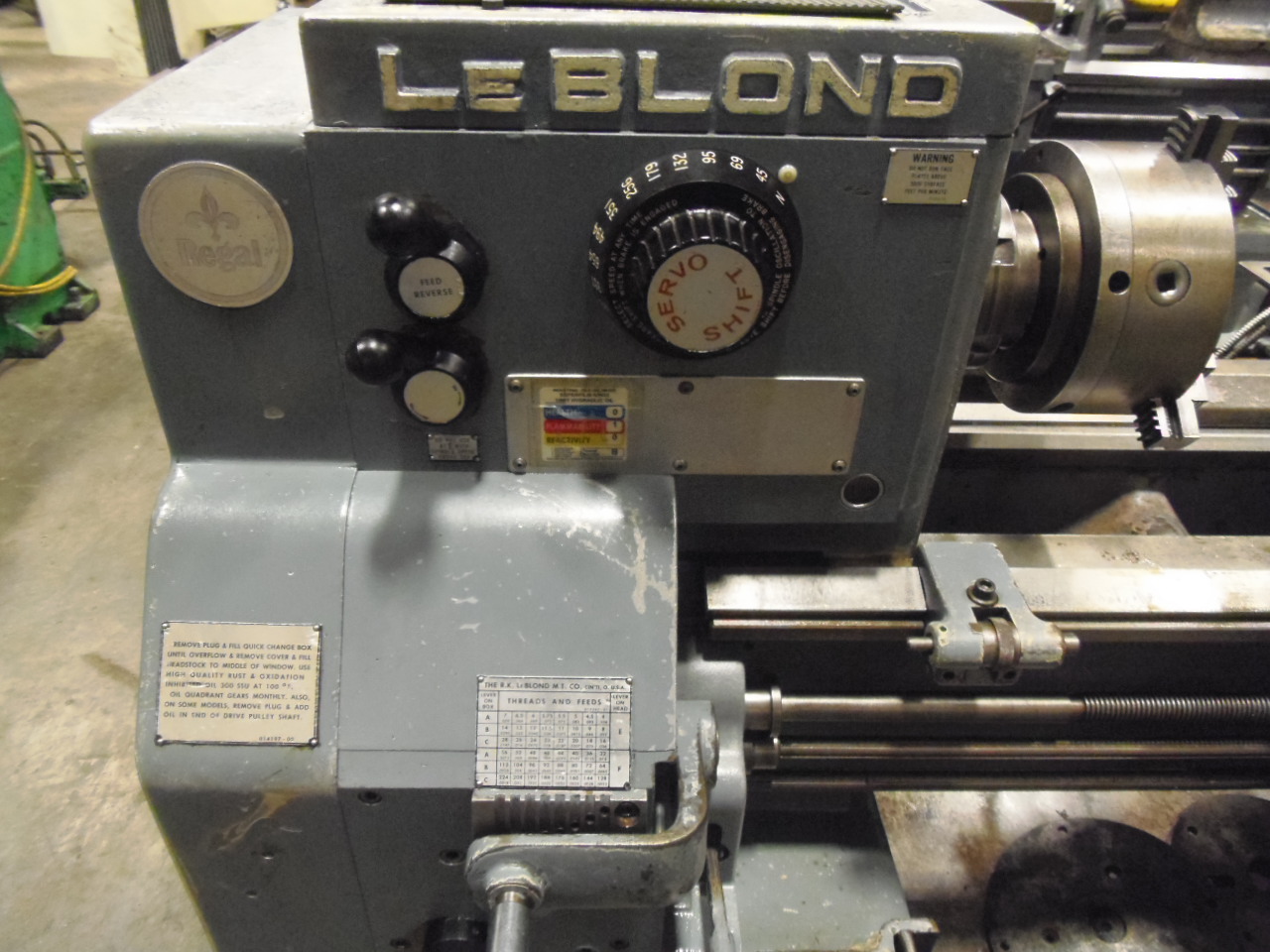

SERVO SHIFT

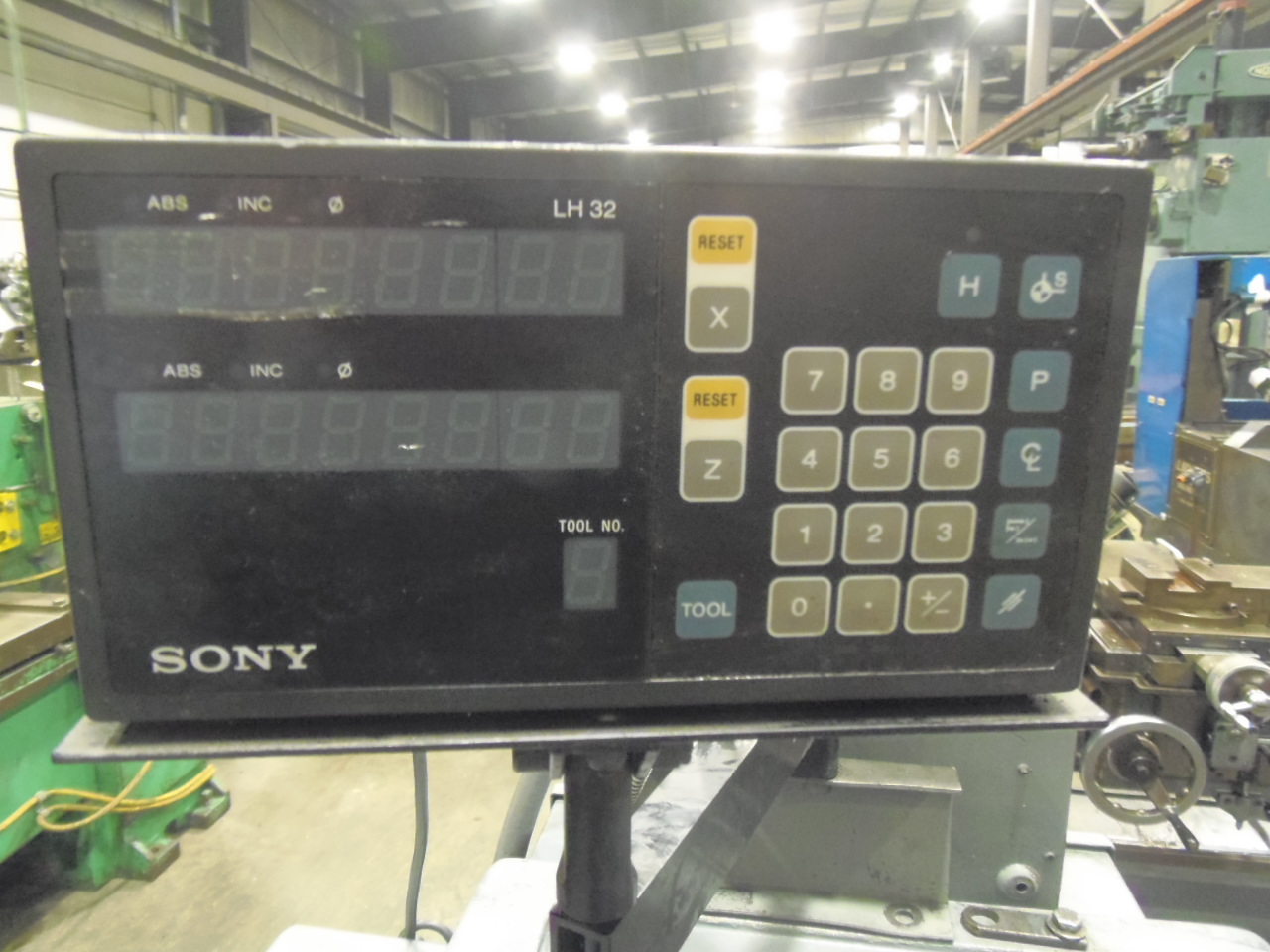

SONY 2 AXIS DRO

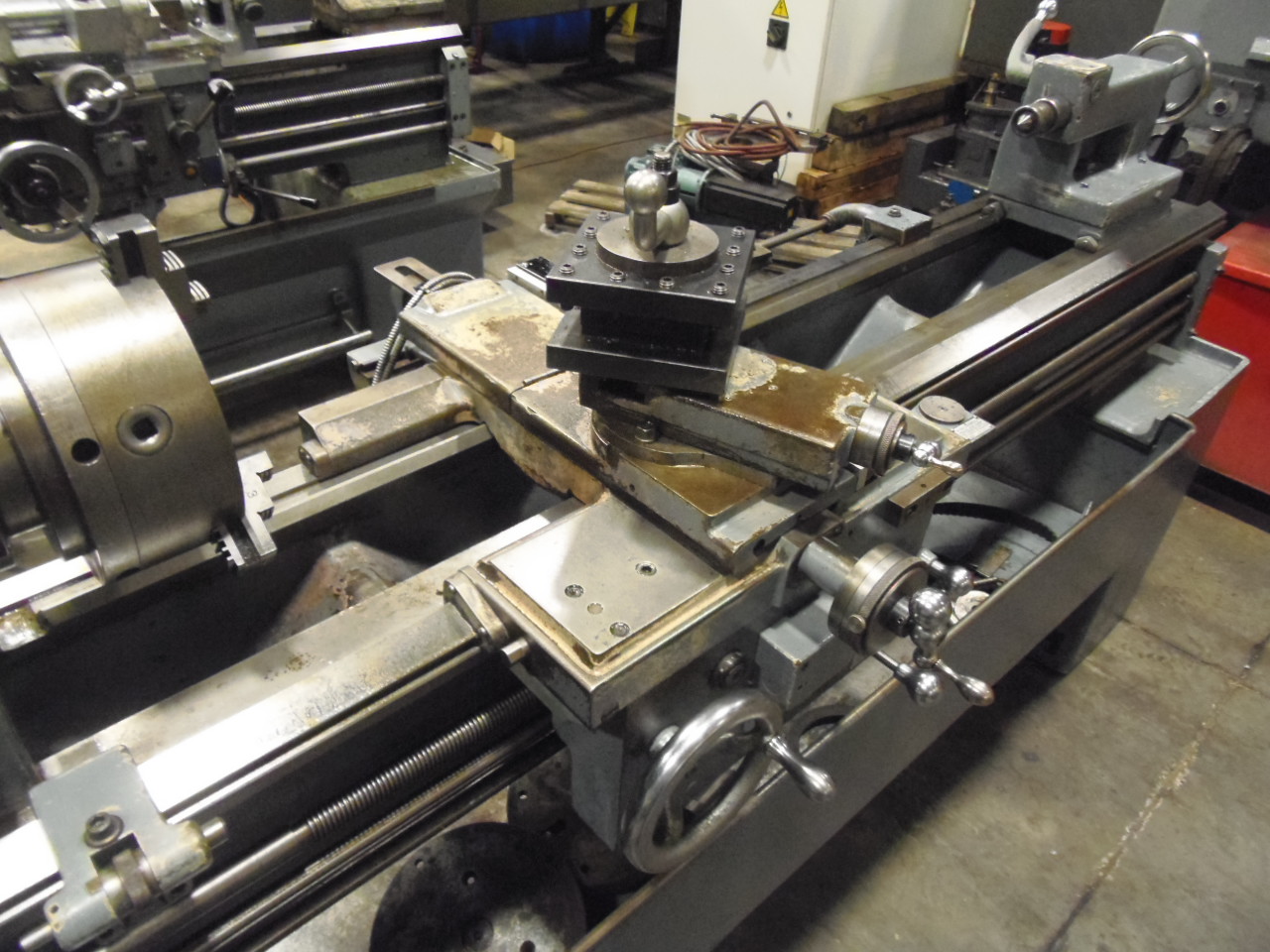

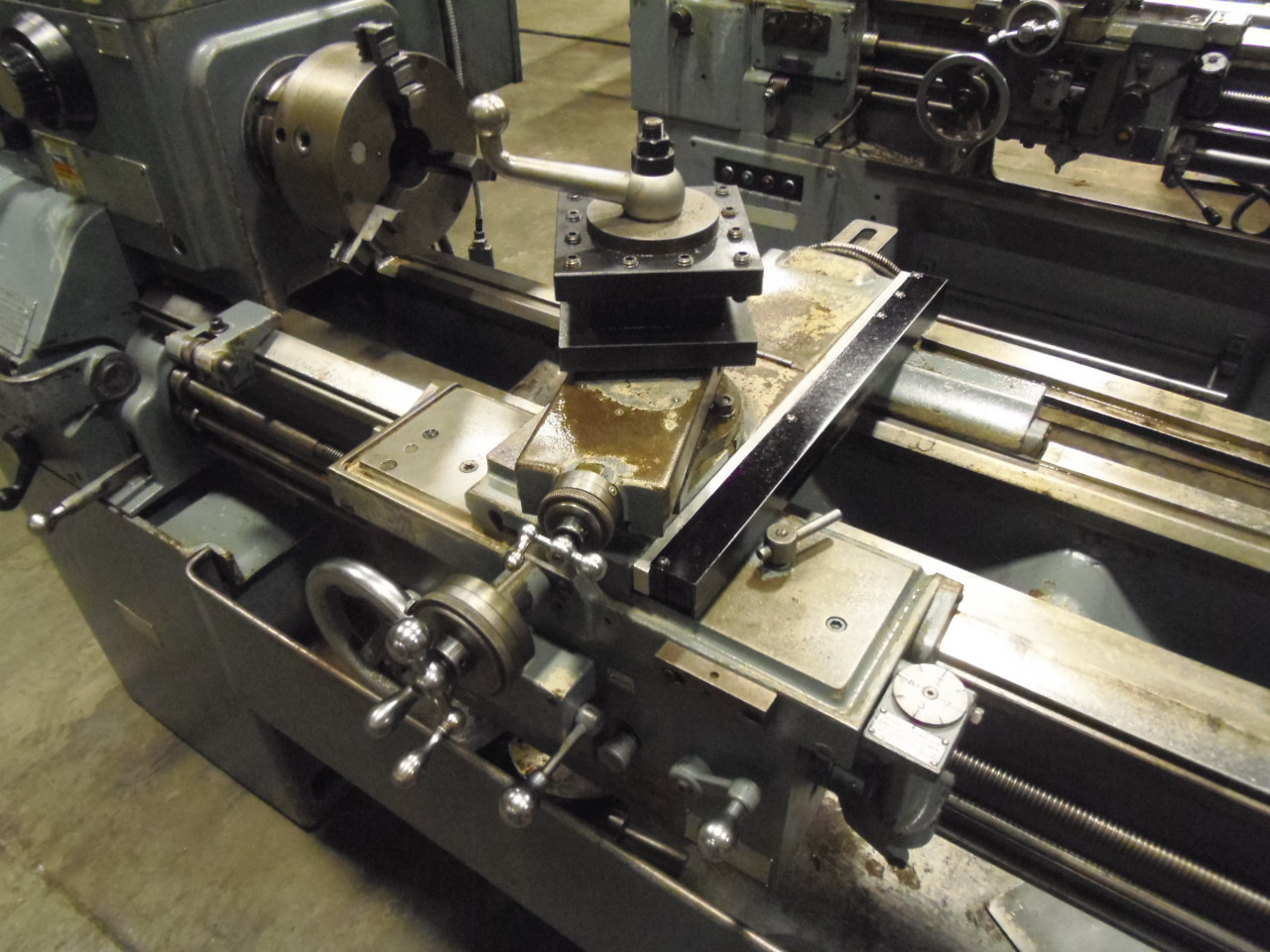

4 WAY TOOL POST
