Specifications
Equipped With
GENERAL SPECIFICATIONS:

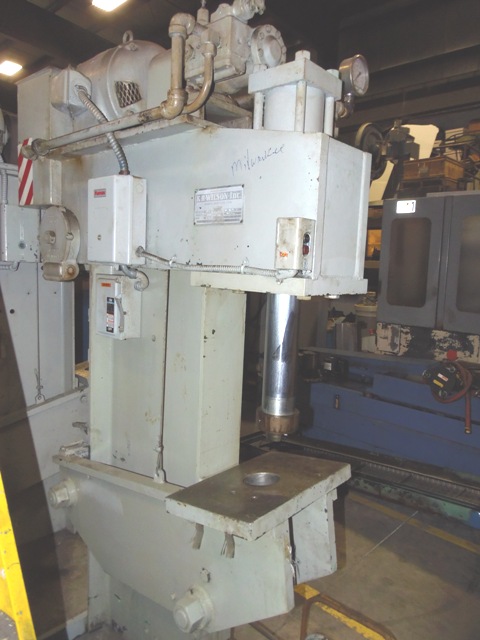

MANUFACTURER........................... K R WILSON
MODEL.................................. MW-MD-15-3
SERIAL#................................ 2016
AGE.................................... 1956
CAPACITY............................... 15 TON
RAM DIAMETER........................... 4"
THROAT DEPTH........................... 8"
RAM STROKE (MAX)....................... 12"
DISTANCE BETWEEN RAM AND BED (4 SETTINGS)
LOWEST...................... 25 3/4"
NEXT........................ 19 3/4"
NEXT........................ 16 3/4"
TOP......................... 10 3/4"
DAYLIGHT(RAM TO BED AT LOWEST SETTING). 13 3/4"
EQUIPPED WITH:
FOOT PEDAL OPERATION
ADJUSTABLE BED HEIGHT
SPECIFICATIONS SUBJECT TO VERIFICATION
