Specifications
Equipped With
MAKE...............WMW (ZERBST)
YEAR...............1988
GENERAL SPECIFICATIONS:
CHUCK SIZE 140"
SWING DEPENDS ON PIT DEPTH
MINIMUM PIT DEPTH OR RAISED HEADSTOCK 29"
IN/OUT ON CARRIAGE 25"
FACING FEED LENGTH 110"
CARRIAGE FEED .12 - 45 MM PER MIN.
INFEED AT 32 DIFFERENT PERCENTAGES
OF CARRIAGE FEED
RPM RANGE 1.12 TO 56
EQUIPPED WITH:

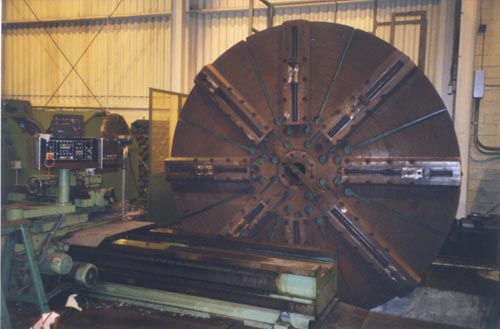

140" CHUCK HAS 8 JAWS WITH 30" OF ADJUSTMENT
CHIP CONVEYOR FOR A 72" PIT
(4) 20" CHUCK EXTENSIONS
WIRED 480V/3/60
MAIN MOTOR 44 KW/60 HZ/74 AMP

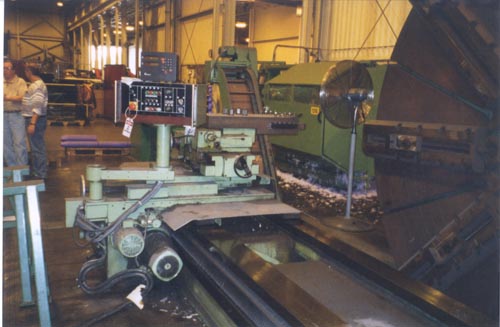

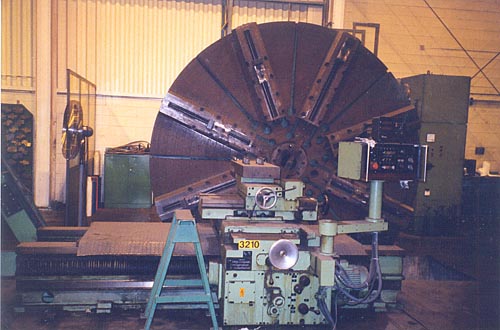

MACHINE CONSISTS OF A HEADSTOCK WITH CHUCK AND A

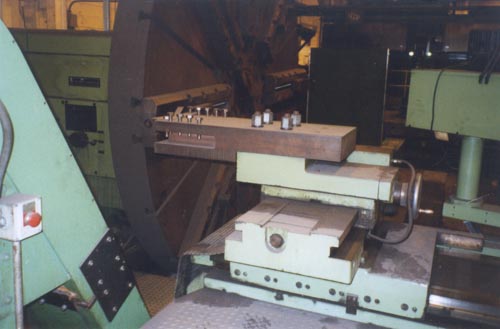

SEPARATE CARRIAGE WITH CROSS SLIDE
2 AXIS DIGITAL READOUT
