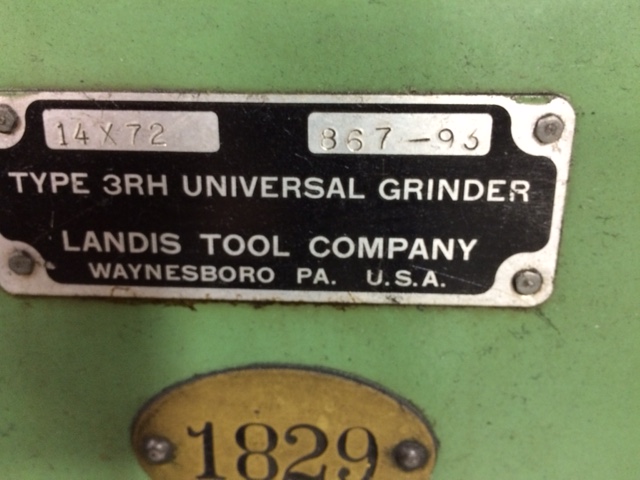

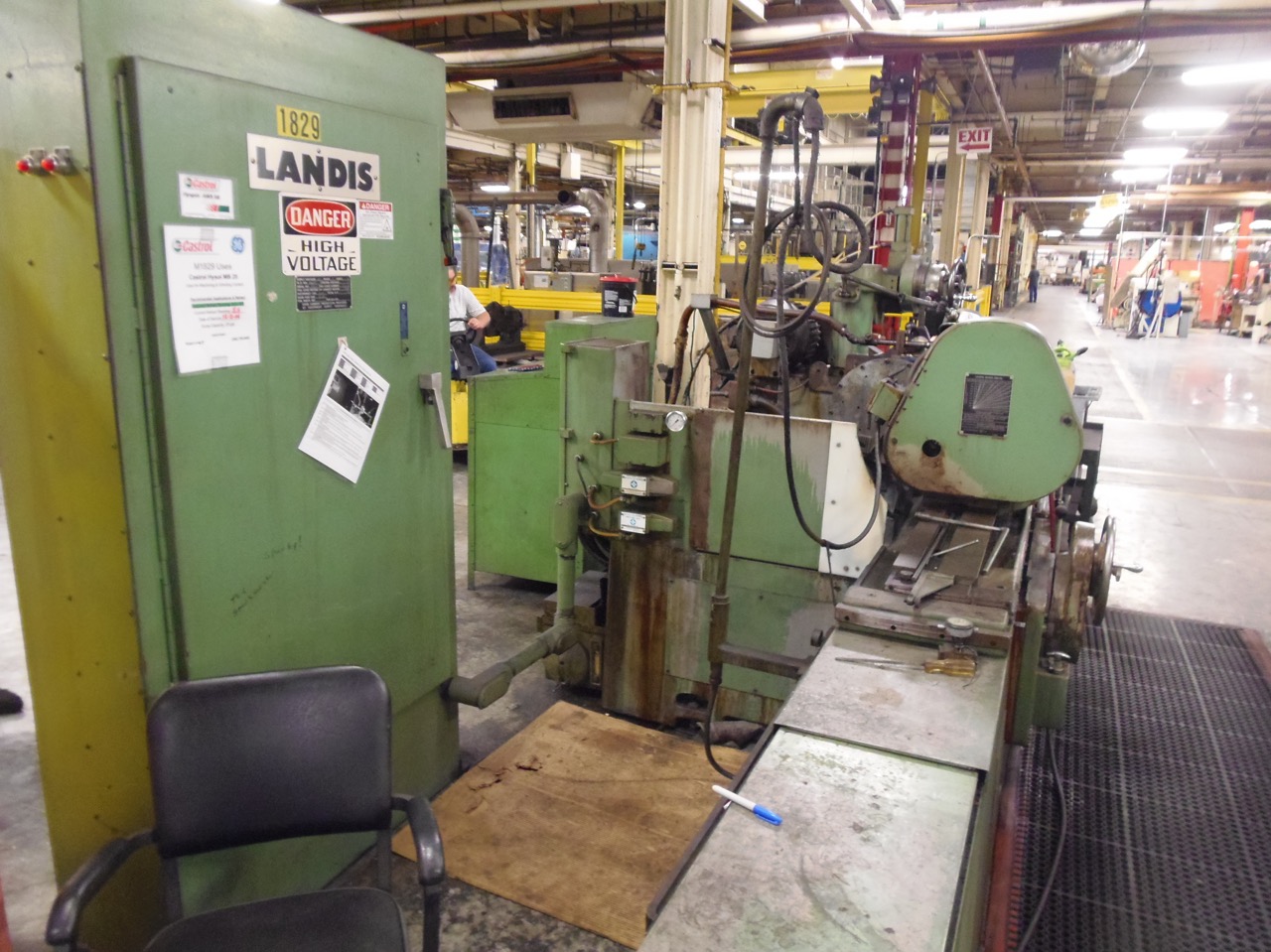

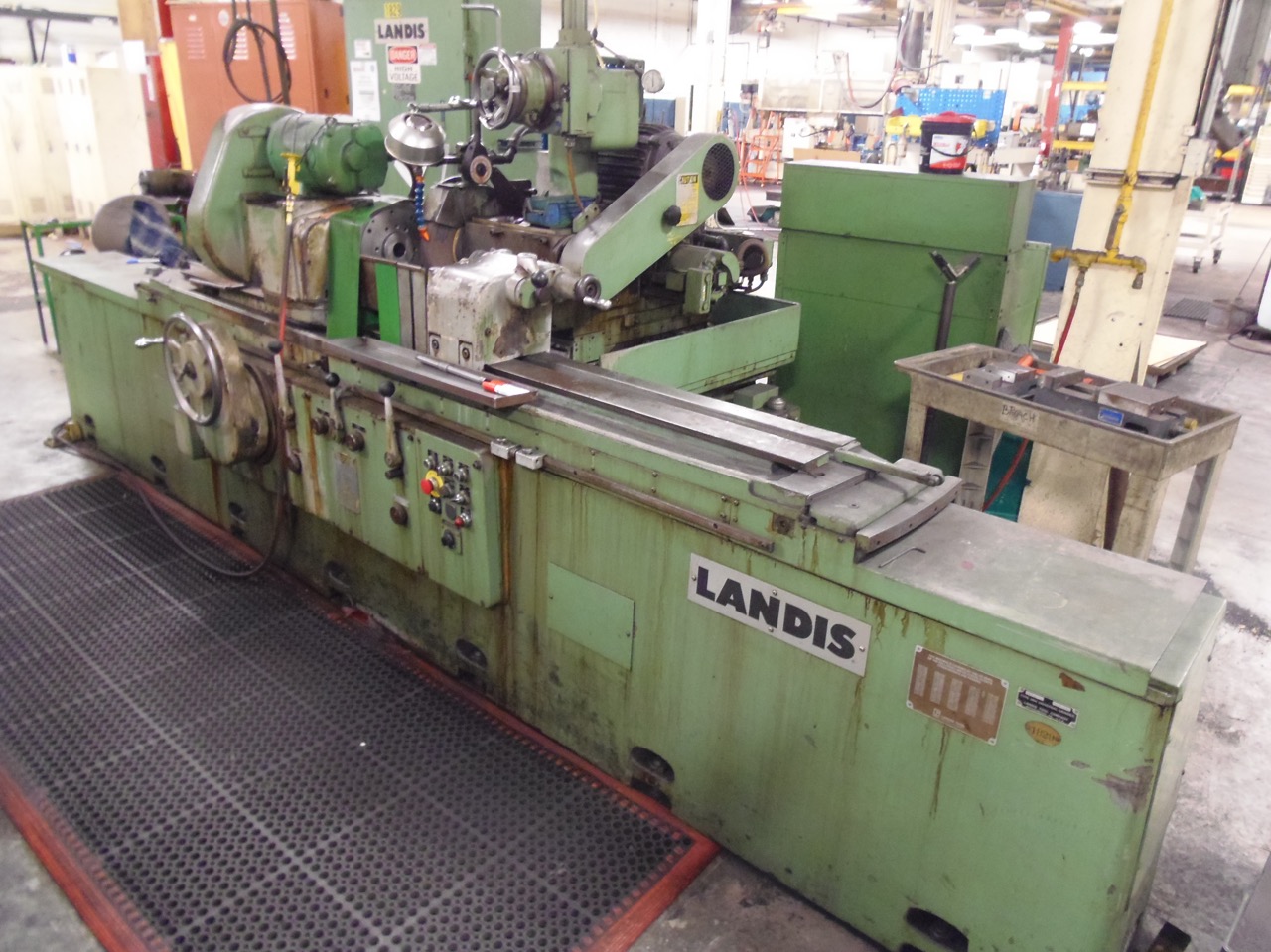

Specifications
Equipped With
GENERAL SPECIFICATIONS:
Swing Over Table............................ 14-31/32"
Maximum Distance Between Centers............ 72"

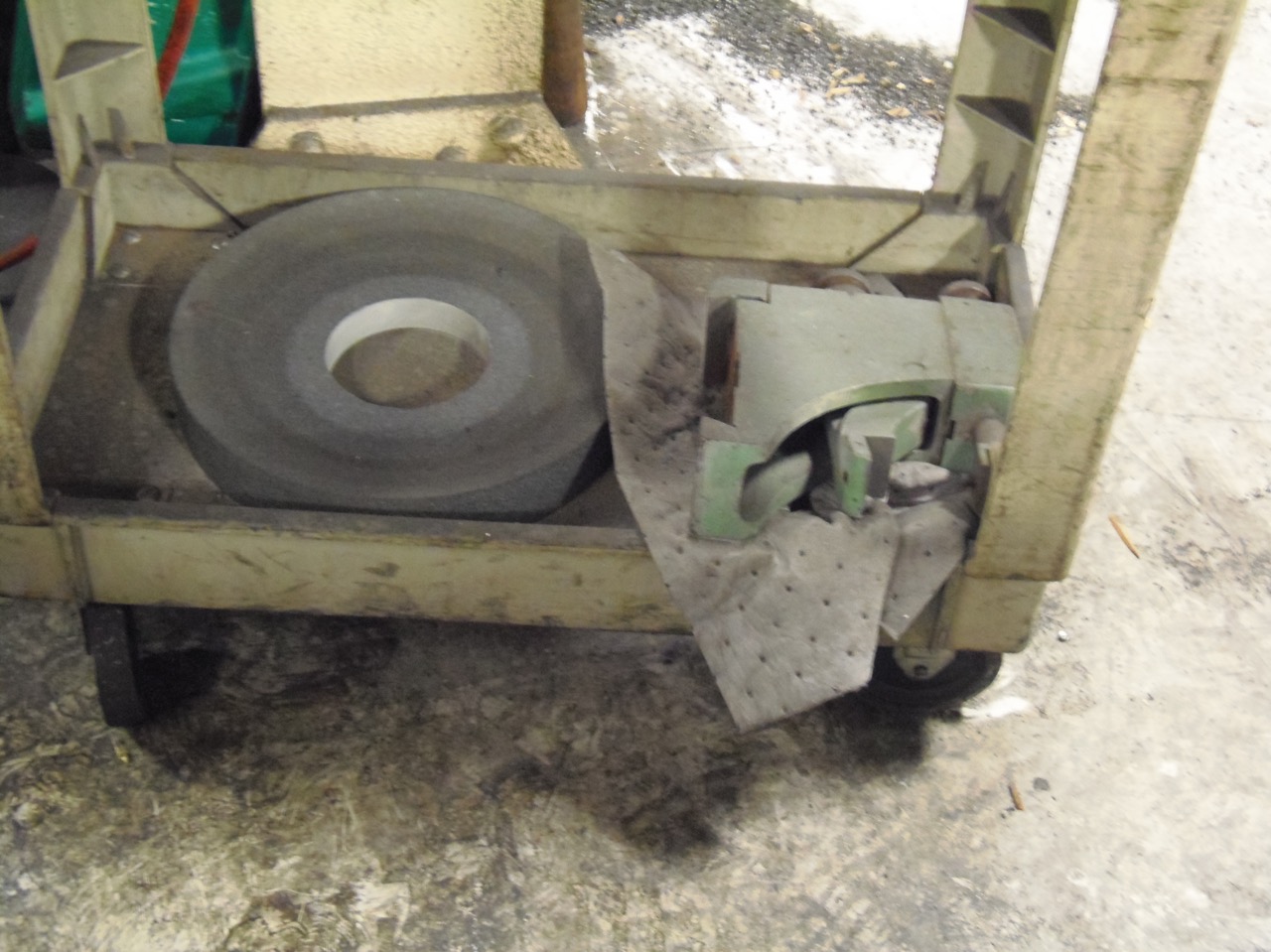

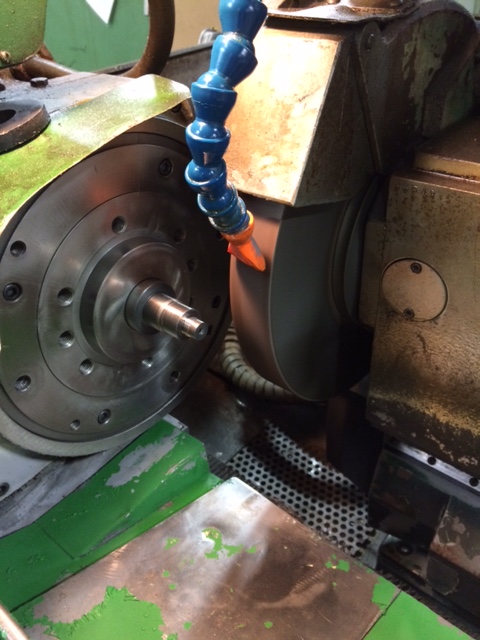

Grinding Wheel Size......................... 14" x 1-1/2" x 5" Bore

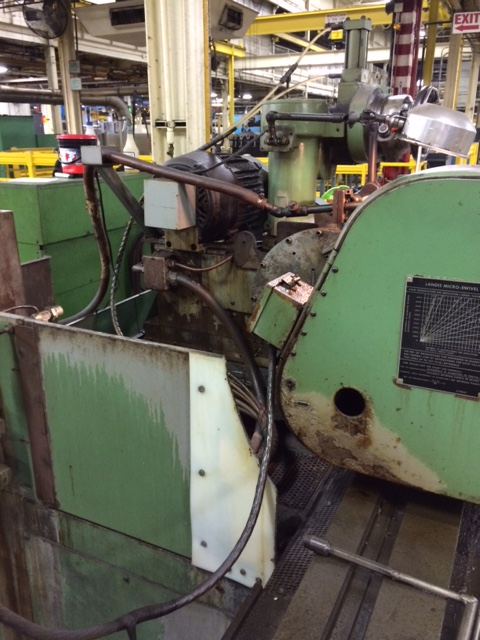

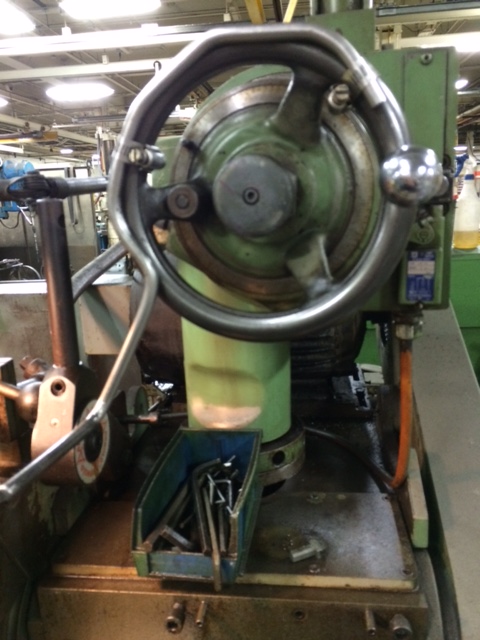

Grinding Wheel swivel range
upper.................................... 180 degree
lower.................................... 60 deg cw - ccw
Grinding wheel spindle speeds............... 1720 - 2185
Automatic infeed at table reversal-on dia.
machine with hydraulic infeed............ .0002" to .004"
Rapid infeed stroke......................... 1.5"

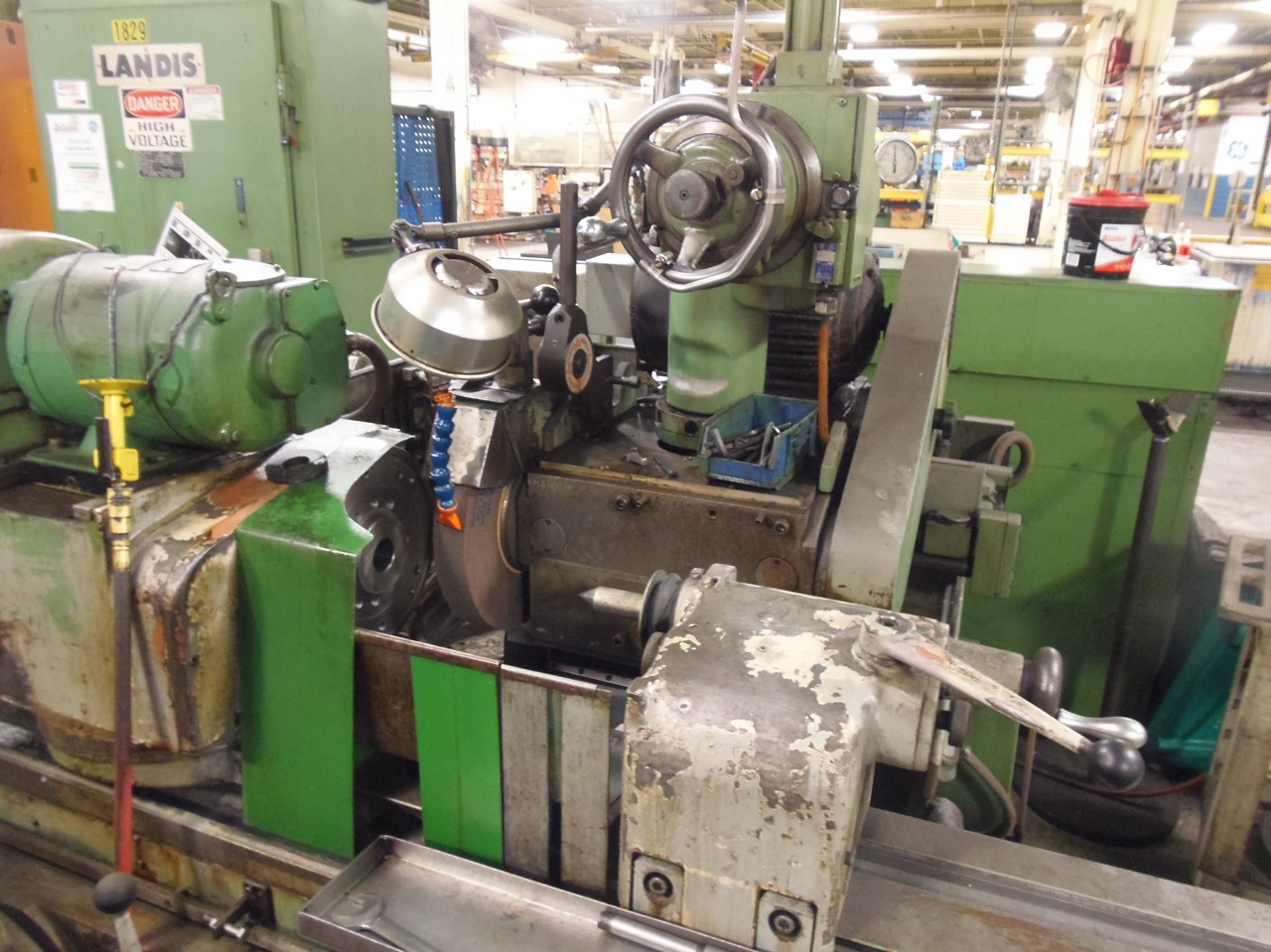

Headstock work center....................... 14 jarno

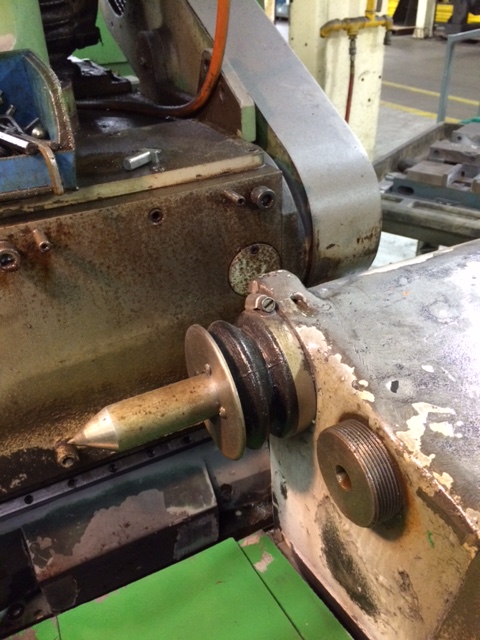

Footstock work center....................... 10 jarno

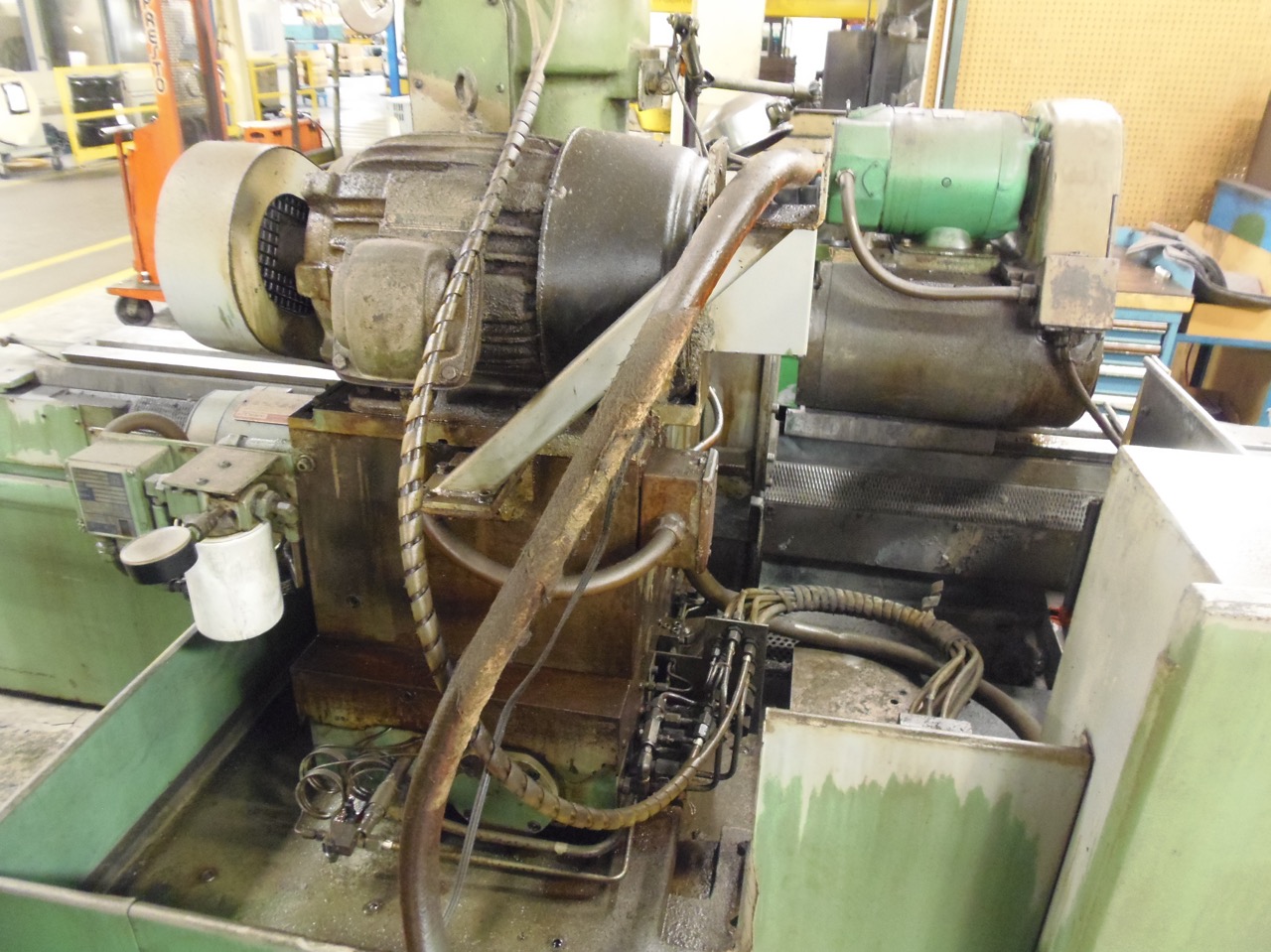

Wheelhead motor............................. 5 hp

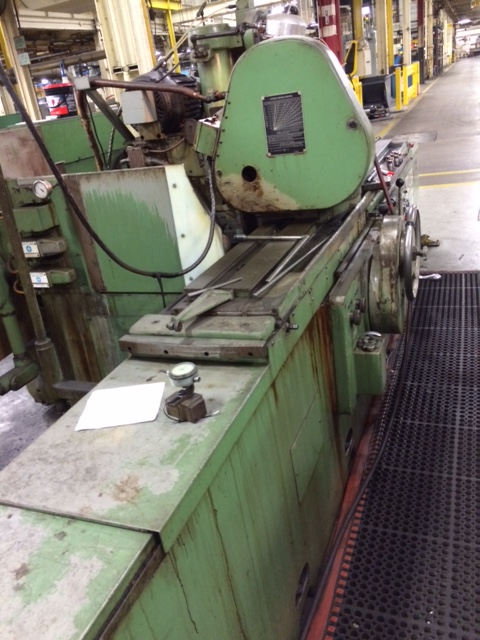

Swivel table inches per foot................ 3"
Swivel table degrees included angle......... 14 degrees
Wheelhead Swivel............................ Up to 90 Degrees and is Repositionable on a Secondary Slide
Variable table traverse speed............... 2 to 240 IPM
Work drive motor............................ 1 hp
Work speeds infinitely variable
low range................................ 12 to 72 rpm
high range............................... 60 to 360 rpm
Hole thru headstock spindle................. 1-7/16"
Headstock swivel range...................... 120 degree
Headstock spindle nose...................... 6a-2
Floor space................................. 74" x 229"
Machine weight.............................. 12,500 lbs

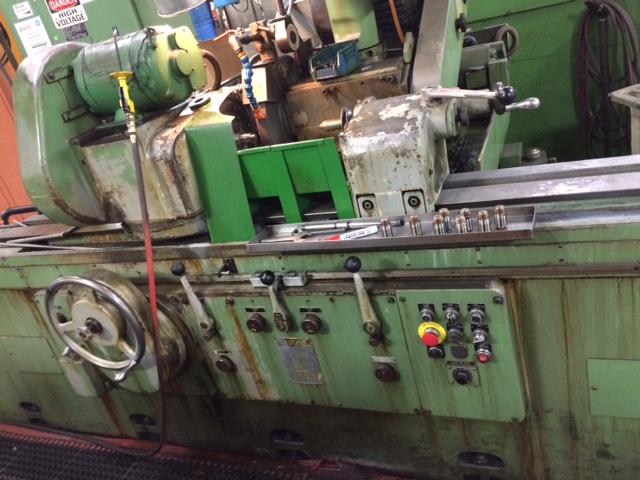

EQUIPPED WITH:
Wheelhead Can Be Setup for Compound Angles or Steep Angle Without
Dressing an Angle on the Grinding Wheel
Live and Dead Spindle Type Workhead
preloaded ball sleeve footstock with quick acting lever control

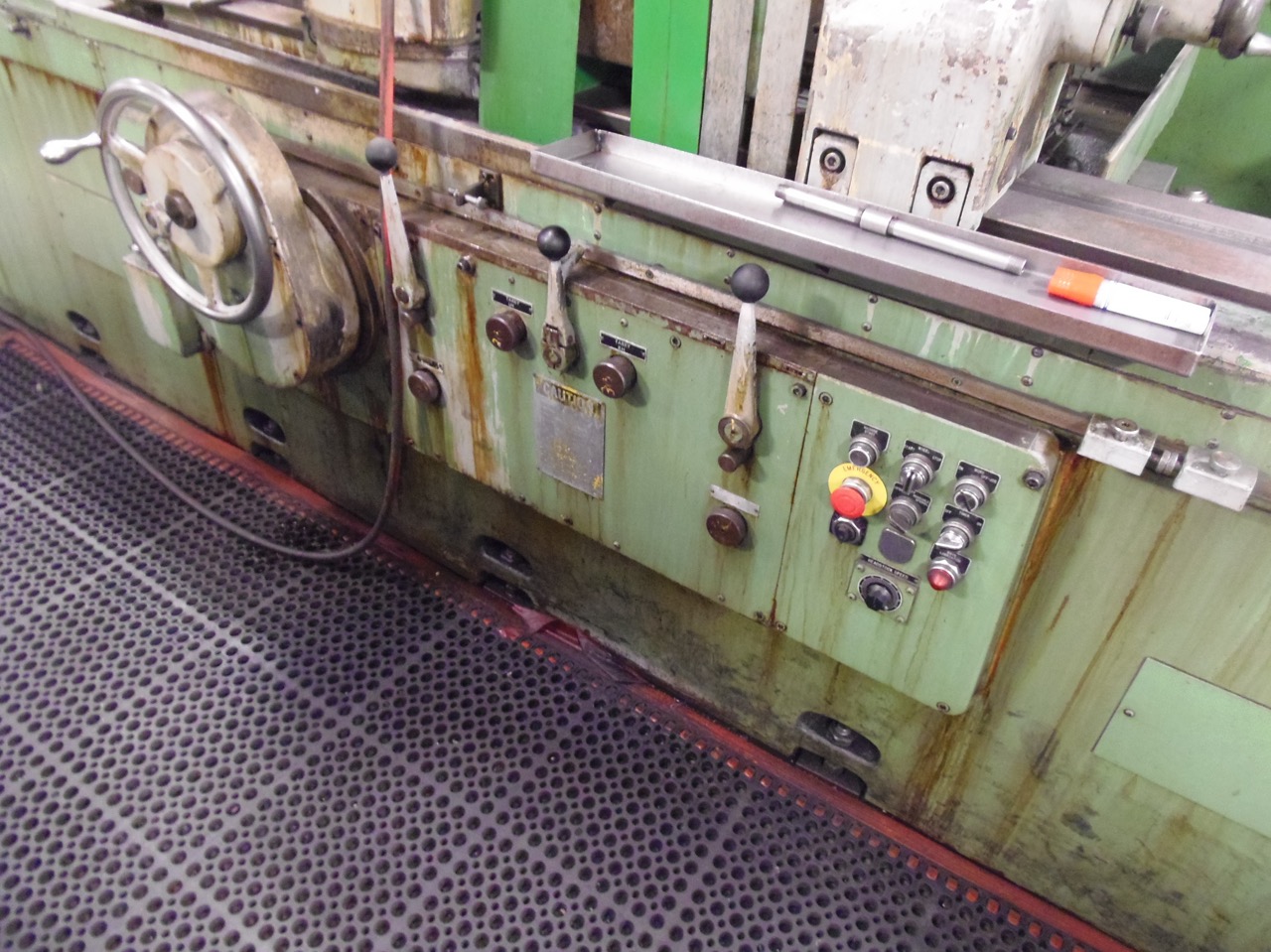

rapid advance and retraction of grinding wheel
traverse or plunge grinding
cushioned reversal while traverse grinding
independent tarry controls for each end of traverse

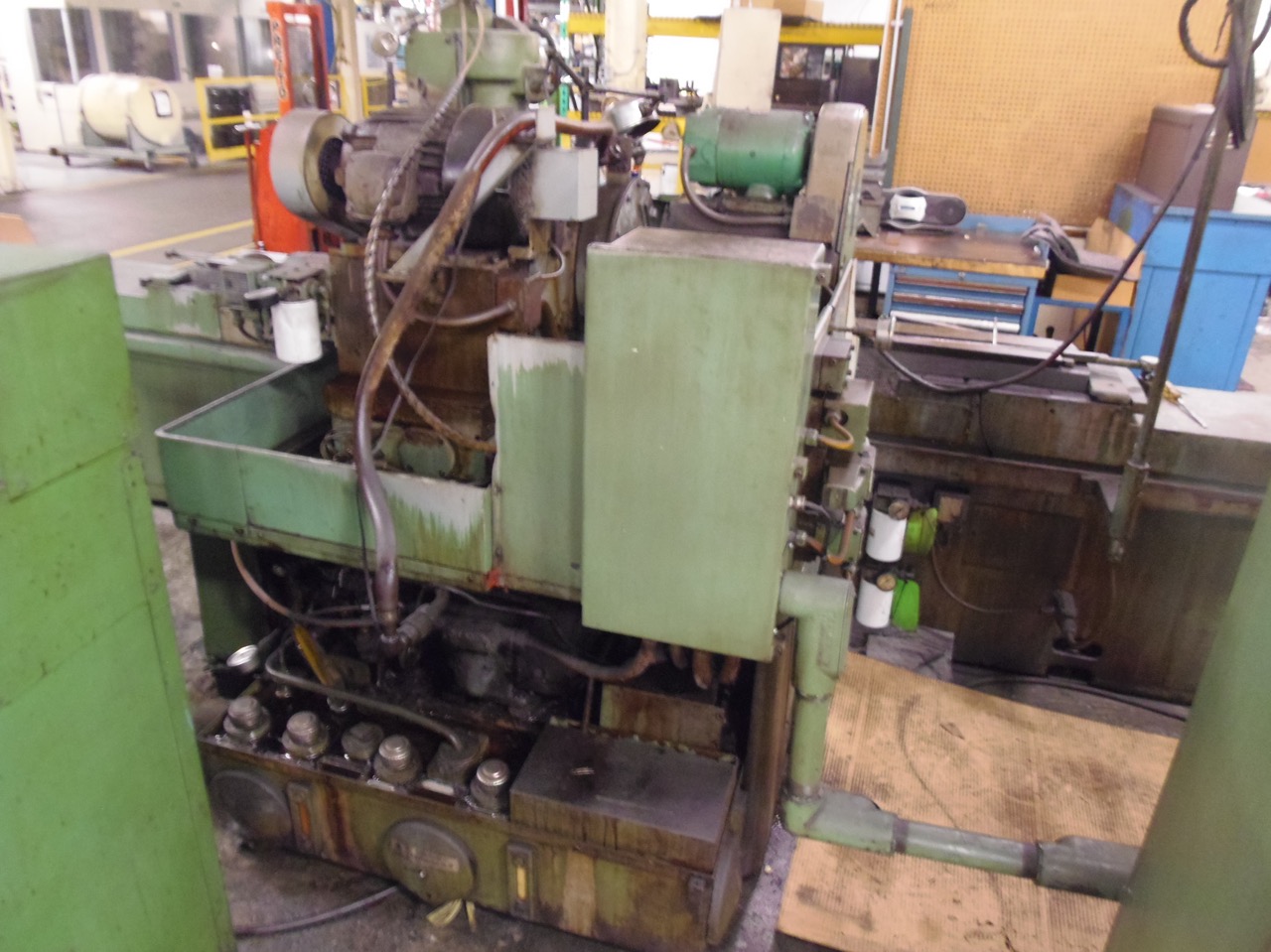

isolated hydraulic reservoir for minimal heat transfer
