Specifications
Equipped With
GENERAL SPECIFICATIONS:

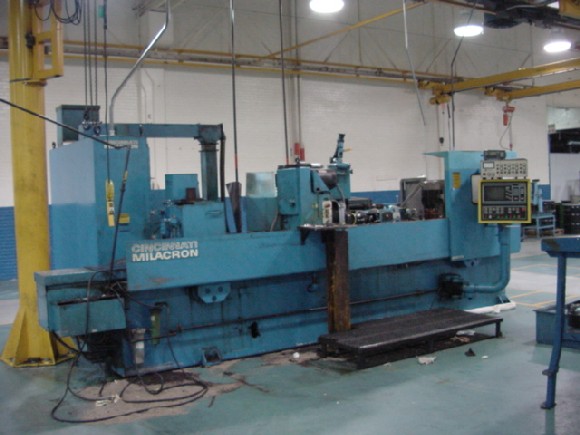

MANUFACTURER CINCINNATI
SERIAL # 3548L0285-0001
PURCHASED NEW 1987
BUILT 1985
SWING 14"
CENTER DISTANCE 60"
GRINDING WHEEL 30" x 4" x 12"
ANGLE OF HEAD 30 DEGREE
WHEEL SPEED 828 RPM (6500 SFPM)
SPINDLE TAPER 14 JARNO
EQUIPPED WITH:
END GAUGING FOR SHOULDERS
A700 ACRAMATIC CONTROL
AUTO DRESSING AND COMPENSATION

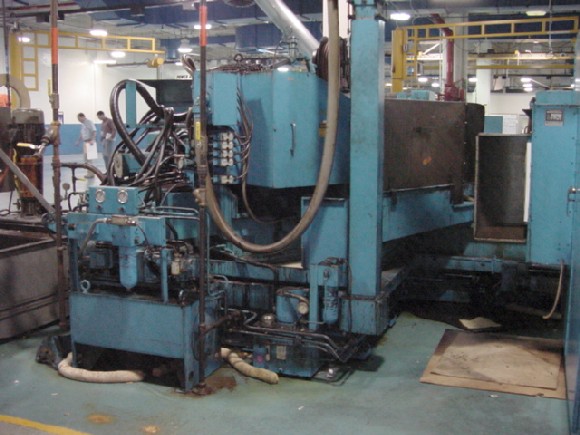

HENRY FILTERS MODEL 20SID, 1-5-2 CF, #5337 COOLANT SYSTEM WITH MAGNETIC SEPARATOR

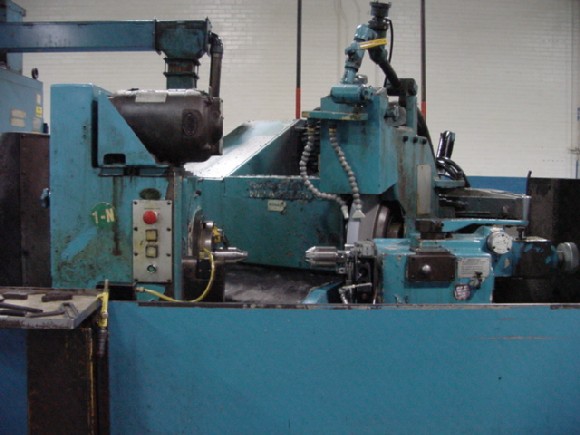

BEHIND WHEEL & TAILSTOCK DRESSERS
CONTROL GAUGING GRINDING MONITOR (FINE, DWELL, SIZE, UP TO 4 GAUGES, MOD 66 JUMP ON GAUGE, FLAGGING)
GRECO MINI FILE, PLUS-SS2 PART STORAGE SYSTEM
WIRED 480V
