Specifications
Equipped With
#92022-3
GENERAL SPECIFICATIONS:
MANUFACTURER.......................... TAKISAWA/WEBB

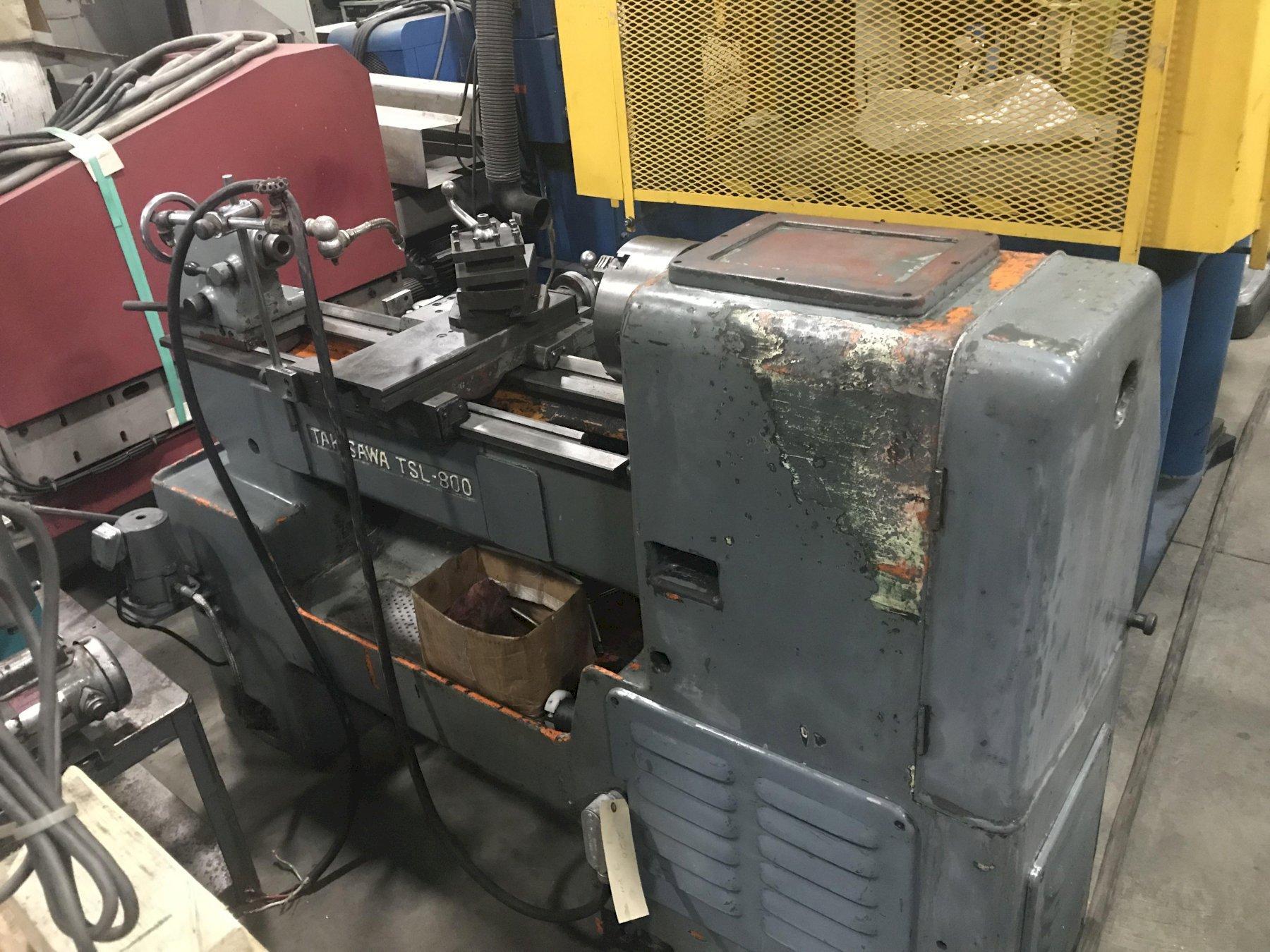

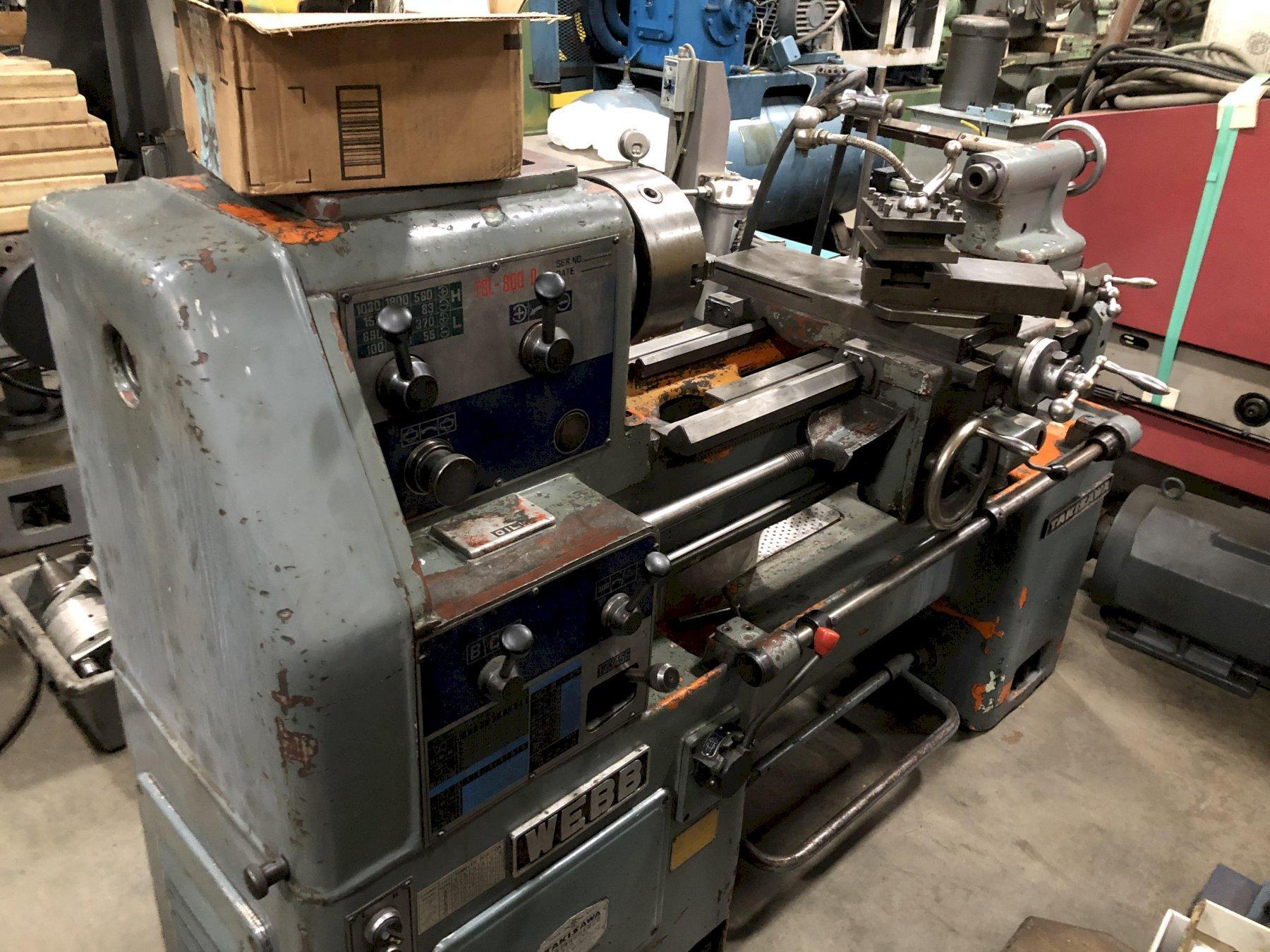

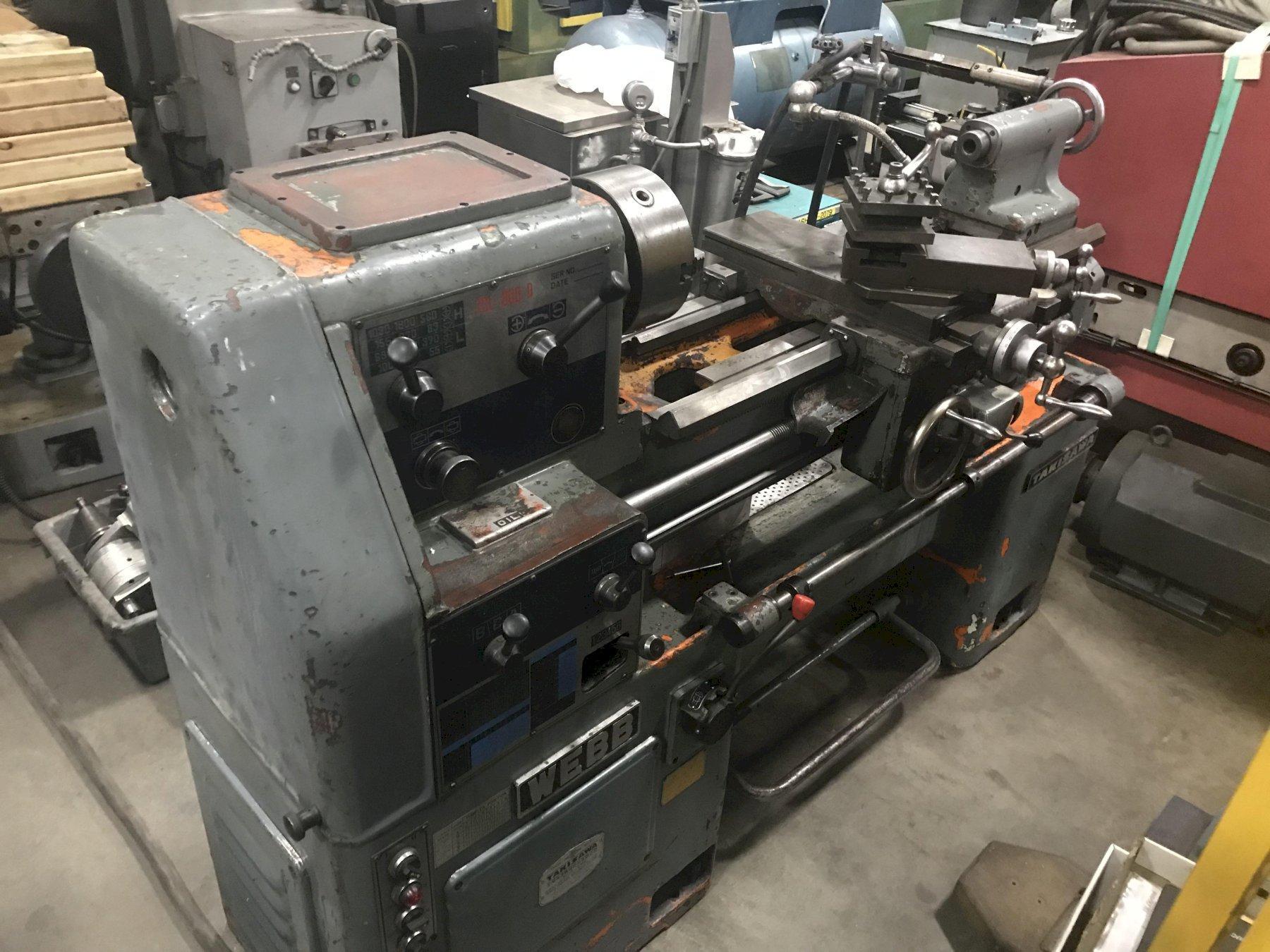

MODEL................................. TSL800D

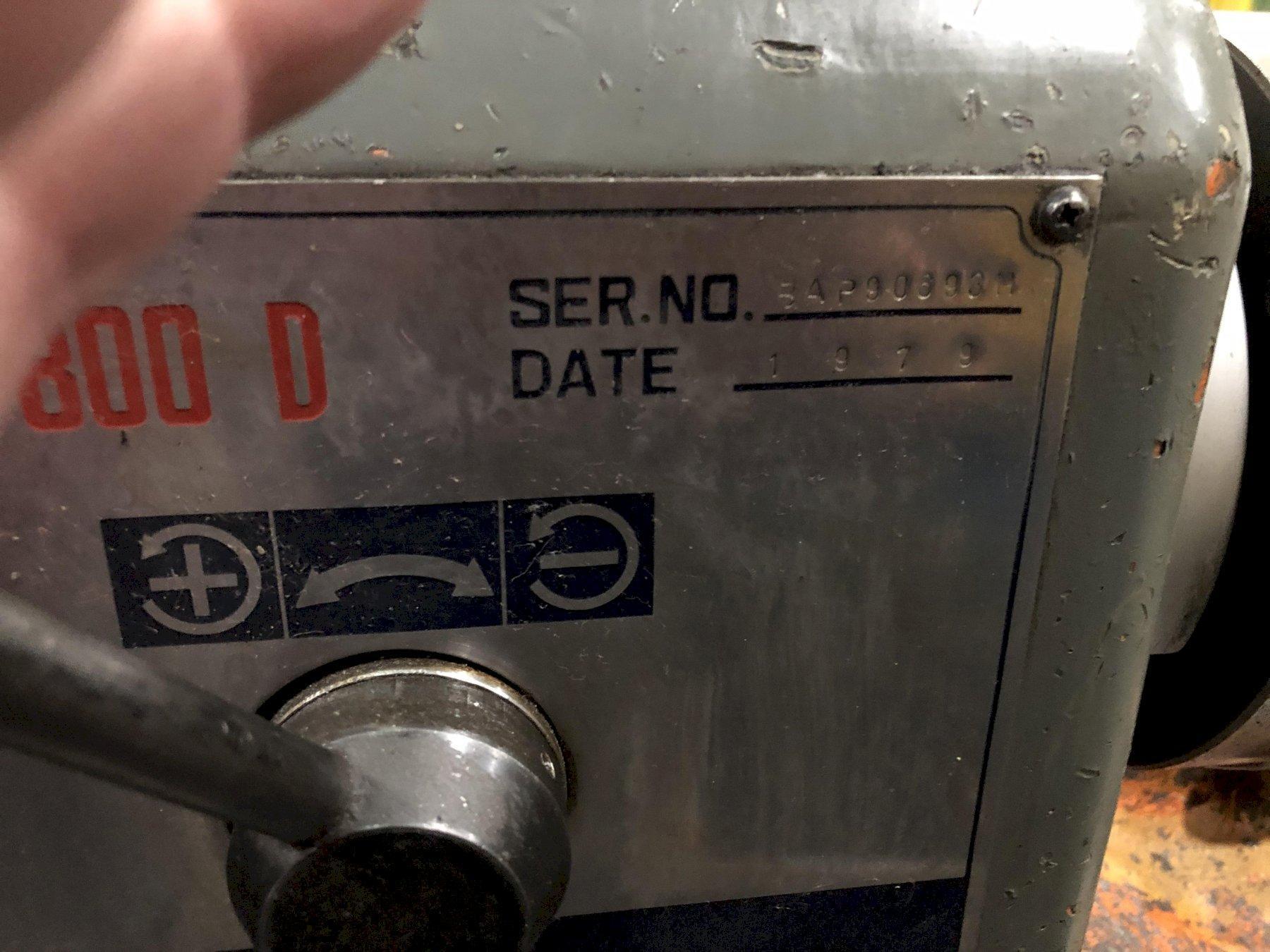

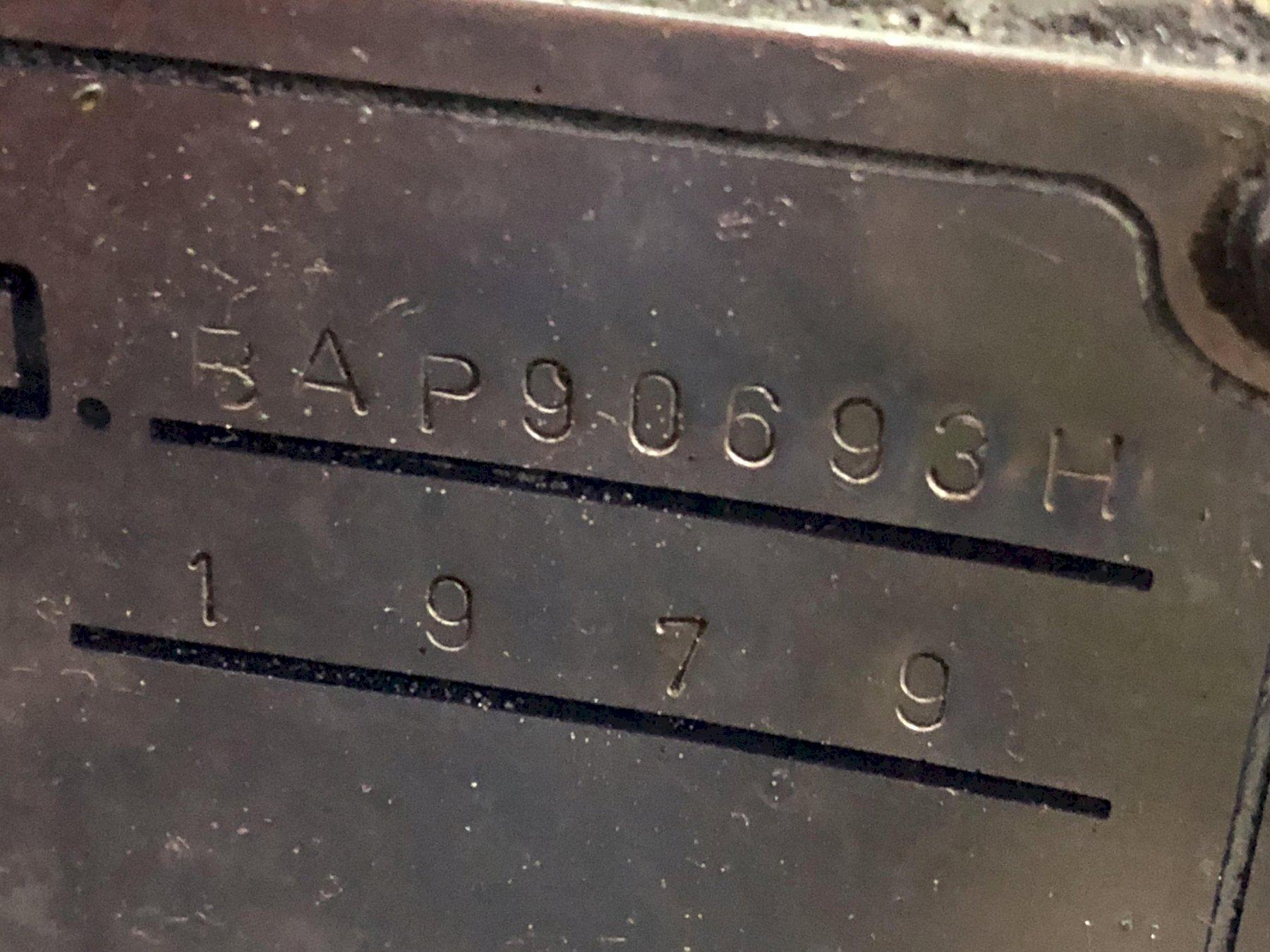

SERIAL................................ BAP90693H
NEW APPROXIMATELY..................... 1979
SWING OVER BED........................ 14-1/8"
SWING OVER CROSS SLIDE................ 8-1/4"
DISTANCE BETWEEN CENTERS.............. 32"
SPINDLE BORE.......................... 1-3/8"

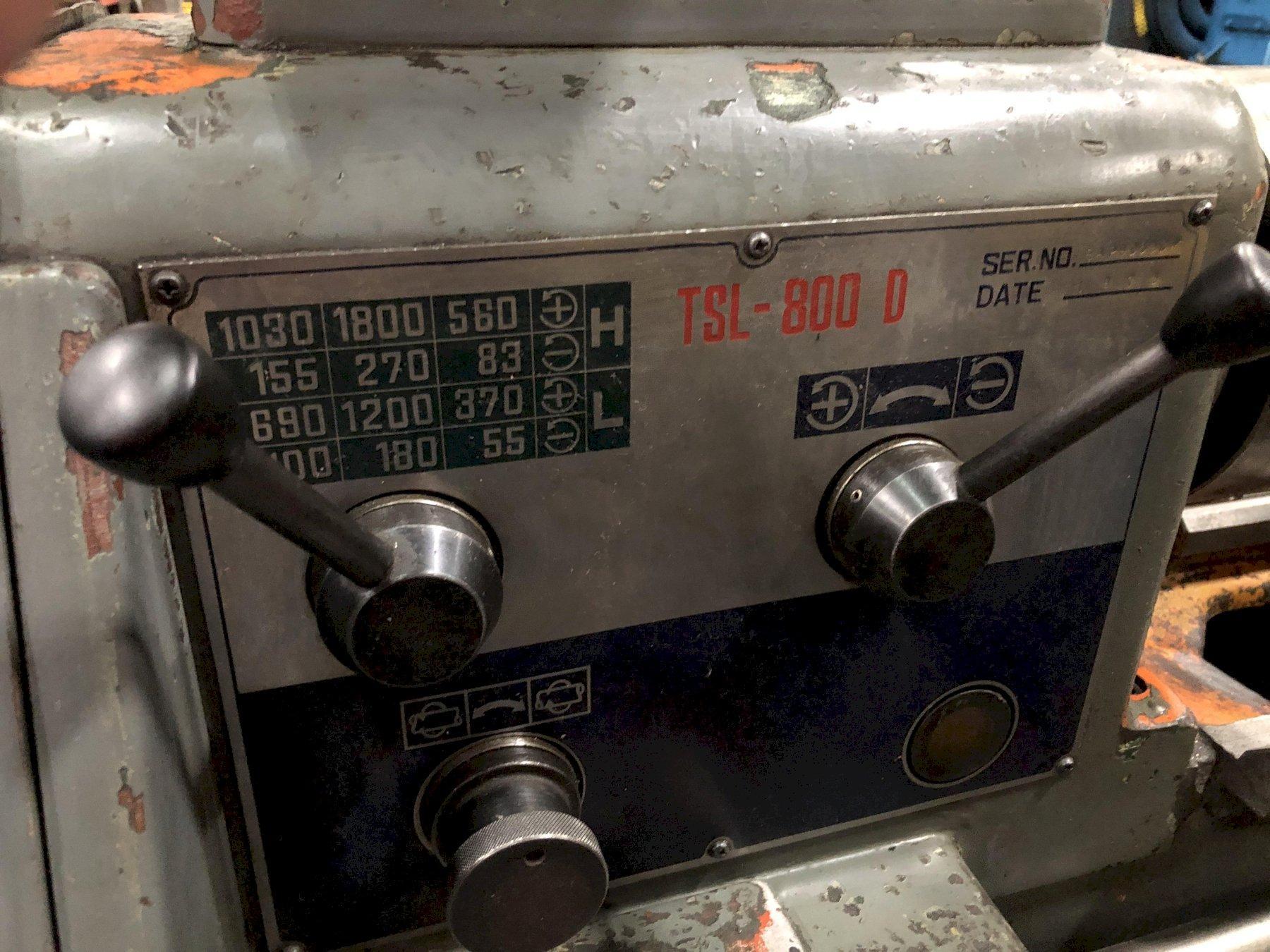

SPINDLE SPEEDS........................ 55-1800

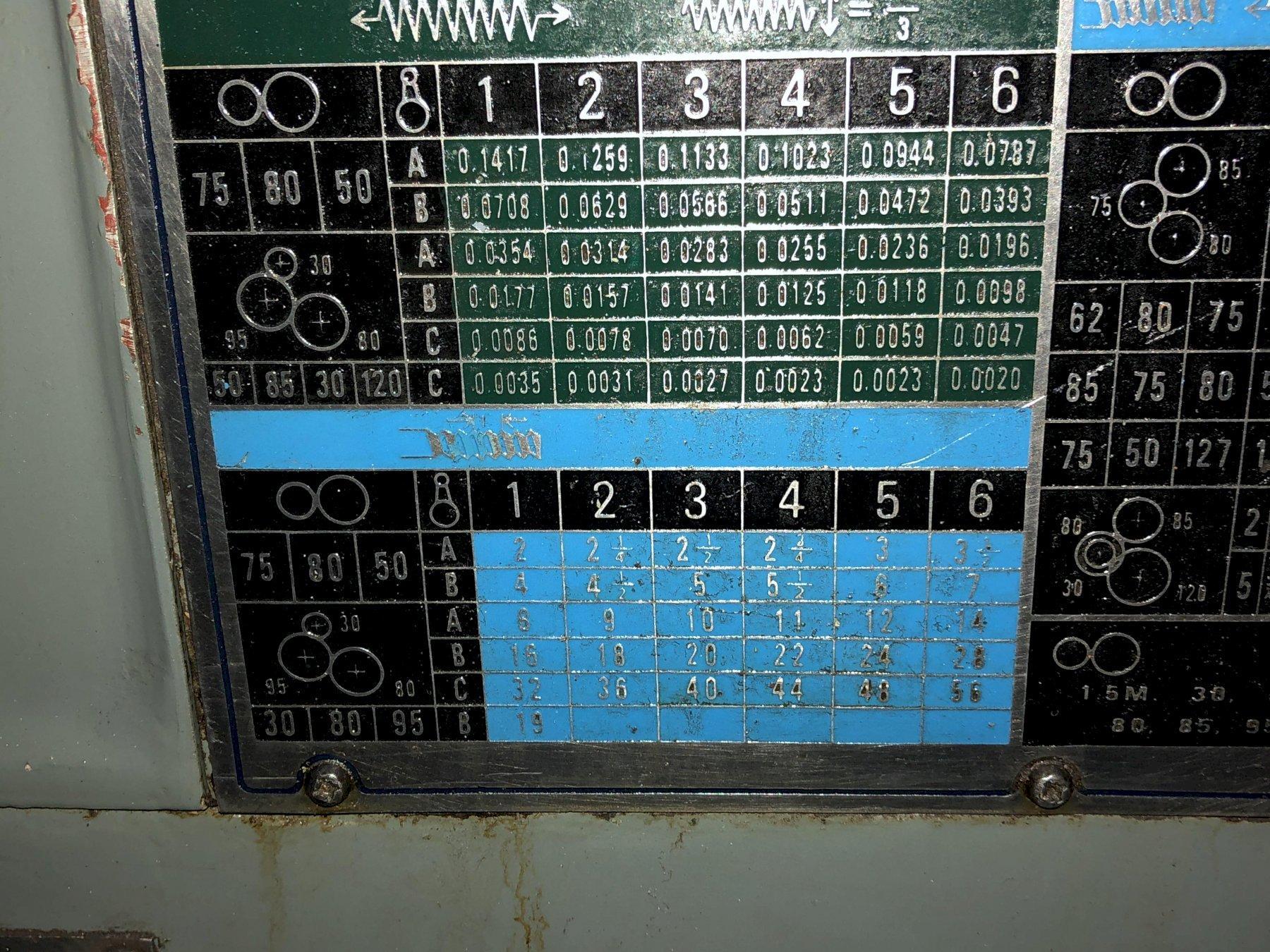

LONGITUDINAL FEEDS (36)...............
CROSS FEEDS........................... 1/2 OF LONGITUDINAL

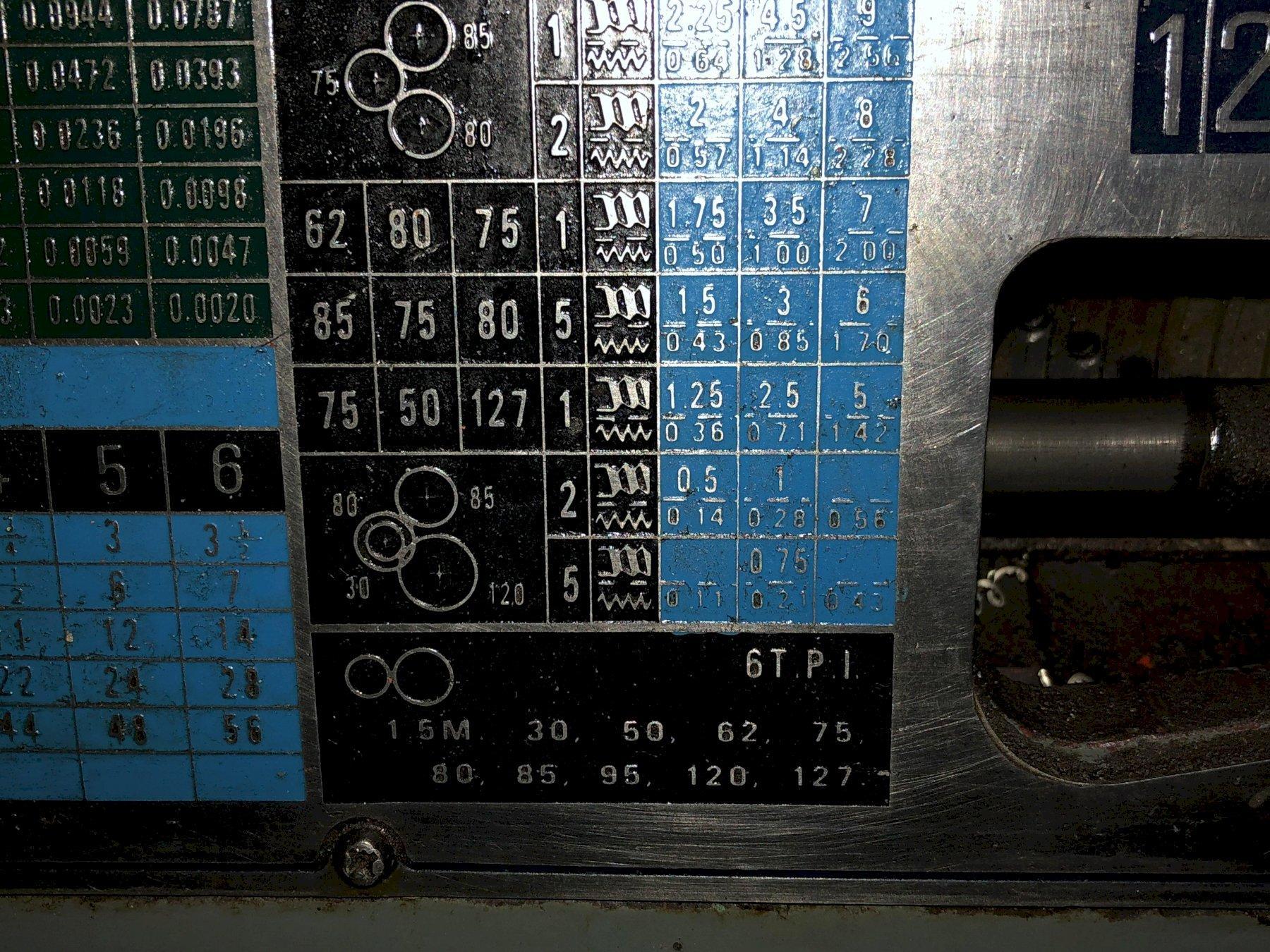

THREADS
INCH............................... 2-56 TPI
METRIC............................. .5-14 MM
TAILSTOCK............................. 3 MT
SPINDLE NOSE.......................... A1-5
WEIGHT APPROX......................... 2,200 LBS.
EQUIPPED WITH:
8" 3 JAW CHUCK
4 WAY TOOL POST
WORK LIGHT
COOLANT
MOTOR 5 HP 220/440/3
