Specifications
Equipped With
GENERAL SPECIFICATIONS:

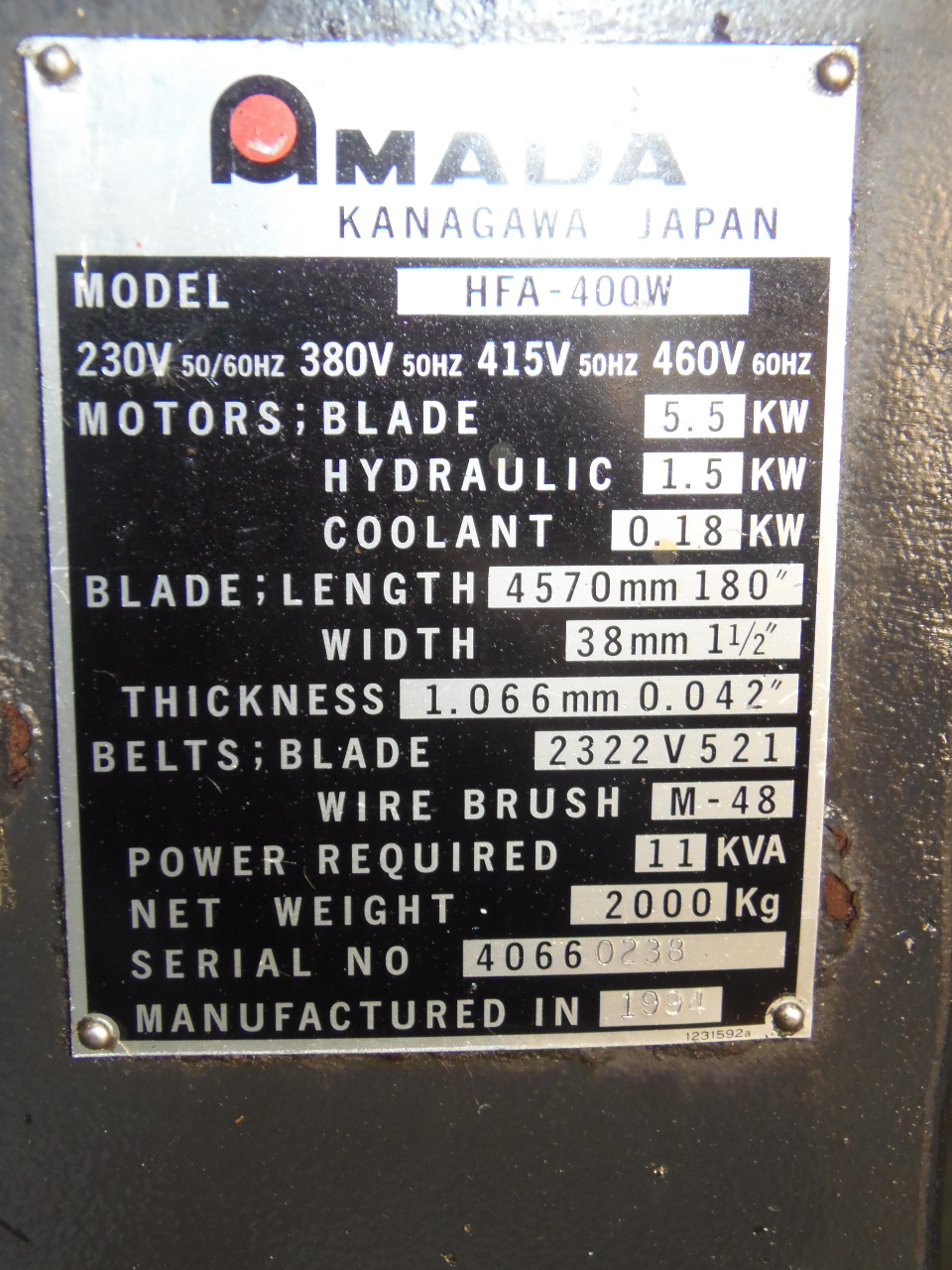

MANUFACTURER............................ AMADA
MODEL................................... HFA-400W
AGE..................................... 1994
CAPACITY (RECTANGLE).................... 16" X 16"
(ROUNDS)................................ .5 - 16"
WORK LOAD CAPACITY...................... 5511 LBS.
FEED STROKE............................. 19.6"
LENGTH.................................. .39 - 9999.9"
NUMBER OF INPUT STATION................. 1 - 99
NUMBER OF CUT OFF PIECES................ 1 - 999
BLADE SIZE.............................. 180" X .042" X 1.5"
BLADE SPEED............................. 50-295 FT./MIN
SAW BLADE MOTOR......................... 5.5 KW
HYDRAULIC PUMP MOTOR.................... 1.5 KW
COOLANT PUMP MOTOR...................... .18 KW
DIMENSIONS (HEAD UP).................... 95.5" X 106" X 95" (WxLxH)
TABLE HEIGHT (ABOVE FLOOR).............. 31.5"
MACHINE WEIGHT.......................... 4850 LBS

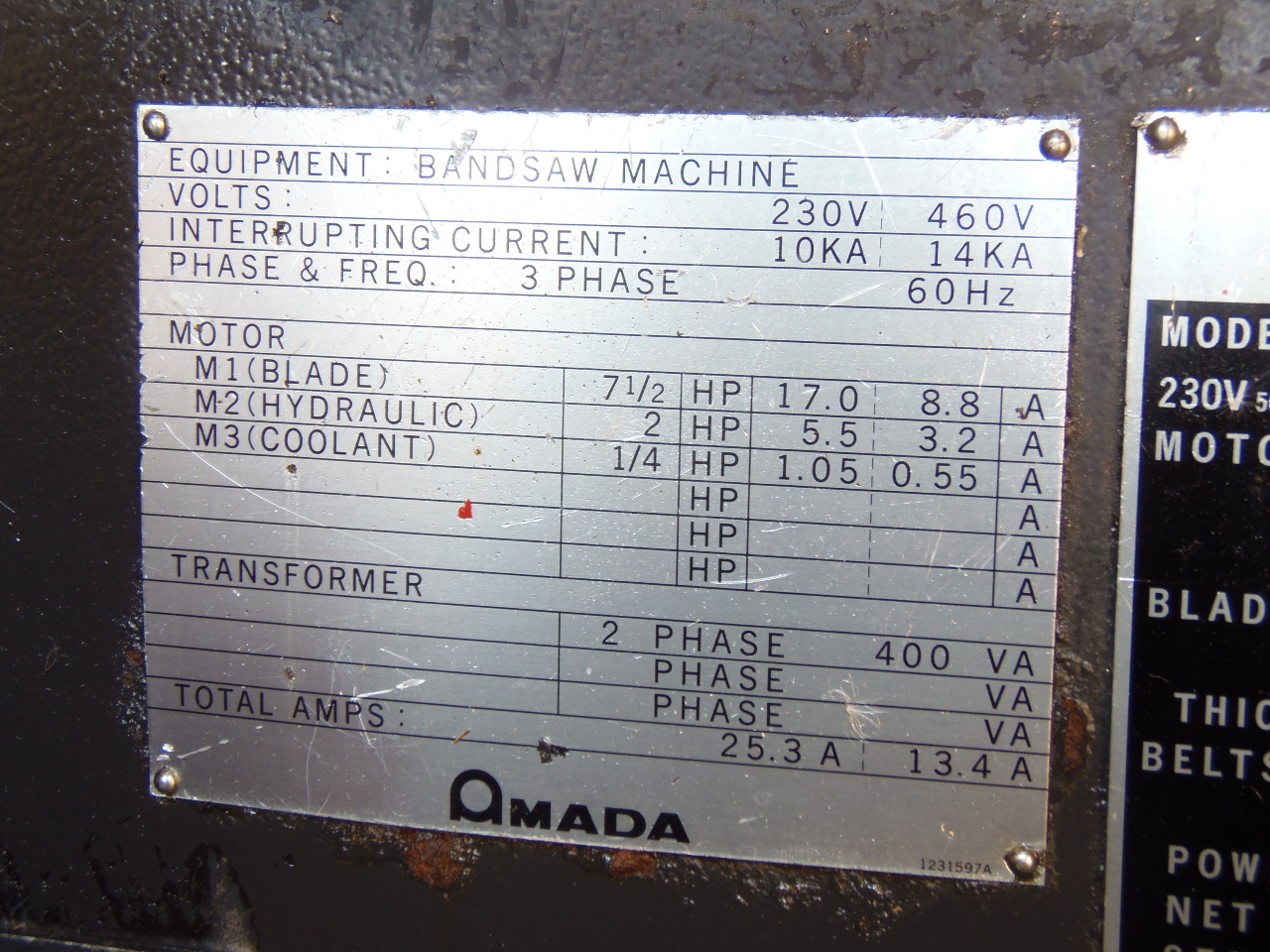

ELECTRICS............................... 220V/3PHS/60HZ
EQUIPPED WITH:
AUTO TRIM CUT
BLADE DEVIATION MONITOR
CHIP CONVEYOR

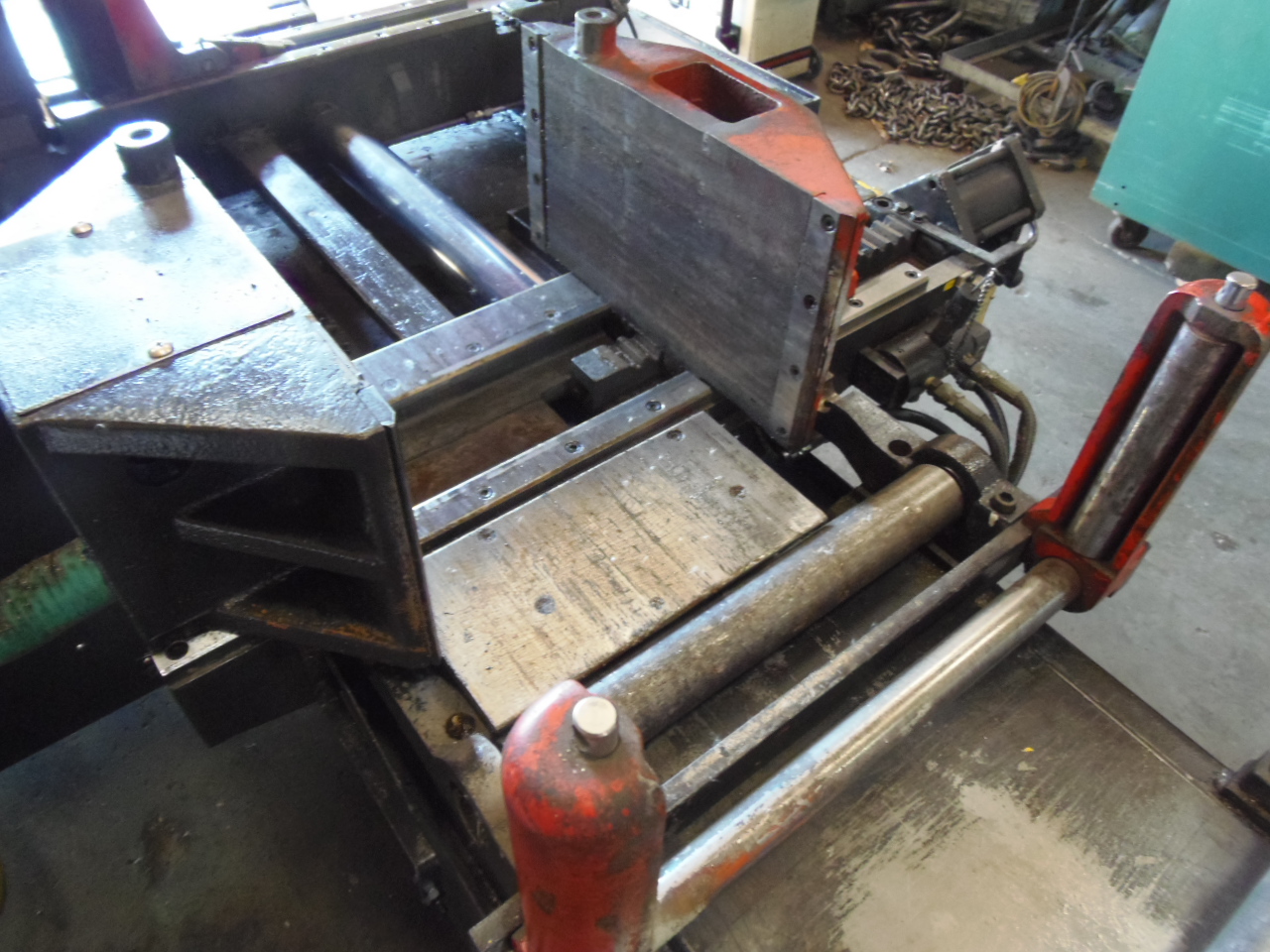

FULL STROKE VISES
MOTION DETECTOR
NC BACK GAUGE
PRESSURE FLOW VALVE
SELF DIAGNOSTICS
VARIABLE BLADE SPEED DRIVE
PIECE COUNTER
CUTTING PRESSURE CONTROL
PARTS AND OPERATORS MANUALS
