Specifications
Equipped With
GENERAL SPECIFICATIONS:

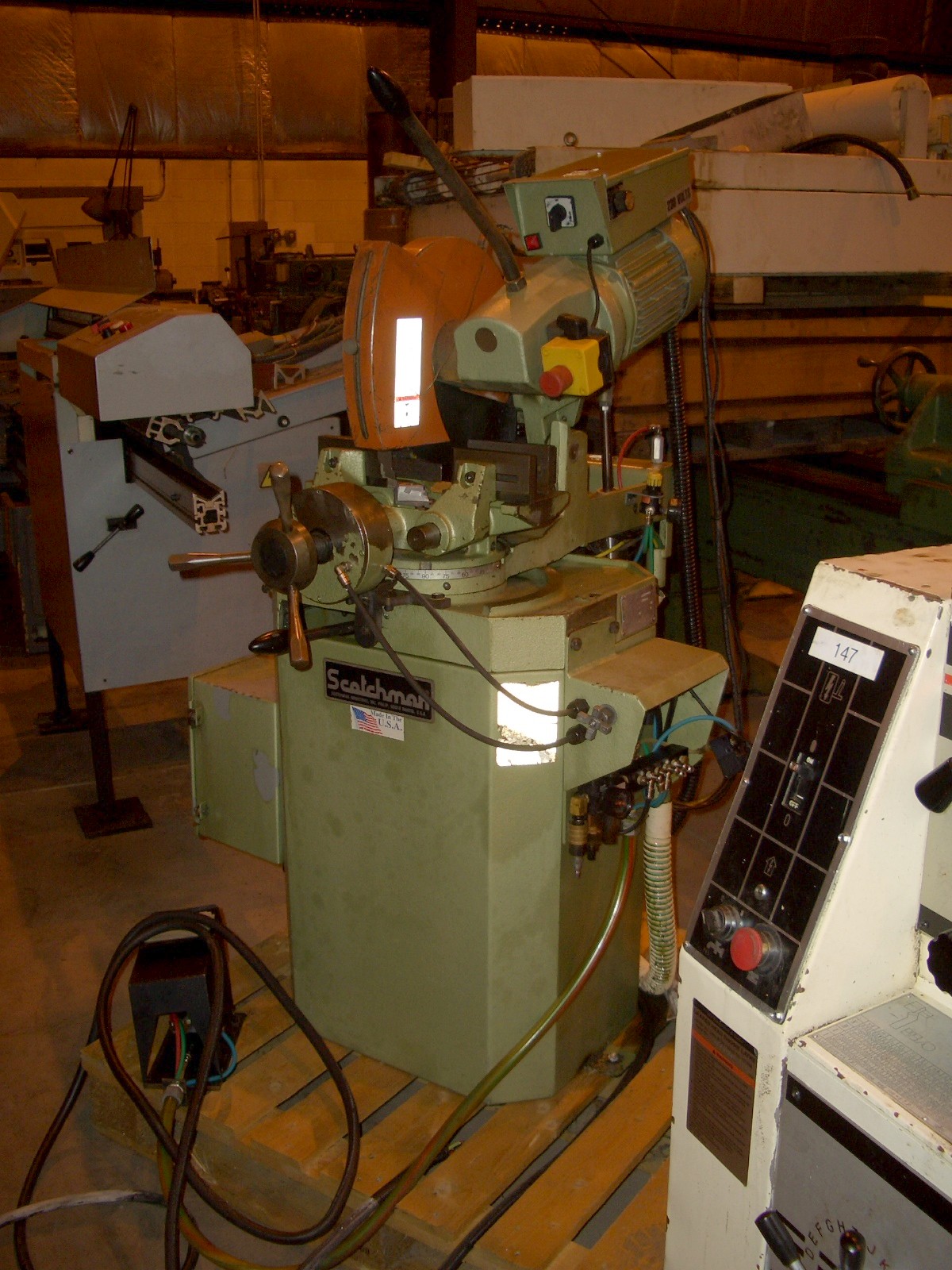

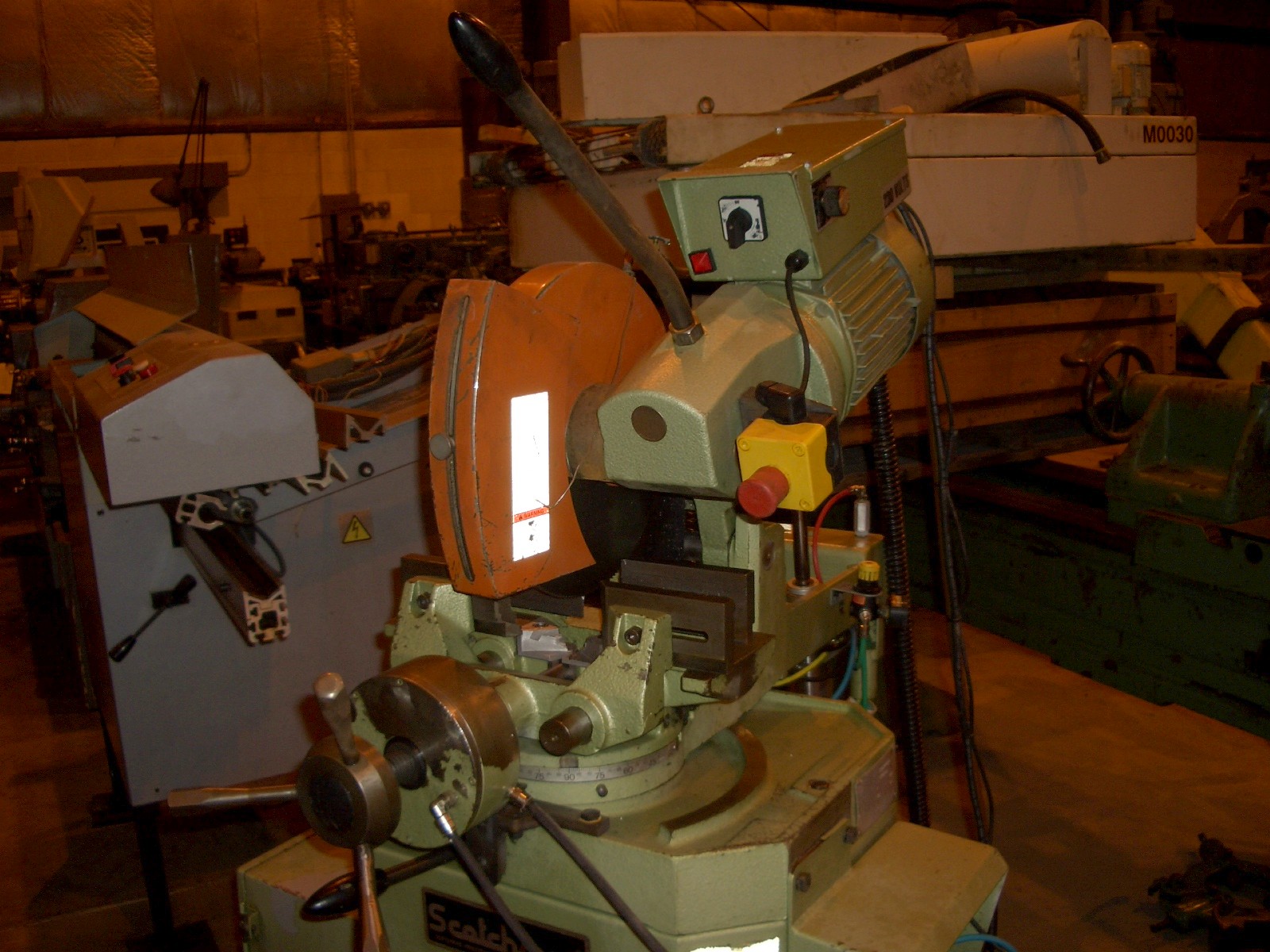

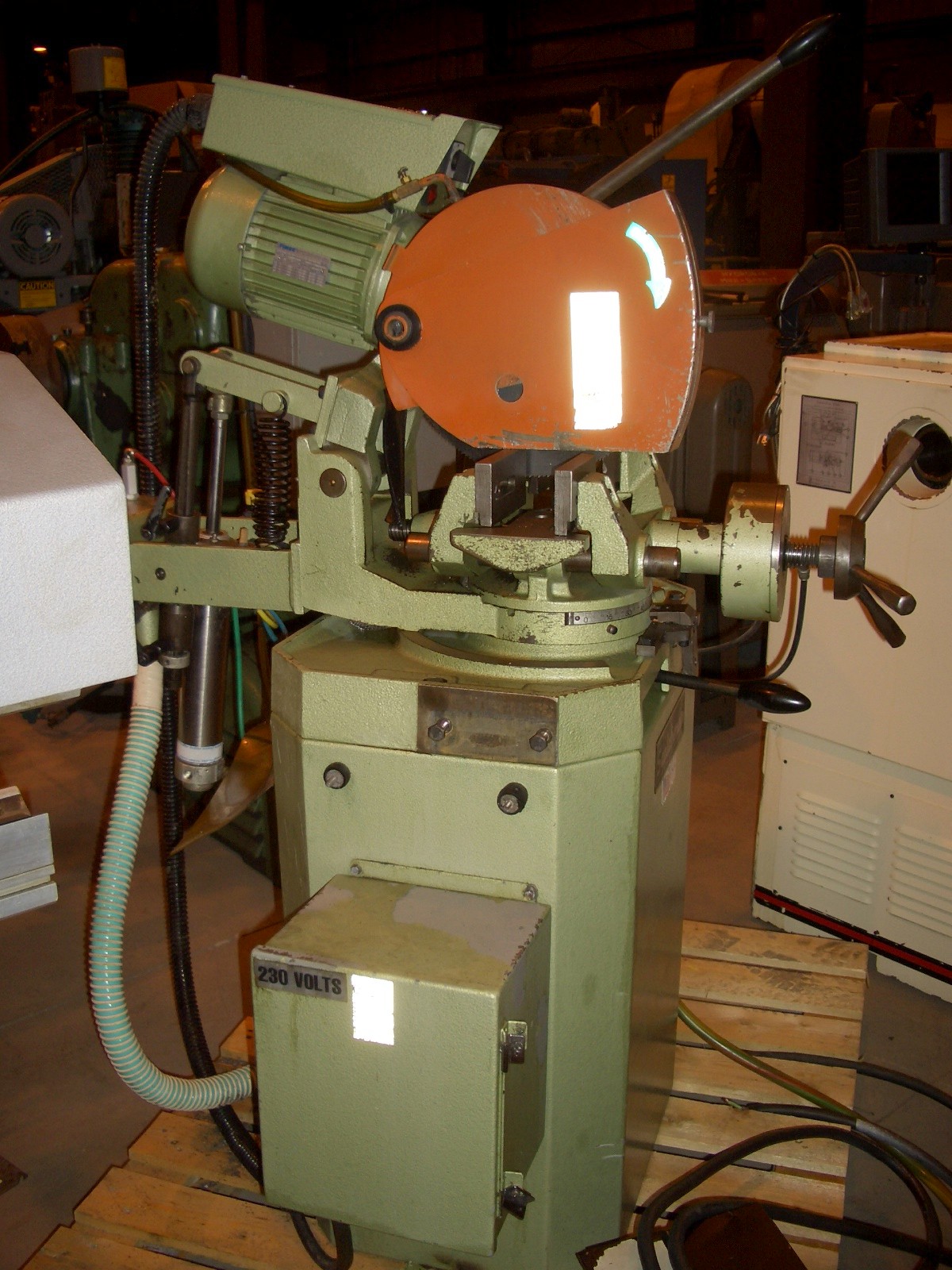

MANUFACTURER SCOTCHMAN
MODEL CP 350HT
SERIAL # 57780801
BLADE SIZE 14"
ARBOR BORE 1 9/16"
HEIGHT FLOOR TO VISE 37 7/16"
MAX. VISE OPENING 6"
90 DEG. CUTTING CAP. ROUND TUBE 4 7/8"
90 DEG. CUTTING CAP. ROUND SOLID 2"
90 DEG. CUTTING CAP. SQUARE TUBE 4 1/2"
45 DEG. CUTTING CAP. ROUND TUBE 4 3/8"
45 DEG. CUTTING CAP. ROUND SOLID 1 3/4"
45 DEG. CUTTING CAP. SQUARE TUBE 4"
SPINDLE SPEEDS (VARIABLE) 35 - 176 RPM
MOTOR 3 HP
ELECTRICS 3 PH/60 HZ/230 VOLTS
WEIGHT (APPROX.) 700 LBS.
DIMENSIONS (APPROX.) 22"W X 44"D X 57"
EQUIPPED WITH:
PNUEMATIC FEED TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
