14" MITUTOYO MDL PH3500, QUADRA-CHEK 2000 DRO, 17.7" x 5.7" TBL, 10" X-AXIS, 6" Y-AXIS, 99 LBS. MAX. LOAD CAP.

GENERAL SPECIFICAITONS:
MANUFACTURER MITUTOYO
MODEL PH3500
SERIAL # 760194
NEW 1996
SCREEN DIAMETER 14"
SCREEN ANGLE DISPLAY DIGITAL
SCREEN RESOLUTION 1 DEG/0.01 DEG
SCREEN MEASURING RANGE +/- 370 DEG.
TABLE SIZE 17.7" x 5.7"
TABLE MAX. LOAD CAP. 99 LBS
TABLE SWIVEL ANGLE +/- 10 DEG.
TABLE ANGLE RESOLUTION 30'
X-AXIS 10"
Y-AXIS 6"

EQUIPPED WITH:

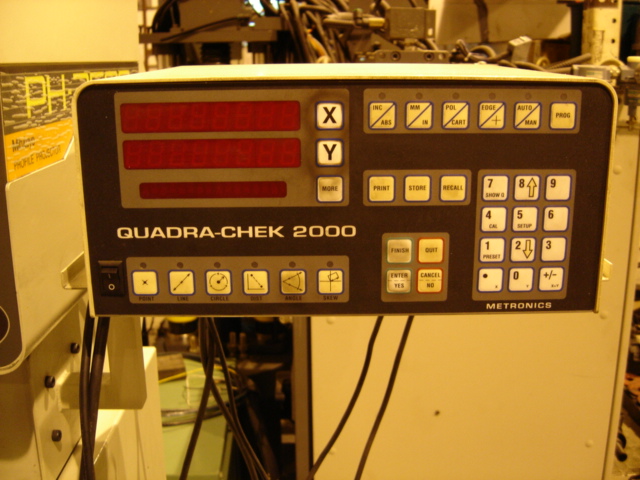

QUADRA-CHEK 2000 DIGITAL READOUT/MEASURING SYSTEM
SINGLE LENS MOUNT W 10X LENS
ANGLE COUNTER
PAIR OF TABLE CENTERS
FLOOR STAND CABINET
CALIBRATED 1-3-05
APPROX. WEIGHT 400LBS
ELECTRICAL 1/60/120 VOLT
OPERATION MANUAL FOR PH-3500 AND QUADRA-CHECK TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
