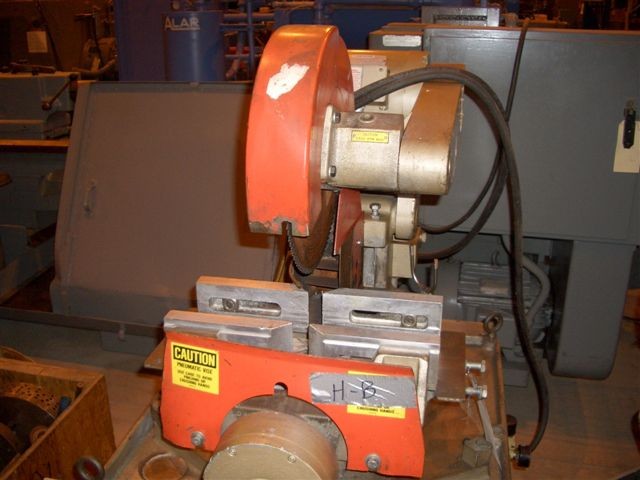

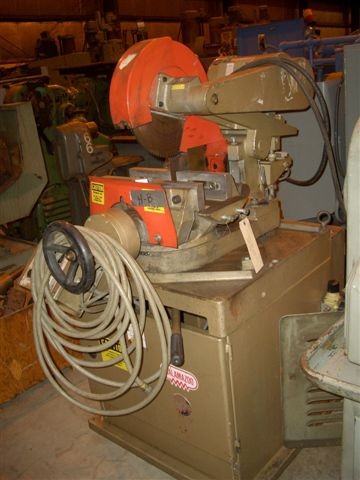

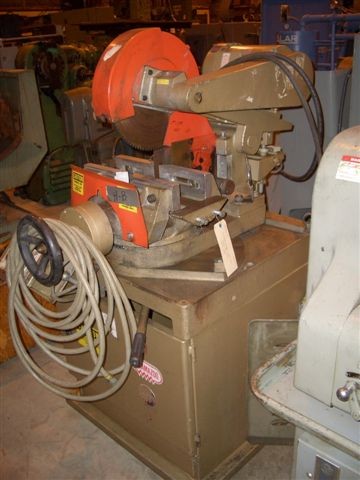

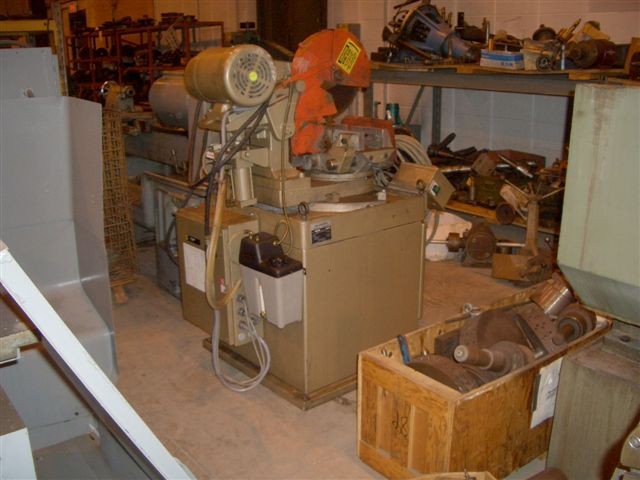

14" KALAMAZOO, MDL FA-350S, 3400 OR 1700 RPM, 3 HP, 6" MAX. VISE OPENING

GENERAL SPECIFICATIONS:
MANUFACTURER KALAMAZOO
MODEL FA-350S
SERIAL # 381
AGE APPROXIMATELY 1992
BLADE SIZE 14"
MAX. VISE OPENING 6"
90 DEG. CUTTING CAP. ROUND TUBE 5"
90 DEG. CUTTING CAP. ROUND SOLID 4"
90 DEG. CUTTING CAP. SQUARE TUBE 4.5"
45 DEG. CUTTING CAP. ROUND TUBE 4.5"
45 DEG. CUTTING CAP. ROUND SOLID 4"
45 DEG. CUTTING CAP. SQUARE TUBE 4.5"
SPINDLE SPEEDS (2) 3400/1700 RPM
MOTOR 3 HP
ELECTRICS 3 PH/60 HZ
WEIGHT (APPROX.) 1,300 LBS.

EQUIPPED WITH:
SELF CENTERING VISE
OPERATORS CONTROL PANEL
ROTATION OF HEAD FOR 45 DEG. CUTS LEFT-RIGHT
CAST IRON CONSTRUCTION TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
