Specifications
Equipped With
GENERAL SPECIFICATIONS:

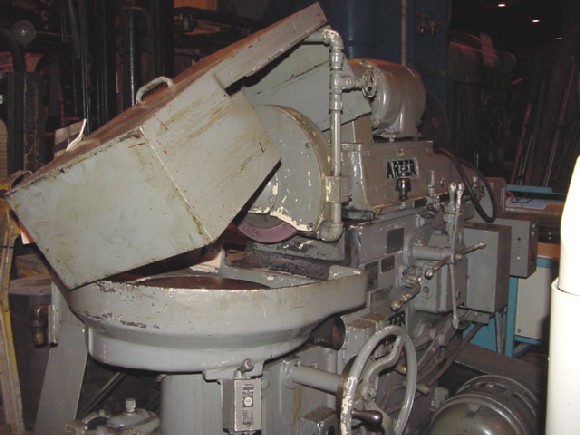

MANUFACTURER ARTER
MODEL A3-12
SERIAL # 2371
NEW (APPROX.) 1950'S
CHUCK DIAMETER 14"
OVERARM TRAVEL 17"
MAX. HEIGHT UNDER WHEEL 10-1/2"
MAX. SWING INSIDE CHUCK GUARD 24"
WHEEL SIZE 14"
CHUCK SPEEDS 30, 58, 106 & 203 RPM
TABLE TILTS (LEFT & RIGHT) 10 DEGREES
MOTOR 7.5 HP
ELECTRICS 220/440/3 PH/60 CYCLE
DIMENSIONS (APPROX.) 80"LR x 43" FB x 65"H
EQUIPPED WITH:

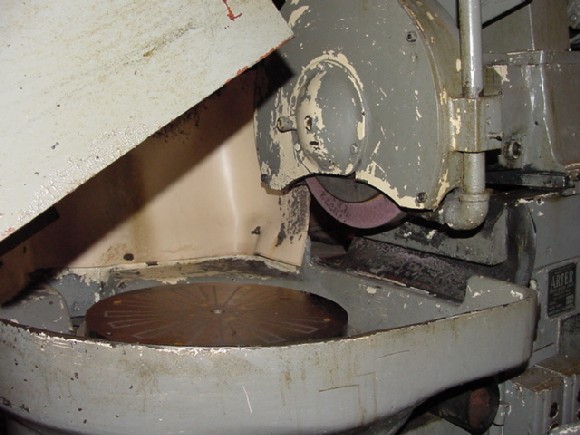

14" MAGNETIC CHUCK WITH RECTOFIER CONTROL
RAC & PINION MANUAL/POWER OVERARM TRAVEL
MANUAL TABLE VERTICAL TRAVEL ONLY
(2) TRIP DOGS FOR WHEEL HEAD TRAVEL
VERTICAL TRAVEL HAND WHEEL GRADUATED IN .001"
SET UP WITH COOLANT PIPING
