Specifications

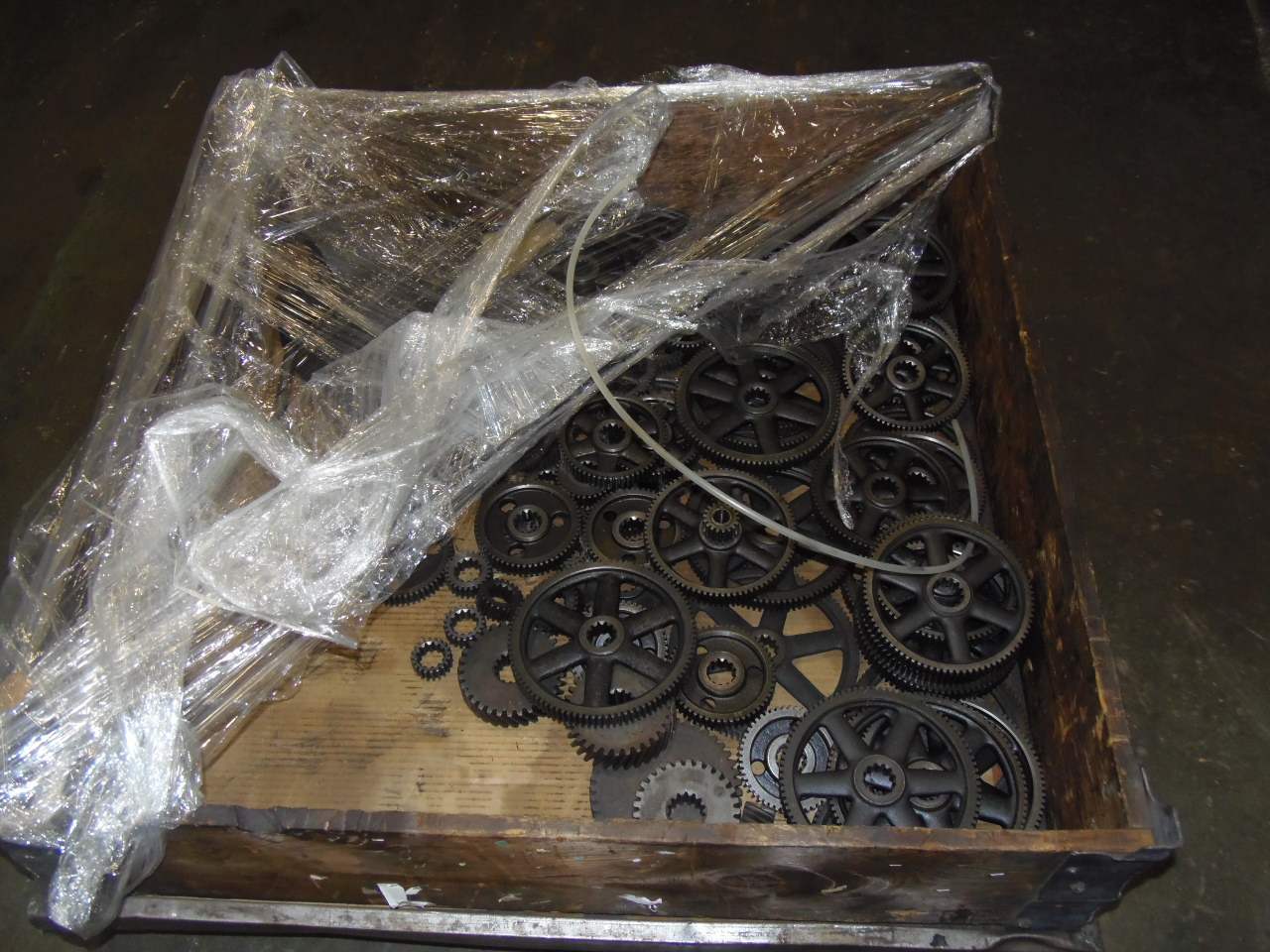

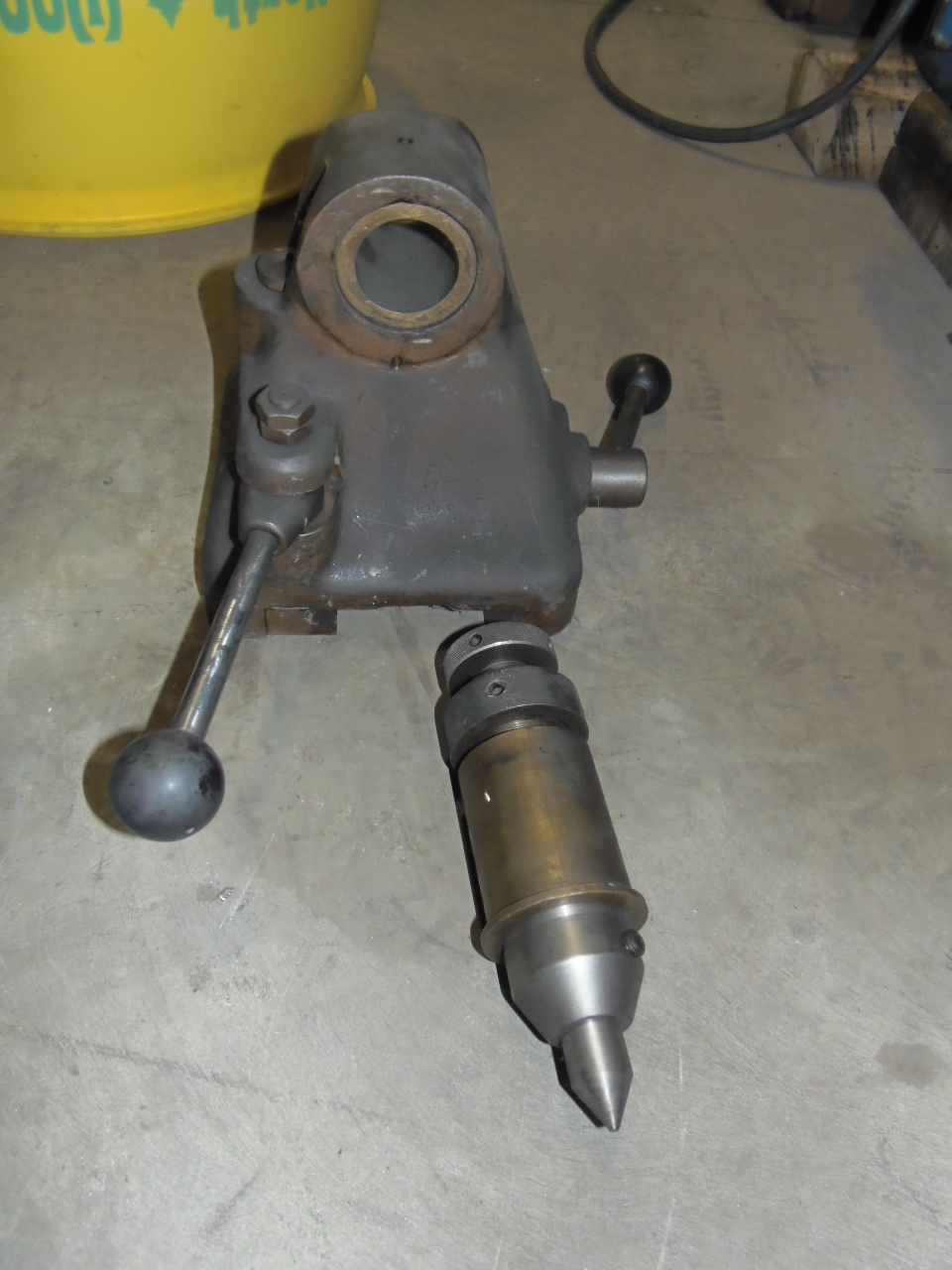

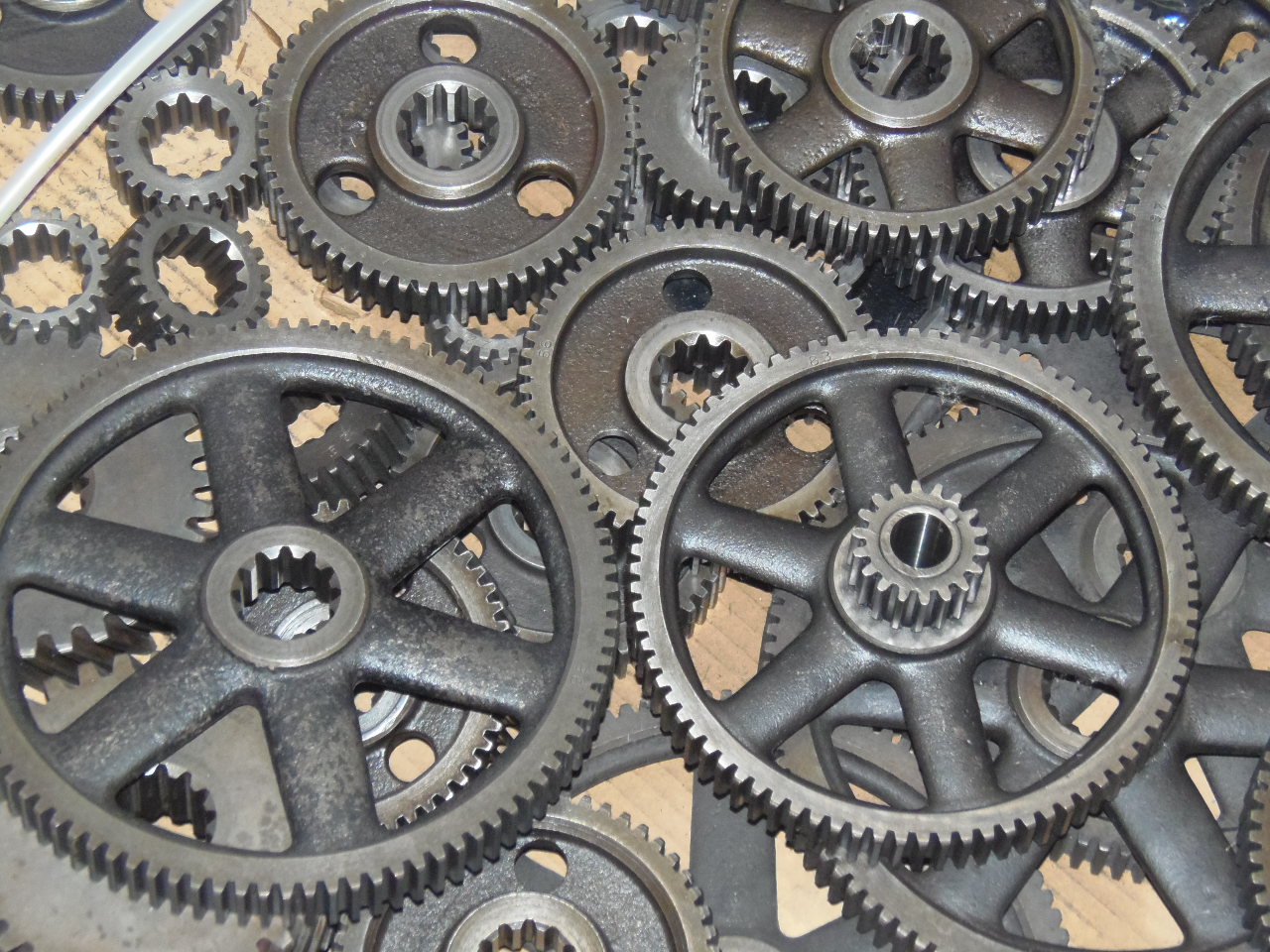

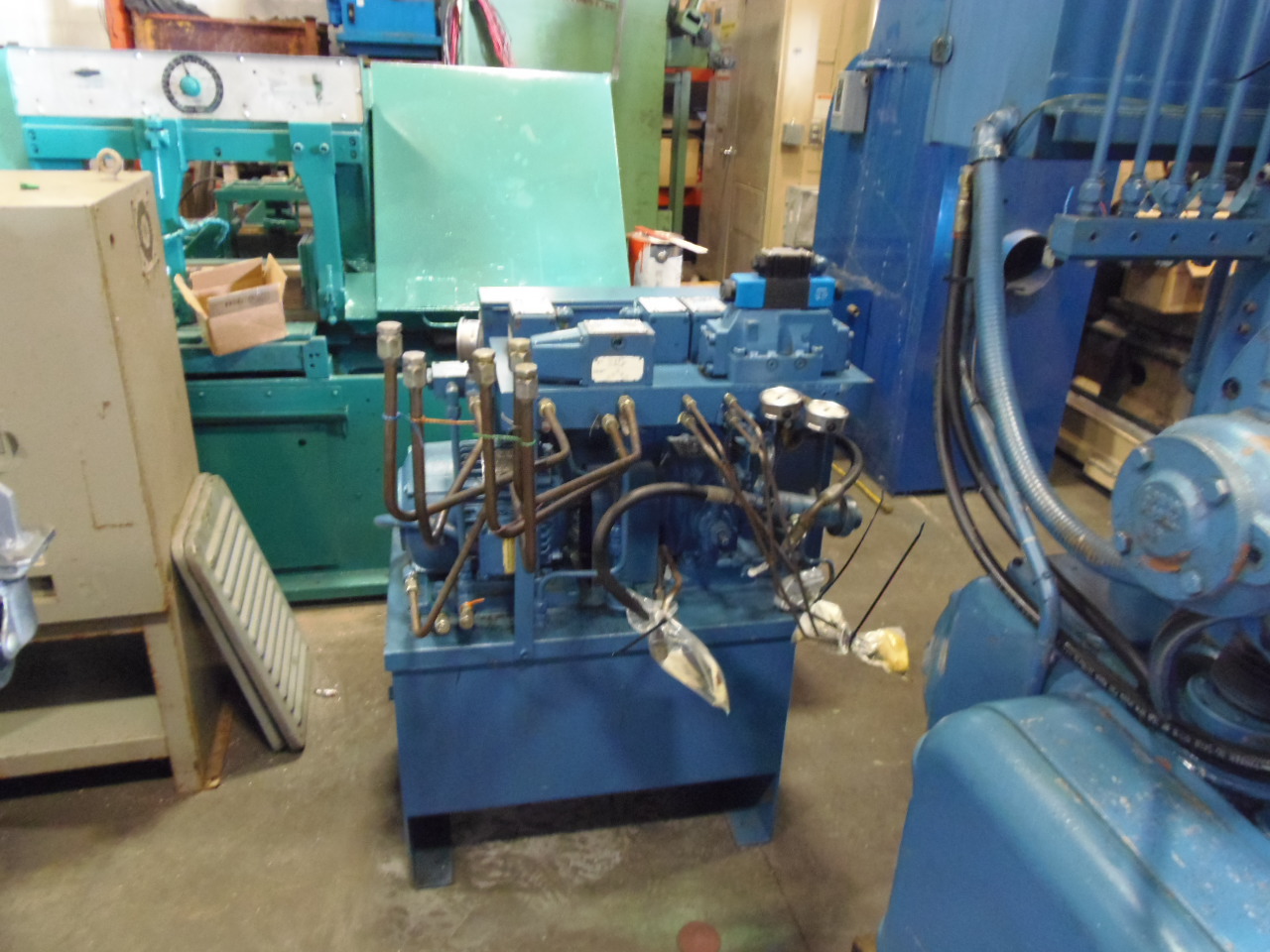

Equipped With
GENERAL SPECIFICATIONS

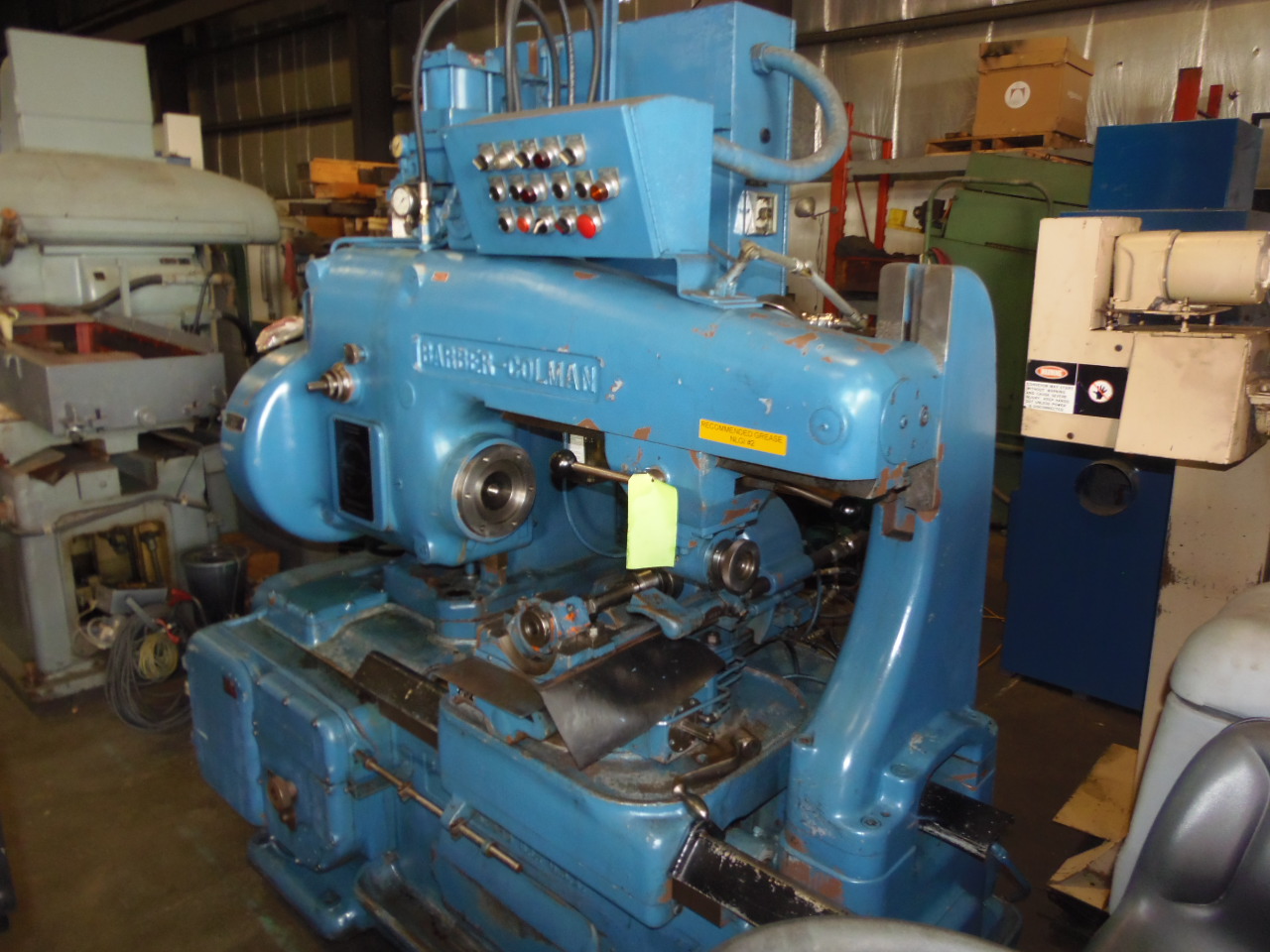

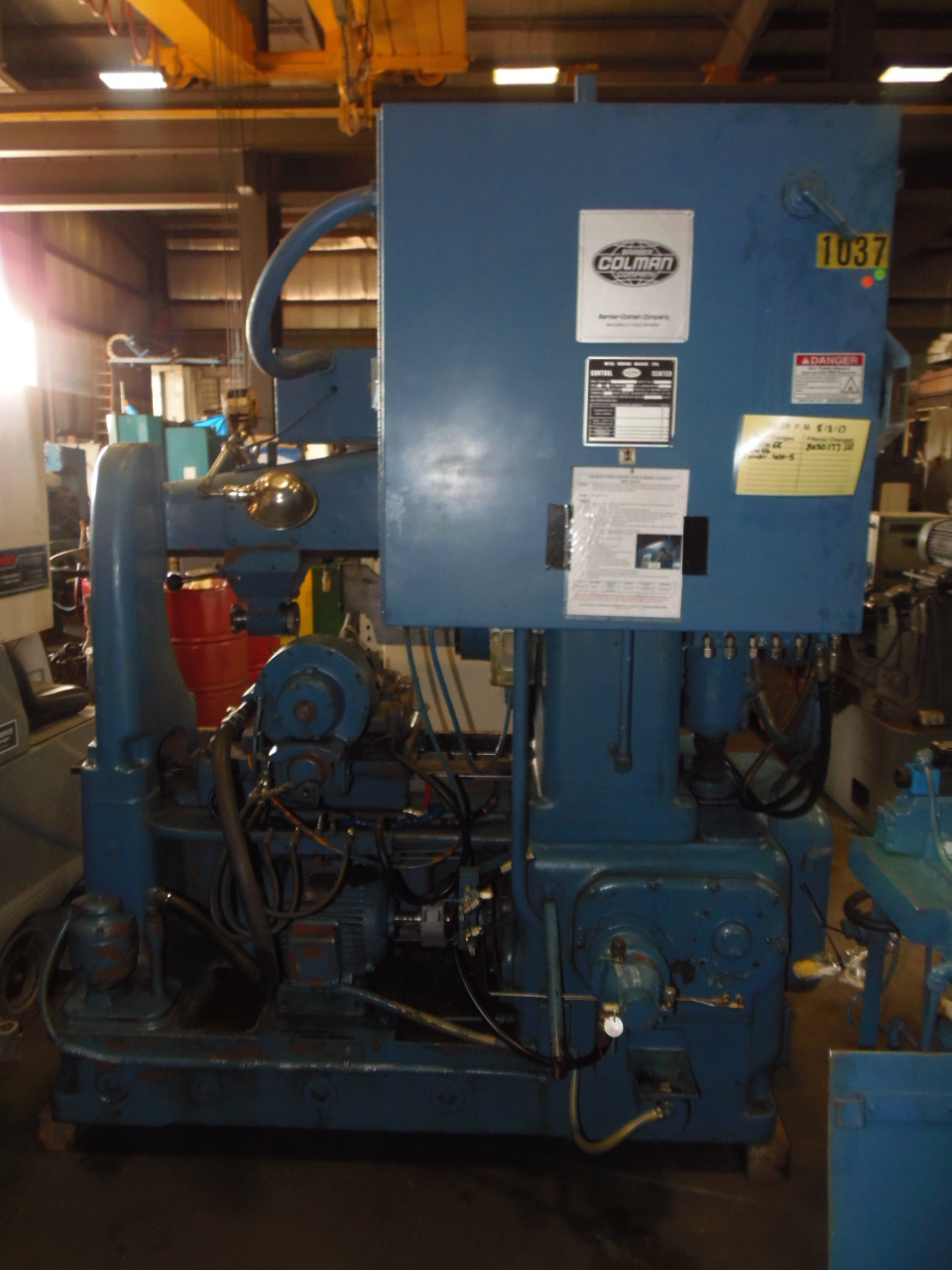

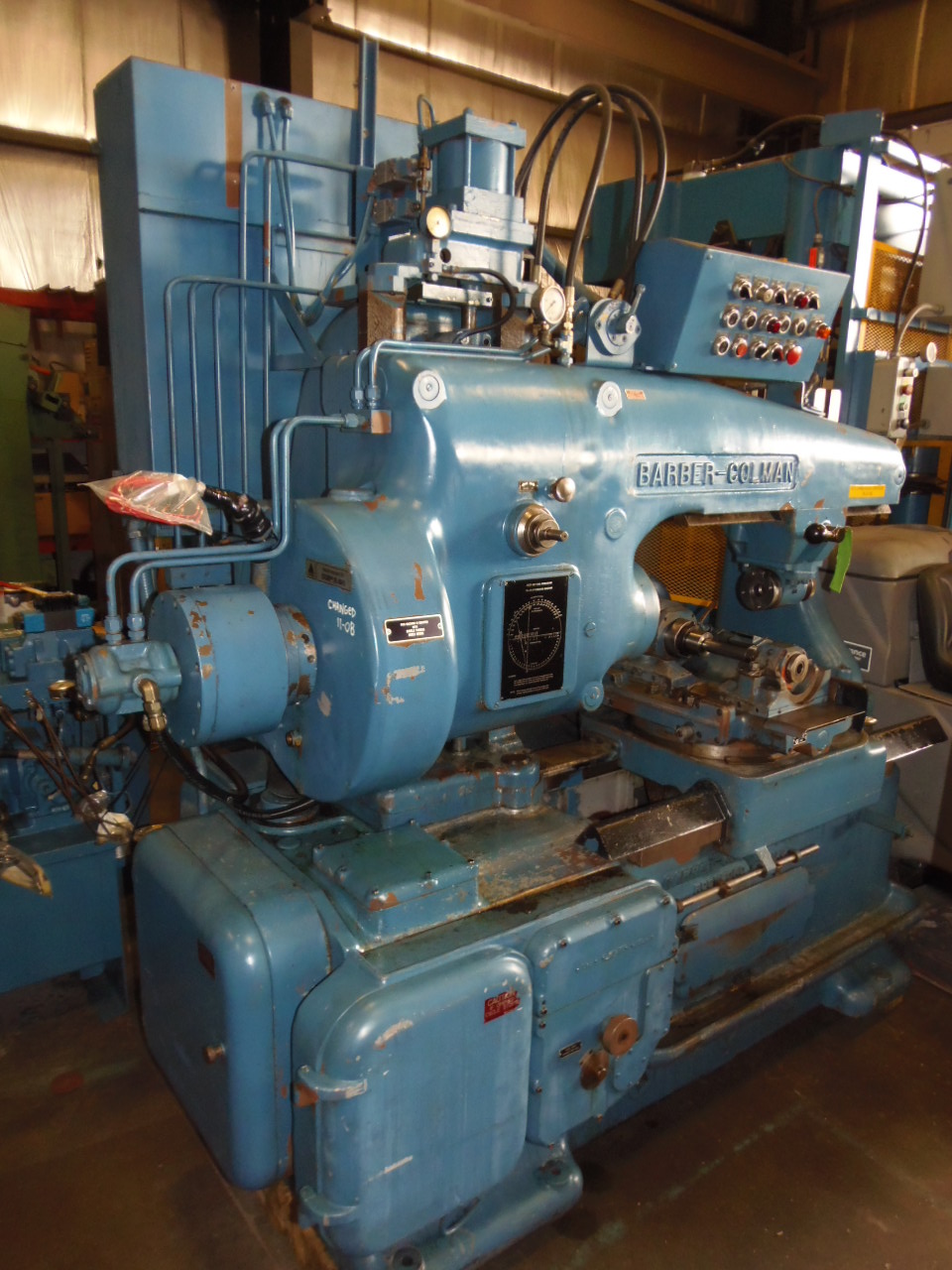

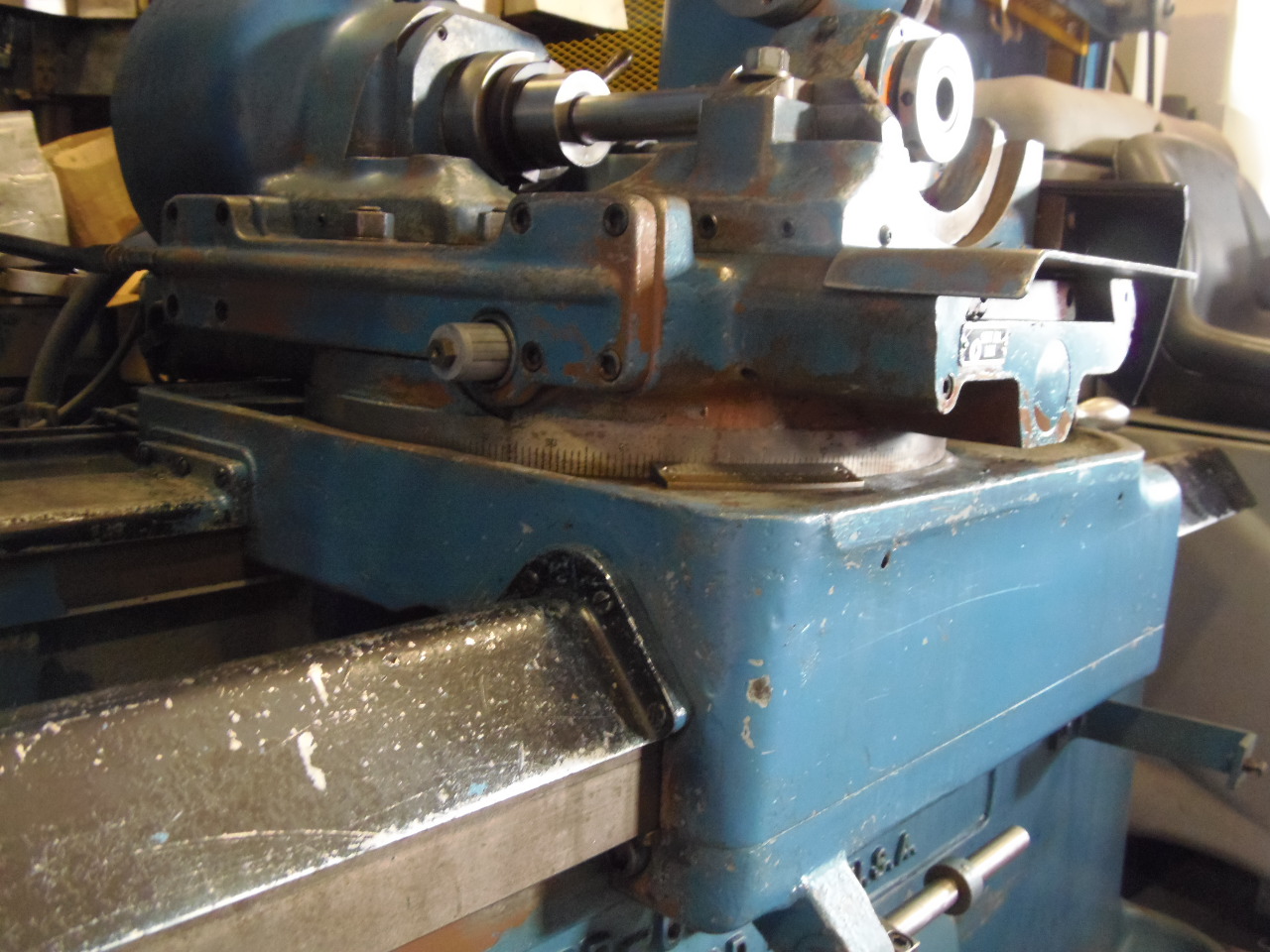

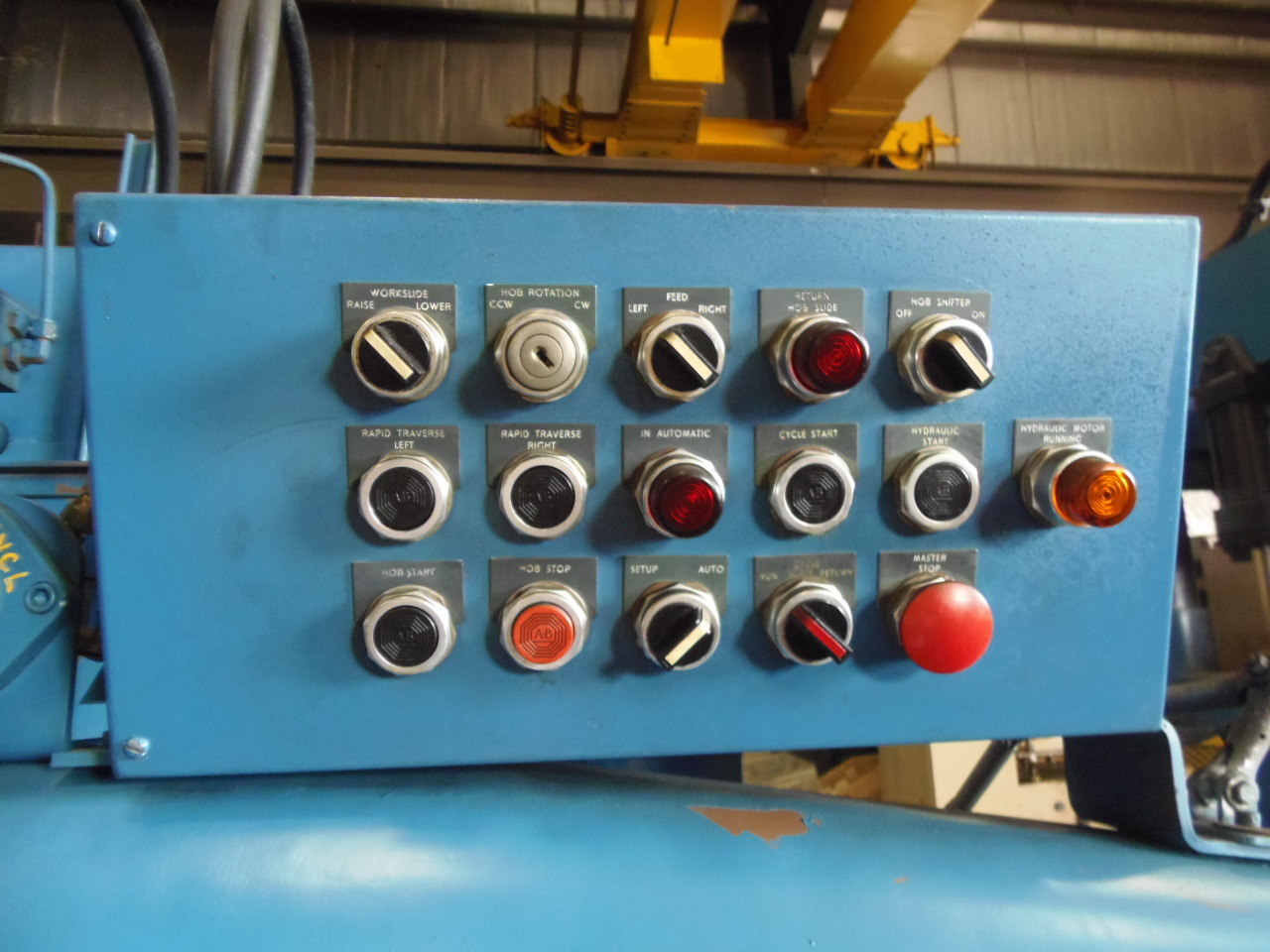

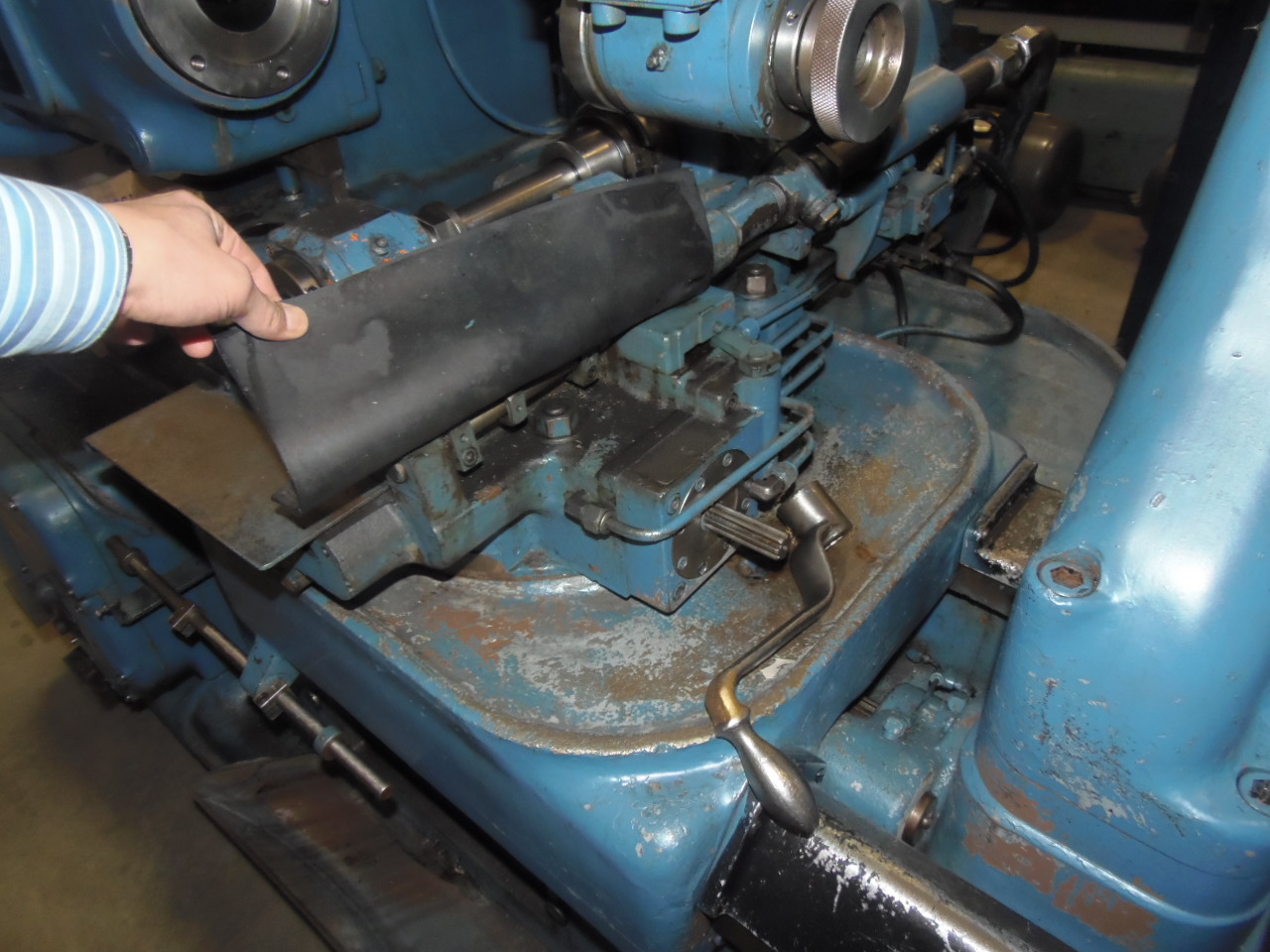

TYPE...................................... HYDRAULIC HOBBING MACHINE
MODEL..................................... 14-15
SERIAL NUMBER............................. 8R81
CAPACITY DIAM. MAX ....................... 14"
FACE, MAXIMUM............................. 14"
DIAMETRAL PITCH, STEEL.................... 3
MAXIMUM TRAVEL OF HOB SLIDE............... 15"
MAX. DISTANCE CENTERLINE OF WORK SPINDLE TO
CENTERLINE OF HOB SPINDLE................. 9 3/4"
DISTANCE CENTERLINE OF WORK SPINDLE TO
SURFACE OF OVERARM........................ 7 1/4"

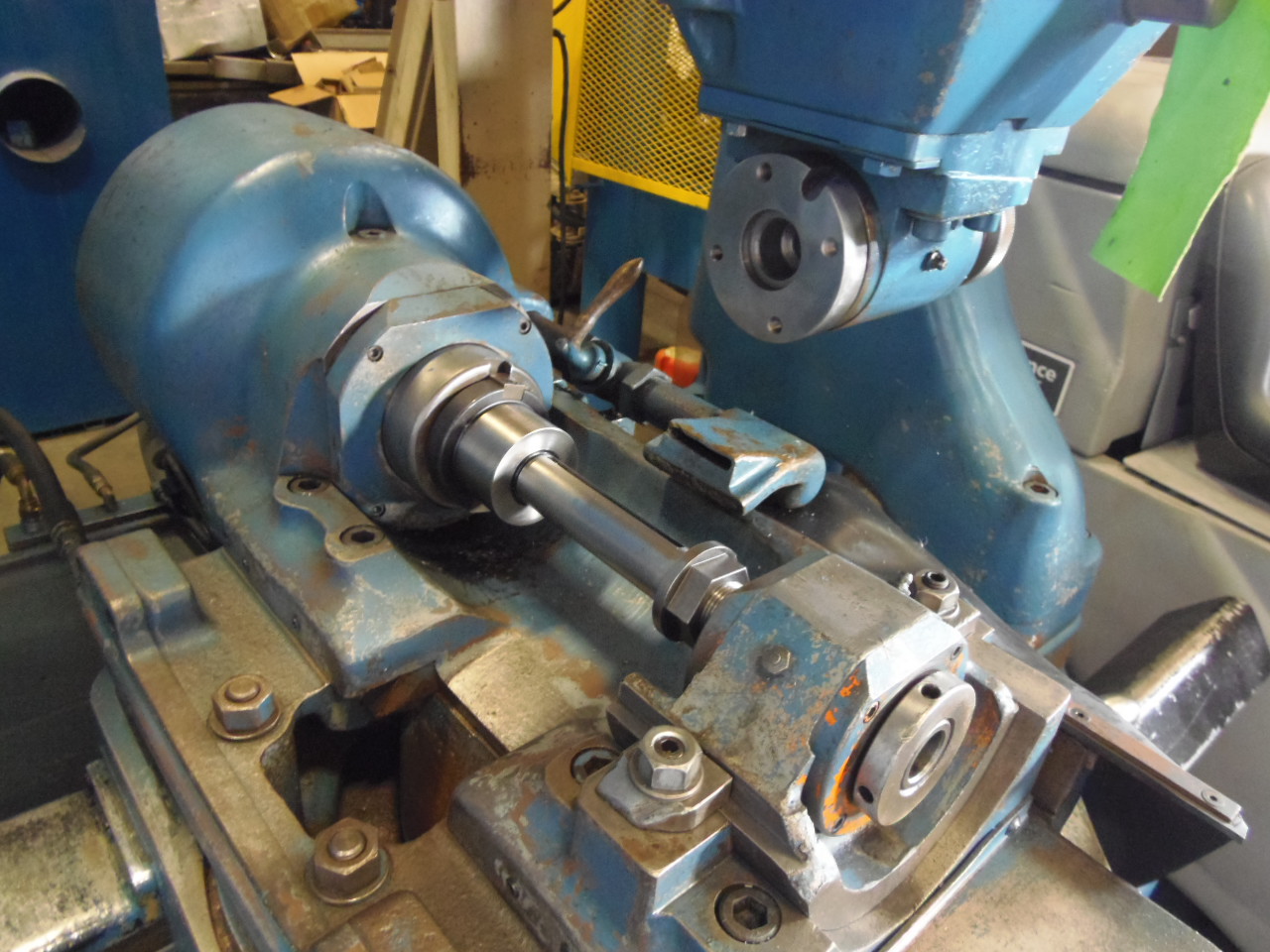

HOB DIAMETER, MAXIMUM..................... 5 1/2"
HOB SPINDLE DIAMETER, STANDARD NO.5 TAPER
1.958 DIAMETERLARGE END, 2" TAPER PER FOOT.
HOB LENGTH; MAXIMUM, TAPER SPINDLE........ 4"
HOB LENGTH; MAXIMUM, STRAIGHT SPINDLE..... 5"
HOB SPINDLE SLIDE AXIAL ADJUSTMENT........ 3"
HOB SPINDLE SPEEDS(8)..................... 62,75,88,103,130,150,174,218 R.P.M.

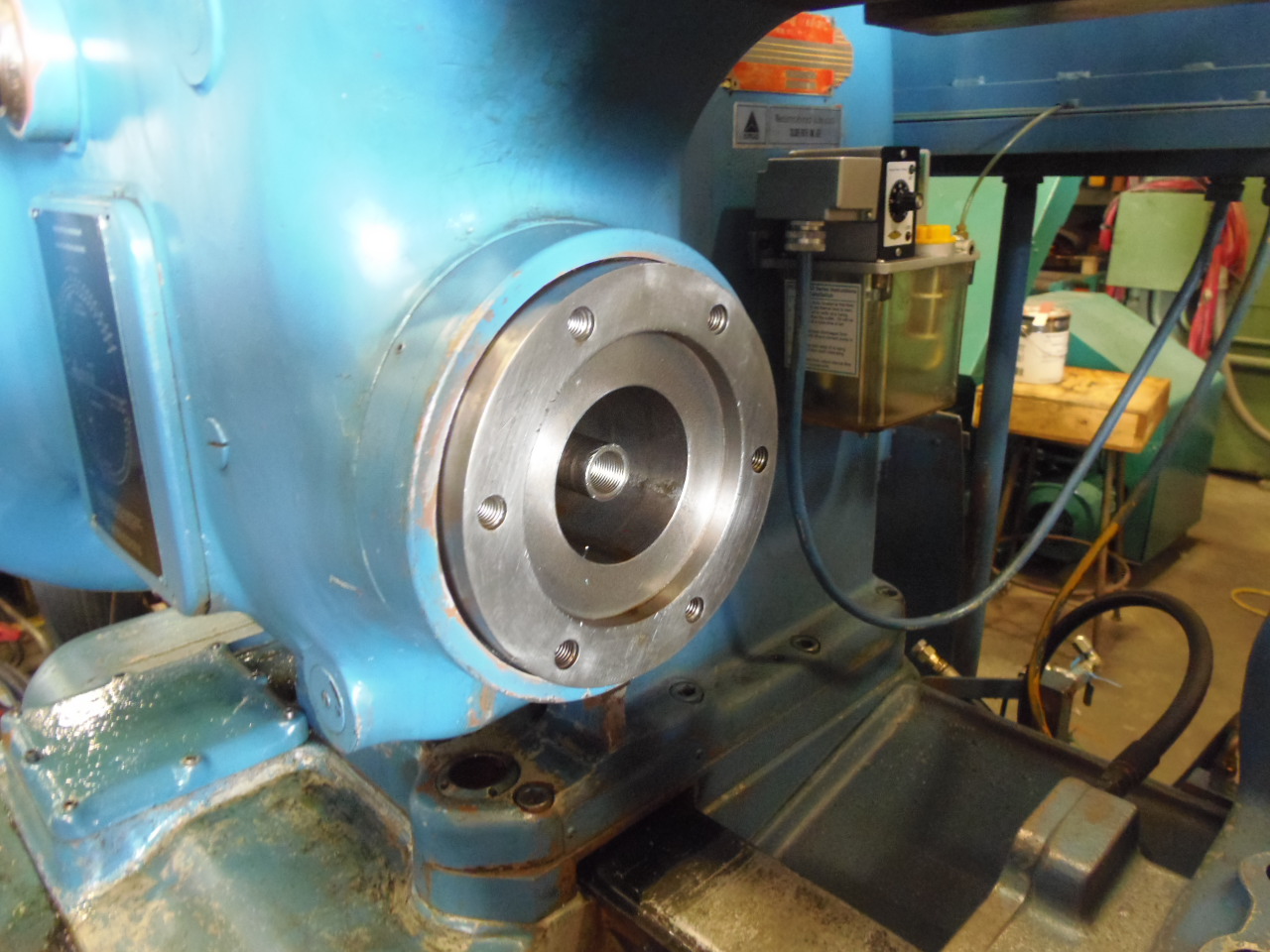

WORK SPINDLE, TAPER IN NOSE............... NO. 18 B&S
DIAMETER OF HOLE THROUGH SPINDLE.......... 2 13/16"

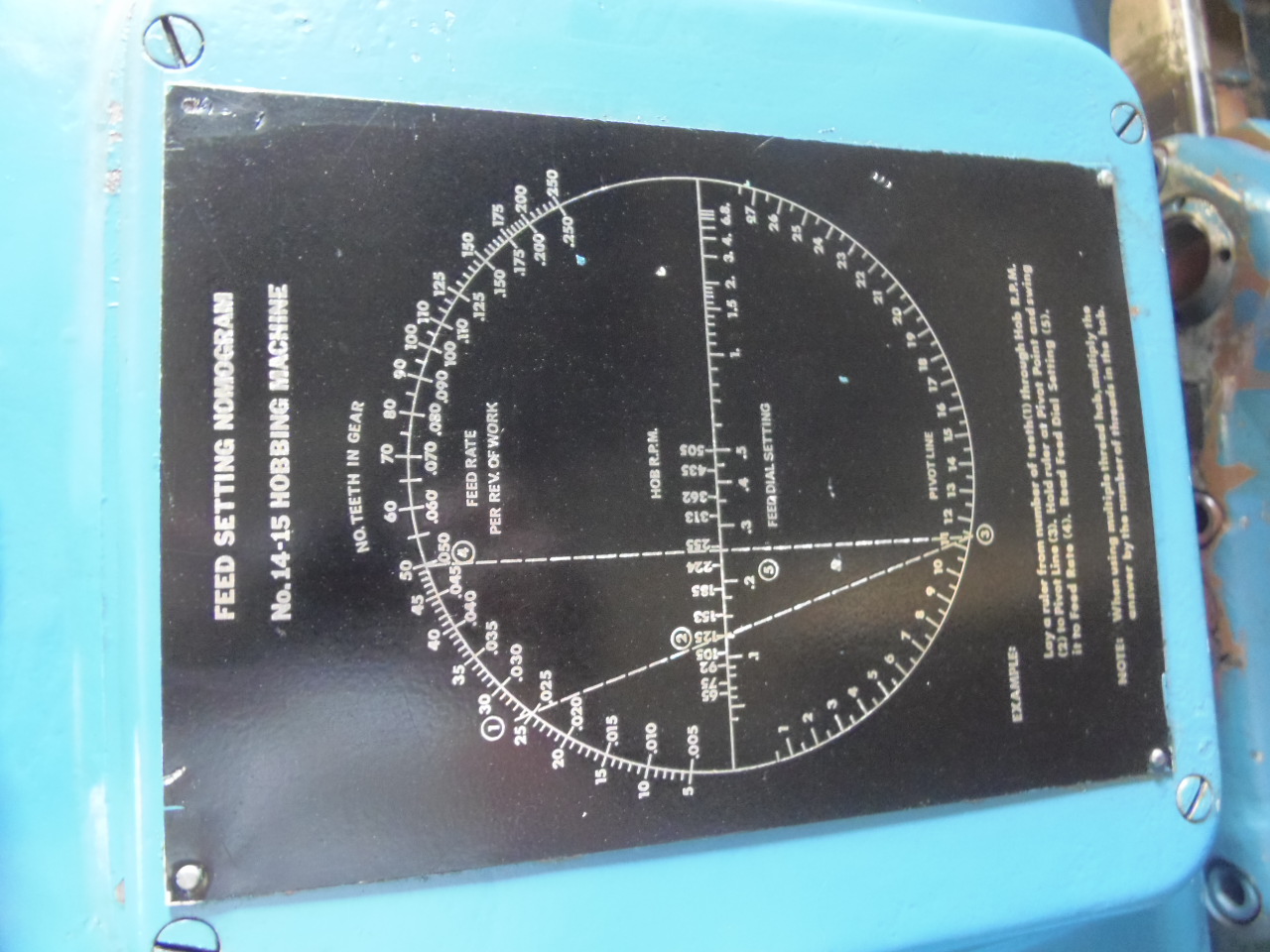

FEED, MAXIMUM INCHES PER MINUTE........... 2"

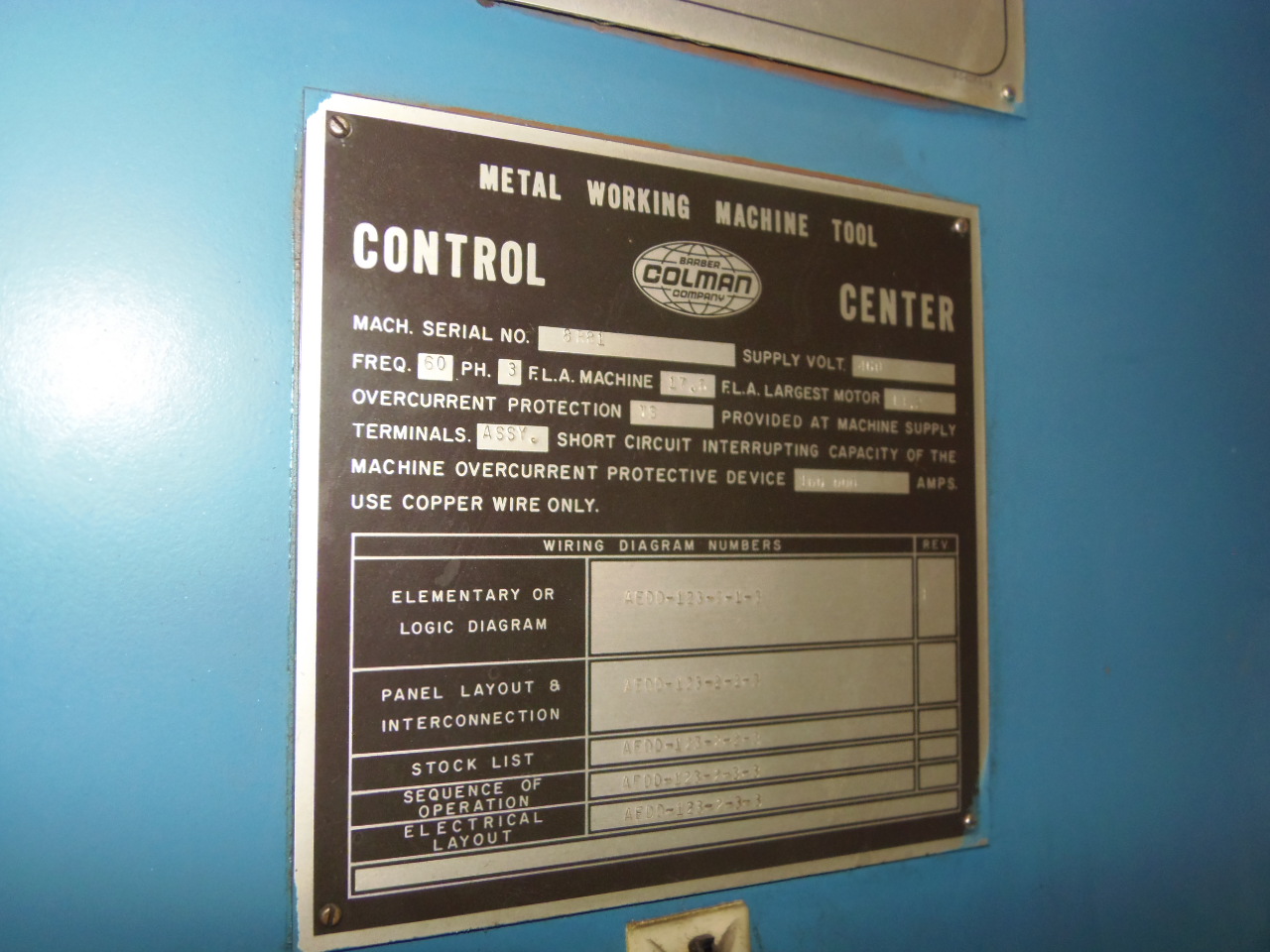

MOTOR RECOMMENDED......................... 10 H.P.; 1800 R.P.M.
FLOOR SPACE, OCCUPIED BY BASE............. 70 11/16" X 38 3/4"
LENGTH OVERALL-DOORS CLOSED............... 80"
LENGTH OVERALL-DOORS OPEN................. 108 1/2"
WIDTH OVERALL-DOORS CLOSED................ 43"
WIDTH OVERALL-DOORS OPEN.................. 59"
HEIGHT.................................... 75"
SPECIFICATIONS SUBJECT TO VERIFICATIONS
