GENERAL SPECIFICATIONS:

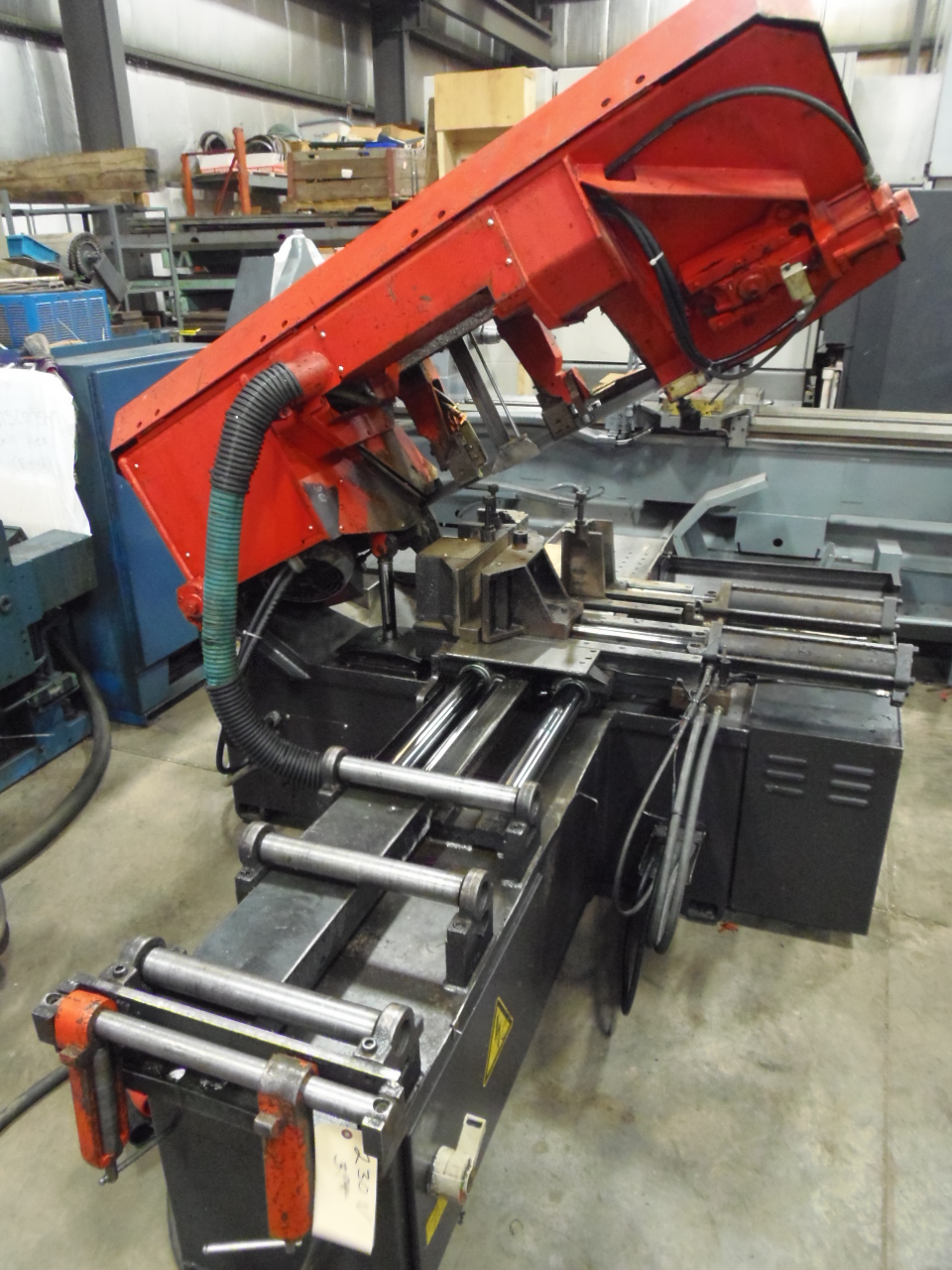

MAKE...................... AMADA
MODEL..................... HFA-330
SERIAL NUMBER............. 330 30054
AGE (YEAR)................ 1994
CAPACITY (ROUND).......... 13" (330 MM)
CAPACITY (SQUARE)......... 13" X 13" (330 X 330 MM)
LOAD CAPACITY............. 4410 LBS (2000 KG)
SAW BLADE................. 1.25" X 0.042" X 13' 6"
SAW BLADE (MM)............ 32 X 1.066 X 4115
SAW BLADE MOTOR........... 5 HP
MAX. NUMBER OF STATIONS... 99
CUTOFF LENGTH............. .197" TO 99.999" MAX
FEED LENGTH STROKE........ 19.68" (500 MM)
BLADE SPEED............... 50 TO 393 FT/MIN
DIMENSIONS................ 92" X 81" X 80"
WEIGHT.................... 3500 LBS
ELECTRICS................. 230 V / 3PH
EQUIPPED WITH:
HYDRAULIC SAW BLADE TENSION
AUTOMATIC KERF COMPENSATION
MANUALS
SPECIFICATIONS SUBJECT TO VERIFICATION
