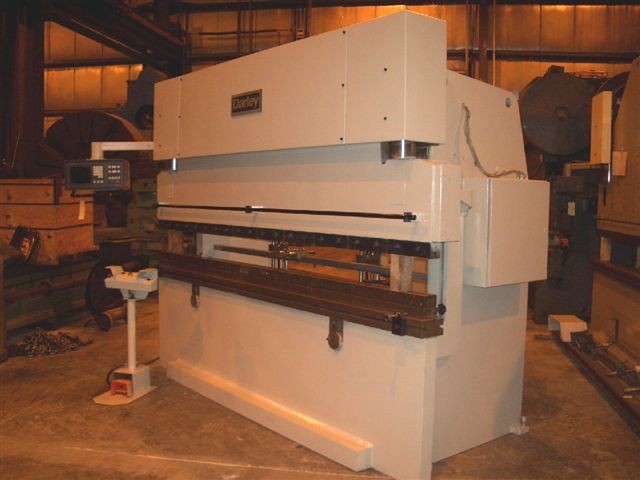

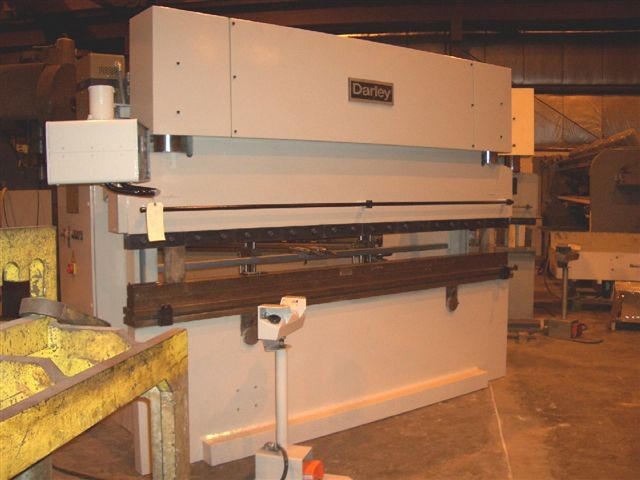

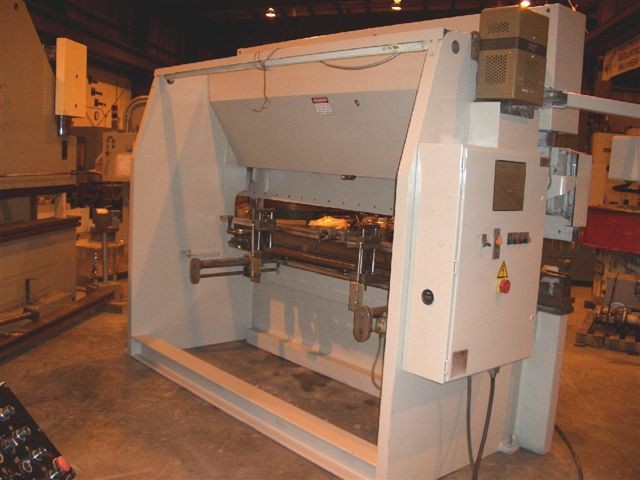

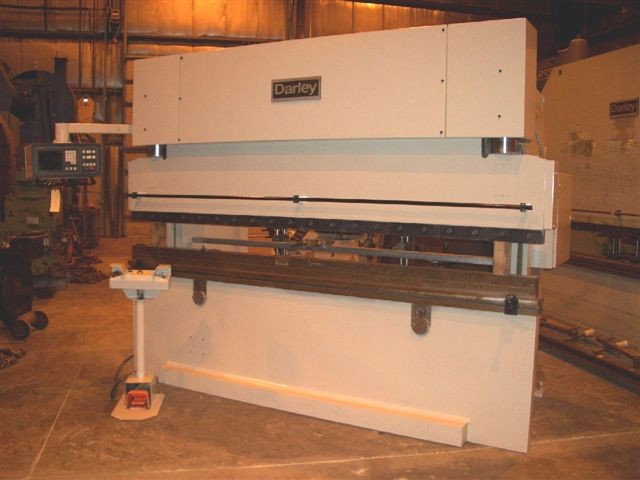

121 TON DARLEY #110-31/25, DA42 CNC CTRL, 100.3" BH, 126.7"OA, 5.9" STROKE, 10 HP

GENERAL SPECIFICATIONS:
MANUFACTURER DARLEY
MODEL 110.31/25
NEW 1986
SERIAL # 12444
CAPACITY 121 TON
OVERALL BENDING LENGTH 126.7"
DISTANCE BETWEEN HOUSINGS 100.3"
MAX. OPENING TABLE-PRESS BEAM 14.7"
STROKE LENGTH (ADJUSTABLE) 5.9"
APPROACH SPEED 3.9"/SEC.
PRESSING SPEED .30"/SEC.
RETURN SPEED 2.5"/SEC.
TABLE HEIGHT 96"
TABLE WIDTH 6.2"
MOTOR CAPACITY 10 HP
WEIGHT (APPROX.) 19,140 LBS.

EQUIPPED WITH:

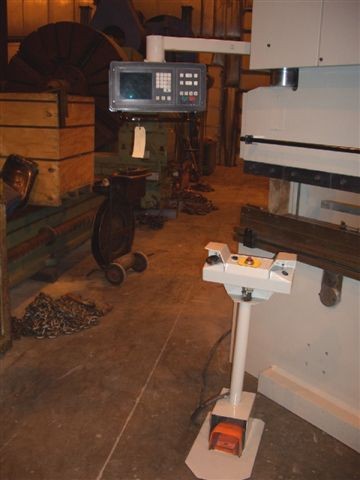

DA42 CNC CONTROL UNIT
3-AXIS CNC
4 SPEED RAM OPERATION
