Specifications
Equipped With
GENERAL SPECIFICATIONS:

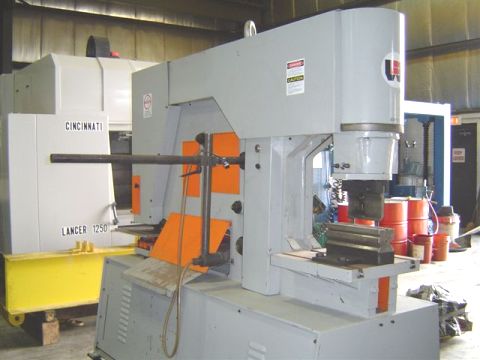

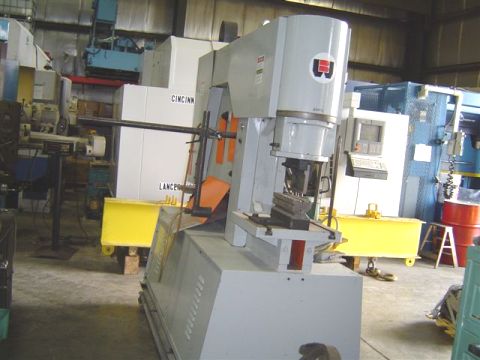

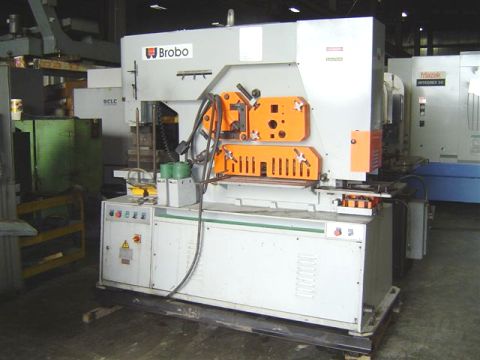

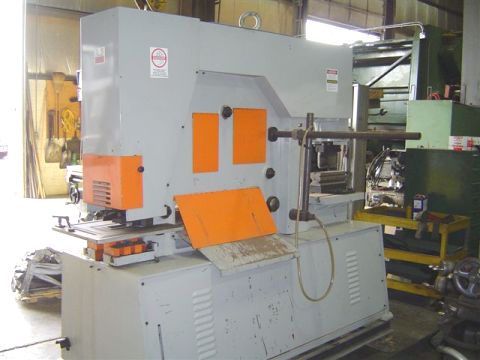

MANUFACTURER BROBO
MODEL BIW-120
SERIAL# 1206186
AGE APPROXIMATELY 2007
CAPACITY 120 TON
PUNCHING STANDARD TOOLING 1 1/2" IN 1" MATERIAL
SPEED IN 3/4" MATERIAL 23 CYCLES PER MINUTE
THROAT DEPTH 16"
STROKE 3 1/8"
ANGLE SHEAR 6" X 6" X 1/2" @ 90 DEG.
ANGLE SHEAR 2" X 2" X 1/4" @ 45 DEG.
FLAT BAR SHEAR (MAX 24") 12" OF 1" MATERIAL
BAR SHEAR 2 3/8" ROUND BAR
BAR SHEAR 2" SQUARE BAR
RECTANGLE NOTCHER 2 1/4" X 4" IN 1/2"
APPROXIMATE WEIGHT 8800 LBS
DIMENSIONS 85" X 38" X 83"H
EQUIPPED WITH:
5 WORK STATIONS, DUAL CYLINDER OPERATION
PUNCHING
JOG MODE
FLAT BAR SHEARING
NOTCHER
ADJUSTABLE STROKE CONTROL FOR PUNCH STATION

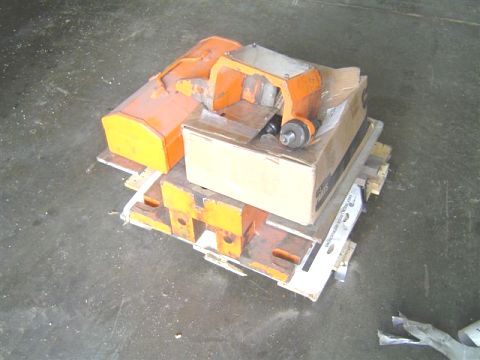

BENDING ATTACHMENT AND 6 WAY VEE BOTTOM
15 HP MOTOR
FOOT CONTROLS
ELECTRIC LENGTH GAUGE W/40" LINEAR SCALE
LINEAR SCALES ON THE GAUGE TABLE FOR PUNCH AND COPER NOTCHER

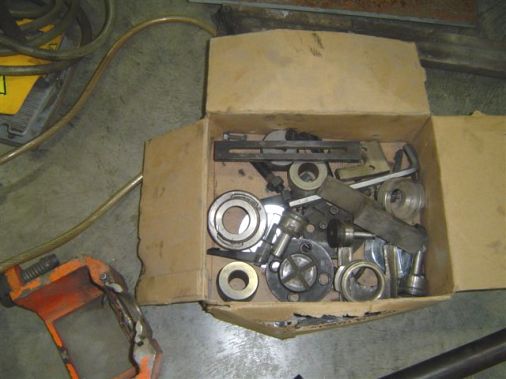

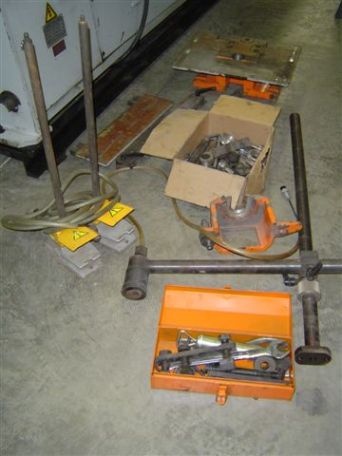

SOME TOOLING
TOOLBOX
