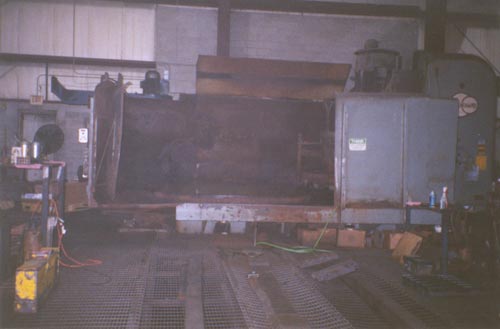

120", BLANCHARD, No. MD 72-120,164"SW,300 HP, 1991,

GENERAL SPECIFICATIONS:

NEW APPROXIMATELY---------------------------1991
DIAMETER OF MAGNETIC CHUCK/TABLE------------120"
MAXIMUM SWING INSIDE WATER GUARDS-----------164"
MAXIMUM HEIGHT UNDER GRINDING WHEEL---------52"
GRINDING WHEEL DIAMETER---------------------72"
MAIN MOTOR----------------------------------300 HP
MAXIMUM GRINDING WHEEL SPEED----------------268 RPM
CHUCK/TABLE ROTATION MOTOR------------------15 HP
CHUCK/TABLE SPEEDS--------------------------2.6,4.1,6.7,10.2 RPM
POWER DOWNFEED RATE-------------------------.008-.0096
WEIGHT APPROXIMATELY------------------------105,000 LBS.
DIMENSIONS APPROXIMATELY--------------------24'L x 14'W x 11'H

EQUIPPED WITH:
AUTO LUBE SYSTEM
FULL ENCLOSURE
*NOTE: NO COOLANT SYSTEM (ON CENTRAL)
