Specifications
Equipped With
GENERAL SPECIFICATIONS

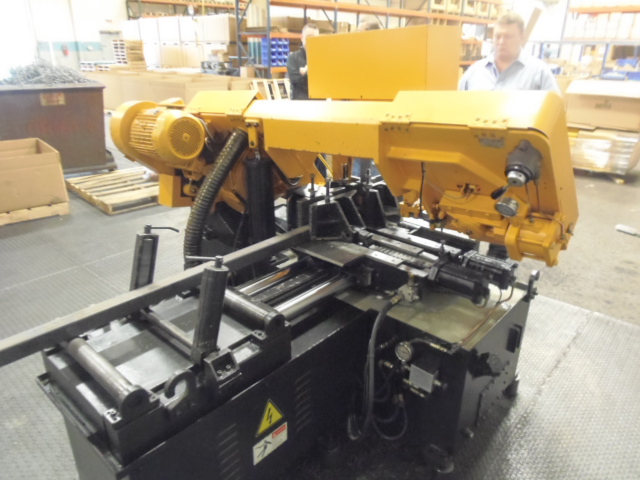

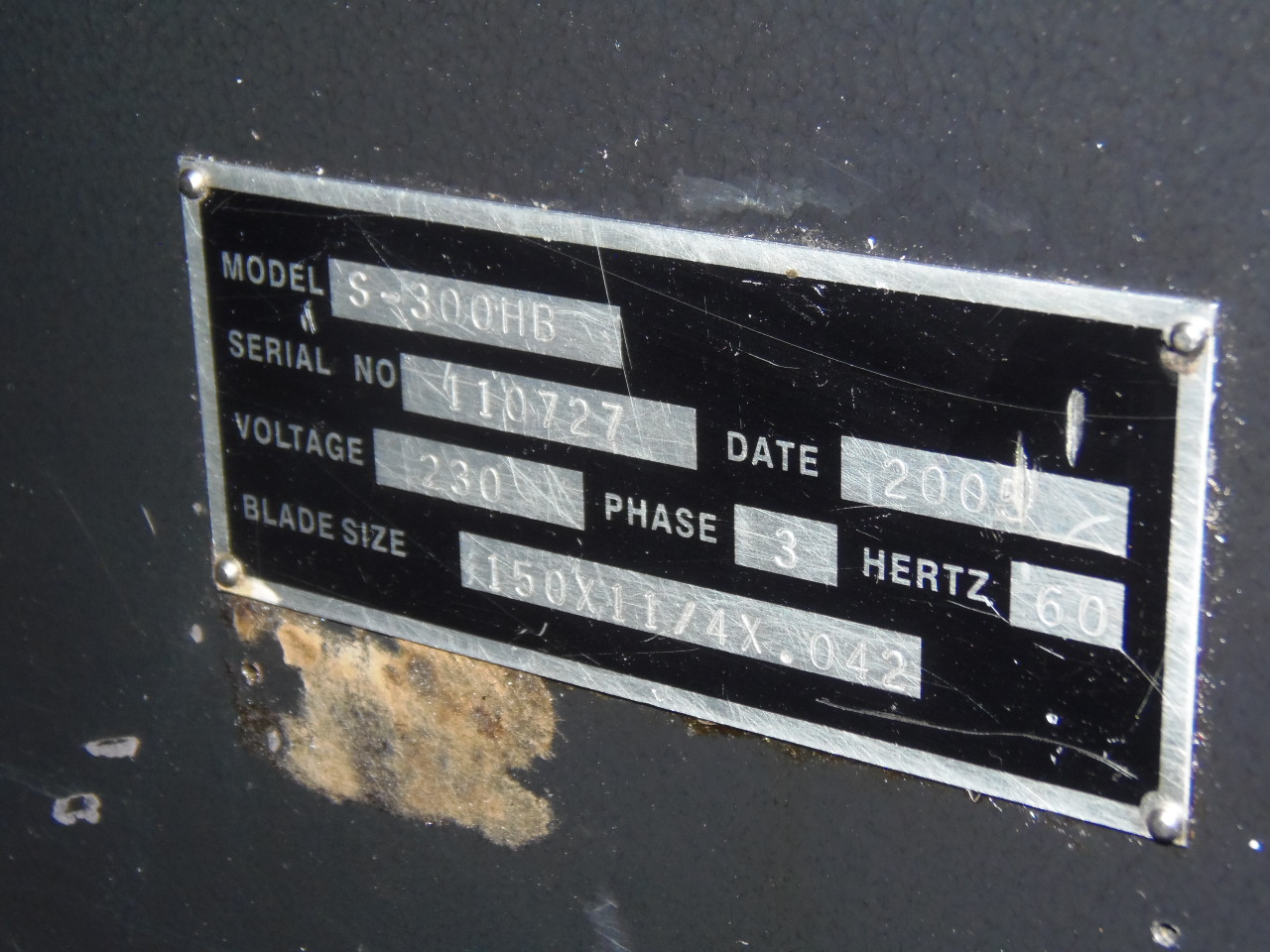

MODEL....................... S-300 HB
SERIAL NUMBER............... 110727
CAPACITY.................... 300 MM (12")
............................ 200 X 310 MM (8"H X 12"W)
BUNDLE CUTTING:
WIDTH....................... 145 TO 230 MM (6" TO 9")
HEIGHT...................... 40 TO 150 MM (1 1/2" TO 6")
BUNDLE SPEED (60 HZ)........ 20 TO 100 M/MIN (65 TO 330 FPM)
MOTORS:

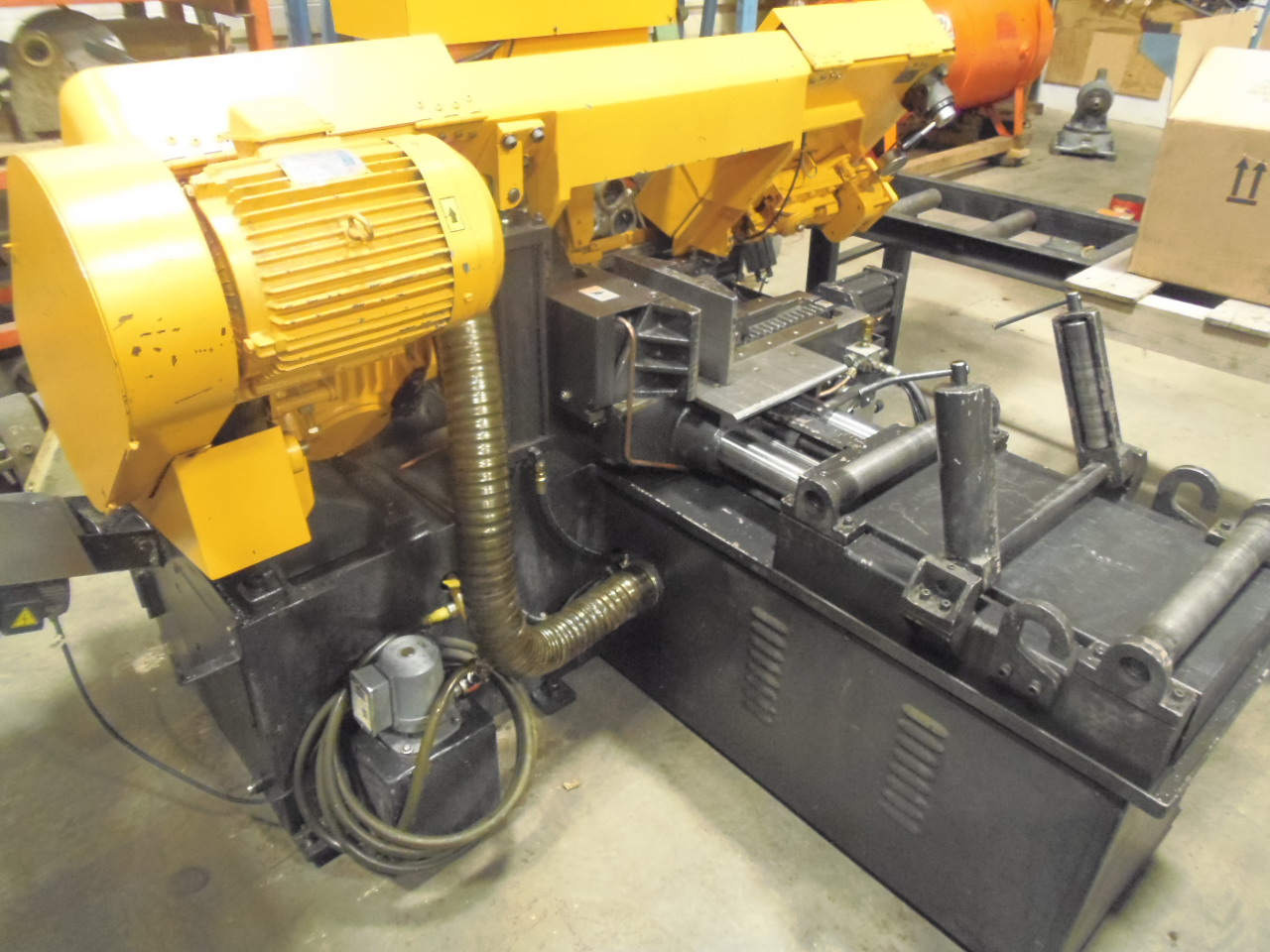

BLADE DRIVE................. 5 HP (3.7 KW)
HYDRAULIC PUMP ............. 1 HP (0.75 KW)
COOLANT PUMP................ 1/8 HP (0.09 KW)
BLADE SIZE.................. 3820 X 34 X 1.1 MM (150" X 1.3" X 0.042")
BLADE TENSION............... HYDRAULIC
SHUTTLE BAR:
SINGLE FEED................. 40 MM (16")
MULTIPLE FEED............... 400 MM (16") X 9
FLOOR SPACE................. 1800 X 2160 MM (71" X 85")
MACHINE WEIGHT.............. 1700 KG (3740 LBS)
STANDARD FEATURES

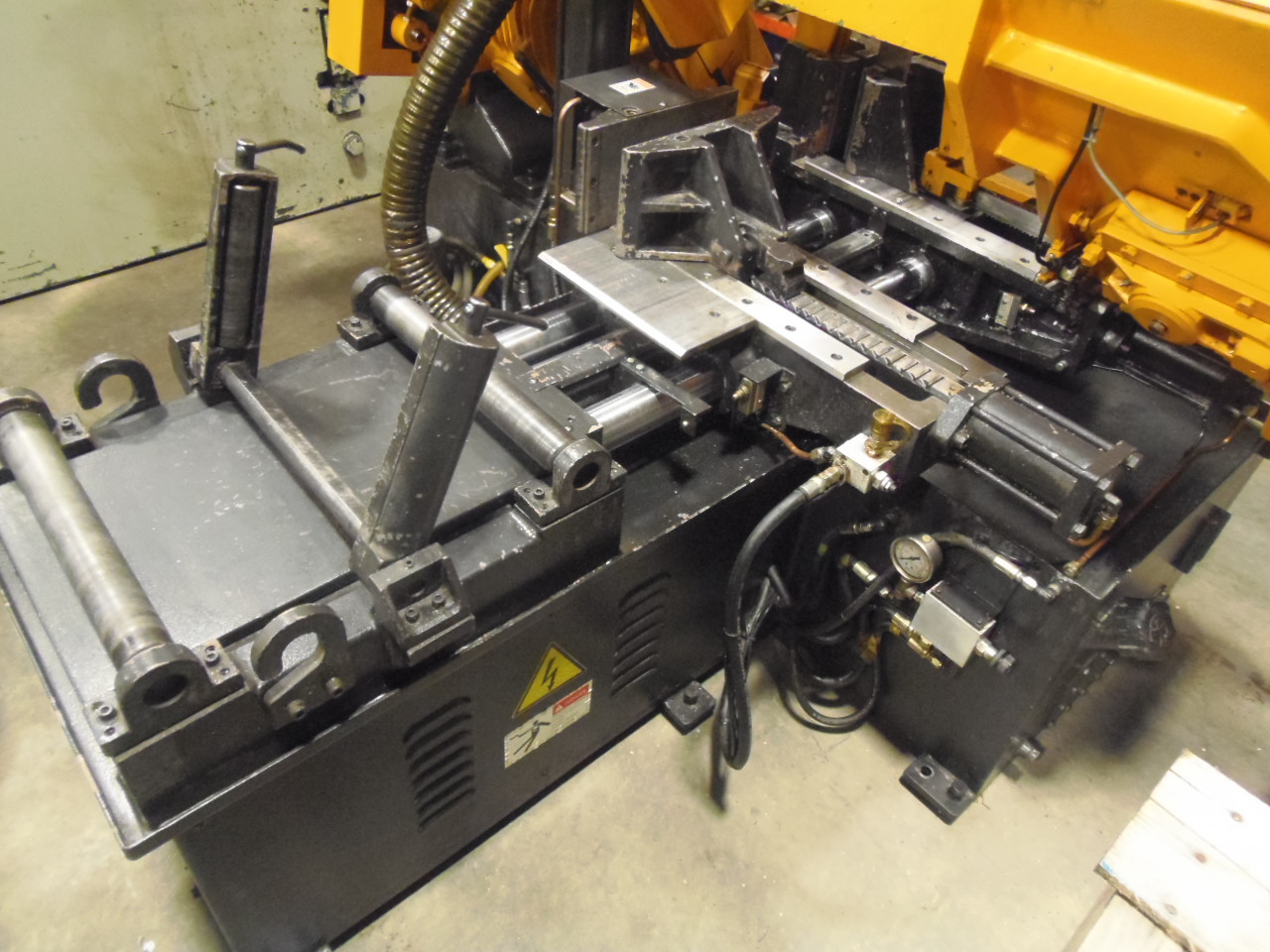

HYDRAULIC DUAL VISE CLAMPING SYSTEM
SHUTTLE TYPE AUTOMATIC FEED
ROLLER BEARING/CARBIDE BLADE GUIDE SYSTEM
PRE-SET CUT COUNTER WITH SHUT OFF
OUT-OF-STOCK SHUT OFF
AUTOMATIC WORK HEIGHT CONTROL AND RAPID APPROACH
INFINITELY VARIABLE BLADE SPEEDS

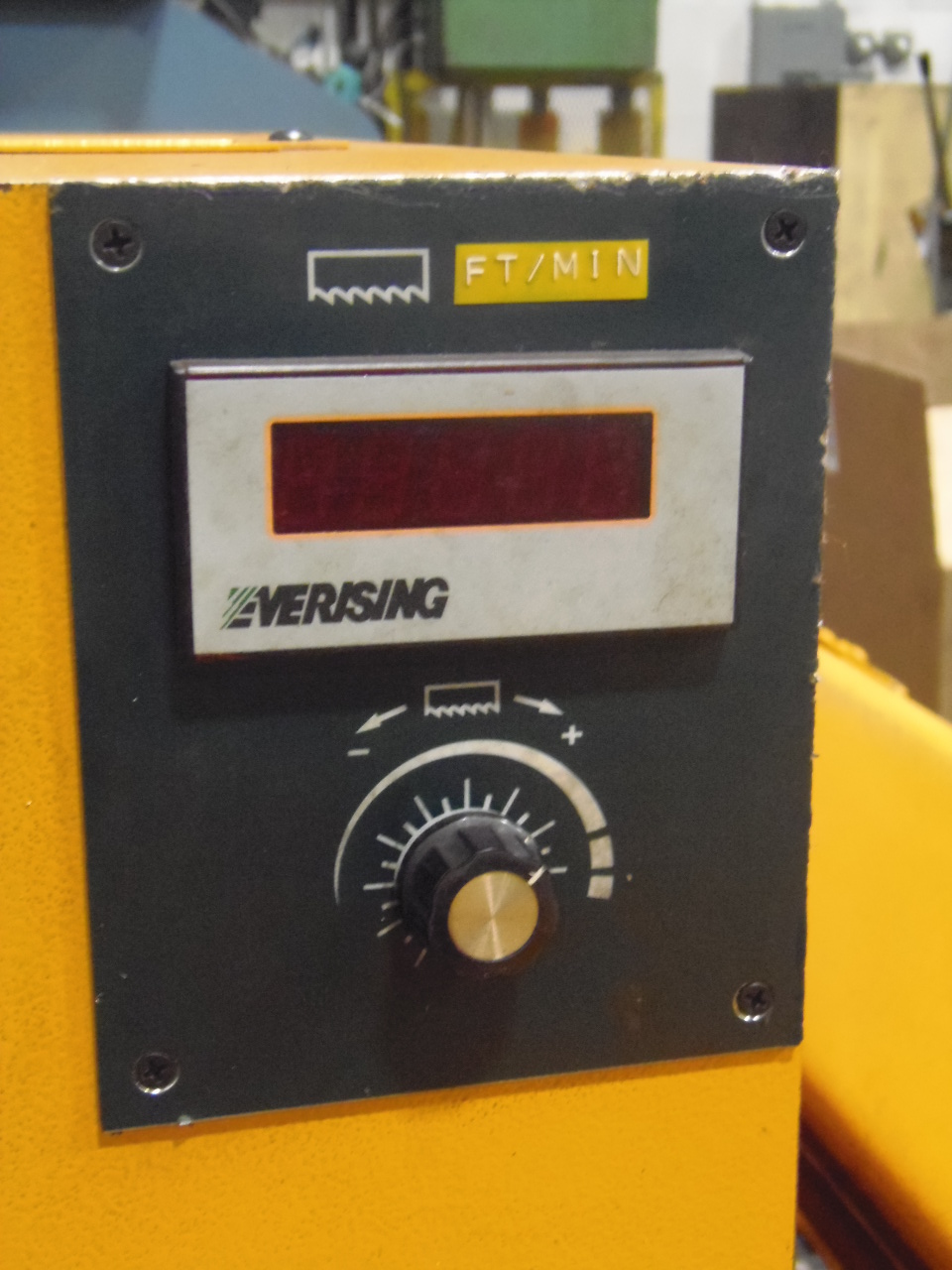

BLADE SPEED TACHOMETER
POWER DRIVER BLADE BRUSH
HYDRAULIC BLADE TENSION

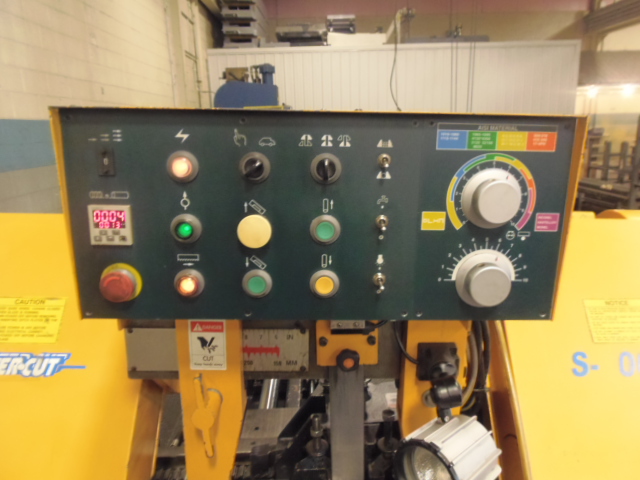

P.L.C. CONTROL, FOR ALL ELECTRIC AND HYDRAULIC FUNCTIONS
SPLIT FRONT VISE
IDLER WHEEL MOTION DETECTOR W/ BLADE STALLING AND BREAKAGE SHUT OFF
UNITIZED CONSTRUCTION- (BAR FEED AND SAW ARE ON ONE BASE) CUTTING FLUID HOSE FOR MACHINE CLEANING
MULTIPLE INDEXING (9 TIMES)
WORK LIGHT

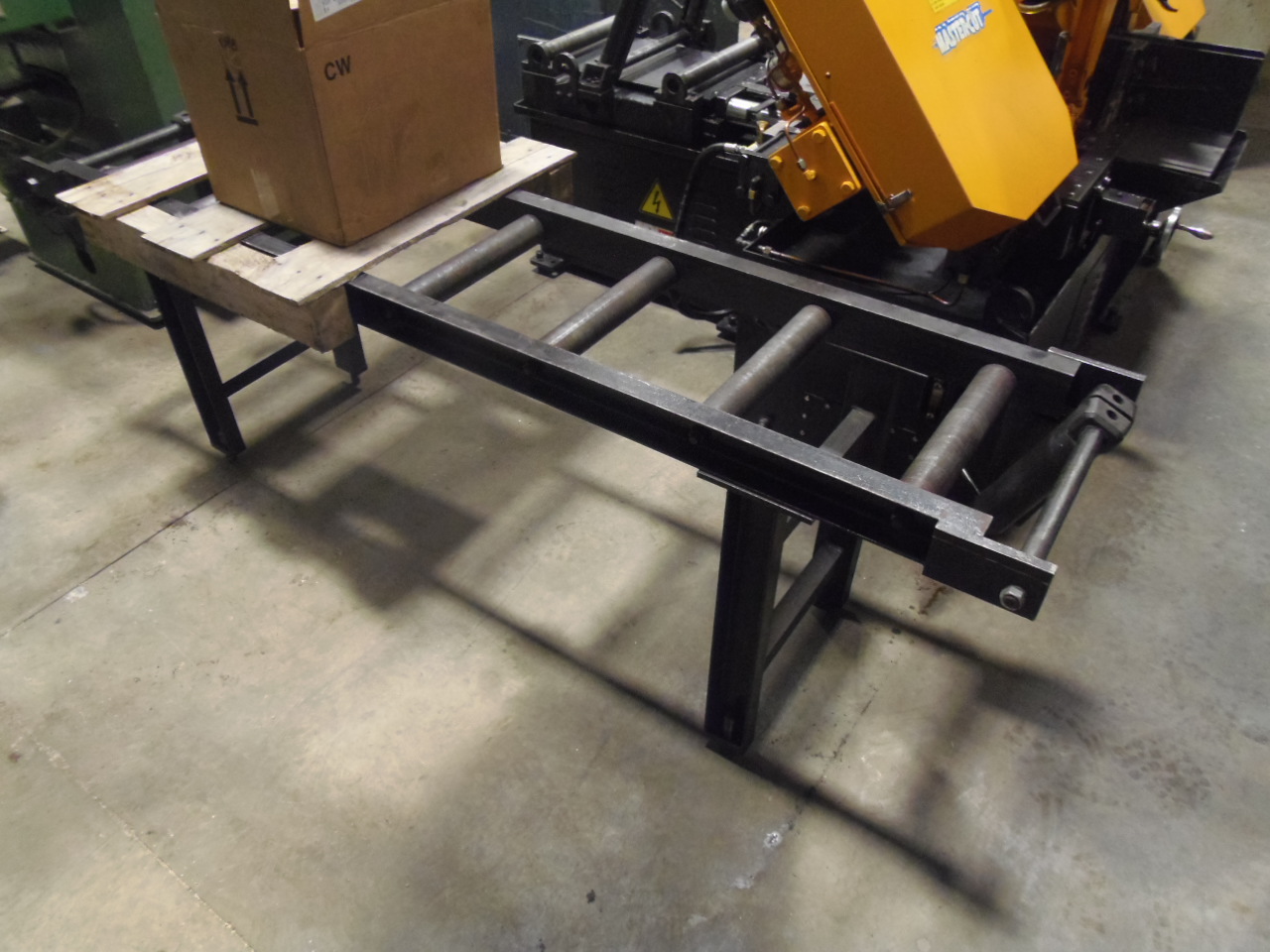

FREE STANDING ROLLER STOCK TABLE 2M LONG
3 SETS OF VERTICAL ALIGNMENT ROLLERS
ONE M42 BI-METAL SAW BLADE
SPECIFICATION SUBJECT TO VERIFICATION
