Specifications
Equipped With
GENERAL SPECIFICATIONS:

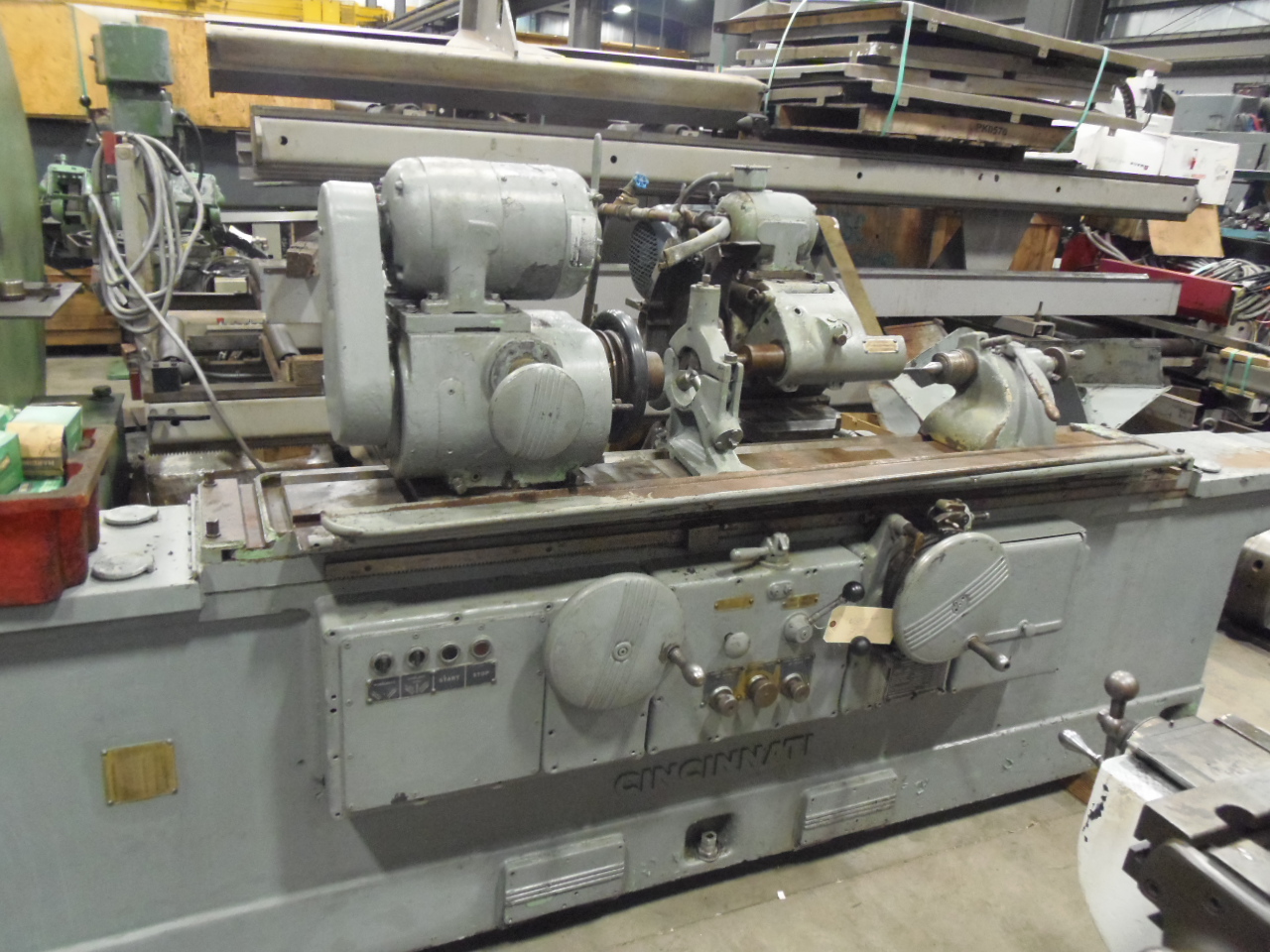

MAKE..................................... CINCINNATI
MODEL.................................... 1248U
SERIAL #................................. 2U3E1W-7
YEAR (AGE)............................... 1950
SWING.................................... 12.75"
MAX. GRINDING DIAMETER WITH 14" WHEEL.... 12.75"
CENTER DISTANCE.......................... 48"
TABLE SWIVEL
FORWARD............................... 7 DEGREES
BACK.................................. 1 DEGREE
NORMAL WHEEL SIZE........................ 14" X 1.5" X 5"
WHEEL ON MACHINE......................... 12" X 1.5"
WORK HEAD SPEED RANGE (VARIABLE)......... 54 TO 216 RPM
WORK HEAD TYPE........................... LIVE/DEAD
TABLE TRAVERSE SPEEDS (12)............... 4 TO 63 IPM
SWING DOWN INTERNAL GRINDING SPINDLE..... YES
INTERNAL SPINDLE MOTOR HP................ 2
WHEEL HEAD MOTOR HP...................... 5
HEADSTOCK DRIVE MOTOR HP................. .75
TABLE DRIVE MOTOR HP..................... 1

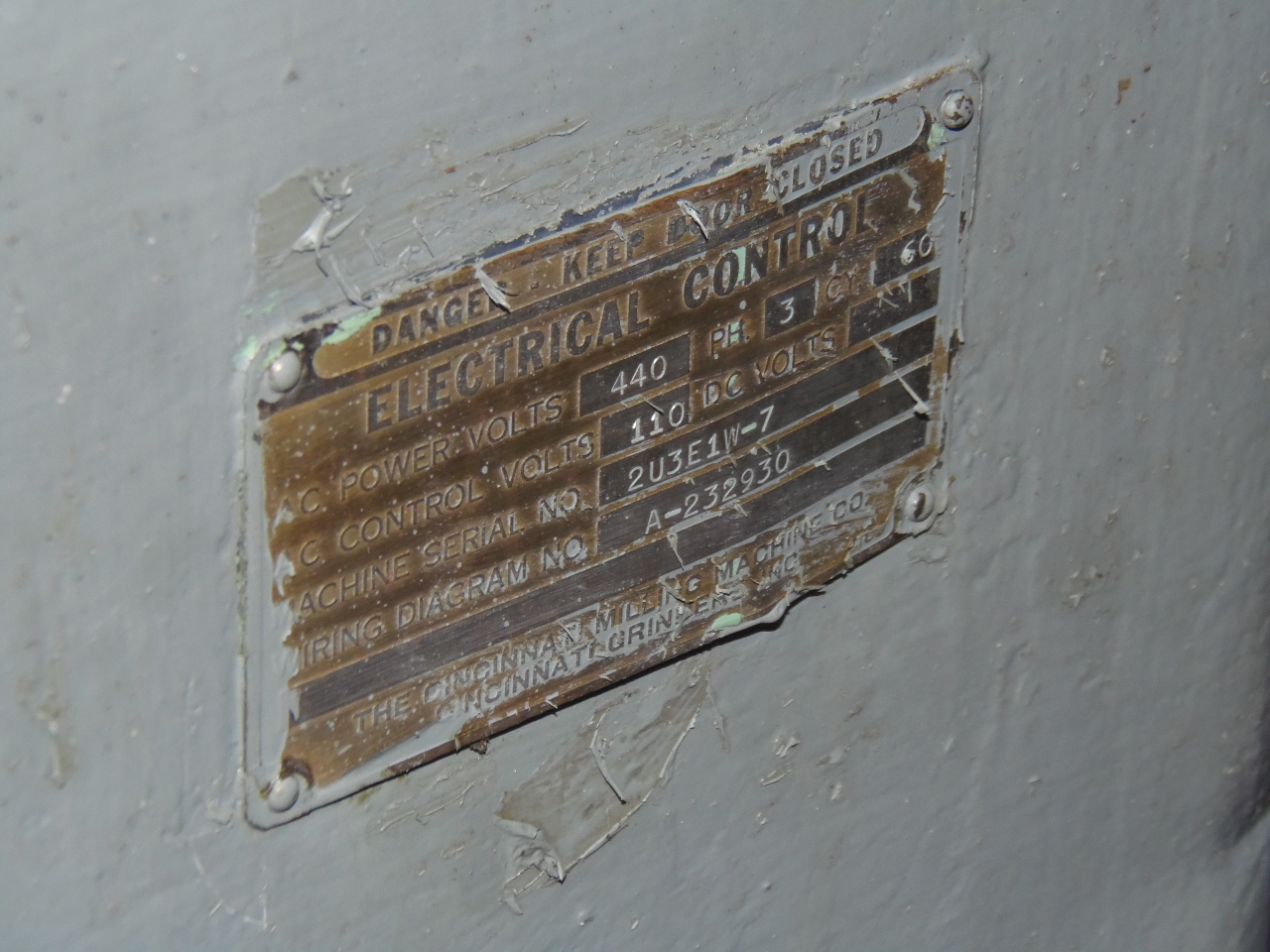

ELECTRICS................................ 220V
WEIGHT APPROX............................ 8,500 LBS.
EQUIPPED WITH:

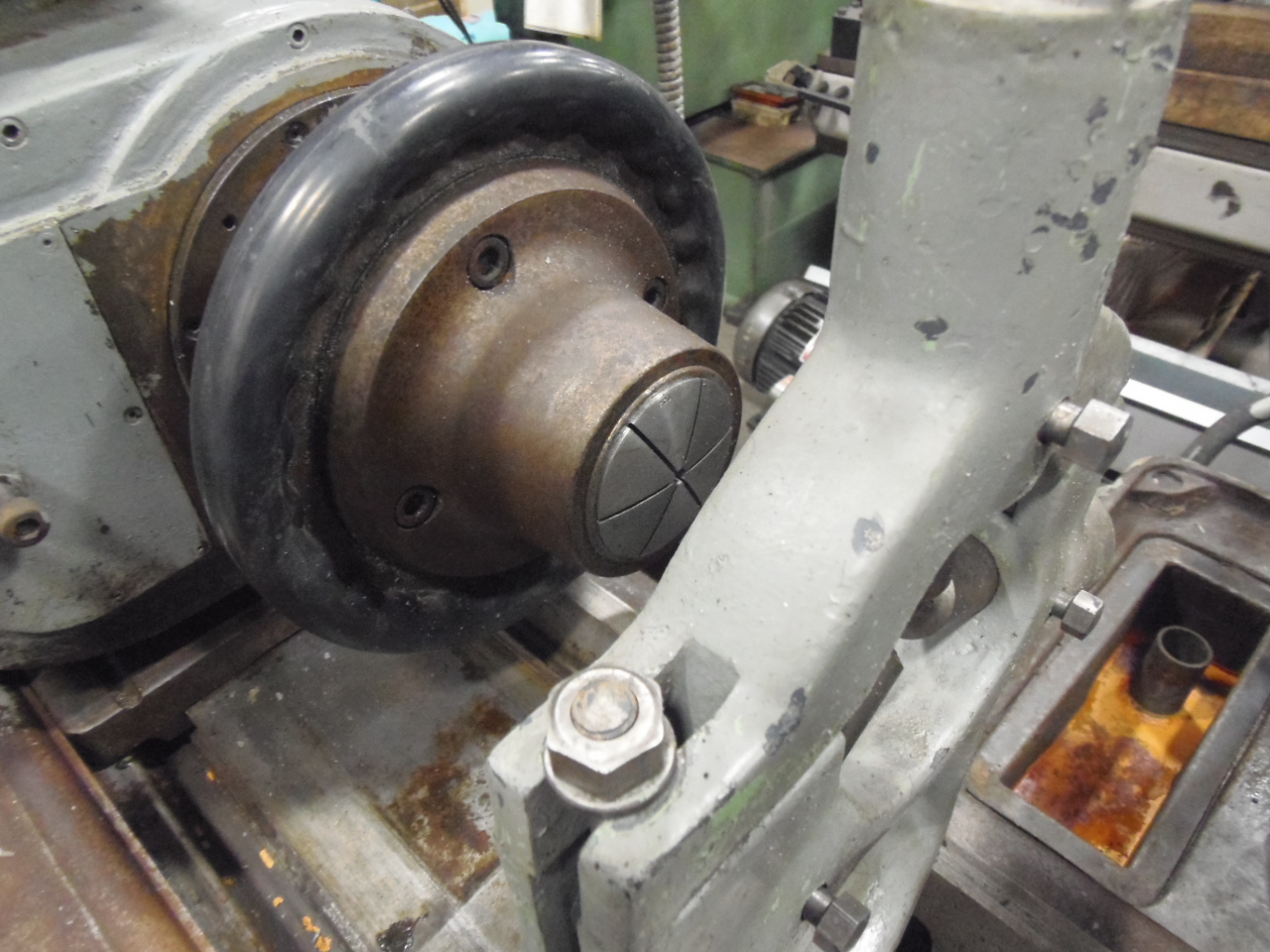

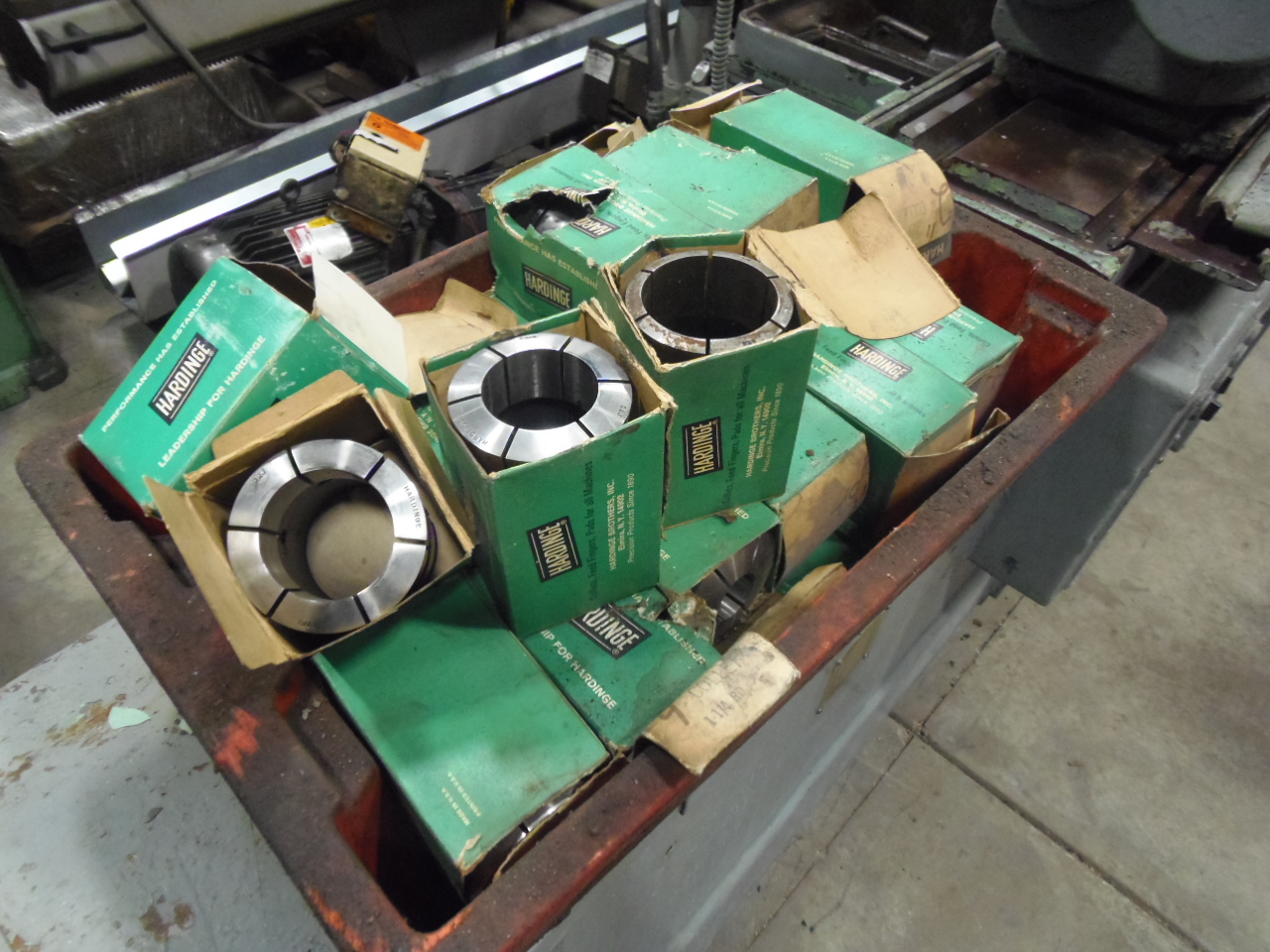

COLLET CHUCK
SWIVEL TABLE
SWIVEL WHEEL HEAD

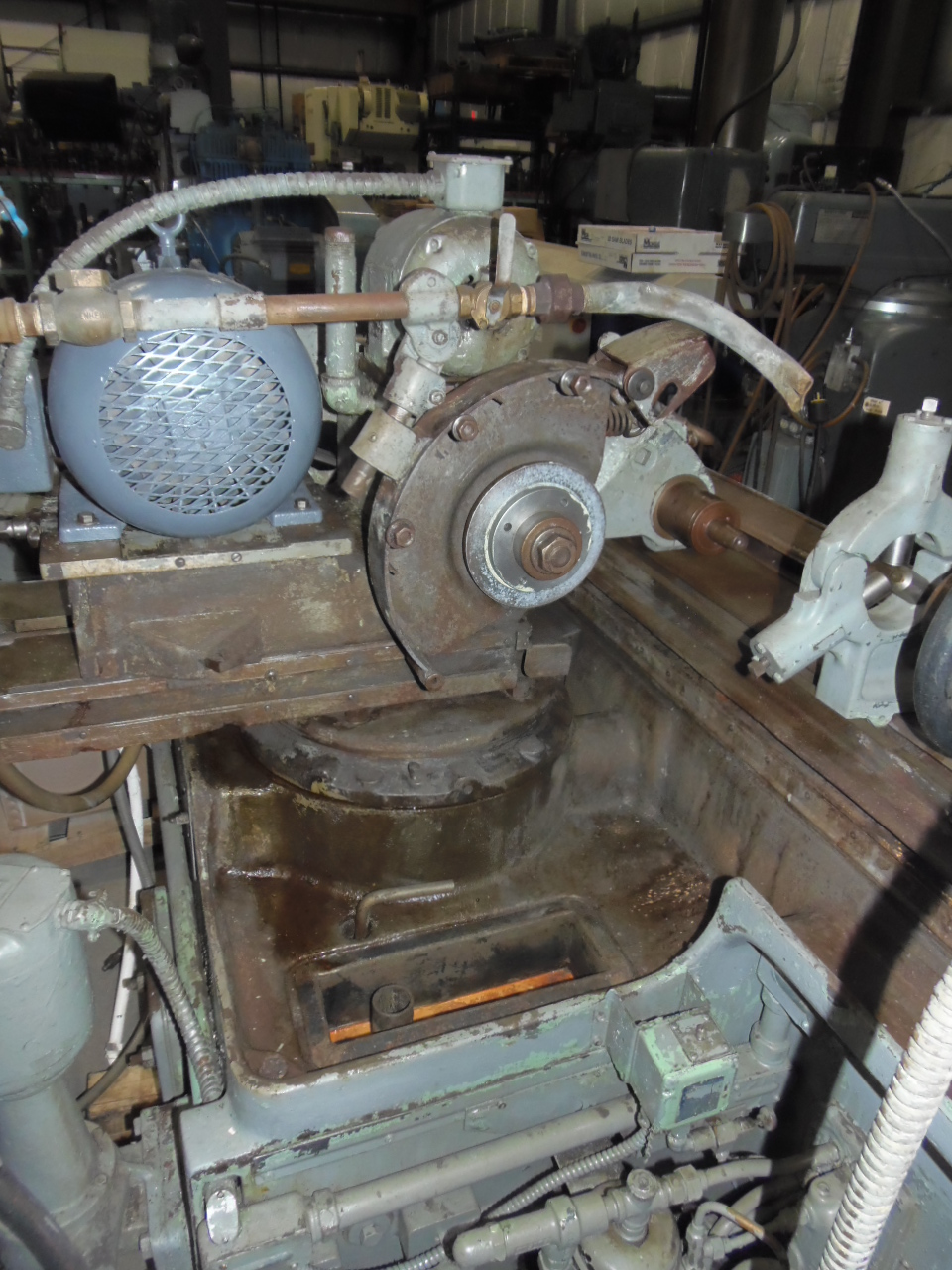

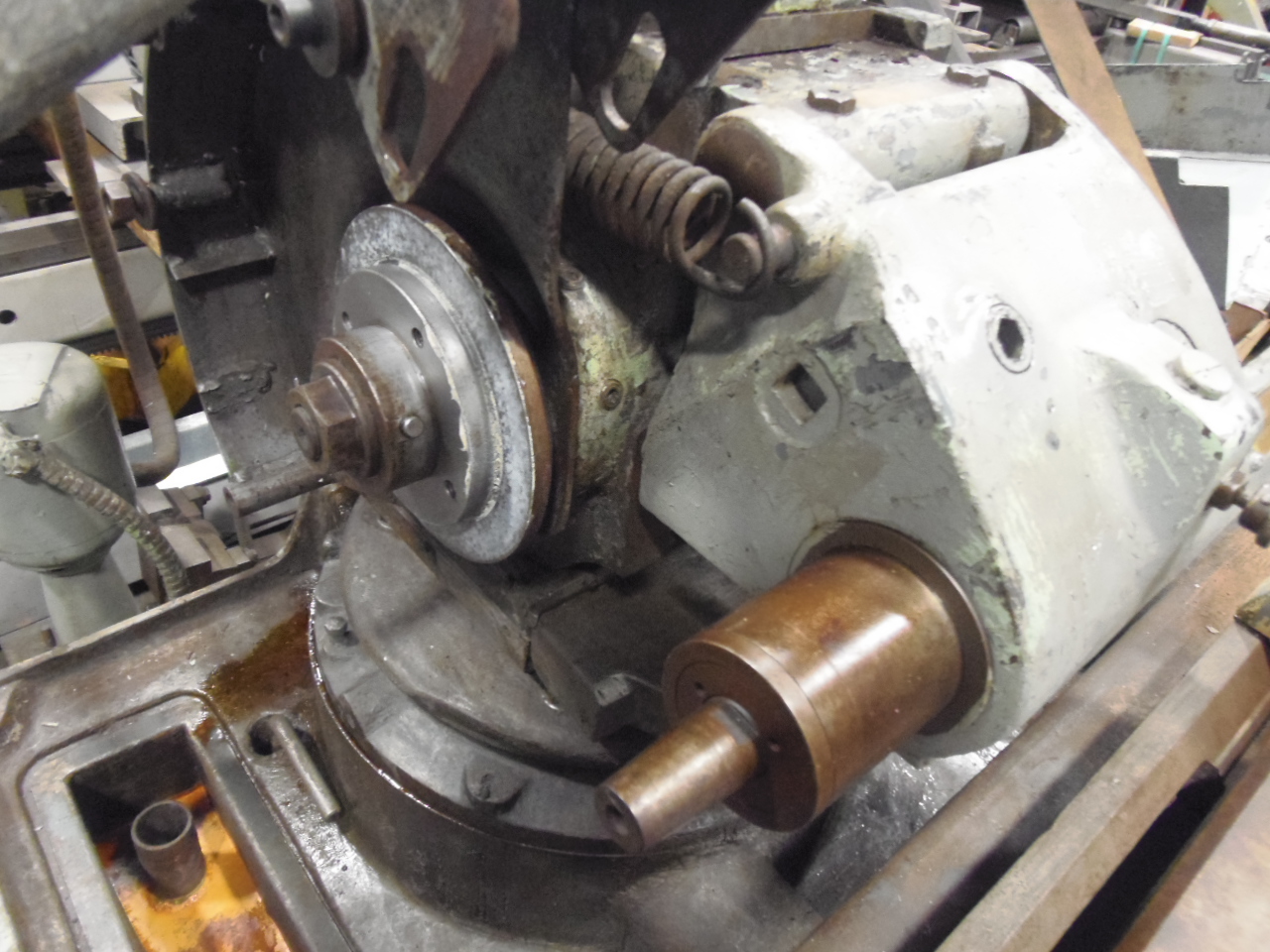

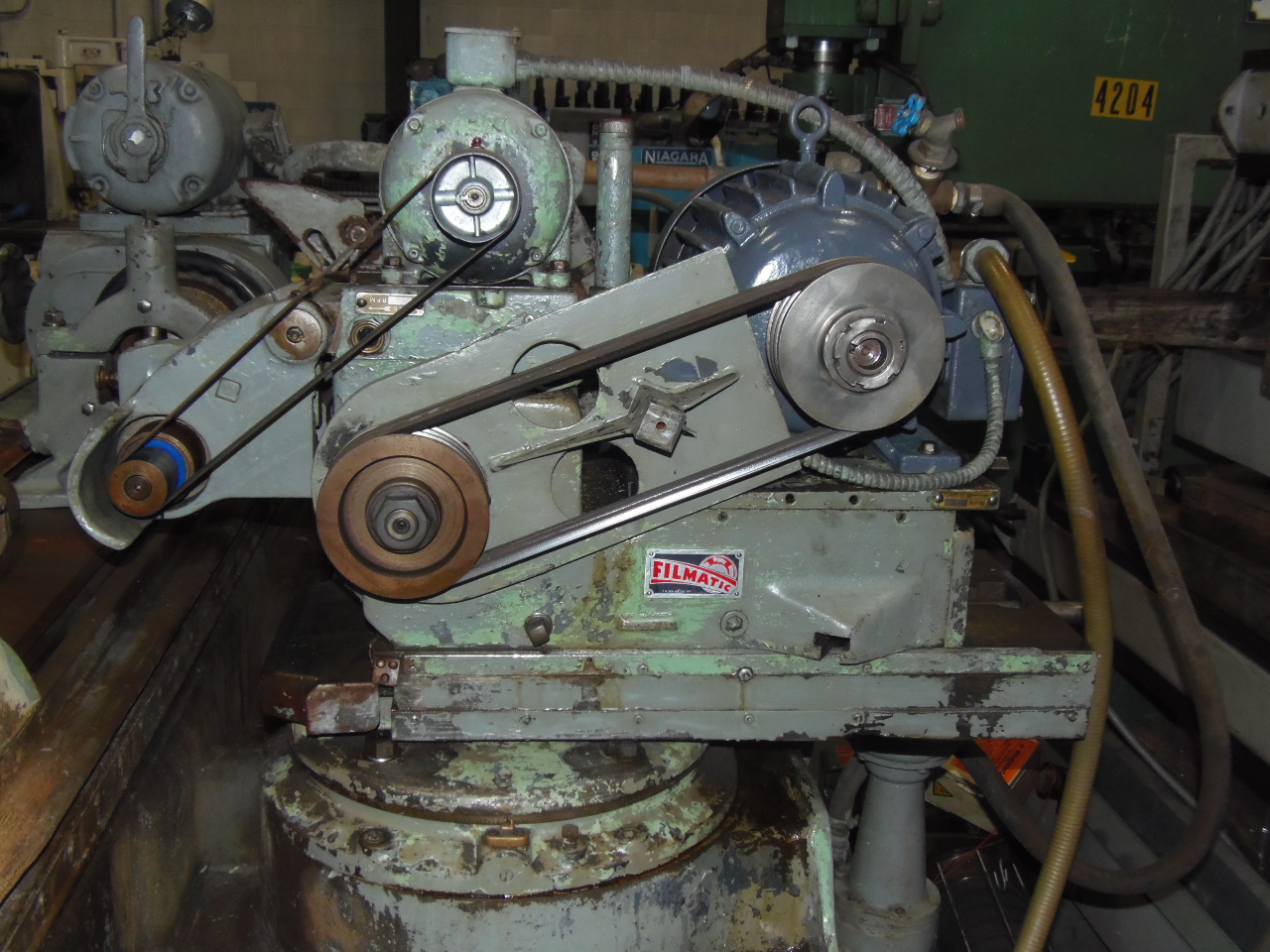

SWING DOWN INTERNAL ATTACHMENT
PICK FEED
TARRY LEFT AND RIGHT
FILMATIC BEARING
BUILT IN COOLANT
