GENERAL SPECIFICATIONS:

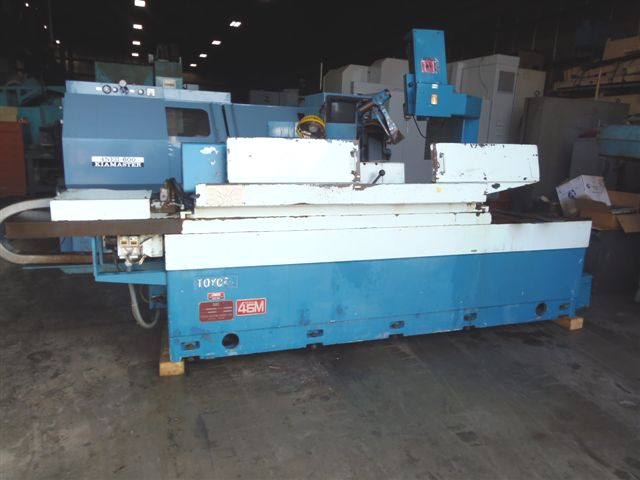

MANUFACTURER...............................TOYODA
MODEL......................................GPN5 32-100
SERIAL#....................................TG2052-2
AGE APPROXIMATELY..........................1985
SWING OVER TABLE...........................12"
DISTANCE BETWEEN CENTERS...................40"
GRINDING DIAMETER..........................0-7.8"
MAX LOAD...................................330 LBS
GRINDING WHEEL.............................20"OD X 4"W X 7.8" ID
SURFACE SPEED..............................45 M/S
WHEEL SPEED................................1685 RPM (CONSTANT)
WHEEL HEAD (STROKE)........................10"
(RAPID FEED)....................200 IPM
(LEAST INPUT)................. .000019
TABLE (RAPID FEED)....................400 IPM
(LEAST INPUT)................. .000019
(SWING ANGLE)...................10 - 0 DEGREES
WORK HEAD (CENTER).........................MT 4
(SPINDLE SPEED)..................15-360 RPM (VARIABLE)
FOOT STOCK (CENTER)........................MT 4
(STROKE SPINDLE).............. .1"
FLOOR SPACE................................220" X 84"
WEIGHT APPROX..............................15000 LBS
EQUIPPED WITH:

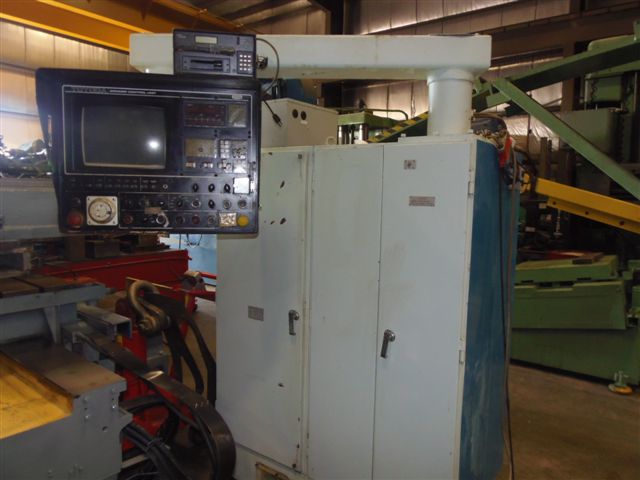

2 AXIS SIMULTANEOUS CONTROL
SHOULDER FLAGGING

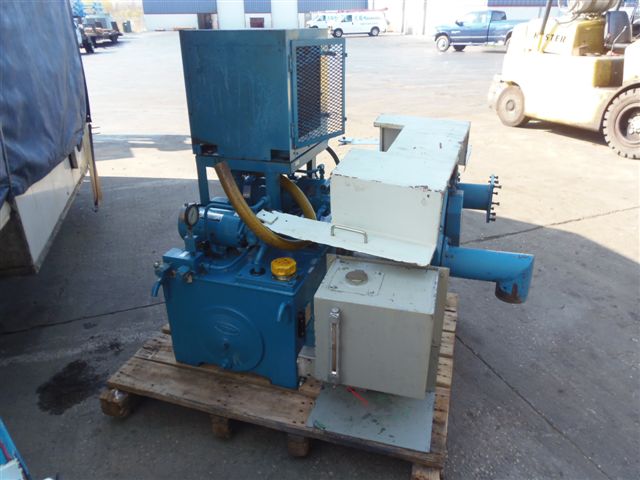

COOLANT SYSTEM
SPECIFICATIONS SUBJECT TO VERIFICATION
