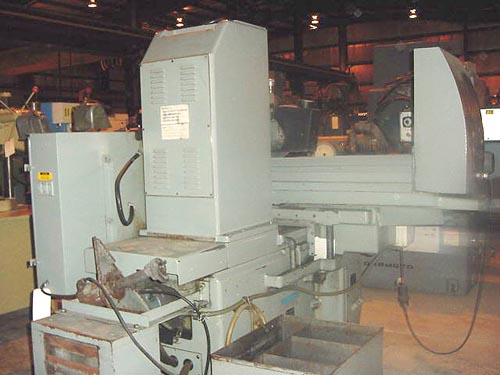

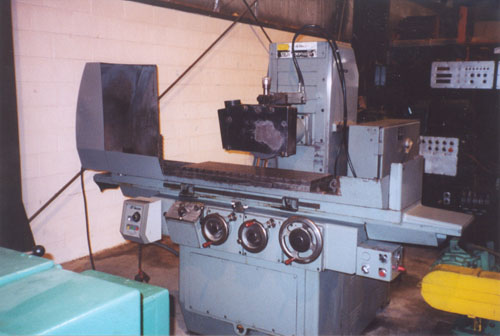

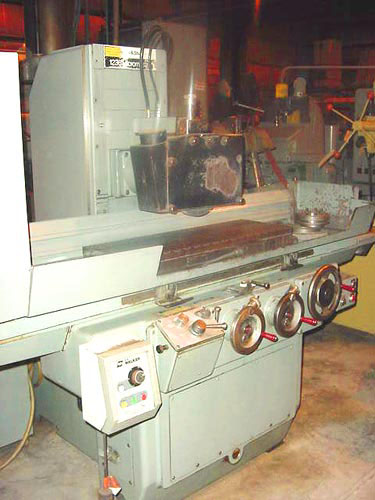

12" X 36"BROWN & SHARP,No. 1236,,HYDR.MOTOR 2HP A.C.,MAIN MOTOR 5HP A.C.,85

GENERAL SPECIFICATIONS:
MODEL---------------------------------------1236
NEW APPROXIMATELY---------------------------1985
CAPACITY: WIDE------------------------------12"
--LONGITUDINAL------------------------------36"
--HEIGHT------------------------------------18"
WHEEL SIZE----------------------------------14" x 1.5" X 5"
LONGITUDINAL HYDRAULIC TRAVEL---------------10 TO 90 FPM
CROSS HYDRAULIC FEED:
--VARIABLE AT TABLE REVERSAL----------------.010" TO .500"
VERTICAL ADJUSTMENT-------------------------19-1/4"
MAIN DRIVE MOTOR----------------------------5 HP A.C.
HYDRAULIC MOTOR-----------------------------2 HP A.C.

EQUIPPED WITH:

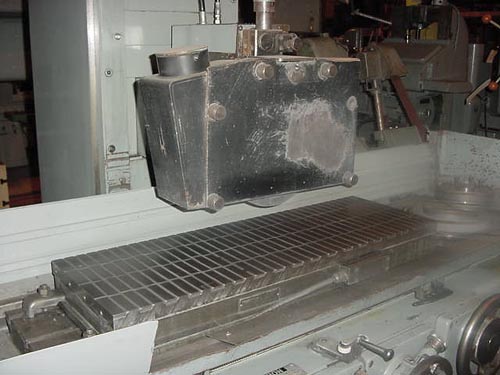

12" x 36" FINE LINE ELECTROMAGNETIC CHUCK & CONTROLS
COOLANT SYSTEM
POWER ELEVATION
OVER WHEEL DRESSER
WHEEL HUB
