Specifications
Equipped With
GENERAL SPECIFICATIONS:

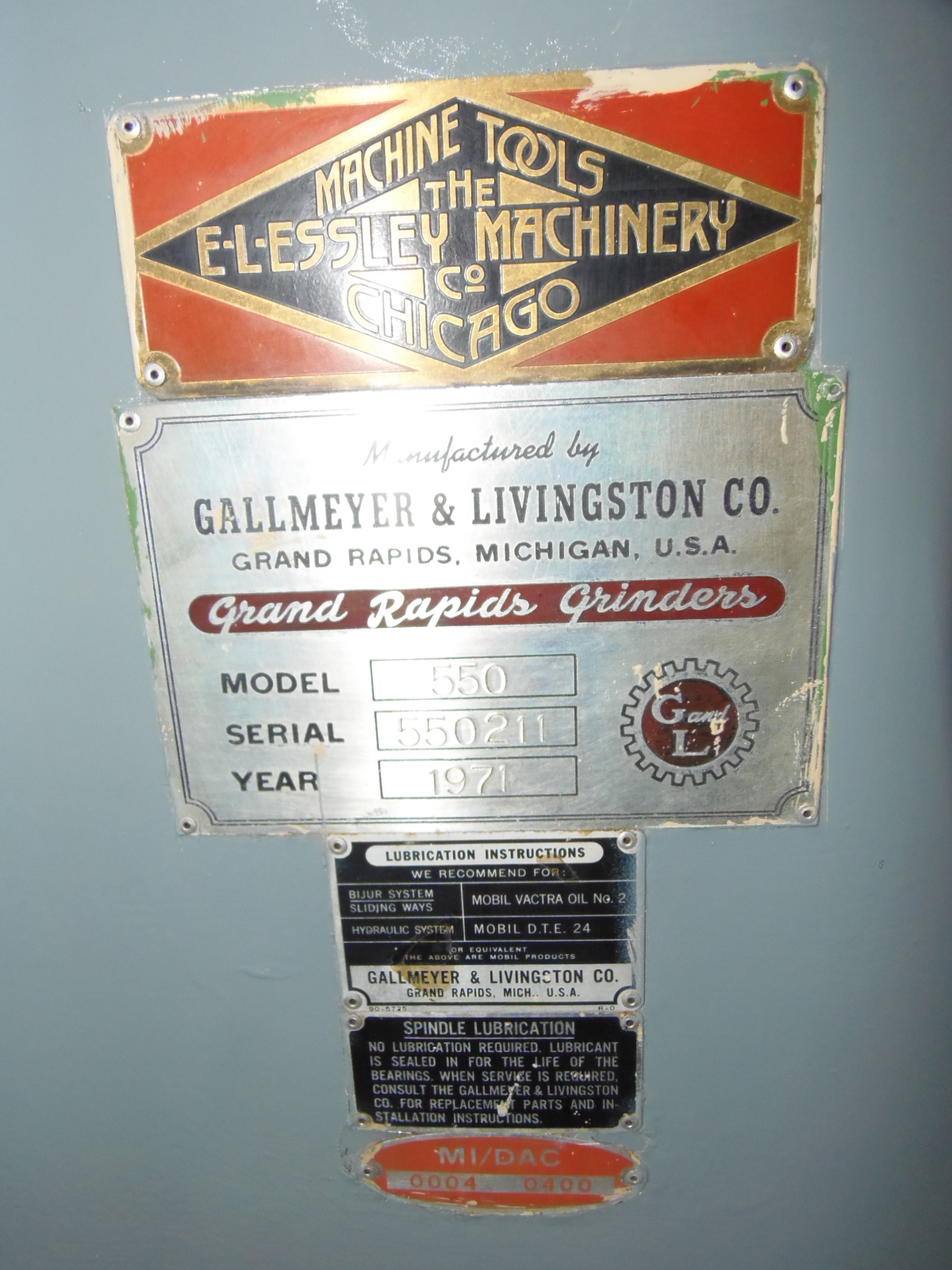

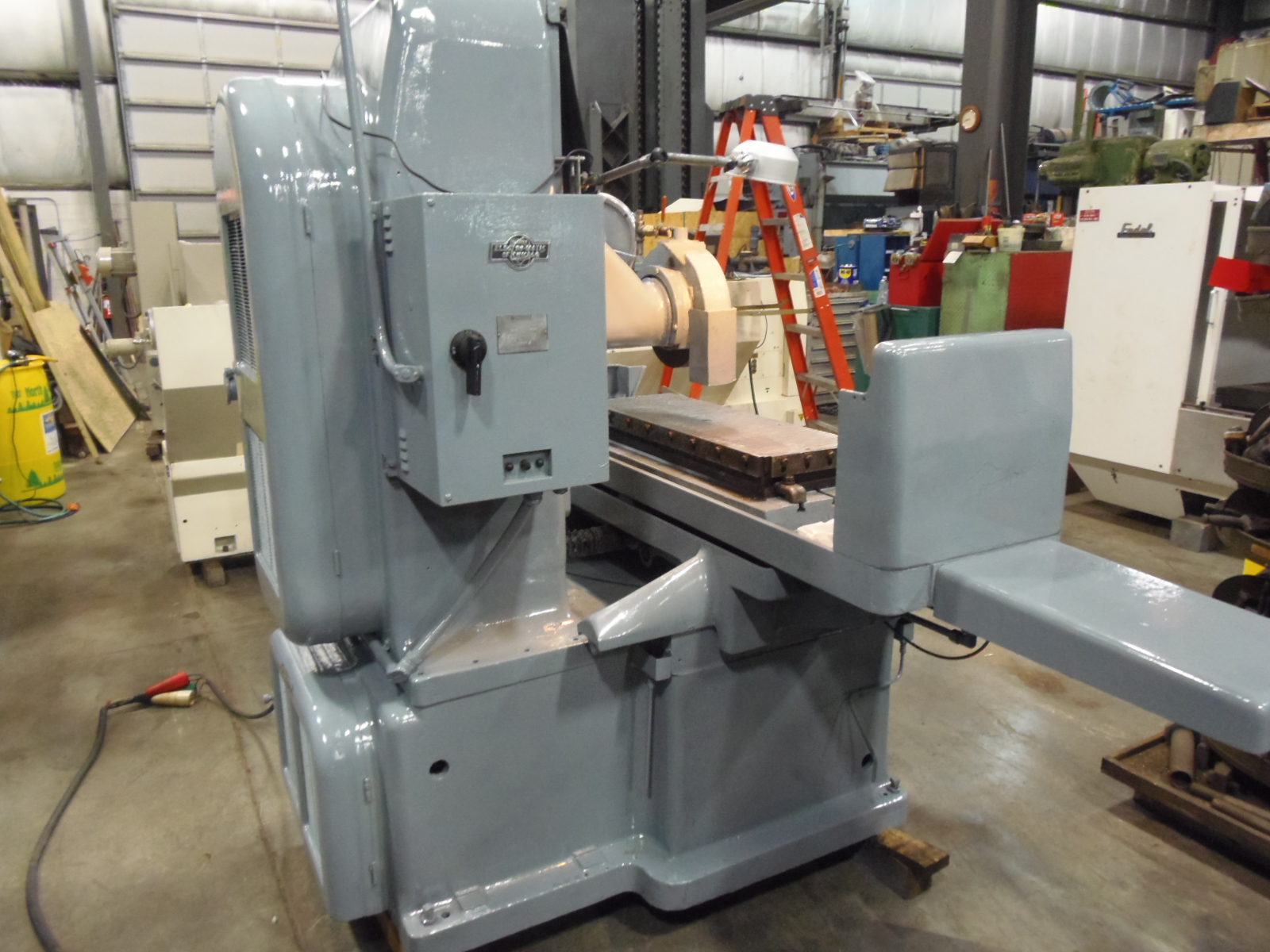

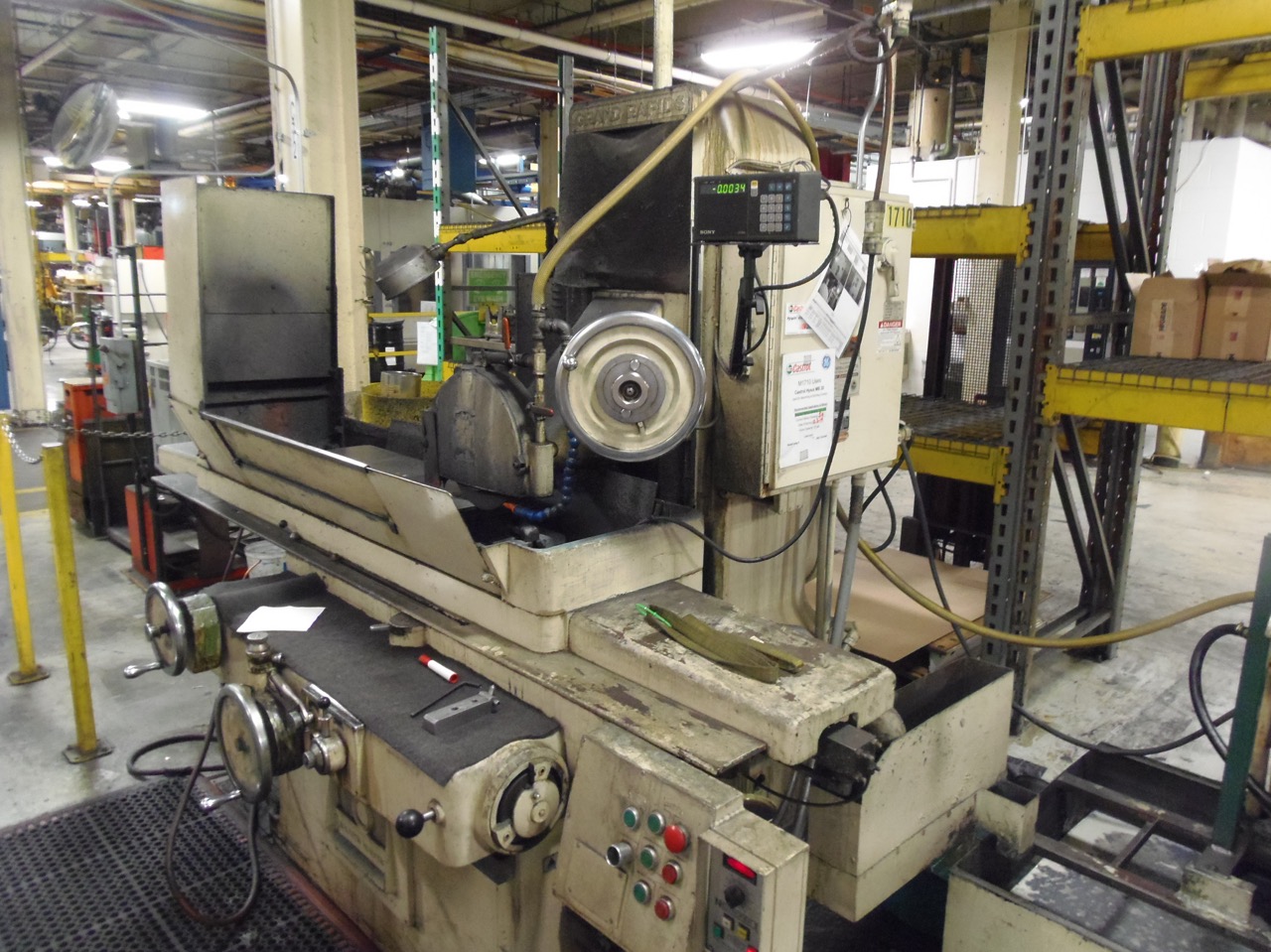

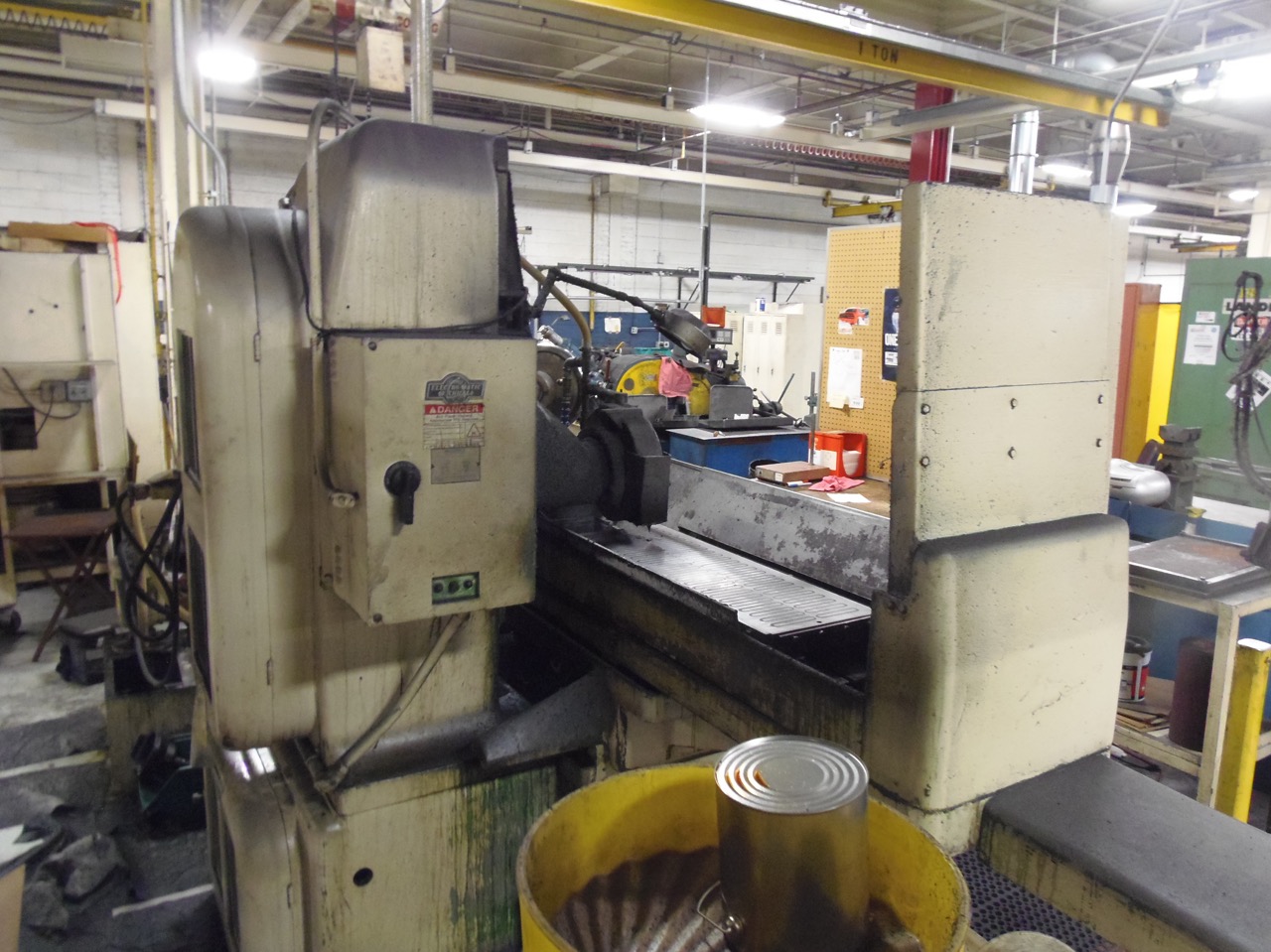

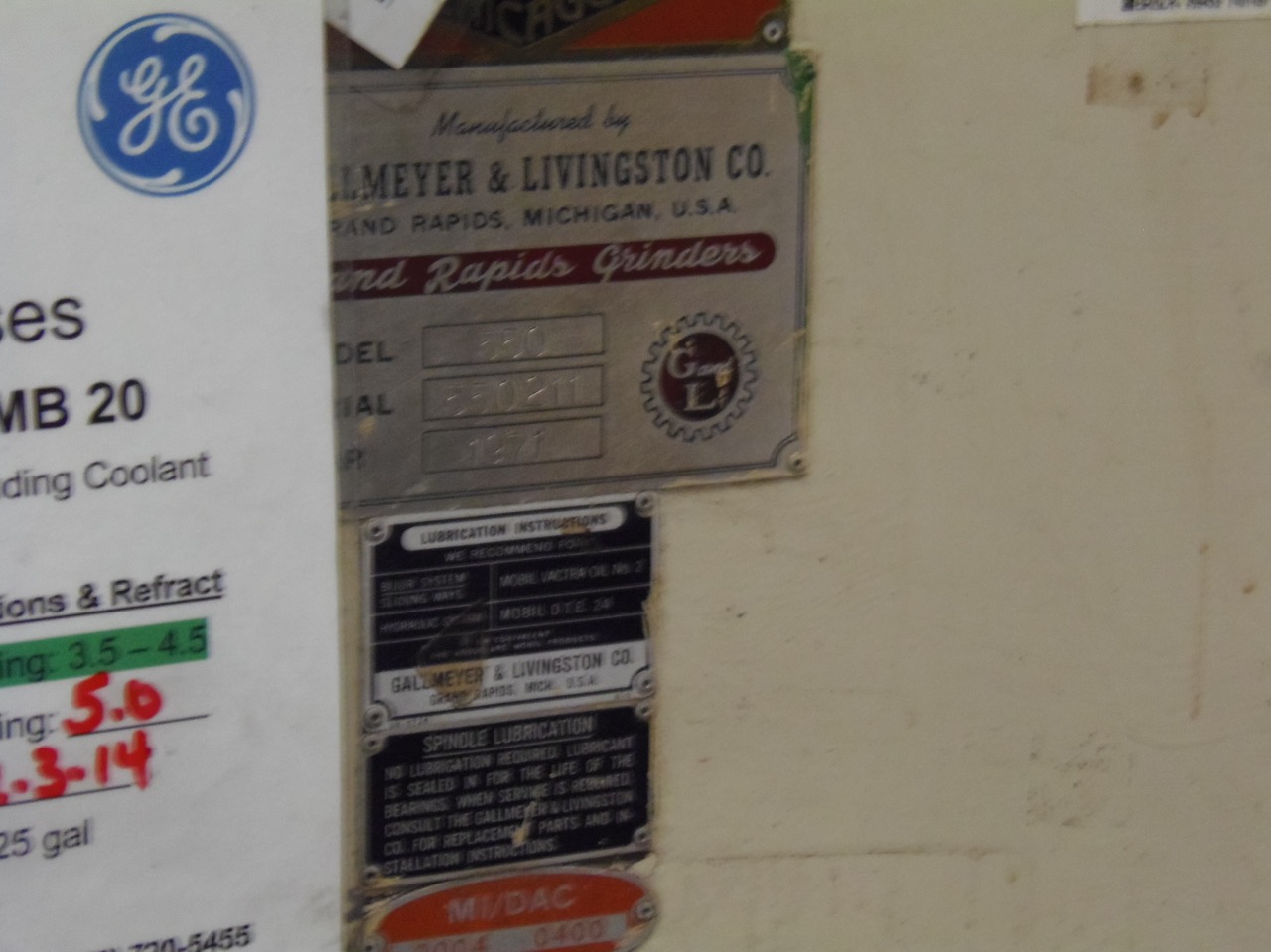

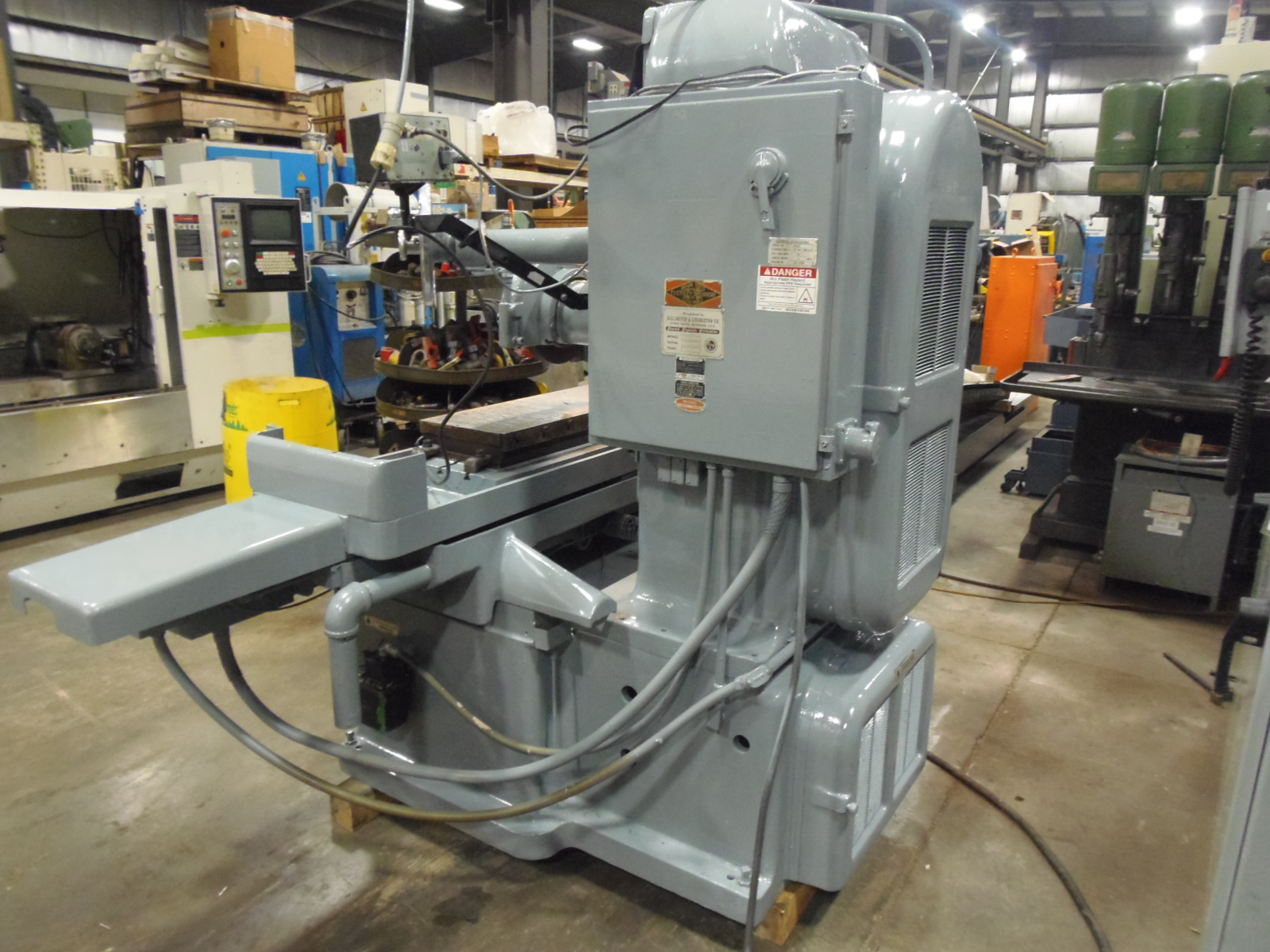

MANUFACTURER......................... GALLMEYER & LIVINGSTON
MODEL................................ 550
SERIAL NUMBER........................ 550-211
AGE (APPROX)......................... 1971
MAGNETIC CHUCK SIZE.................. 12" X 36"
HYDRAULIC TABLE TRAVEL............... 47.5"
MAX. CROSS TRAVERS................... 13.75"
VERTICAL TRAVERSE OF WHEEL HEAD...... 19"
DISTANCE FROM WHEEL TO TABLE, MAX.... 18" (UNDER 14" WHEEL)
STANDARD WHEEL SIZE.................. 14"X 1.5" X 5"
STANDARD SPINDLE SPEED............... 1750 RPM
LONG. TABLE SPEED RANGE.............. 3 TO 150 FPM
SPINDLE MOTOR........................ 7.5 HP
HYDRAULIC PUMP MOTOR................. 2 HP
FLOOR SPACE.......................... 6' X 14' X 9' TALL
EQUIPPED WITH:

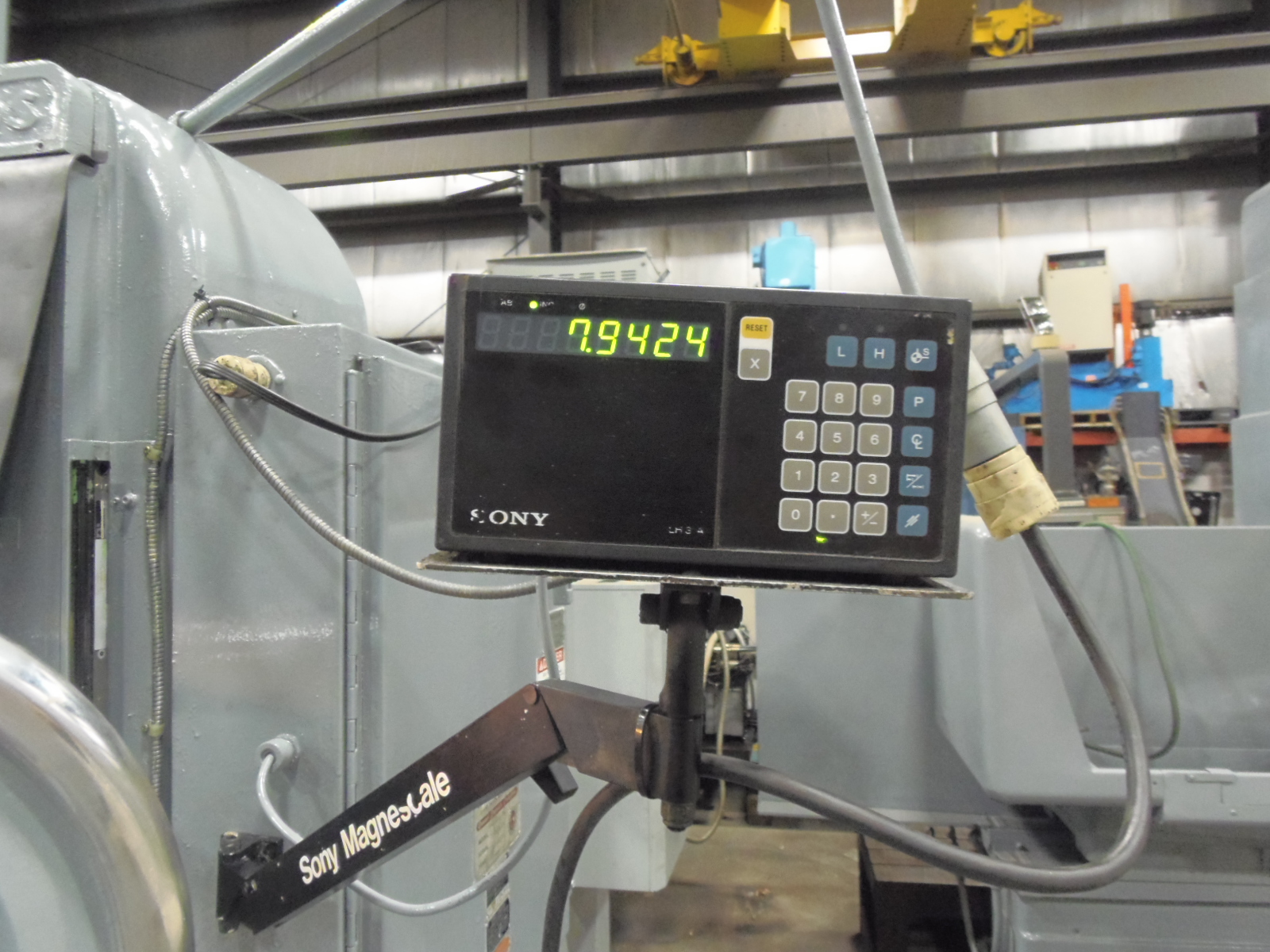

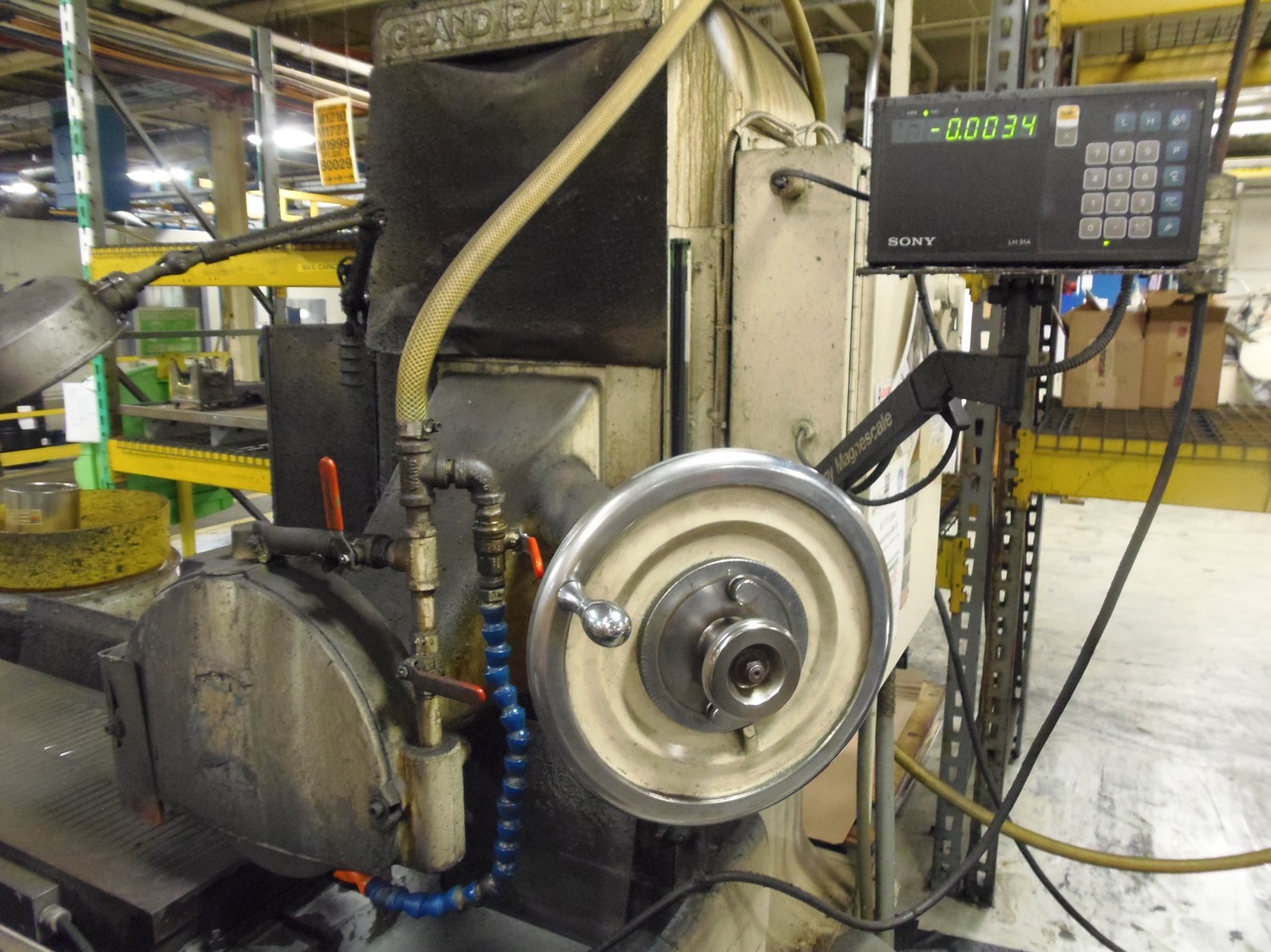

SONY DRO ON DEPTH

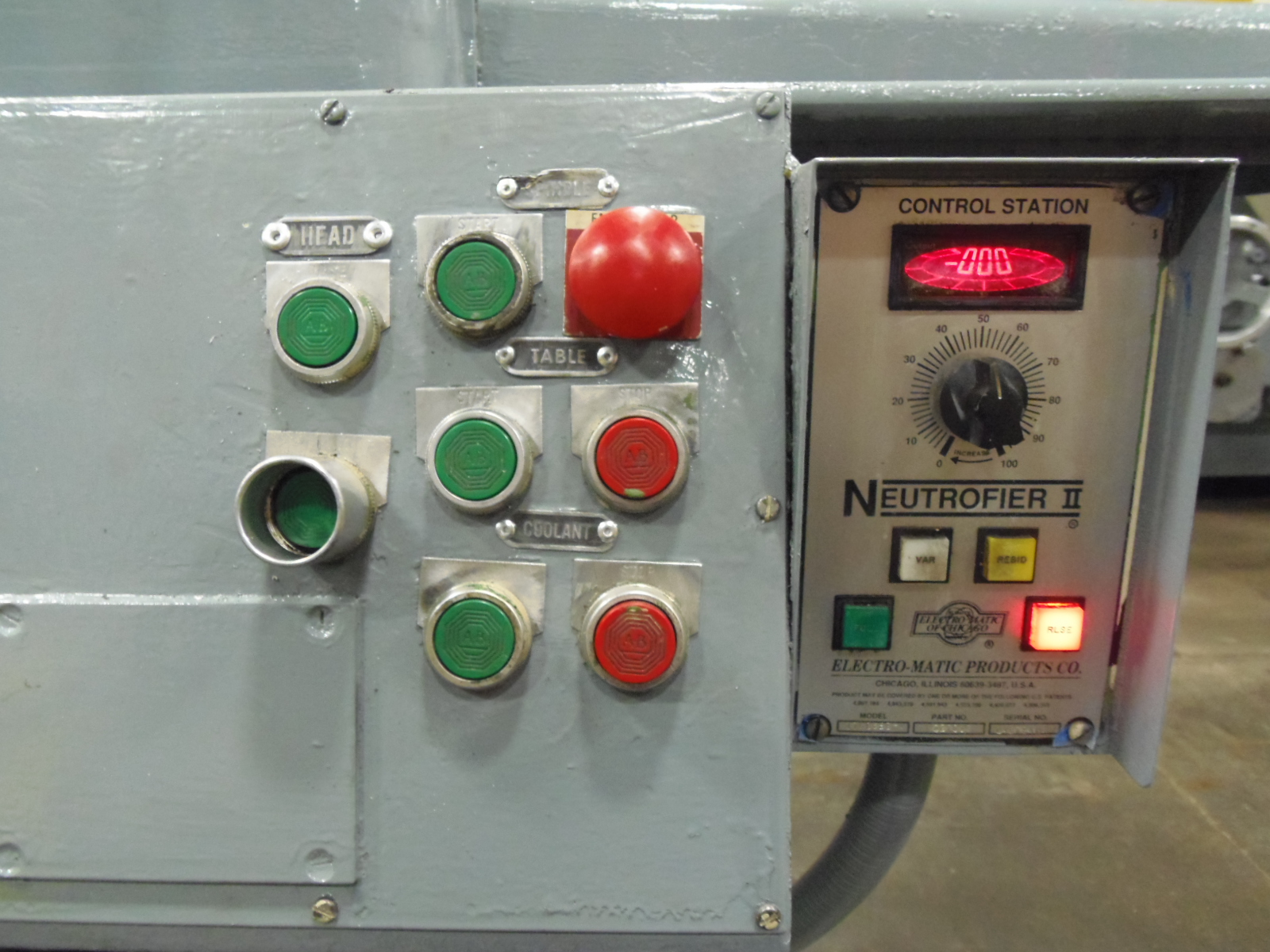

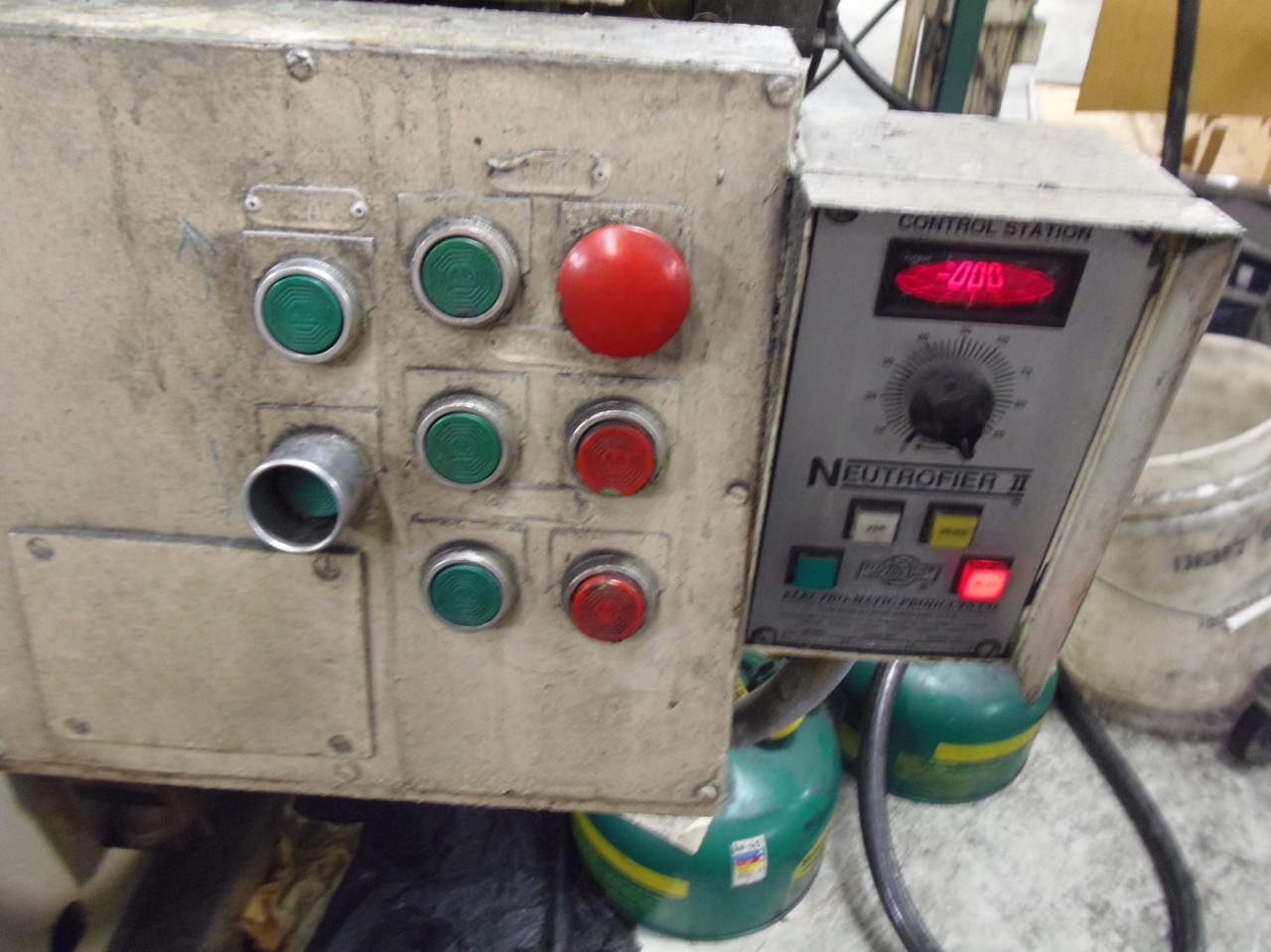

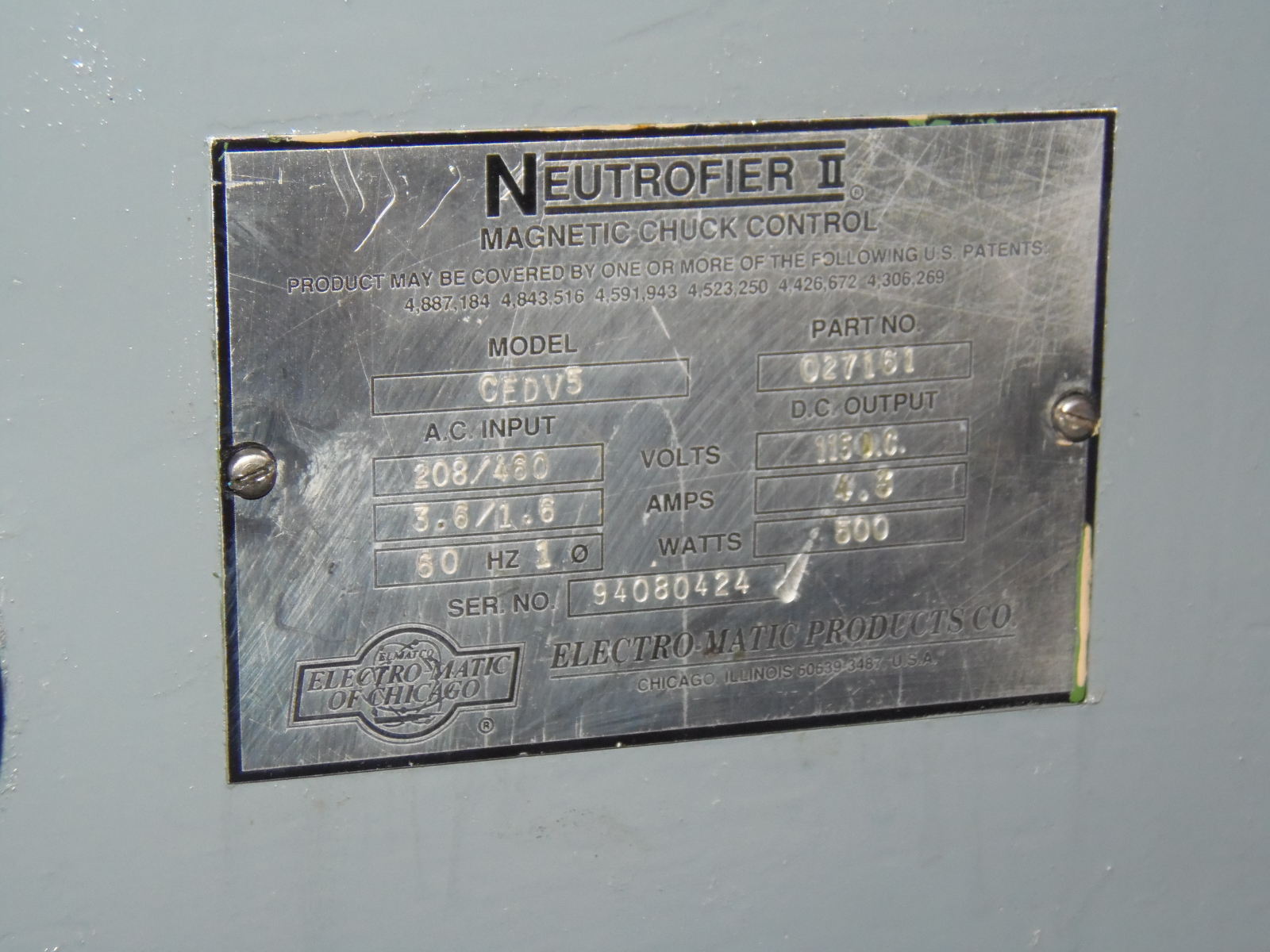

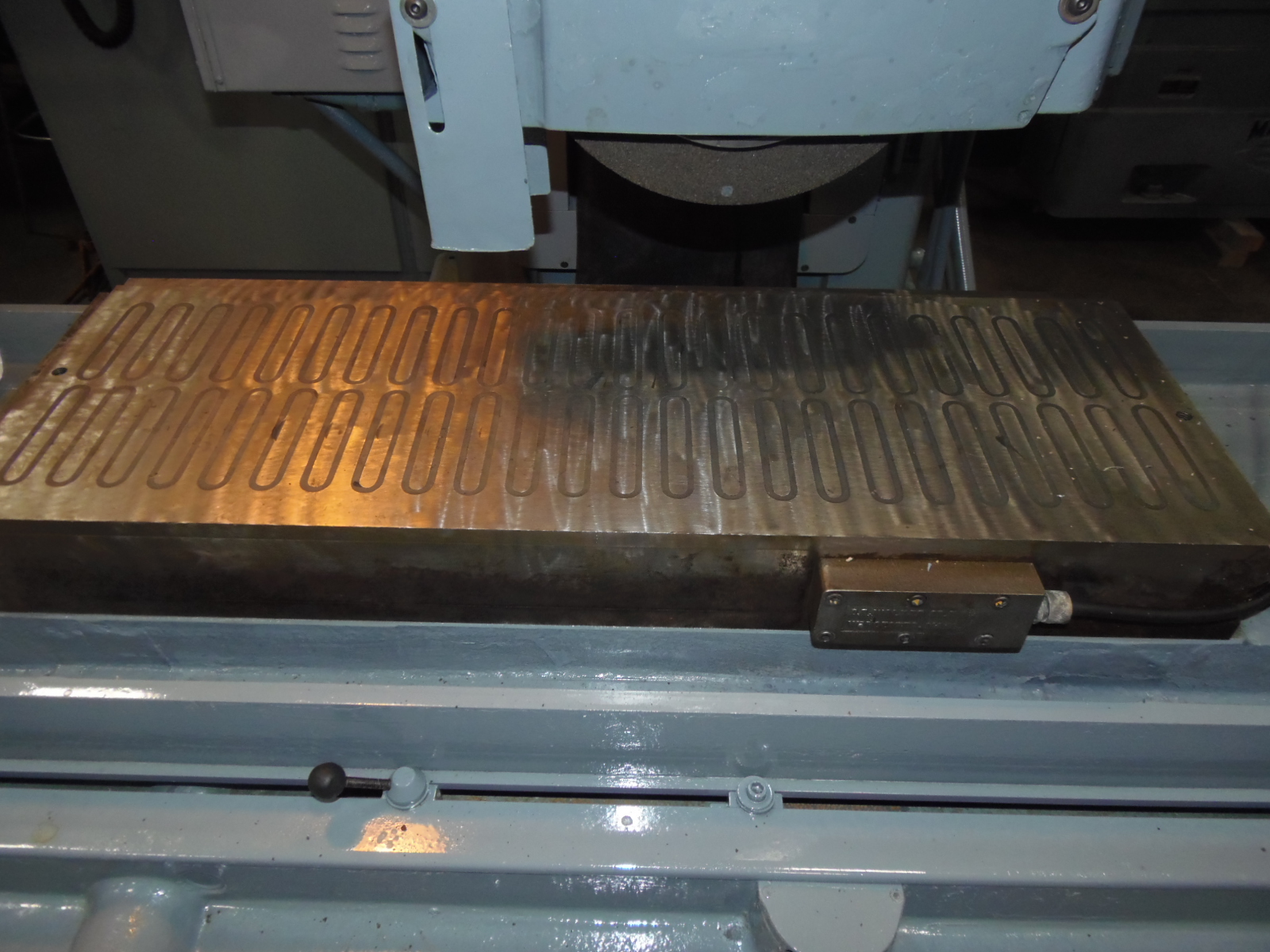

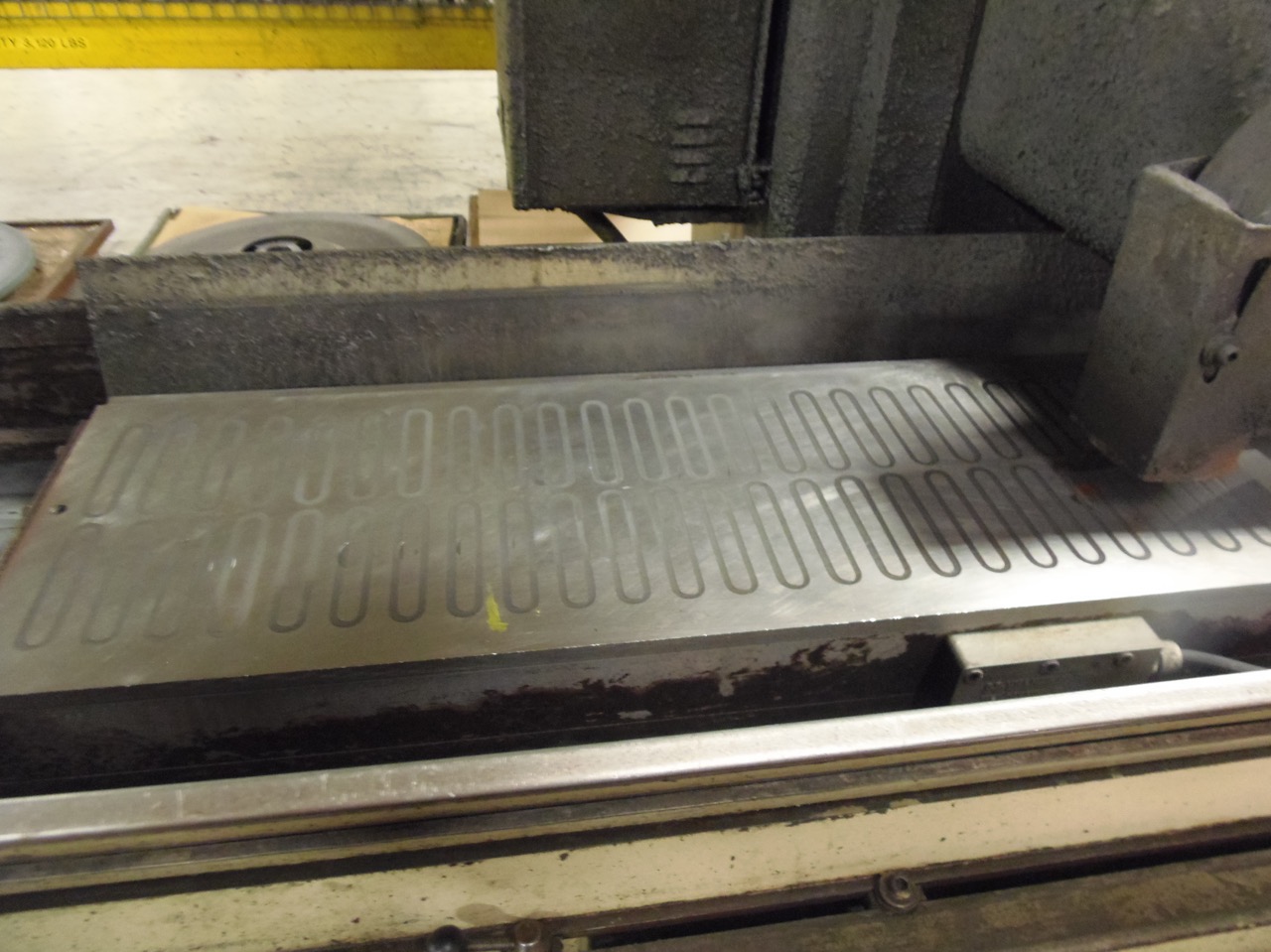

12 X 36 ELECTROMAGNETIC CHUCK WITH DEMAG

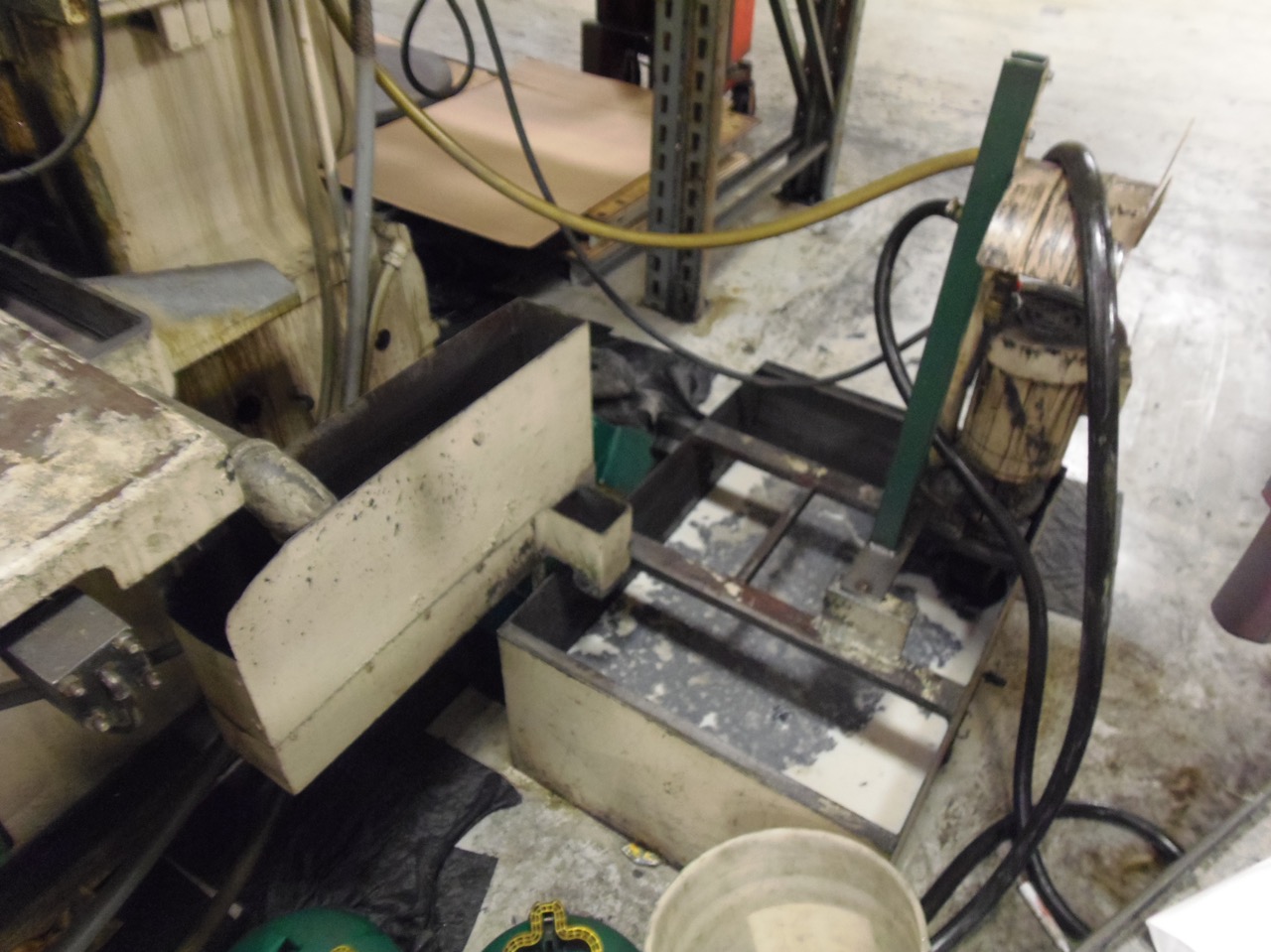

COOLANT SYSTEM

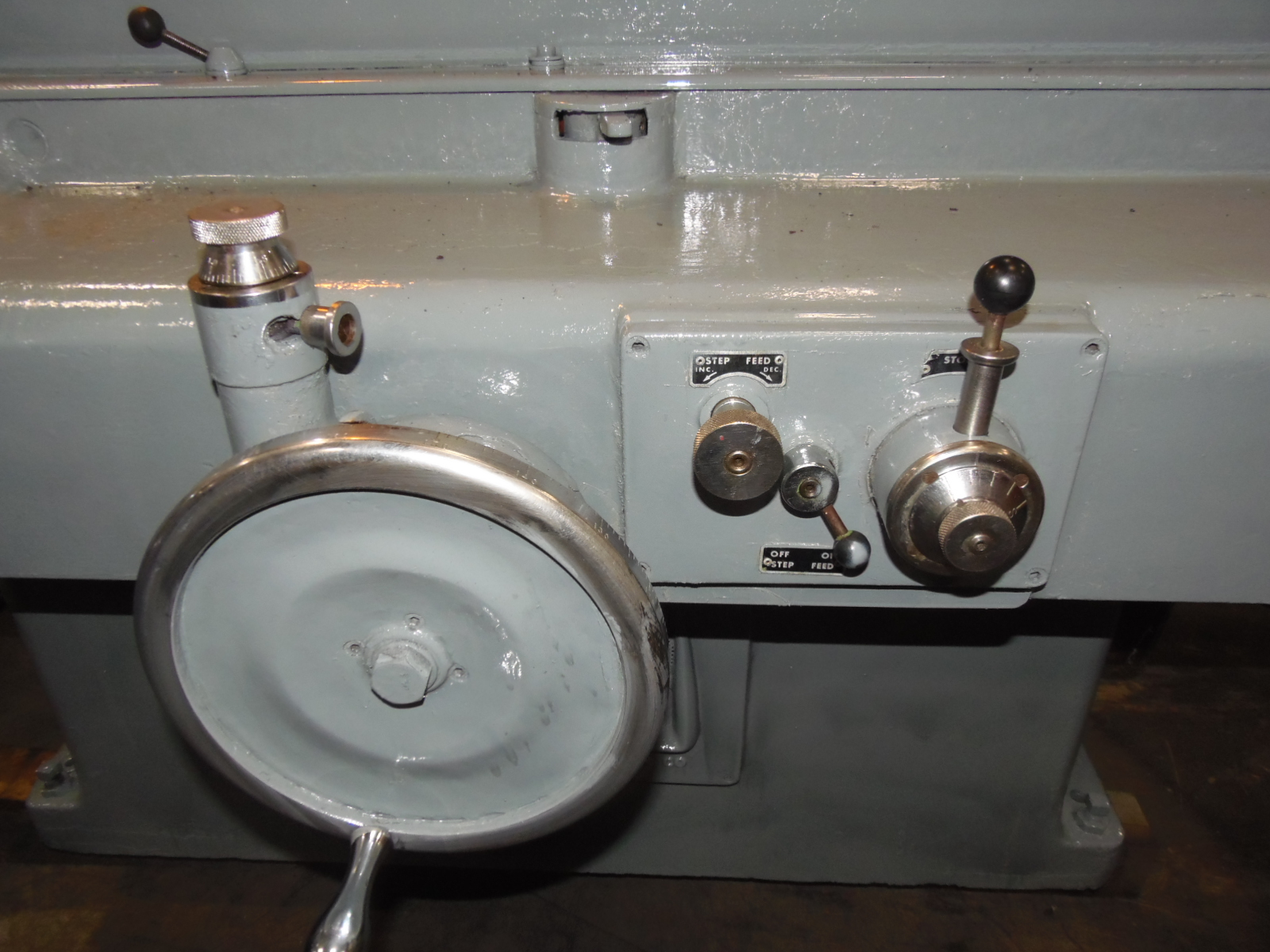

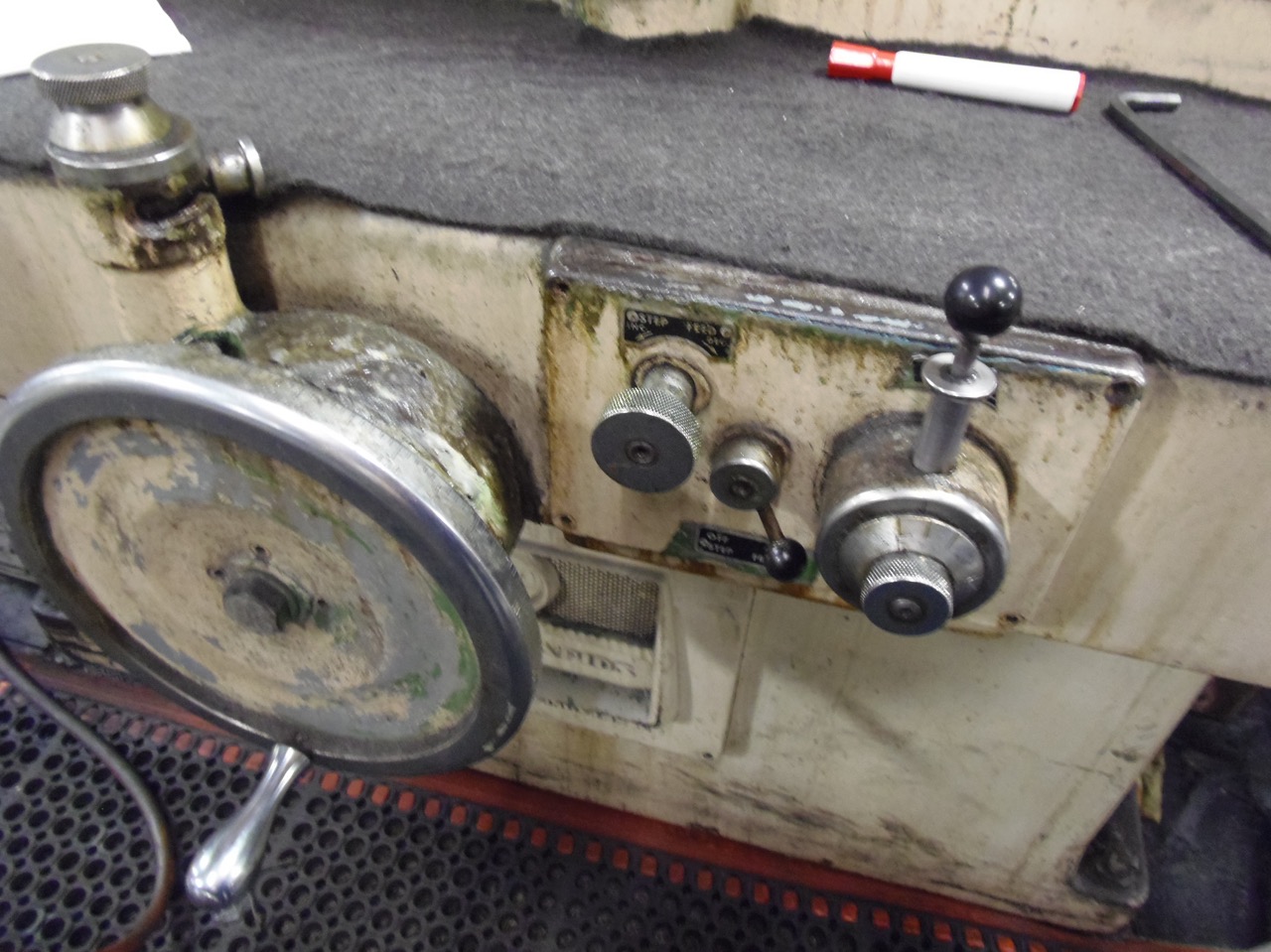

HAND CONTROLS

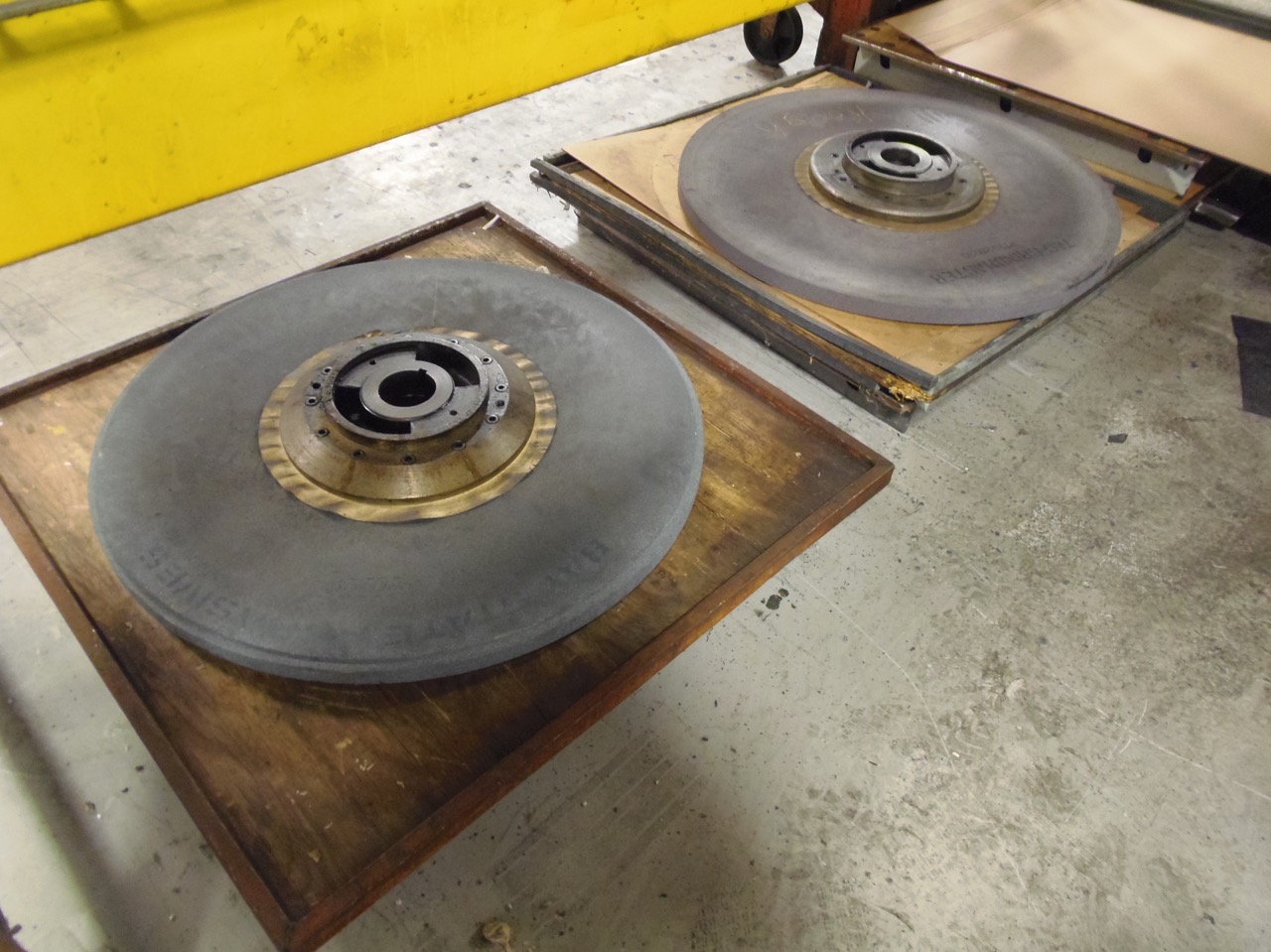

EXTRA WHEEL
SPECIFICATIONS SUBJECT TO VERIFICATION
