Specifications
Equipped With

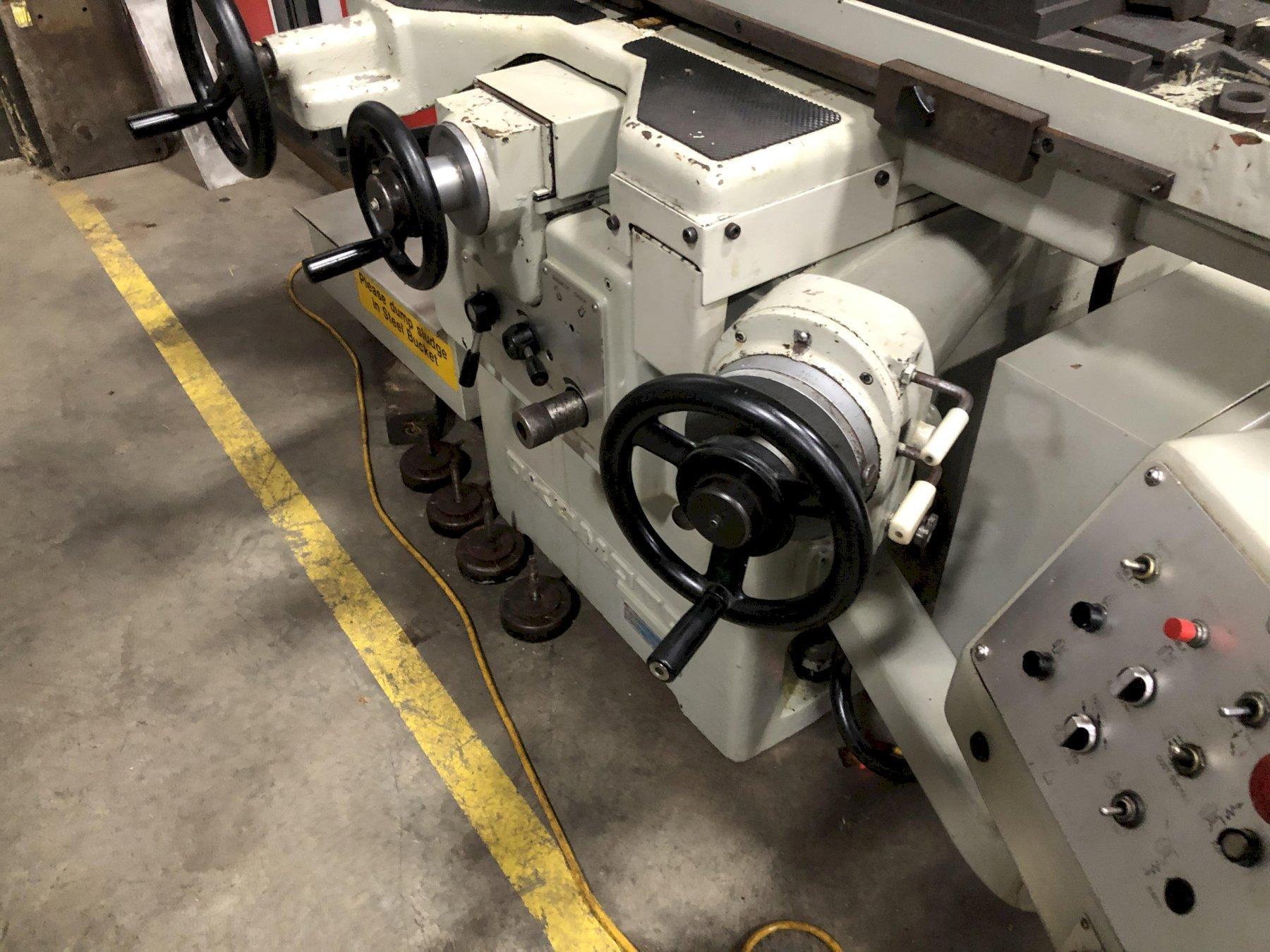

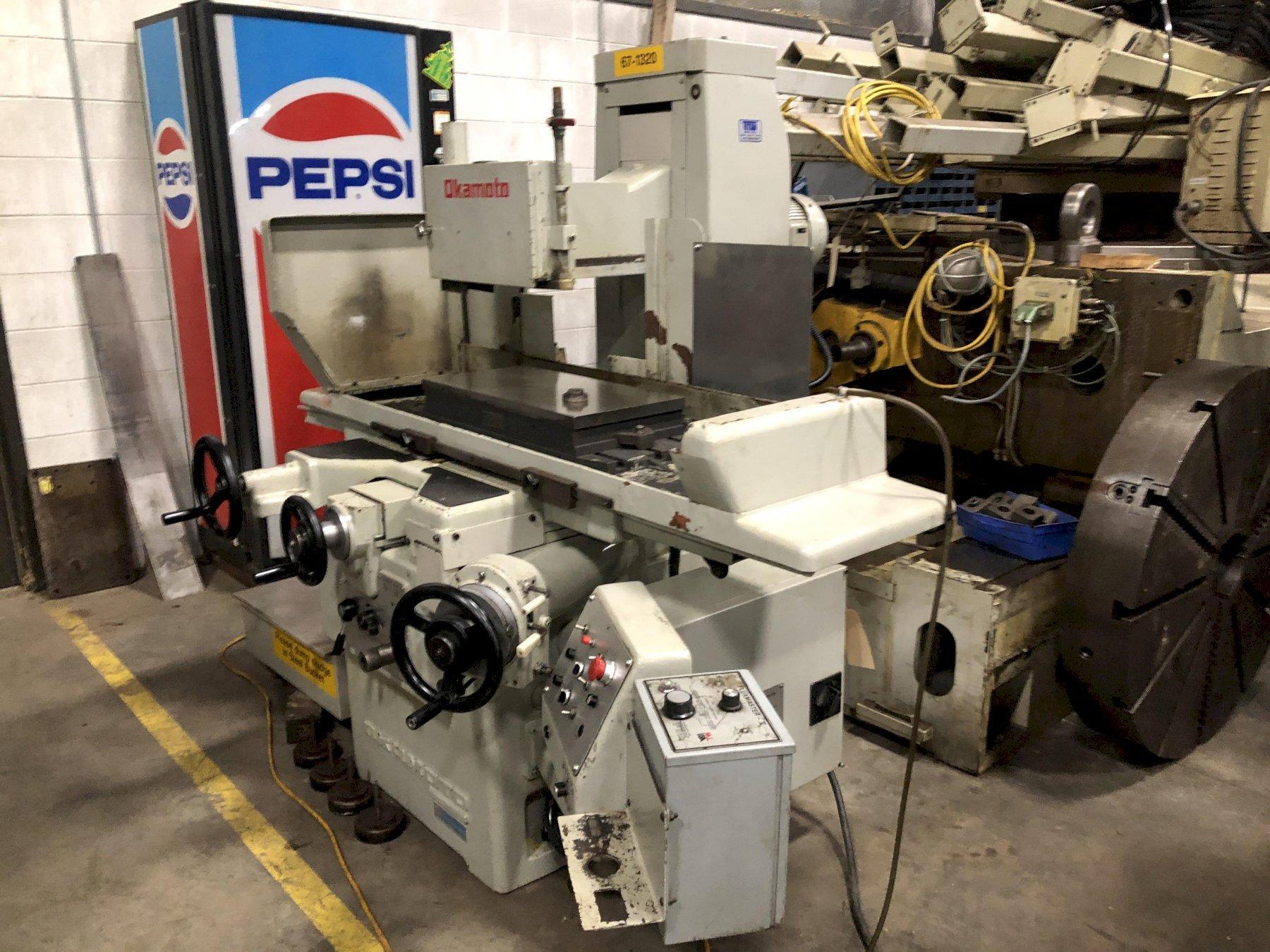

GENERAL SPECIFICATIONS:
MANUFACTURER...................... OKAMOTO
MODEL............................. 124N
SERIAL NUMBER..................... 6115
AGE (YEAR)........................ 2000
MAXIMUM GRINDING LENGTH........... 24"
MAXIMUM GRINDING WIDTH............ 12"
MAXIMUM HEIGHT UNDER WHEEL........ 13.7"
MAXIMUM WEIGHT OF WORK PIECE...... 930 LBS.
MAXIMUM LONGITUDINAL MOVEMENT..... 29.5"
MAXIMUM CROSS MOVEMENT............ 13.6"
FEEDS:
LONGITUDINAL FEED................. 1 TO 100 FPM
CROSS FEED:
HYDRAULIC INTERMITTENT............ 0.02" TO 0.8"
HYDRAULIC CONTINUOUS.............. 4 TO 40 IPM
HAND FEED PER REVOLUTION.......... 0.25"
GRADUATION OF WHEEL............... 0.0001"
VERTICAL MOVEMENT OF WHEEL HEAD:
AUTO FEED PER TABLE STROKE........ 0.0015" - .0001"
AUTO FEED PER SADDLE REVERSAL..... 0.0015" - .0001"
HAND FEED PER REVOLUTION.......... 0.05"
GRADUATION OF HAND WHEEL.......... 0.001"
RAPID FEED RATE................... 19 IPM
STANDARD GRINDING WHEEL SIZE...... 12" X 1-1/2" X 5"
SPINDLE WHEEL SPEED............... 1800 RPM
OVERALL DIMENSIONS APPROXIMATELY.. 74' X 103" X 73" H
WEIGHT APPROXIMATELY.............. 4,900 LBS.
EQUIPPED WITH:

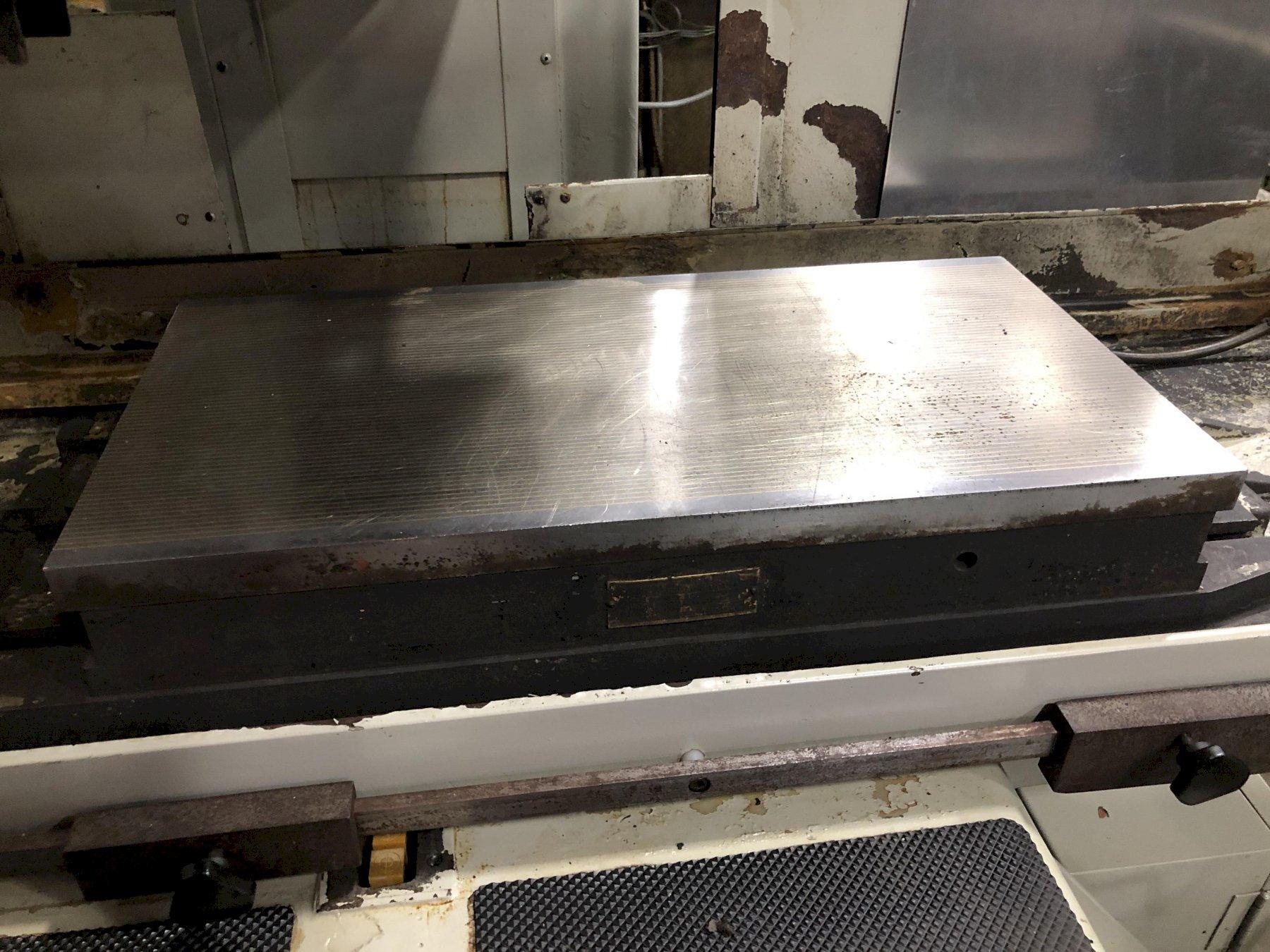

12" X 24" FINE LINE ELECTRO MAGNETIC CHUCK
VARIABLE CHUCK CONTROLS
AUTOMATIC DOWN FEED
HYDRAULIC POWER LONGITUDINAL AND CROSS FEEDS
POWER WHEEL HEAD ELEVATION
SPINDLE DRIVE MOTOR AND CONTROLS 5 HP
WIRED 3/60/230/460 VOLT
HYDRAULIC PUMP MOTOR 2 HP
VERTICAL RAPID FEED MOTOR 1/2 HP

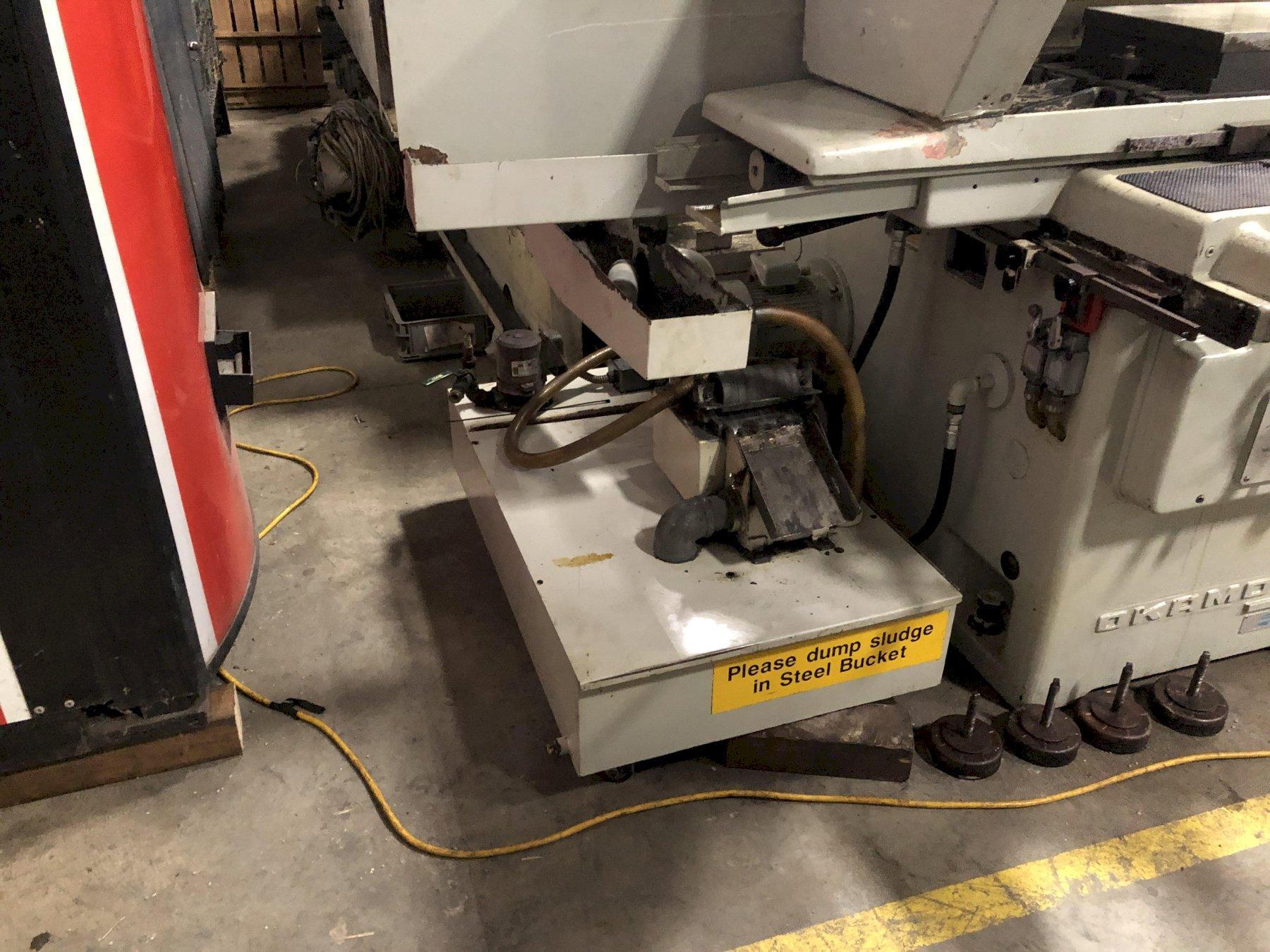

COOLANT PUMP AND TANK WITH MAGNETIC SEPARATOR

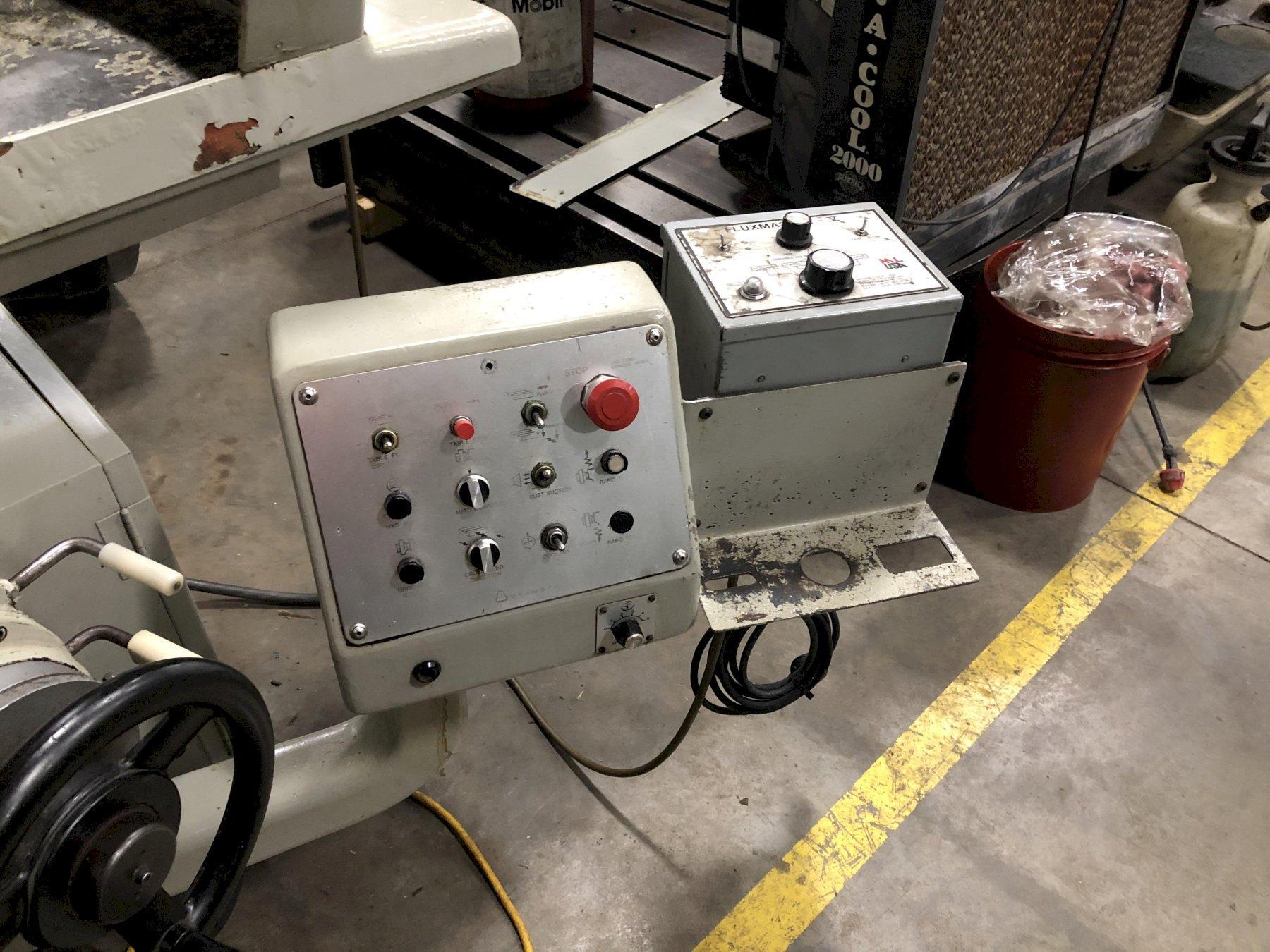

PUSH BUTTON CONTROL STATION
AUTOMATIC LUBRICATION SYSTEM
TABLE SPLASH GUARDS
