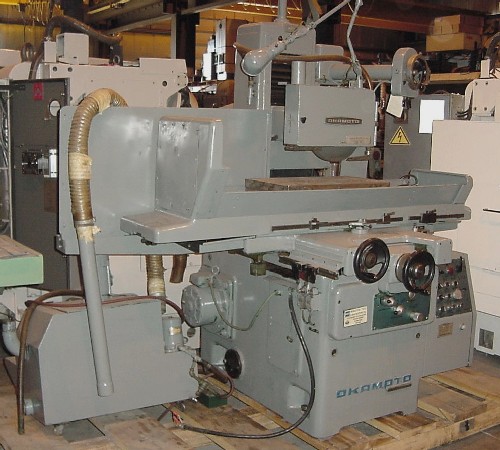

Specifications
Equipped With
GENERAL SPECIFICATIONS:
SERIAL 7506
NEW APPROXIMATELY 1975
MAXIMUM GRINDING LENGTH 24"
MAXIMUM GRINDING WIDTH 12"
MAXIMUM HEIGHT UNDER WHEEL 13.7"
MAXIMUM WEIGHT OF WORKPIECE 930 LBS.
MAXIMUM LONGITUDINAL MOVEMENT 29.5"
MAXIMUM CROSS MOVEMENT: 13.6"
FEEDS:
LONGITUDINAL FEED 1 TO 100 FPM
CROSS FEED:
HYDRAULIC INTERMITTENT 0.02" TO 0.8"
HYDRAULIC CONTINUOUS 4 TO 40 IPM
HAND FEED PER REVOLUTION 0.25"
GRADUATION OF WHEEL 0.0001"
VERTICAL MOVEMENT OF WHEELHEAD:
AUTO FEED PER TABLE STROKE 0.0015" - .0001"
AUTO FEED PER SADDLE REVERSAL 0.0015" - .0001"
HAND FEED PER REVOLUTION 0.05"
GRADUATION OF HANDWHEEL 0.001"
RAPID FEED RATE 19 IPM
STANDARD GRINDING WHEEL SIZE 12" X 1-1/2" X 5"
SPINDLE WHEEL SPEED 1800 RPM
OVERALL DIMENSIONS APPROXIMATELY 74' X 103" X 73" H
WEIGHT APPROXIMATELY 4,900 LBS.

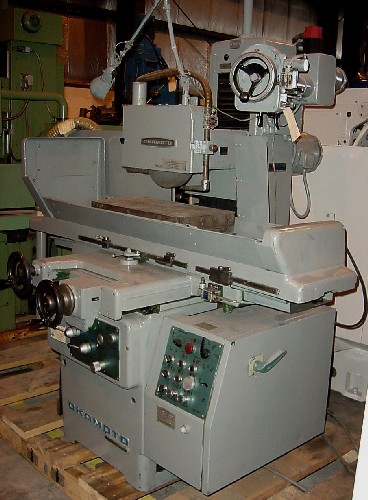

EQUIPPED WITH:
12" X 24" ELECTRO-MAGNETIC CHUCK
WALKER VARIABLE CHUCK CONTROLS
AUTOMATIC DOWNFEED

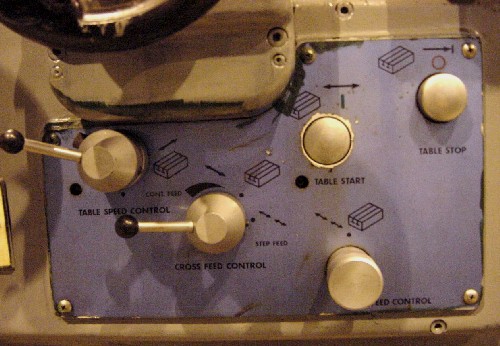

HYDRAULIC POWER LONGITUDINAL AND CROSS FEEDS
POWER WHEELHEAD ELEVATION
SPINDLE DRIVE MOTOR AND CONTROLS 5 HP
WIRED 3/60/230/460 VOLT
HYDRAULIC PUMP MOTOR 2 HP
VERTICAL RAPID FEED MOTOR 1/2 HP
COOLANT PUMP AND TANK WITH MAGNETIC SEPARATOR

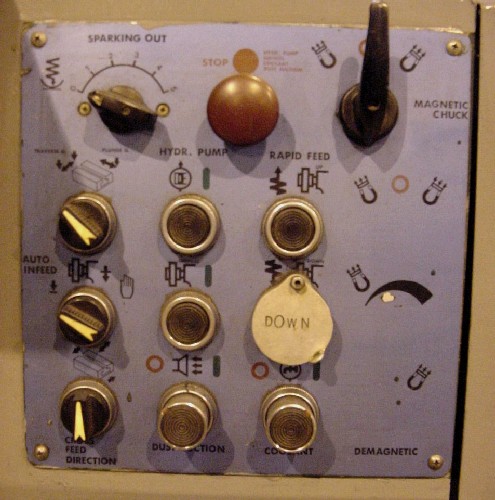

PUSH BUTTON CONTROL STATION
AUTOMATIC LUBRICATION SYSTEM
TABLE SPLASH GUARDS
