SPECIFICATIONS:

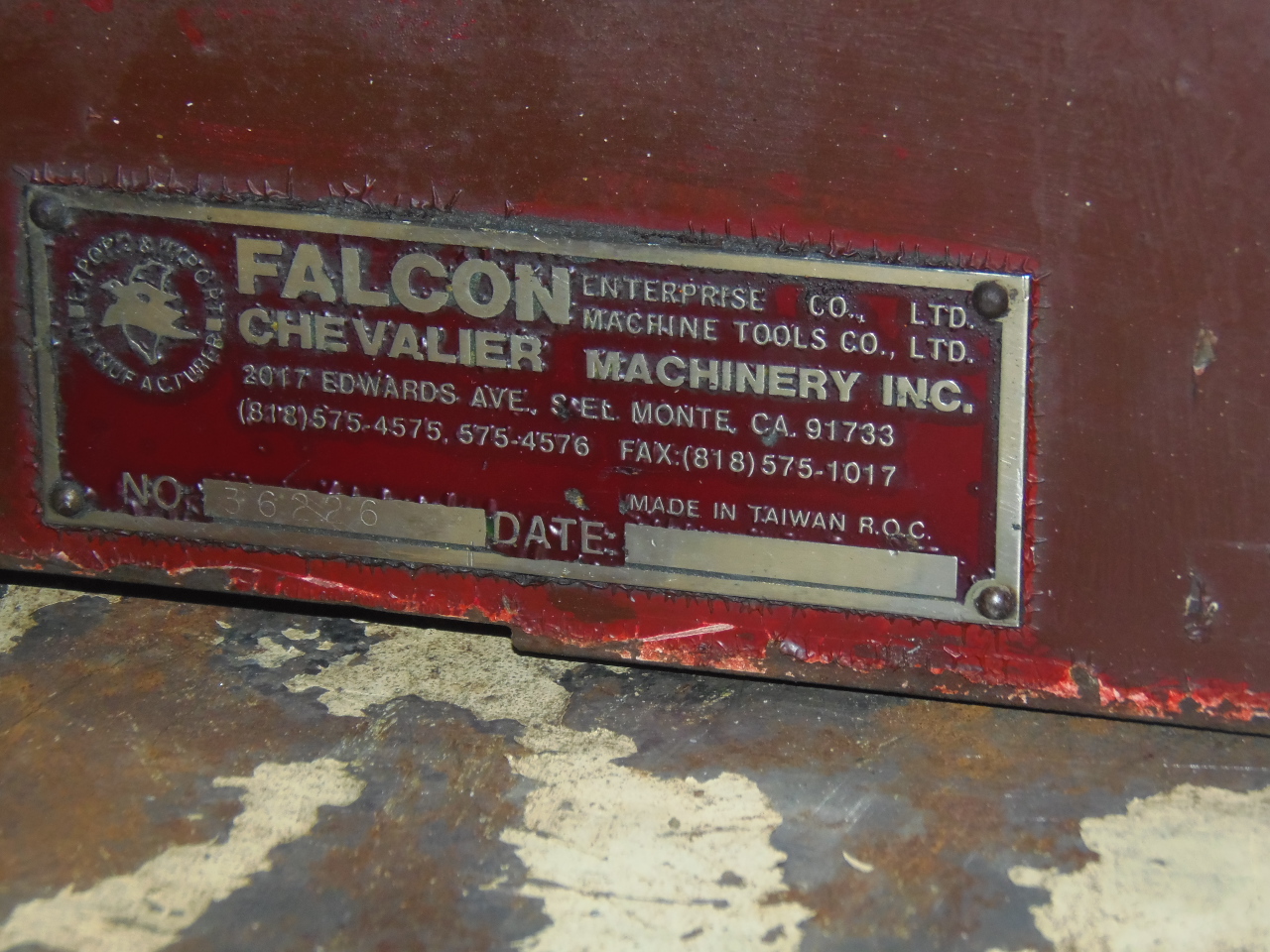

MANUFACTURER............................... CHEVALIER
MODEL...................................... FSG-1224AD
SERIAL NUMBER.............................. 36226
YEAR....................................... 1987
Grinding capacity.......................... 12" x 24"
Table size................................. 10" x 20"
Spindle centre t0 table top................ 24 1/2"
Standard grinding wheel.................... 14" x 2" x 5"
Longitudinal travel, automatic............. 25 5/8"
Longitudinal travel, manual................ 27 1/2"
Table speed-longitudinal................... 16 TO 82 FPM
Cross Travel, Manual ...................... 13 3/4"
Cross Travel, Automatic.................... 12"
Wheelhead motor............................ 5 HP
Floor space................................ 106" x 59" x 76"
Approximate weight......................... 5,000 Lbs
EQUIPED WITH:
Incremental downfeed
Coolant system with filtration
Over-the wheel dresser

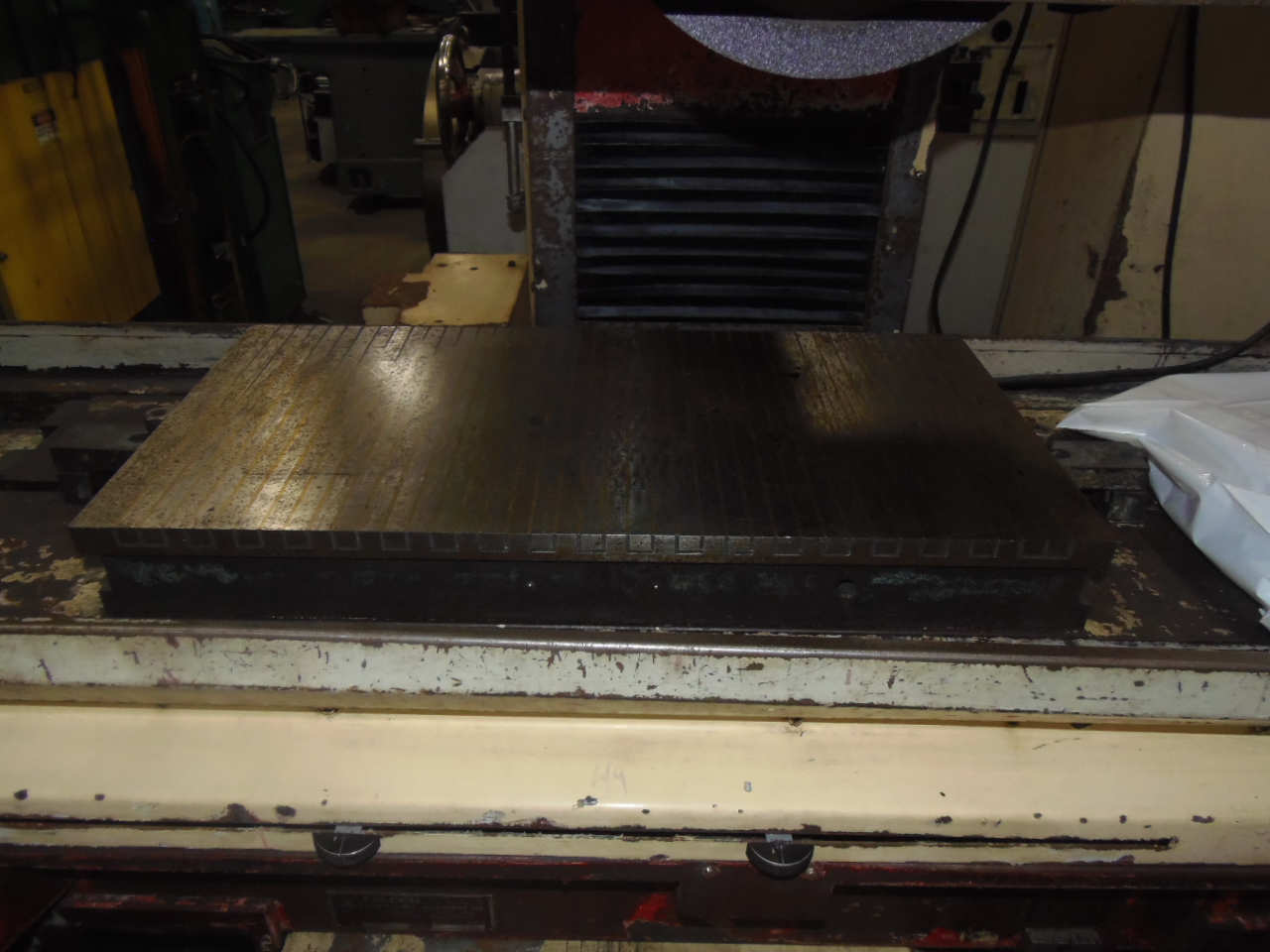

12 x 24 magnetic chuck
misc. manuals
