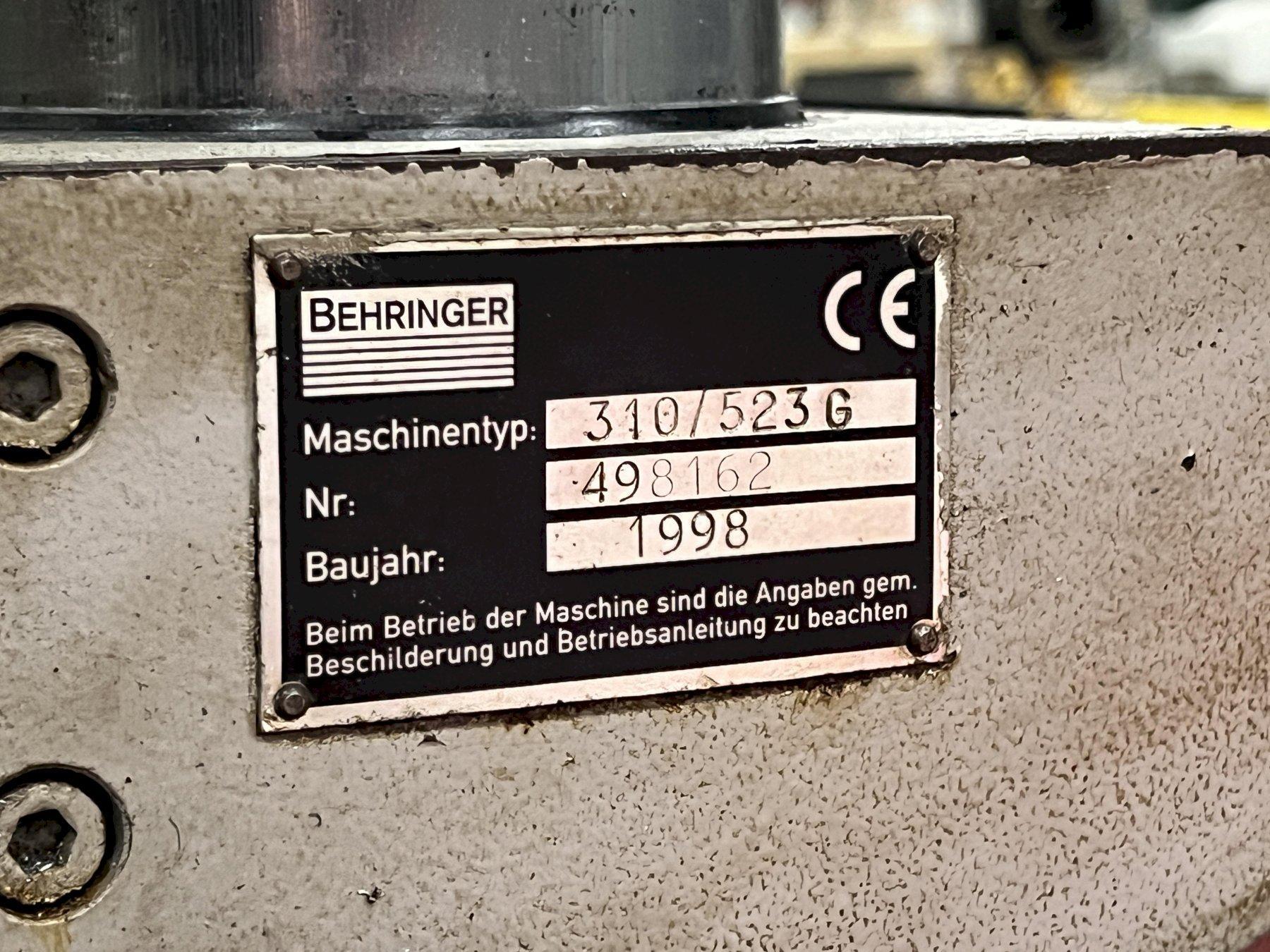

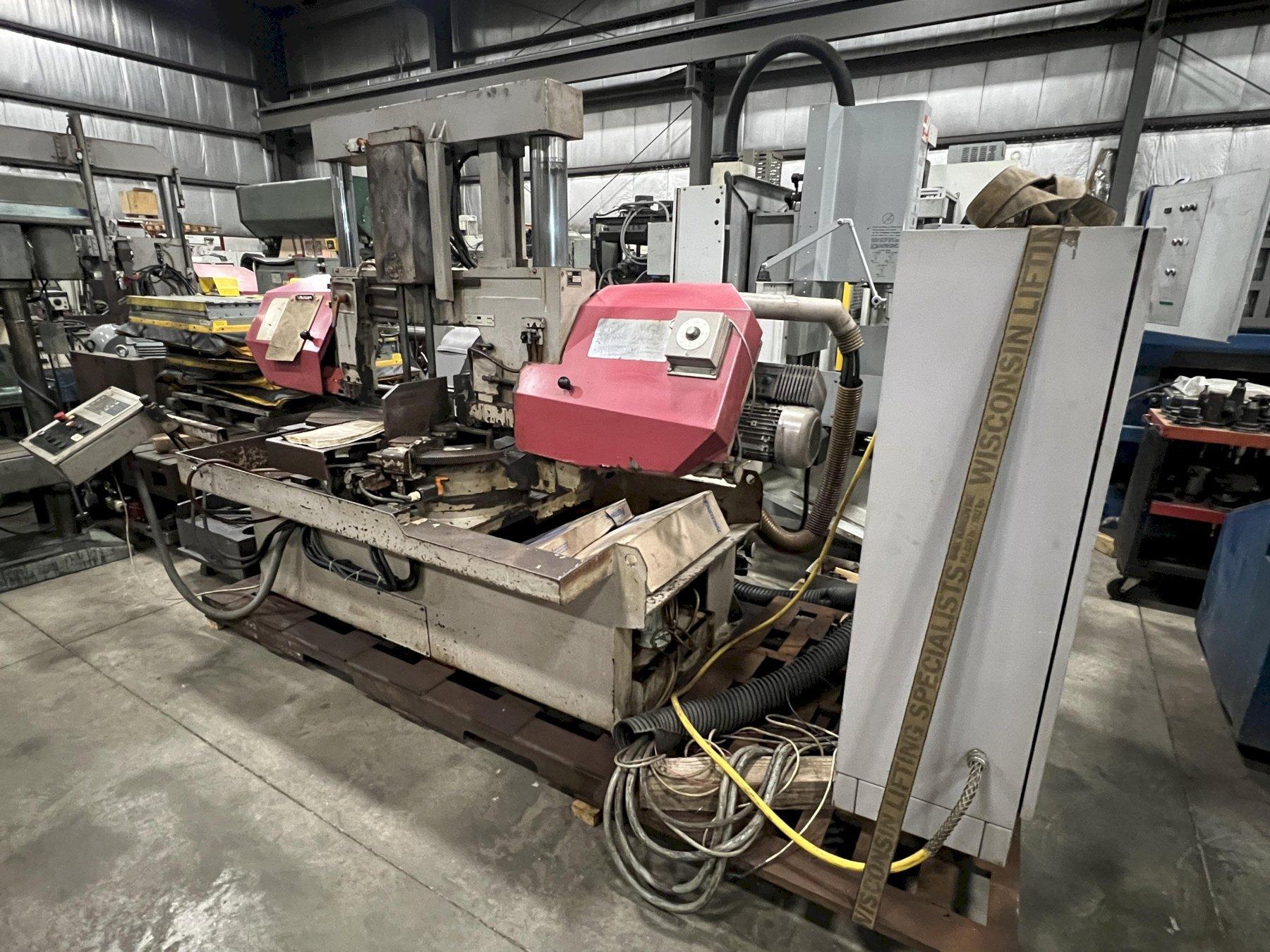

12" x 20" BEHRINGER MITERING HORIZONTAL BANDSAW, MODEL 310-523G, 1998

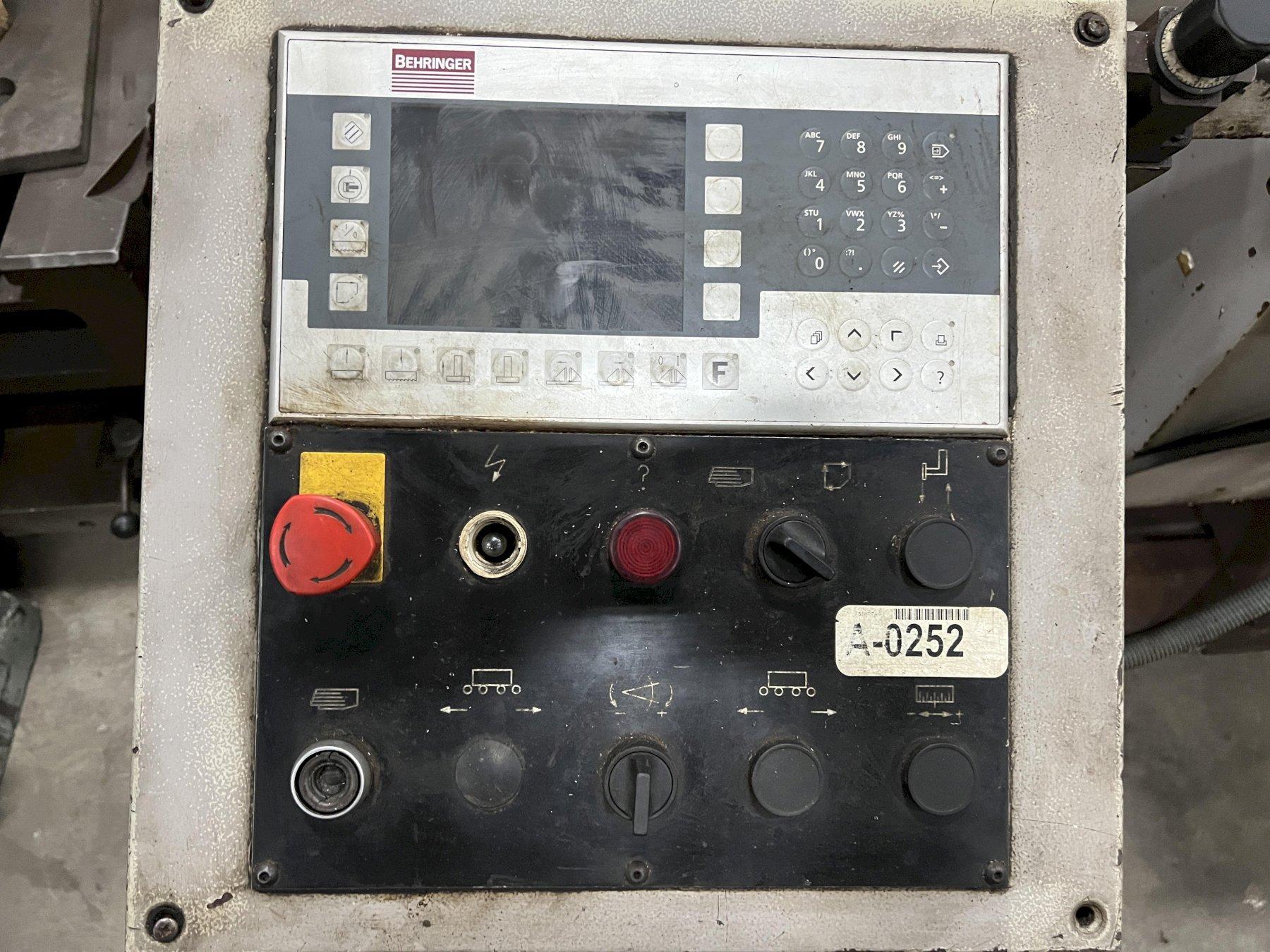

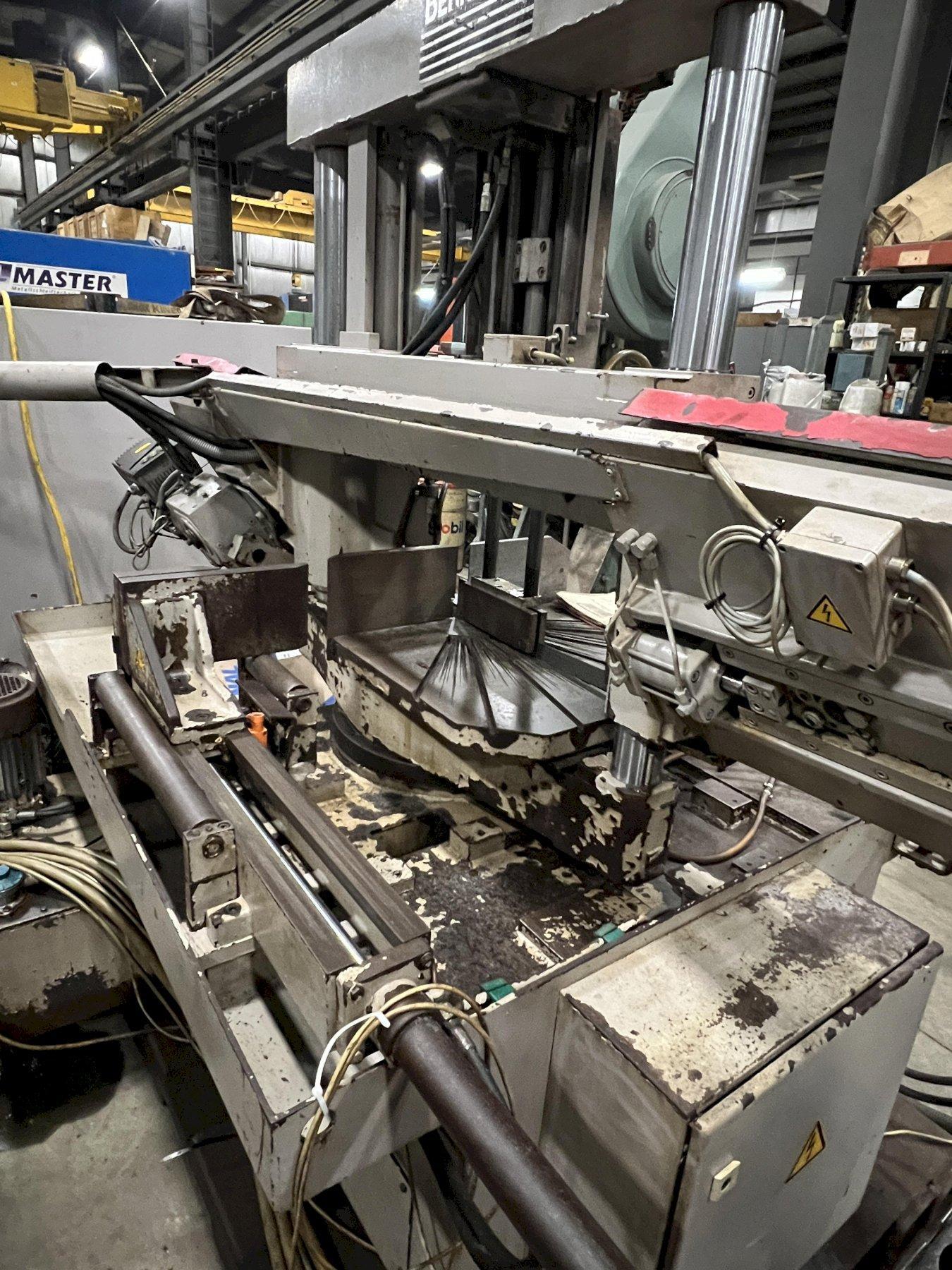

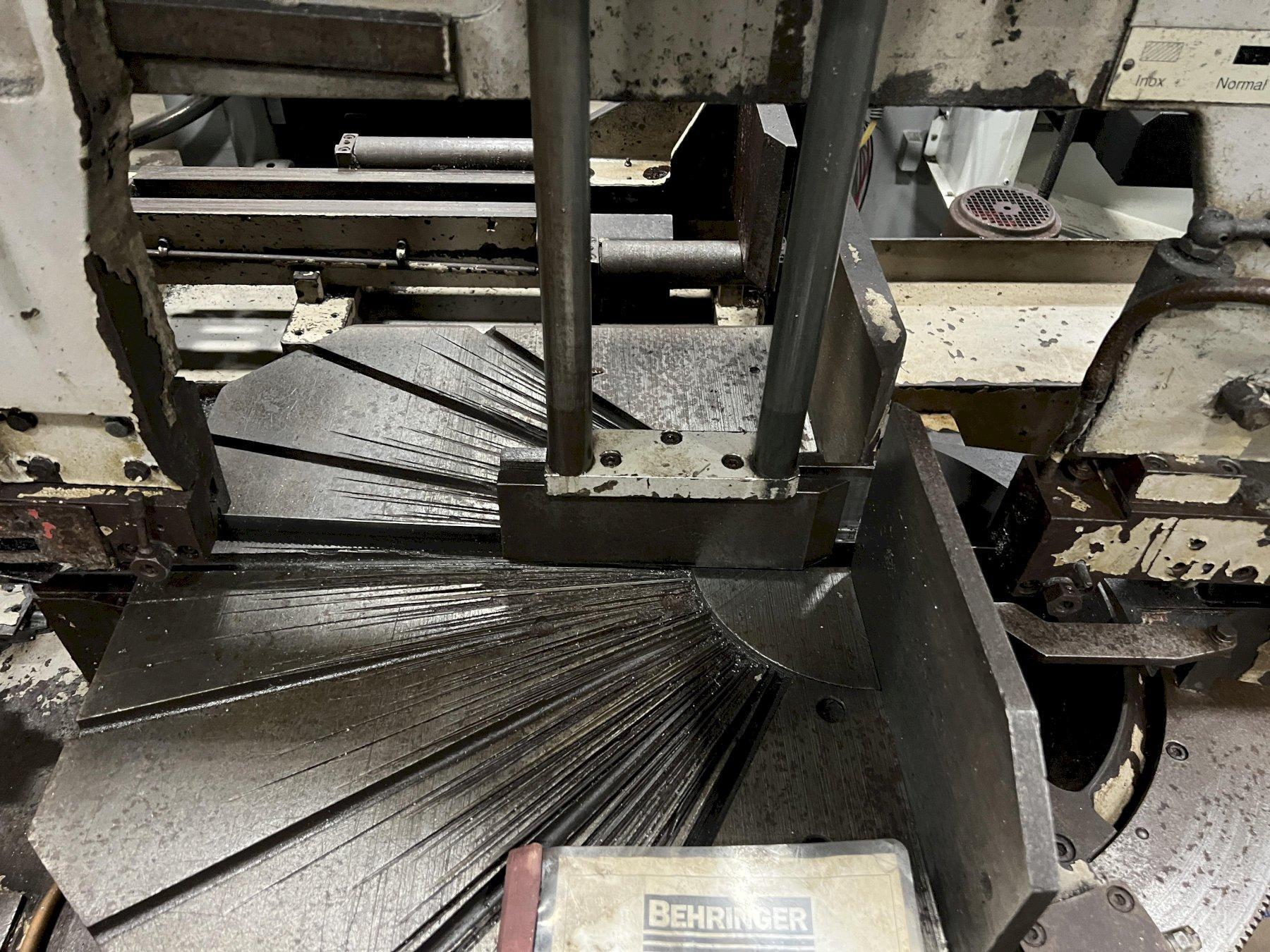

The HBP-310/523G/A saw is mounted on a massive steel base with integrated swivel permitting rotation of the bow frame to any angle between 45 degrees-right through 60 degrees-left off of 90 degrees making the total miter range 105 degrees. The cutting angle is displayed digitally. Cast iron construction gives the saw frame the rigidity needed to reduce vibrations during cutting and enable high band tensioning. The vibration dampening Behringer design also facilitates precision movement of the blade and results in tight tolerances. The machine utilizes positive hydraulic downfeed with a heavy-duty gearbox and a 5.4 HP motor.

The saw frame is inclined 3 degrees to optimize the number of blade teeth which contact the material being cut. This saves time by minimizing the cutting cycle time for all types of stock including profiles and bundles. Like other Behringer bandsaws, the HBP-310/523G/A miter saw dual column frame design enhances torsion resistance during cutting. This design also provides controlled application of downfeed power resulting in precise, flat cuts and tight tolerances.

With a swivel range of 237 inches, the saw will cut miters of 75, 60, 45 and 30 degrees. Cutting capacity for round stock is from 0.39 to 12.2 inches. For rectangular stock the saw handles from 0.78-inch square to 20.4 x 12.2 inches.
