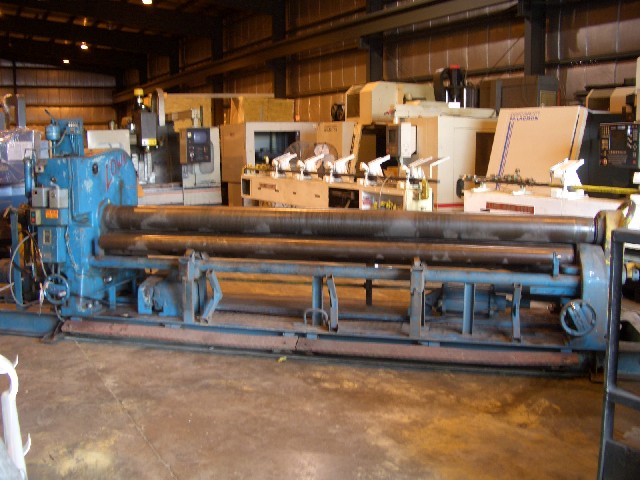

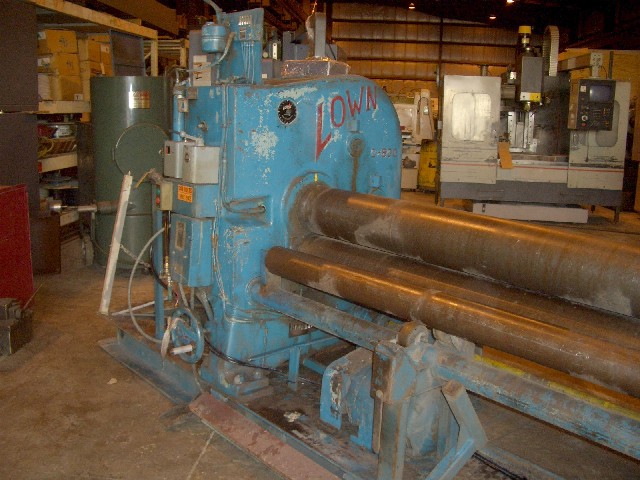

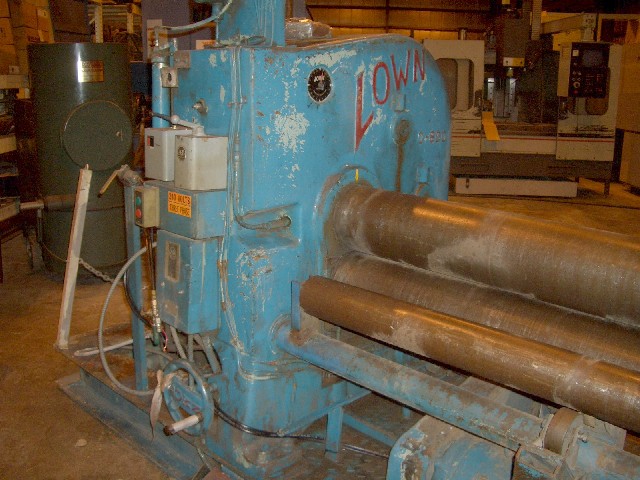

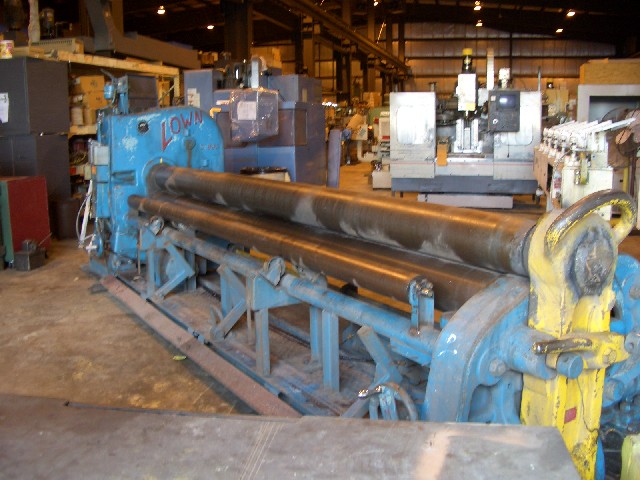

12' X 10GA, LOWN, INITIAL PINCH, 3 ROLL POWER, AIR DROP END, POWER ADJUST ON REAR ROLL

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1969
SERIAL NO. G-815615
MODEL G-8146
CAPACITY 10 GA
WORKING LENGTH 12'
ROLL DIAMETER 8"
ROLL LENGTH 146"
MAIN MOTOR 10 HP
POWER ADJUST MOTOR 5 HP
ROLL SPEED 6.2 RPM / 13 RPM
FLOOR SPACE 59" X 240"
WEIGHT APPROXIMATELY 15,000 LBS

EQUIPPED WITH:

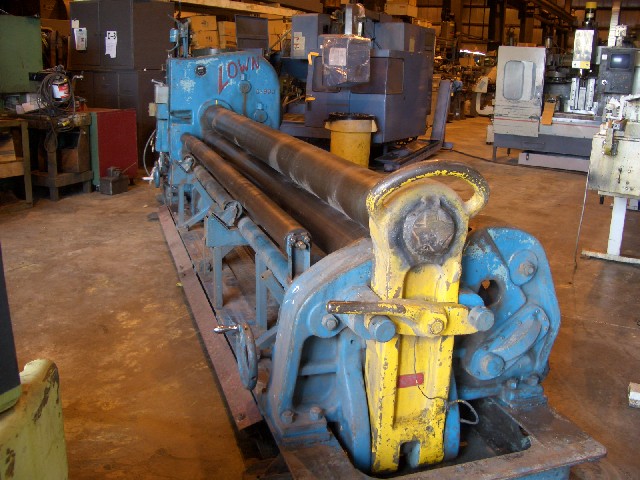

AIR DROP END
FORWARD/REVERSE
POWER ADJUST ON REAR ROLL TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
