Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER............................SAMCHULLY
MODEL...................................HH-212
OUTSIDE DIAMETER........................12"
THRU HOLE DIAMETER......................4.055"
MAX. RPM................................3,000
WEIGHT..................................55.3 LBS
MOUNTING TYPE...........................PLAIN BACK
FEATURES:

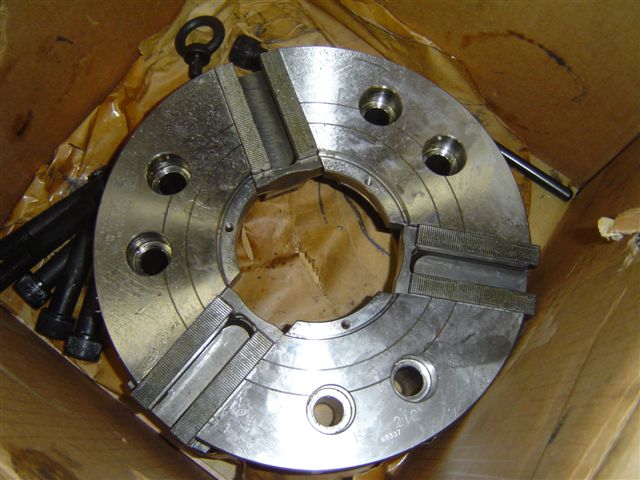

• 3-jaw, wedge-type, large bore, open center chuck
• Interchangeable with Kitagawa BB200
(Big Bore) Series chucks
• Powerful gripping force and high turning speed
• Manufactured from high grade alloy steel
• All sliding surfaces are hardened and
ground for accuracy and repeatability

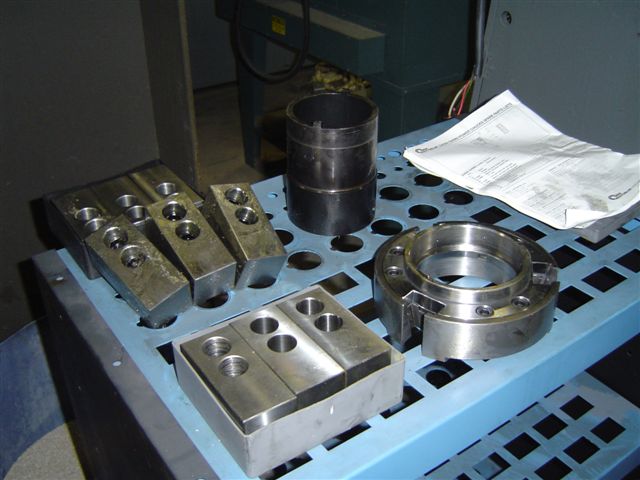

• Large variety of replacement parts in stock
CAME OFF OF A DAEWOO CNC LATHE. NEVER USED.
