Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER.....................SAMCHULLY
MODEL............................HH-212
SERIAL #: .......................69006
OUTSIDE DIAMETER.................12"
THRU HOLE DIAMETER...............4.055"
MAX. RPM.........................3,000
WEIGHT...........................55.3 LBS
MOUNTING TYPE....................PLAIN BACK
FEATURES:

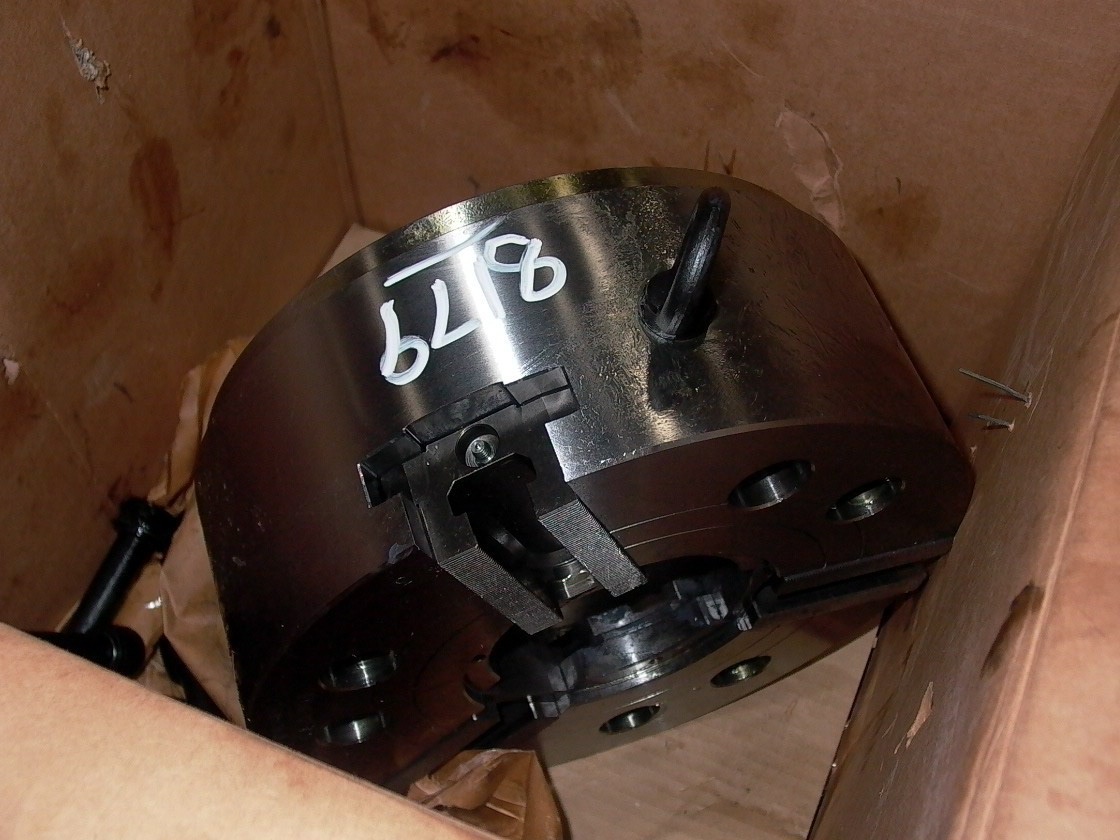

• 3-jaw, wedge-type, large bore, open center chuck
• Powerful gripping force and high turning speed
• Manufactured from high grade alloy steel
• All sliding surfaces are hardened and
ground for accuracy and repeatability
• Large variety of replacement parts in stock
CAME OFF OF A DAEWOO CNC LATHE. NEVER USED.
Specifications Subject to Verification.
