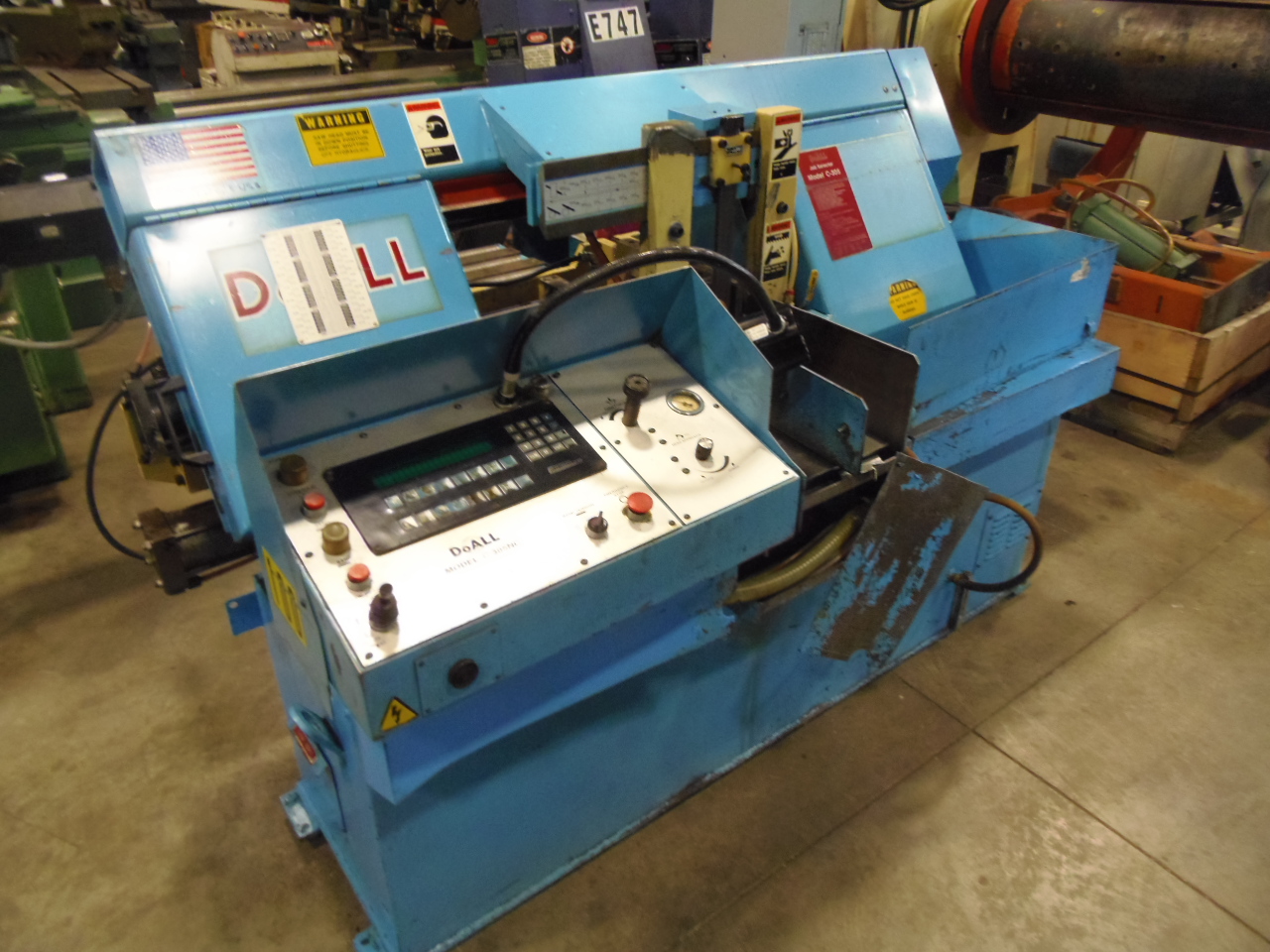

Specifications
Equipped With
MANUFACTURER......................... DOALL
MODEL................................ C-305NC
SERIAL#.............................. 498-94192
NEW.................................. 1994
CAPACITY (ROUND)..................... 12"
(RECTANGULAR)............... 12" X 12"
BLADE SIZE........................... 1.25" X 144"
BLADE SPEED, VARIABLE................ 60 TO 450 FPM
AUTO SINGLE STROKE (MAX)............. 16"
AUTO SINGLE STROKE (MIN)............. .25"
MAIN DRIVE MOTOR..................... 5 HP
HYDRAULIC PUMP MOTOR................. 1 1/2 HP
COOLANT PUMP MOTOR................... 1/4 HP
DIMENSIONS (W/O CONVEYOR)............ 92" X 72" X 60"
WEIGHT (APPROX)...................... 3,000 LBS.
EQUIPPED WITH:
10' CONVEYOR
XTRA BLADES
CHIP AUGER
AUTO HEIGHT SENSOR
