98304-11
GENERAL SPECIFICATIONS:

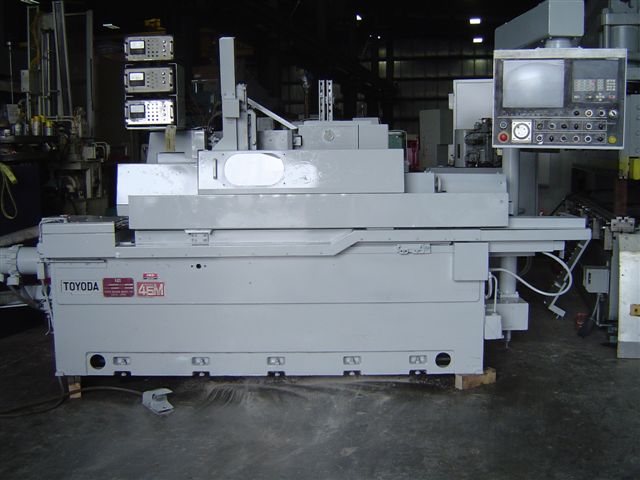

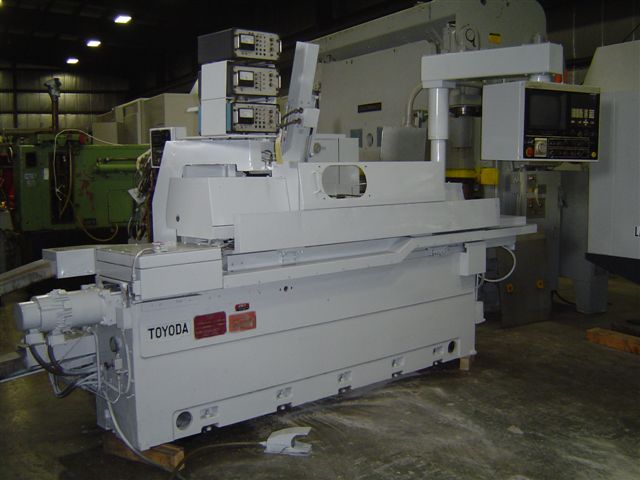

MANUFACTURER TOYODA
MODEL G62P 32X1000
SERIAL NUMBER PB8585
AGE 1986
SWING OVER TABLE 12.6"
DISTANCE BETWEEN CENTERS 39.4"
TABLE STROKE 39.56"
WORK SPINDLE SPEEDS 30-360 RPM (INF. VARIABLE)
TABLE RAPID TRAVERSE 275 IPM
TABLE SWIVEL ANGLE 0-5.5 DEG.
MAXIMUM LOAD BETWEEN CENTERS 550 LBS.
GRINDING WHEEL 24" X 4" X 12"
SURFACE SPEED 8,850 SFM
TOTAL FEED STROKE 13.8"
WHEEL SPEED (24" wheel) 147.6 FT/SEC
WHEELHEAD RAPIDS 511 IPM
WORKHEAD CENTER TAPER MT 4
TAILSTOCK RAM STROKE-MANUAL 9.84"
QUILL STROKE-HYDRAULIC 2.36"
WORKHEAD SPINDLE SPEED 15-360 INF. VARIABLE
MIN. INPUT X/Z .0000394"
CONTROLLABLE AXIS (CNC) 2-SIMULTANEOUS (4)
EQUIPPED WITH:

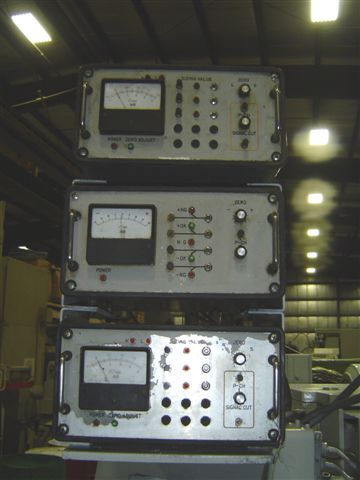

2 CNC AUTO SIZING UNITS
1 AUTOMATIC LATERAL LOCATOR BI-DIRECTION (SHOULDER FLAGGING)
LIVE/DEAD WORKHEAD

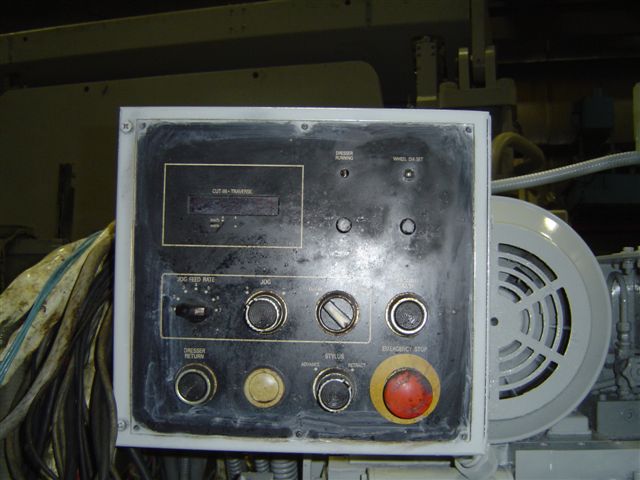

TEMPLATE DRESSER (CNC CONTROLLED)
COOLANT
CONVERSATIONAL, G CODE, OR DNC INPUT

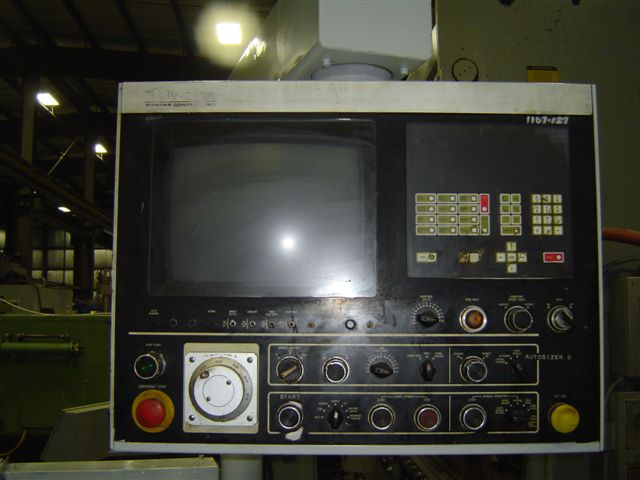

14 INCH COLOR GRAPHIC DISPLAY
AUTOMATIC SELECTION OF GRINDING CONDITIONS
9 DIFFERENT GRINDING CYCLES WITH UP TO 20 DIFFERENT GRINDING
STEPS
FOOTSTOCK WITH TAPER CORRECTOR
TEST CYCLE THAT WILL SHOW WORKPIECE SHAPE, WHEEL SHAPE, AND
GRINDING WHEEL PATHE TO SEE PROGRAM PRIOR TO RUNNING
SELF DIAGNOSIS AND MONITORING FUNCTIONS
MISC MANUALS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
