Specifications
Equipped With
GENERAL SPECIFICATIONS:

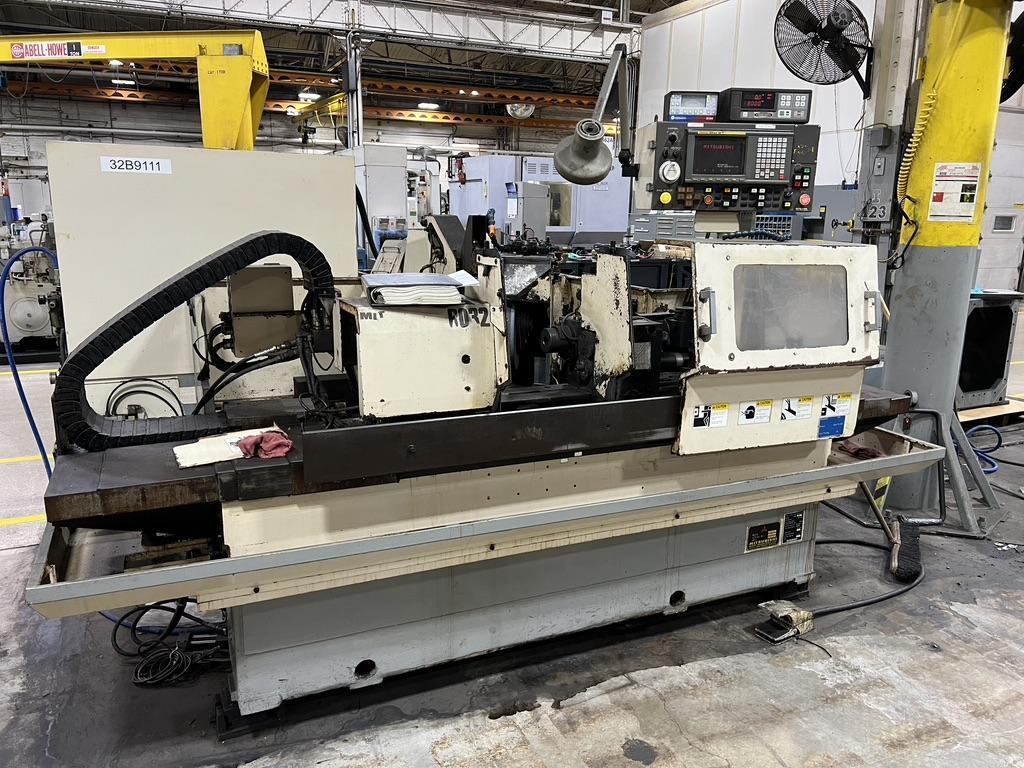

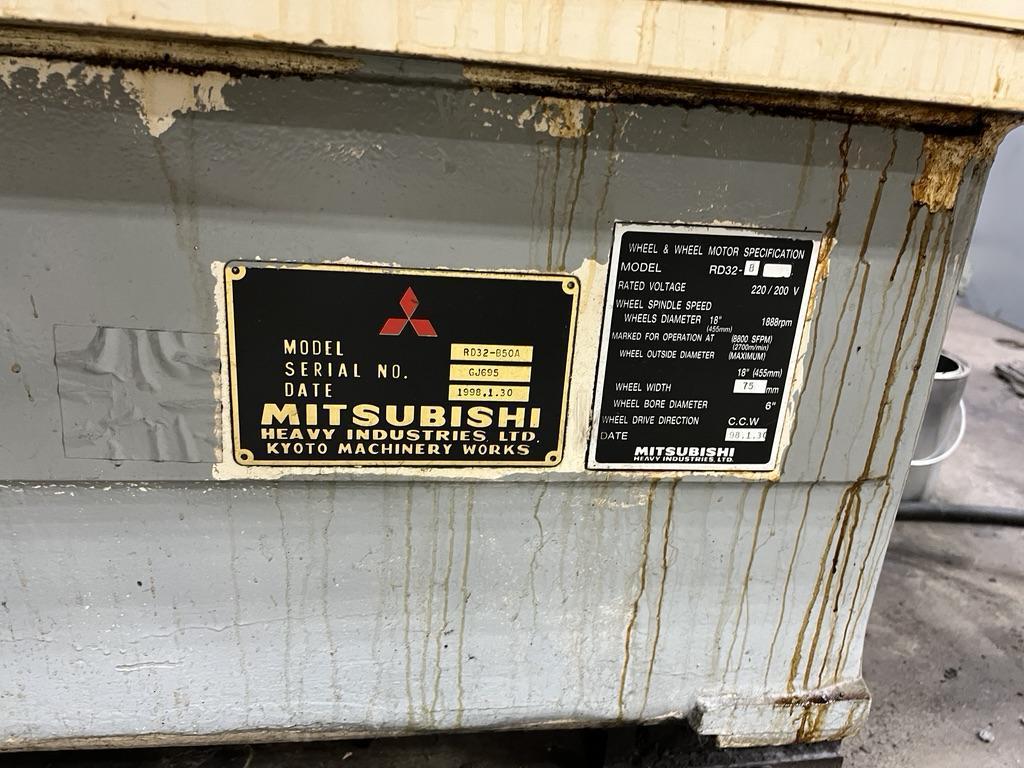

MANUFACTURER....................... MITSUBISHI
MODEL.............................. RD32-B50A
NEW................................ 1998
SWING.............................. 12.6"
CENTER DISTANCE.................... 19.7"
MAX. WORKPIECE DIAMETER............ 11.8"
MAX. WORKPIECE WEIGHT.............. 331 LBS.
WHEEL EXT. DIAMETER................ 17.9"
WHEEL INT. DIAMETER................ 6" x 3" W
WHEEL RPM.......................... 1888
TABLE RAPID TRAVERSE............... 65'/MIN.
TABLE FEEDRATE..................... 0.00004 - 787 IPM
HEADSTOCK.......................... SPINDLE SPEED 10 - 500 RPM
# OF SPEEDS........................ INFINITELY VARIABLE
TAILSTOCK CENTER................... #4 MT
STROKE................... 6.5"
MAIN MOTOR......................... 2.4 HP
WHEEL MOTOR........................ 7.3 HP
APPROXIMATE WEIGHT................. 11,000 LBS
WIRED.............................. 220 3/60
EQUIPPED WITH:
ANGLE HEAD GRINDING WHEEL

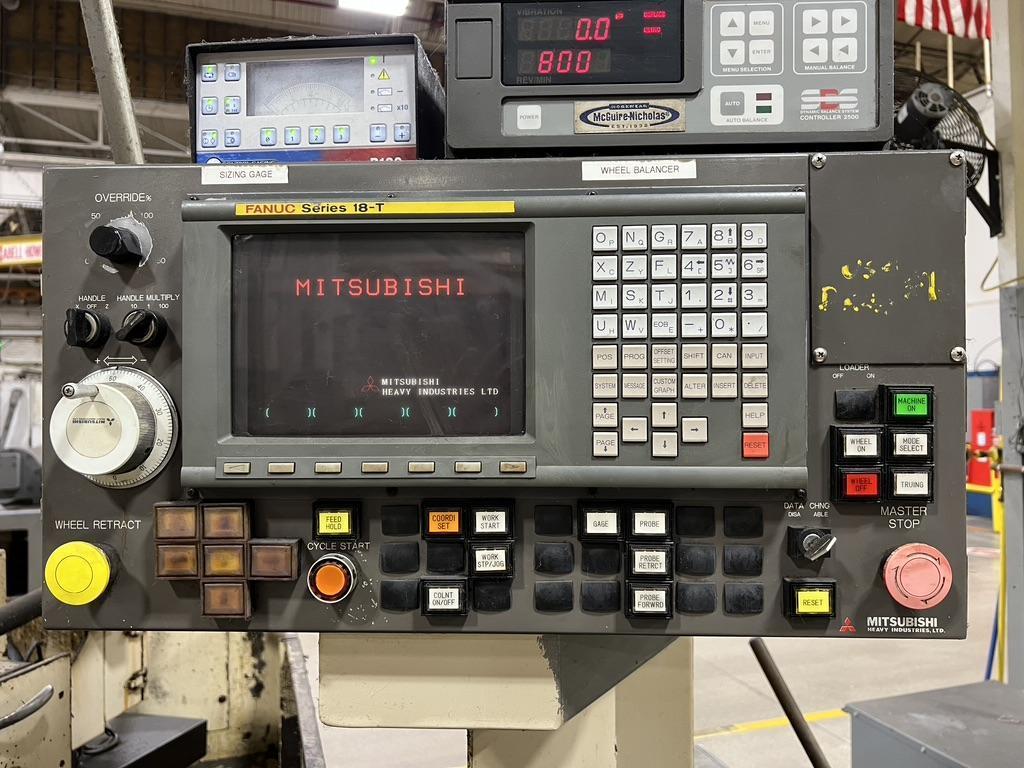

FANUC 18-T CONTROL

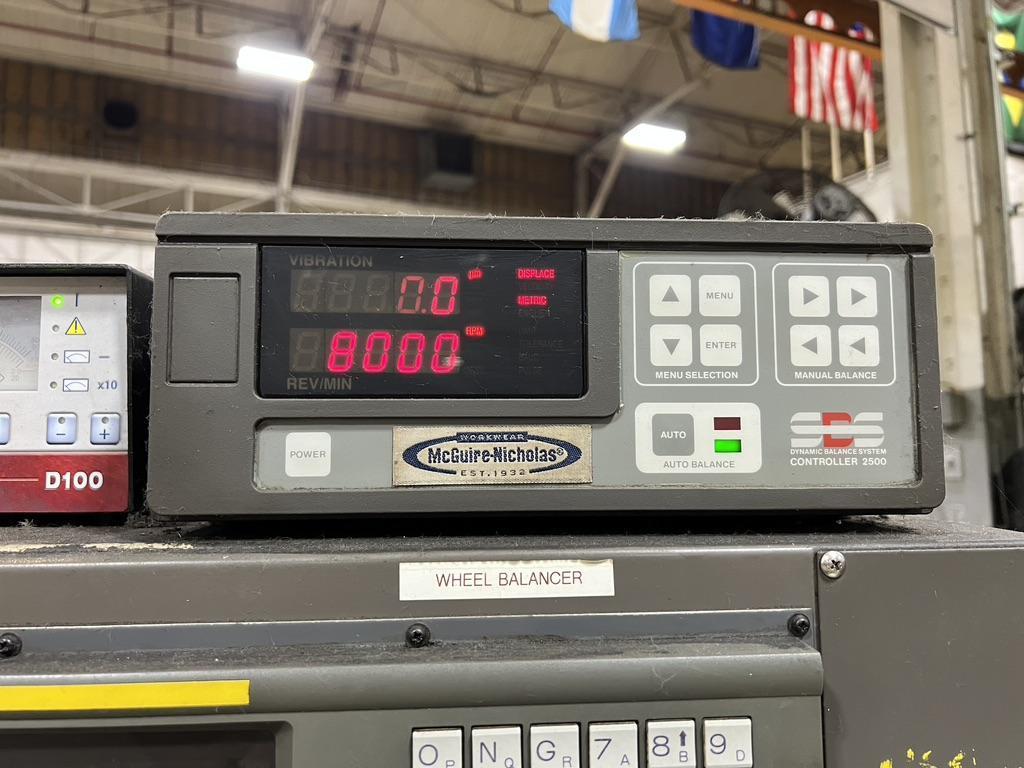

SBS WHEEL DYNAMIC BALANCE SYSTEM MODEL 2500

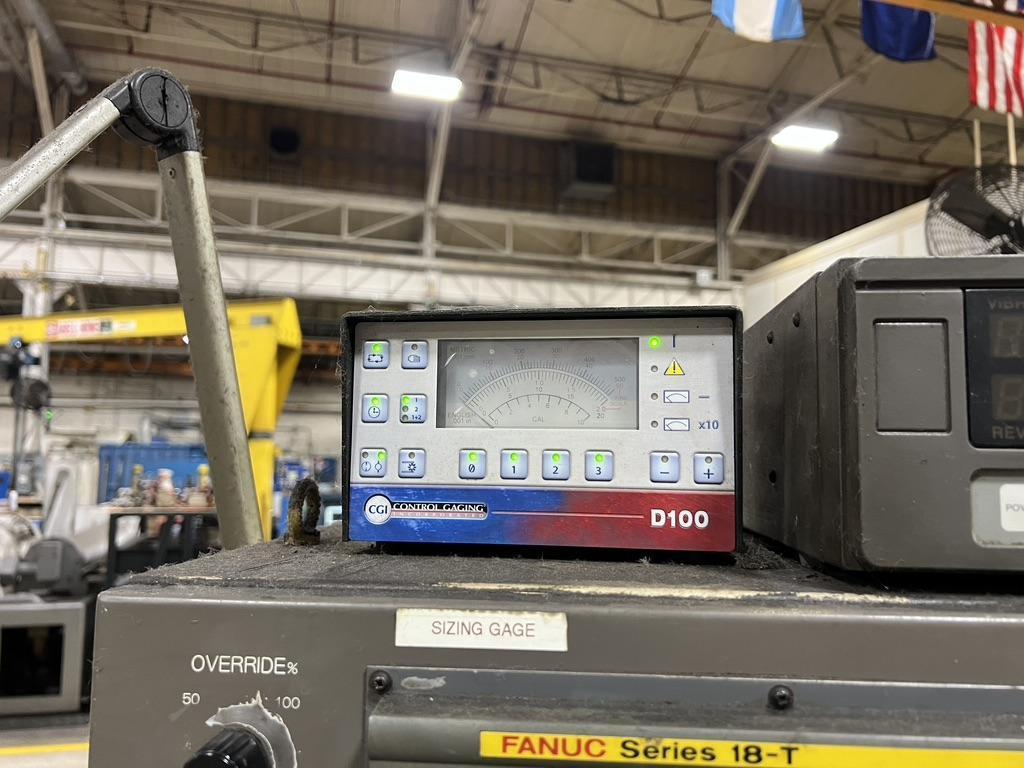

CONTROL GAGING MODEL D100 MEASURING SYSTEM
FLAGGING
DEAD CENTER HEADSTOCK
TAILSTOCK
COOLANT SYSTEM WITH PAPER FILTRATION
