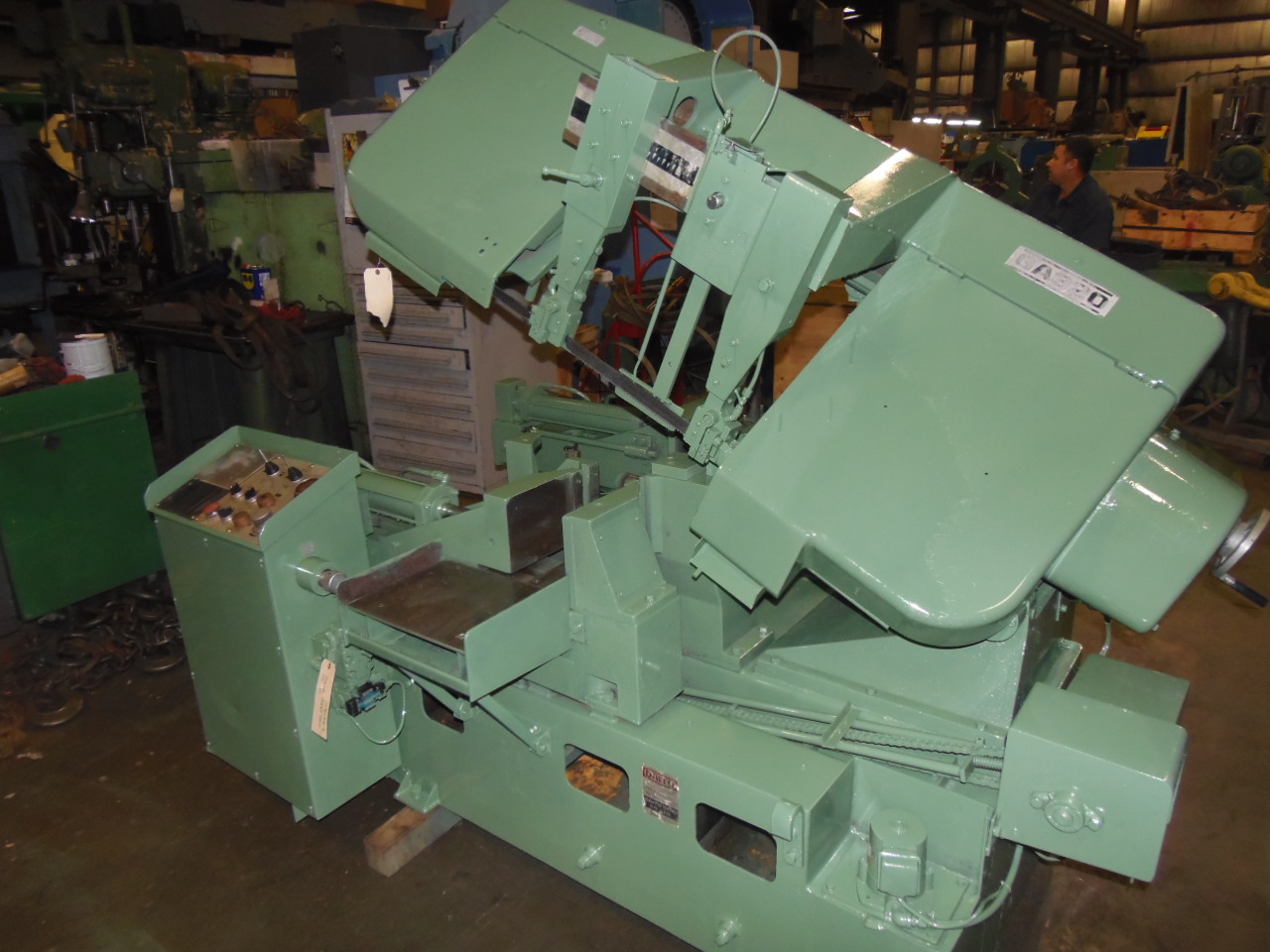

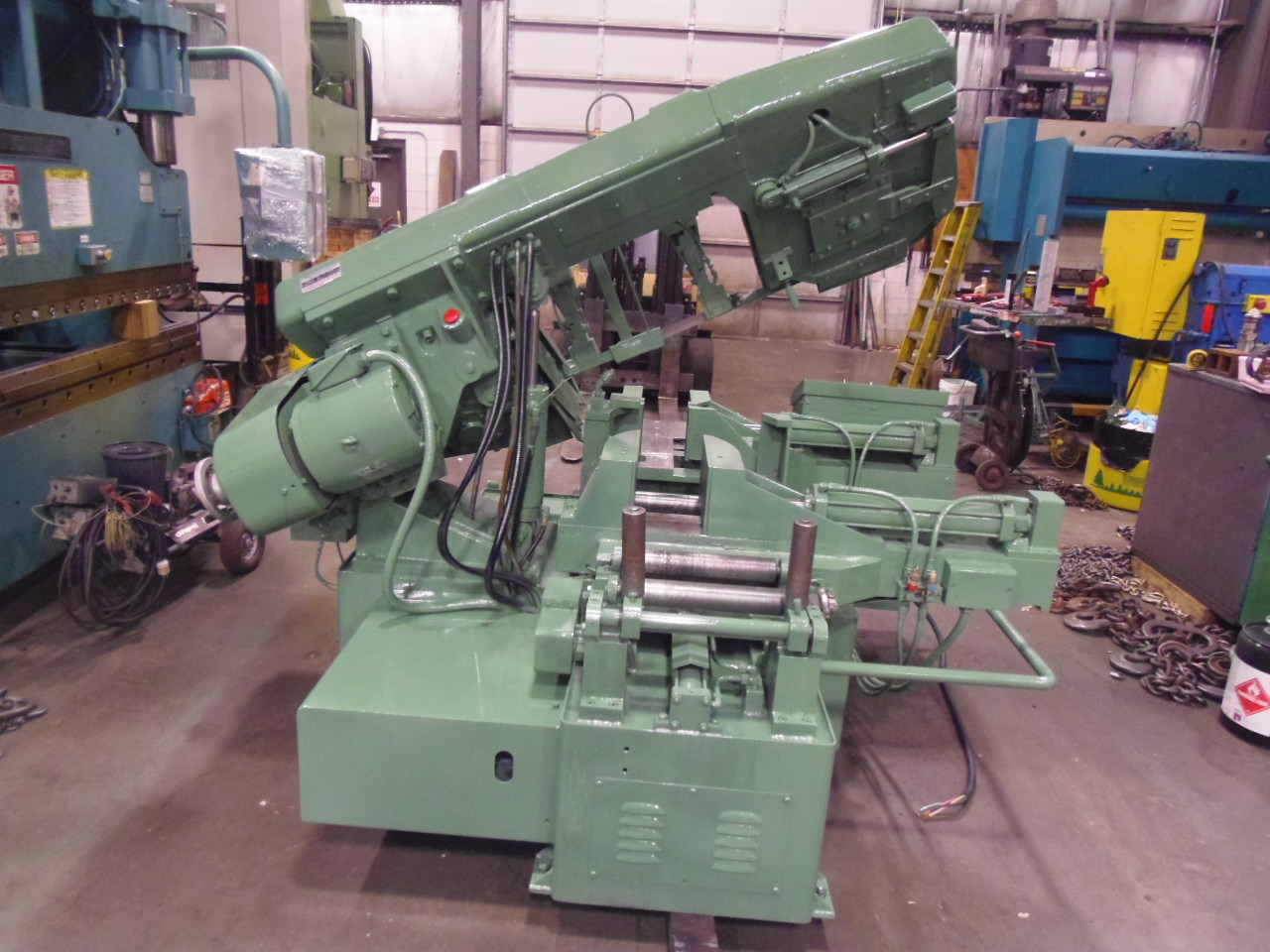

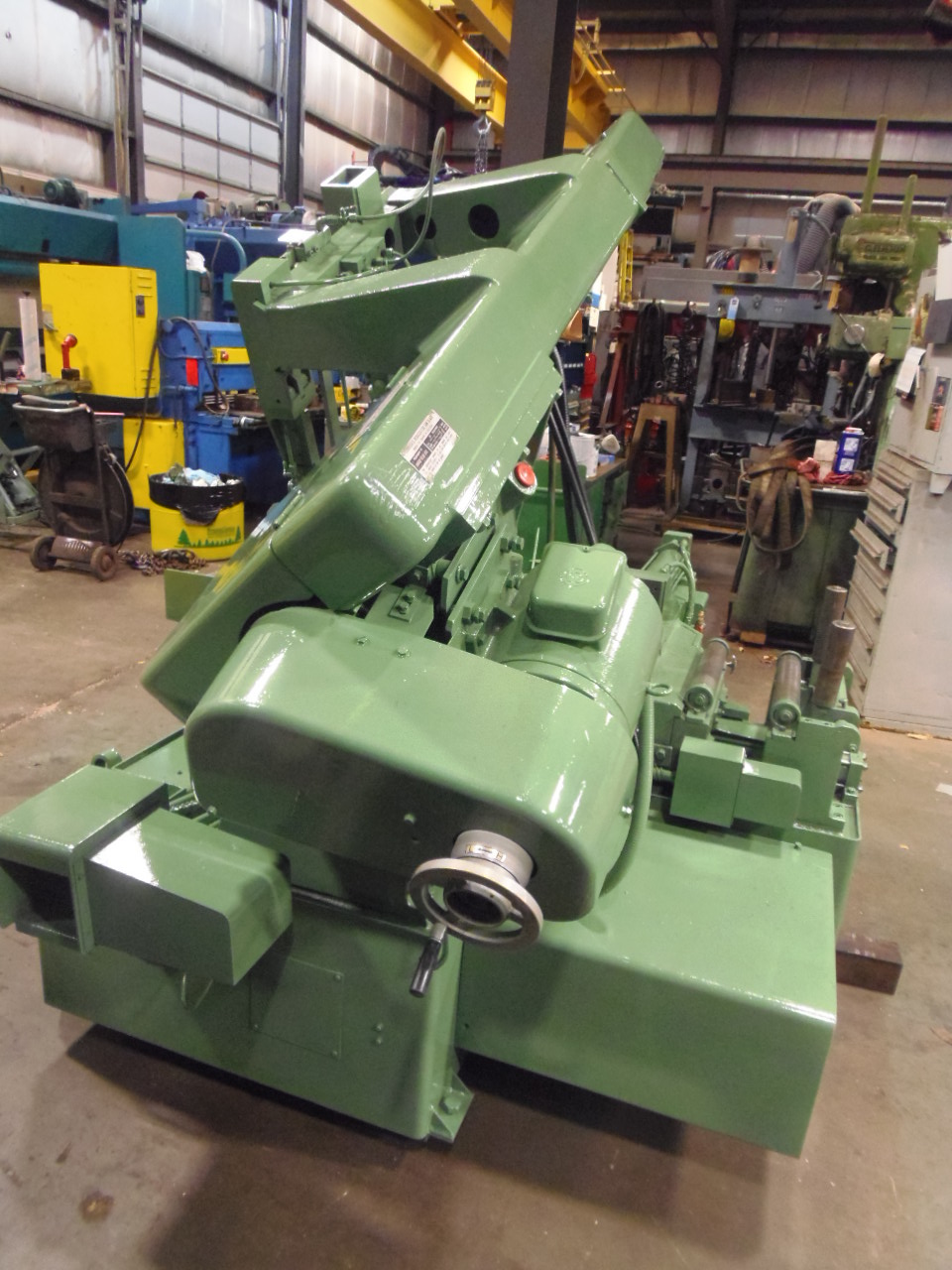

GENERAL SPECIFICATIONS:
MAKE....................... FMB
MODEL...................... JUPITER
SERIAL NUMBER..............
AGE (YEAR)................. 1994
CAPACITY
ROUND
90 DEG............ 12.25"
45 DEG............ 12.25"
60 DEG............ 7"
SQUARE
90 DEG............ 10.25" X 10.25"
45 DEG............ 10.25" X 10.25"
60 DEG............ 7" X 7"
RECTANGLE
90 DEG............ 10.25" X 11.75"
45 DEG............ 4.75" X 11.5"
60 DEG............ 3.5" X 7.5"
SAW HEAD SWIVEL IN AUTO.... 0 - 45 DEGREES
SAW HEAD SWIVEL IN MANUAL.. 0 - 60 DEGREES
BLADE LENGTH............... 10'10"
BLADE WIDTH................ 1"
BLADE THICKNESS............ .035"
BLADE SPEED (60 HZ)........ 52 - 396 FT/MIN INF. VARY
VOLTAGE.................... WIRED FOR 220 OR 440 VOLTS
EQUIPPED WITH:

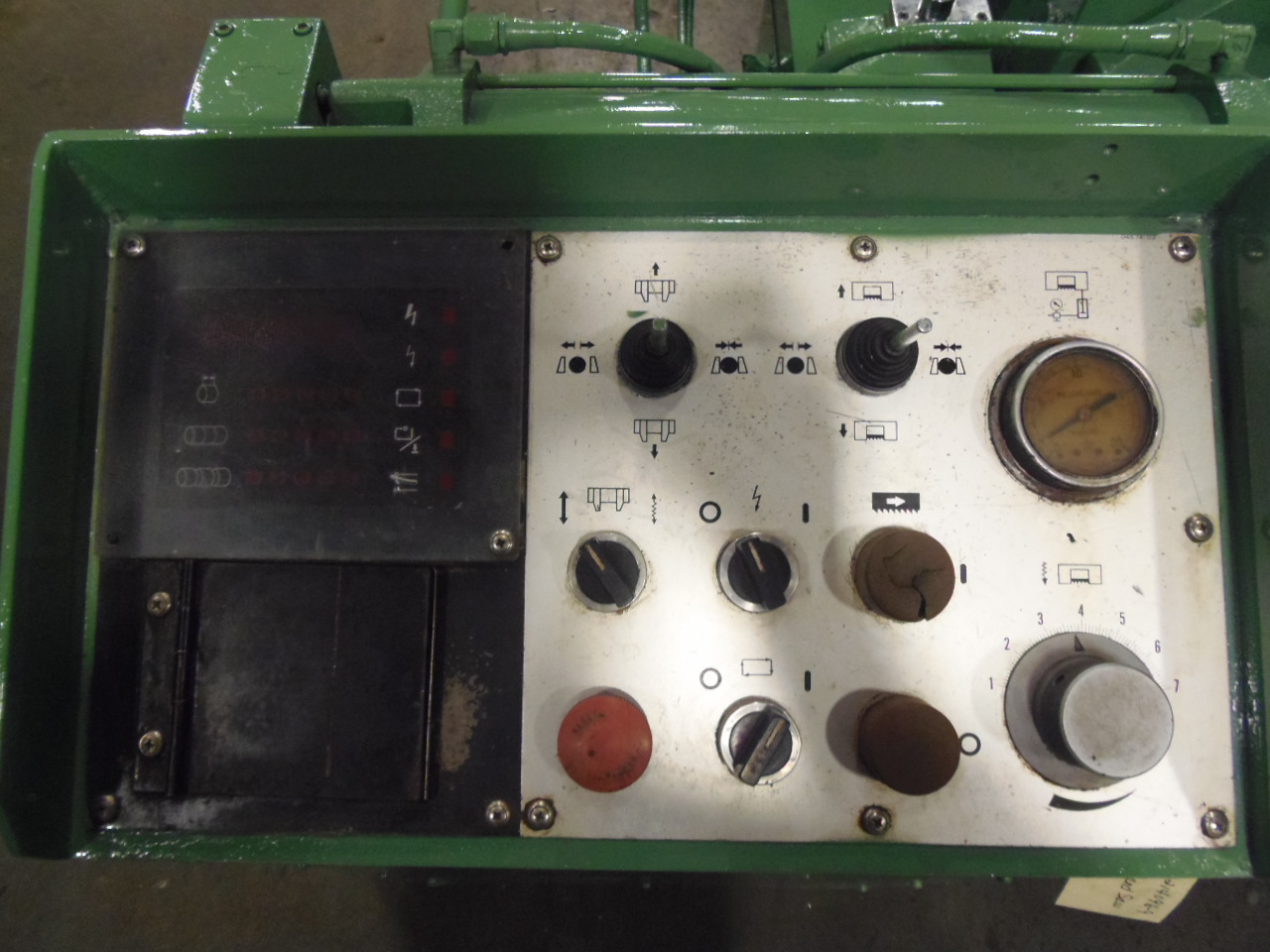

CONTROL SET UP FOR 99 CUTTING JOBS
MECHANICAL BAND TENSION WITH BUILT IN INDICATOR

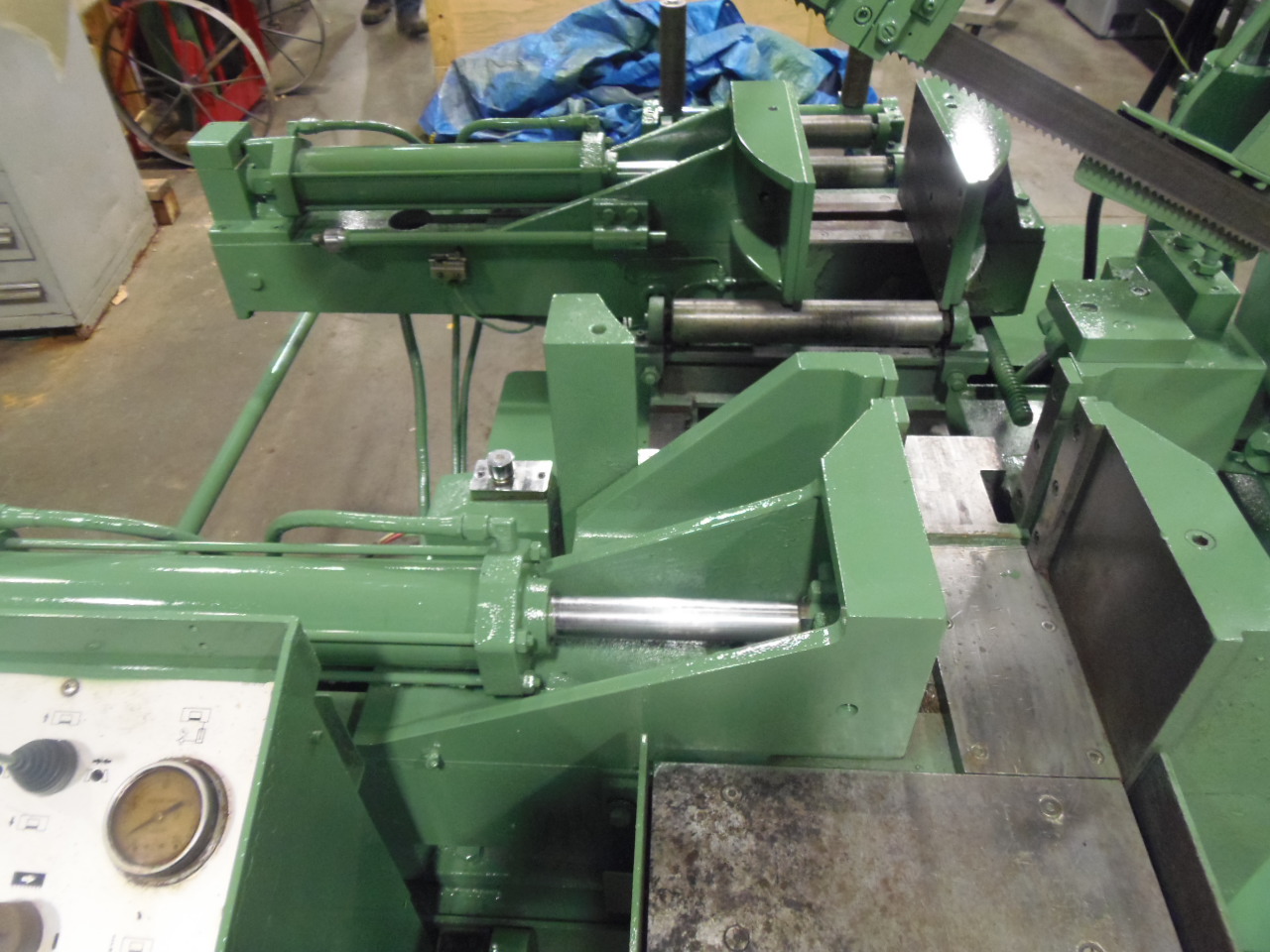

HYDRAULIC CLAMPING SLIT FRONT VISE CLAMPS ON BOTH SIDES OF BLADE
SAW BLADE RETURN HEIGHT CONTROL
BLADE BREAKAGE SWITCH TO SHUT MACHINE OFF

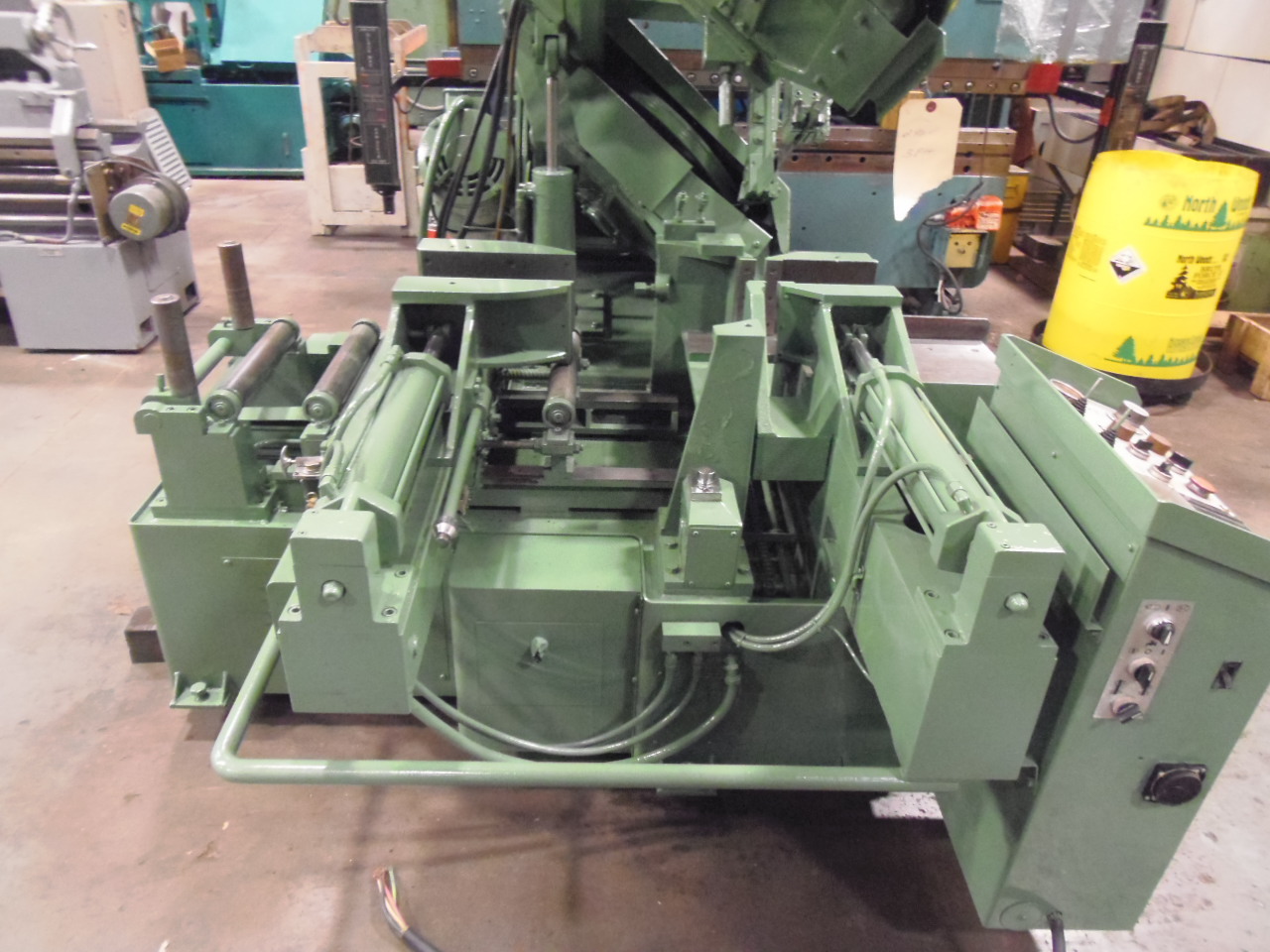

SELF CENTERING FEED VISE FOR CROOKED OR BENT MATERIAL
MISC MANUALS
