GENERAL SPECIFICATIONS:

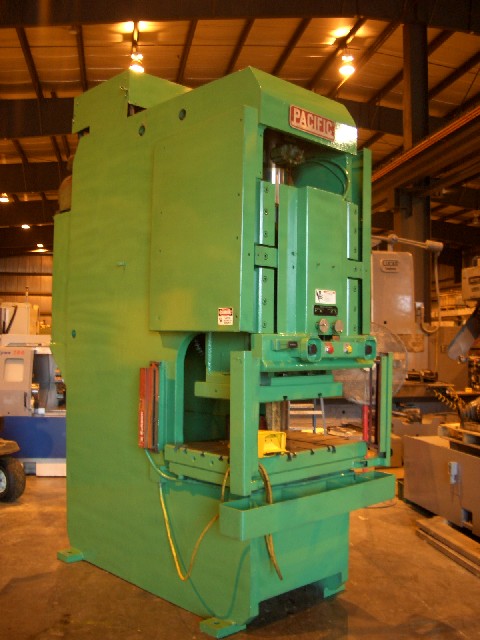

MANUFACTURER PACIFIC
MODEL 110PF-OBS
NEW (APPROX.) 1978
BED SIZE (BETWEEN HOUSINGS) 27" x 41"
CAPACITY 110 TONS
STROKE 8"
OPEN HEIGHT 18"
SPEEDS (R A) 504 IPM
(F P) 198 IPM
(NORMAL) 66 IPM
(RETURN) 342 - 120 IPM
MOTOR (REULAND) 30 HP @ 1,800 RPM
PUMP (VICKERS) SN# 3525V38A21-1AA12-180RH
DIMENSION (APPROX.) 11'10"H
FLOOR SPACE (APPROX) 5'W X 9'F-B
WEIGHT (APPROX) 20,000 LBS.
EQUIPPED WITH:
DUAL PALM BUTTONS
FOOT PEDAL
STROKE CONTROL
CONTROLS-INCH/SINGLE(MANUAL RETURN)/SINGLE(AUTO RETURN)
ADVANCE SPEED SELECTOR
HYDRAULIC KNOCK-OUT
TONNAGE CONTROL AND INDICATOR
AUTOMATIC CENTRALIZED LUBE
AJUSTABLE SPEED CONTROL
SHADOW II LIGHT CURTAINS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
