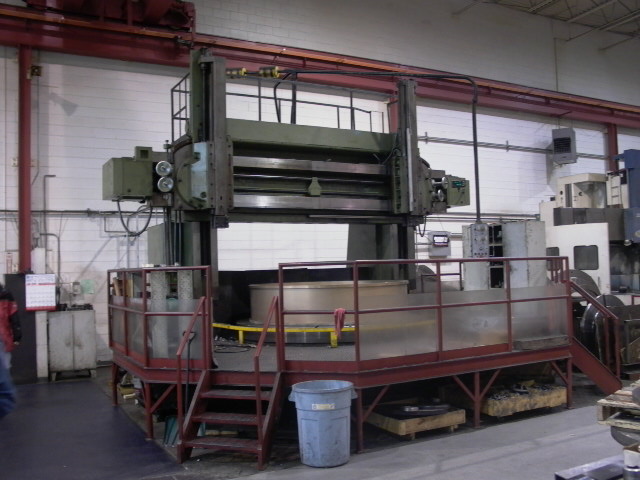

110" STANKO MDL 1532, 124" PART SIZE, 63" HGHT OF WORKPIECE, 2 RAMS, FLUSH FLR MOUNT

GENERAL SPECIFICATIONS:
MANUFACTURER STANKO
MODEL 1532
FACEPLATE SIZE 110"
MAX. PART SIZE 124"
MAX. HEIGHT OF WORKPIECE 63"
SPEED RANGE WORKPIECE WGHT 35,000 LBS 1.25 - 40 RPM
SPEED RANGE WORKPIECE WGHT 19,800 LBS 50 - 63 RPM

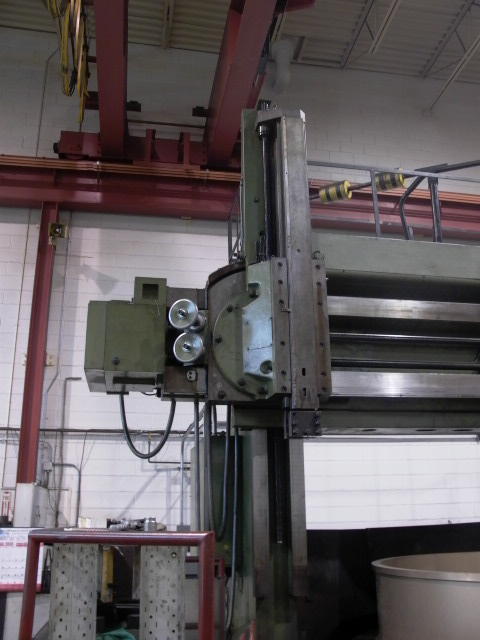

NUMBER OF RAMS 2
HORIZONTAL RAM MOVEMENT 67"
VERTICAL RAM MOVEMENT 47"
DIMENSIONS (APPROX.) 220" x 244" x 200"H
WEIGHT (APPROX.) 94,800 LBS.

EQUIPPED WITH:
FLUSH FLOOR MOUNT

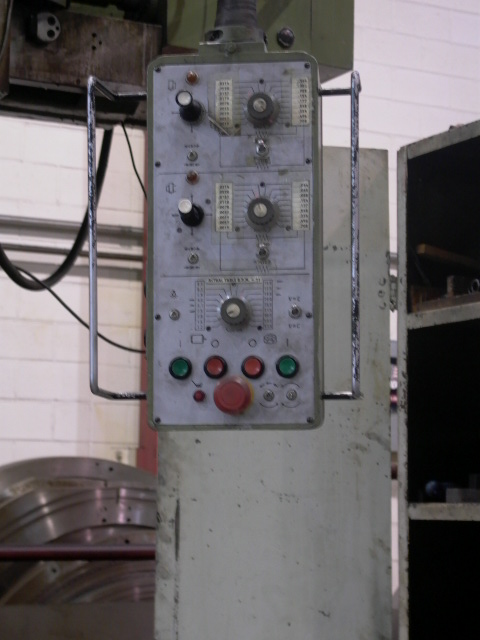

NEW ELECTRICS IN 1999
MISC. TOOLING
