GENERAL SPECIFICATIONS:

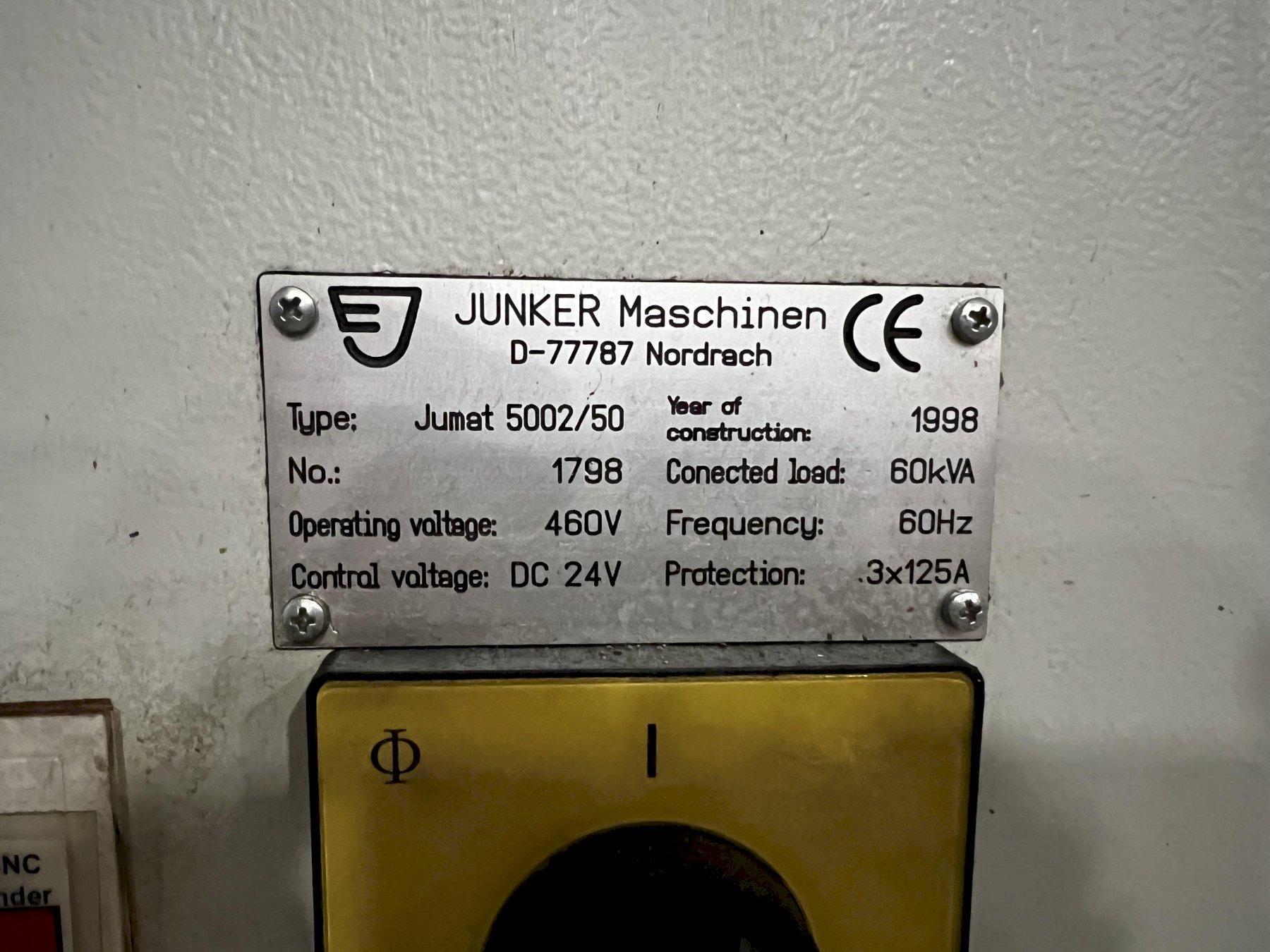

MANUFACTURER................. JUNKER

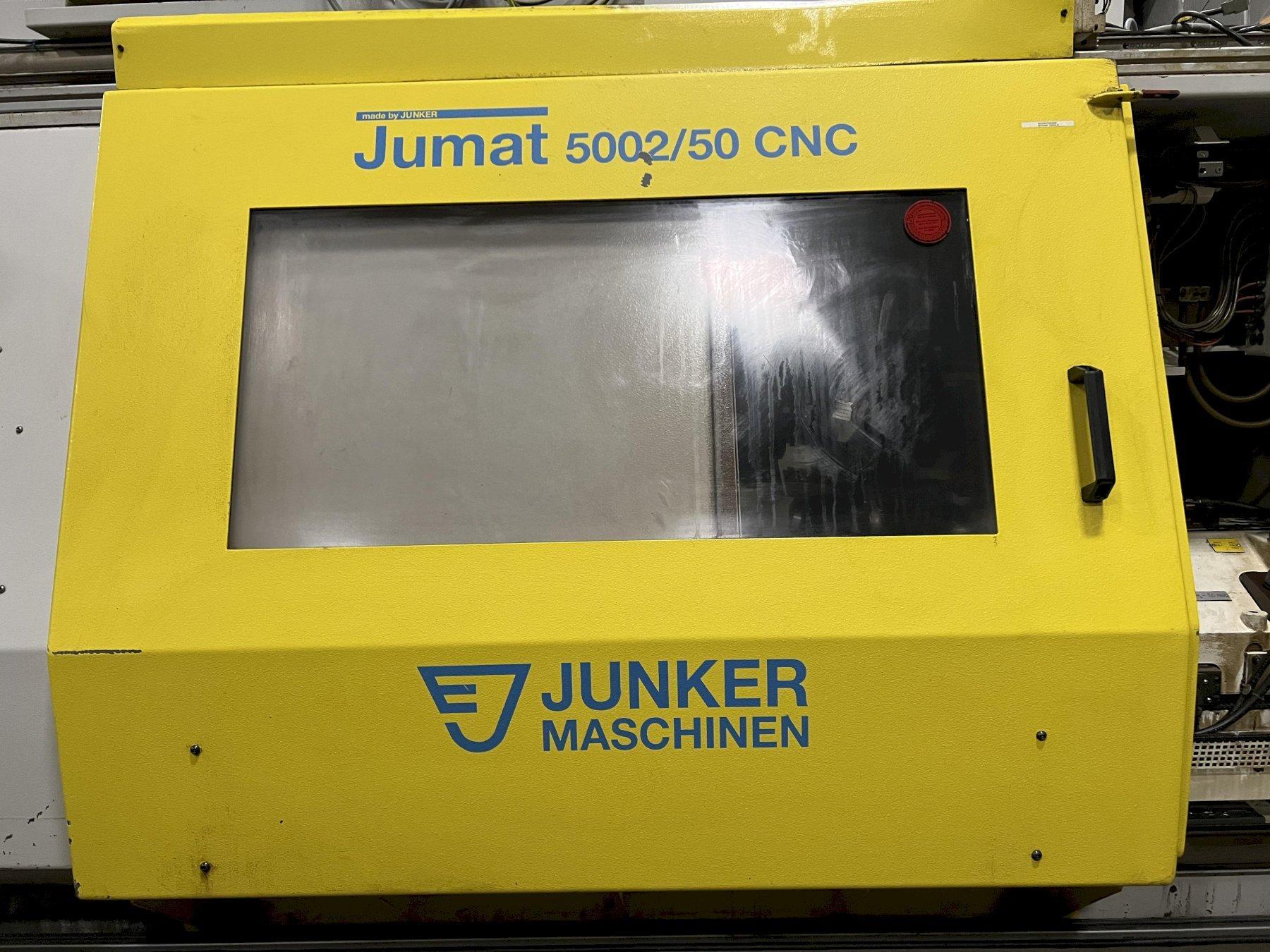

MODEL........................ JUMAT 5002/50
SERIAL....................... 1798
AGE.......................... 1998
GRINDING LENGTH.............. 700 MM (27.559")
CLAMPING LENGTH.............. 700 MM (27.559")
CENTER HEIGHT................ 170 MM (6.69")
COMPONENT WEIGHT............. 130 KG (286 LBS)
GRINDING WHEEL DIAMETER...... 500 MM (19.68")
SWING DIAMETER............... 280 MM (11.023")
X AXIS TRAVEL................ 178 MM MIN - 368 MM MAX
Z TRAVEL MAX................. 1055 MM (APPROX)
TABLE LENGTH MAX............. 2160 MM(APPROX)
AXIS......................... W, B, X, Z
ELECTRICS.................... 480V / 3PH
APPROX. WEIGHT............... 33,000 LBS
EQUIPPED WITH:
AUTOMATIC LOADING CHAIN CYCLE CONVEYOR

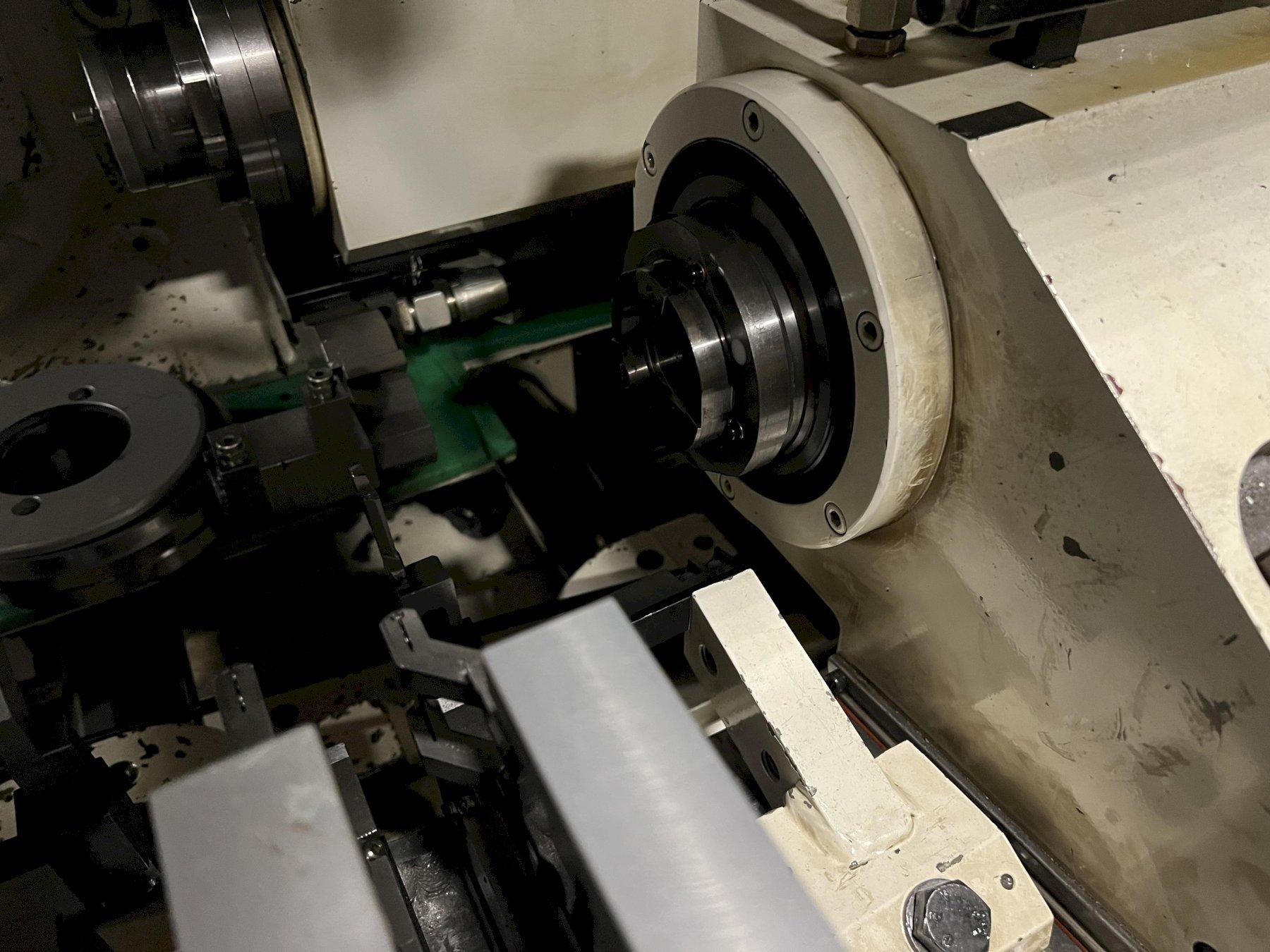

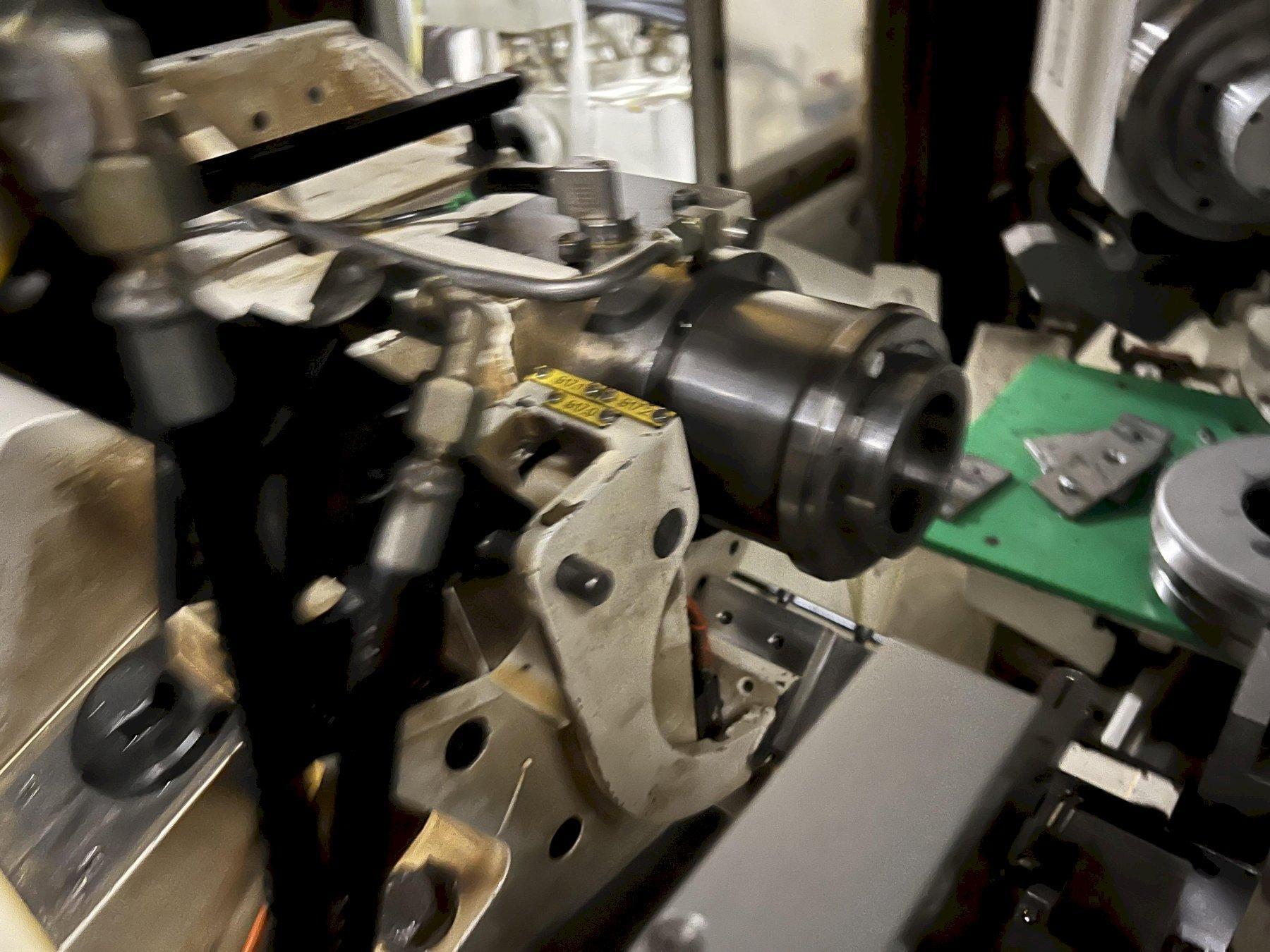

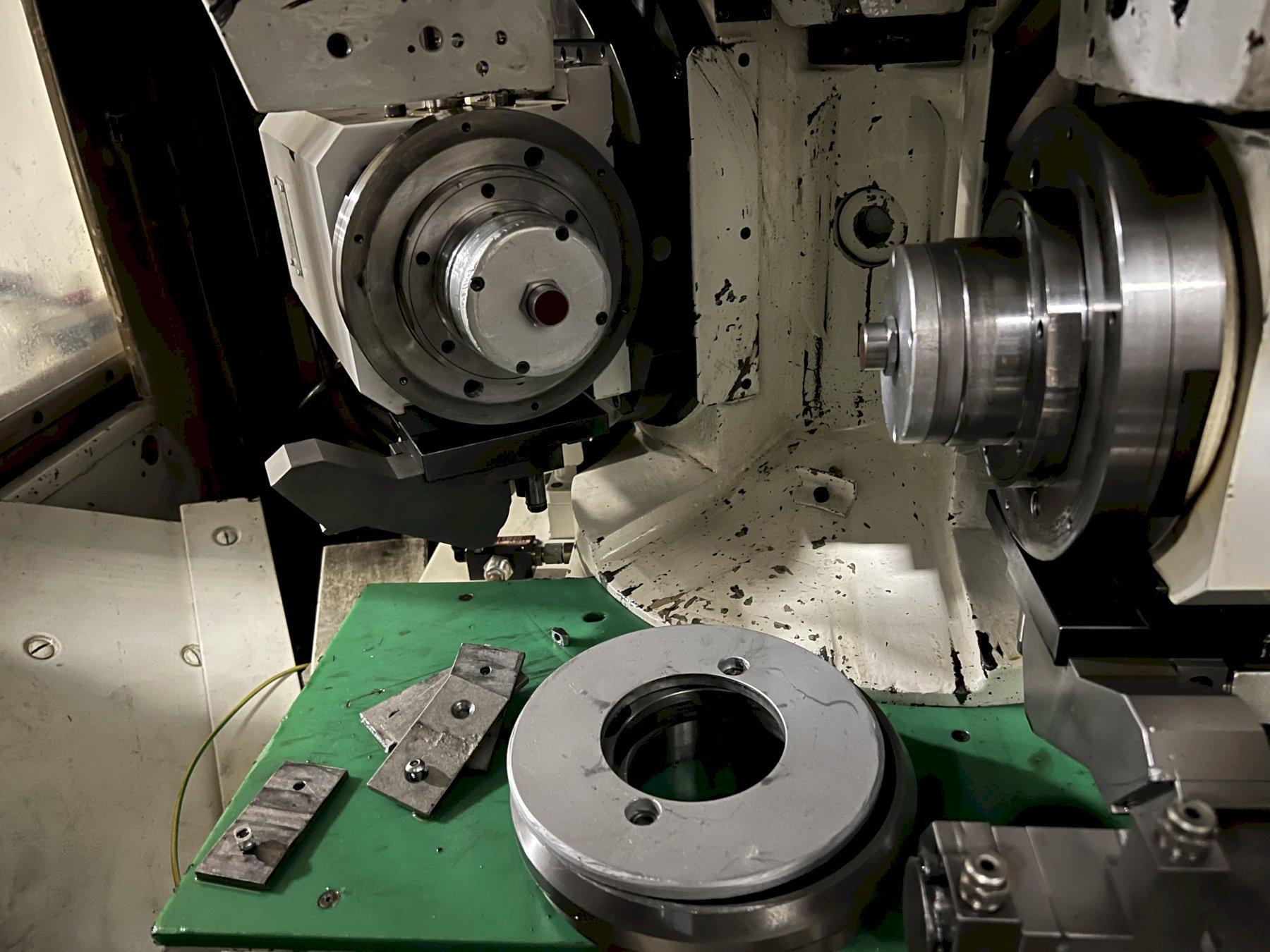

TWO HF SPINDLE UNITS (B AXIS)

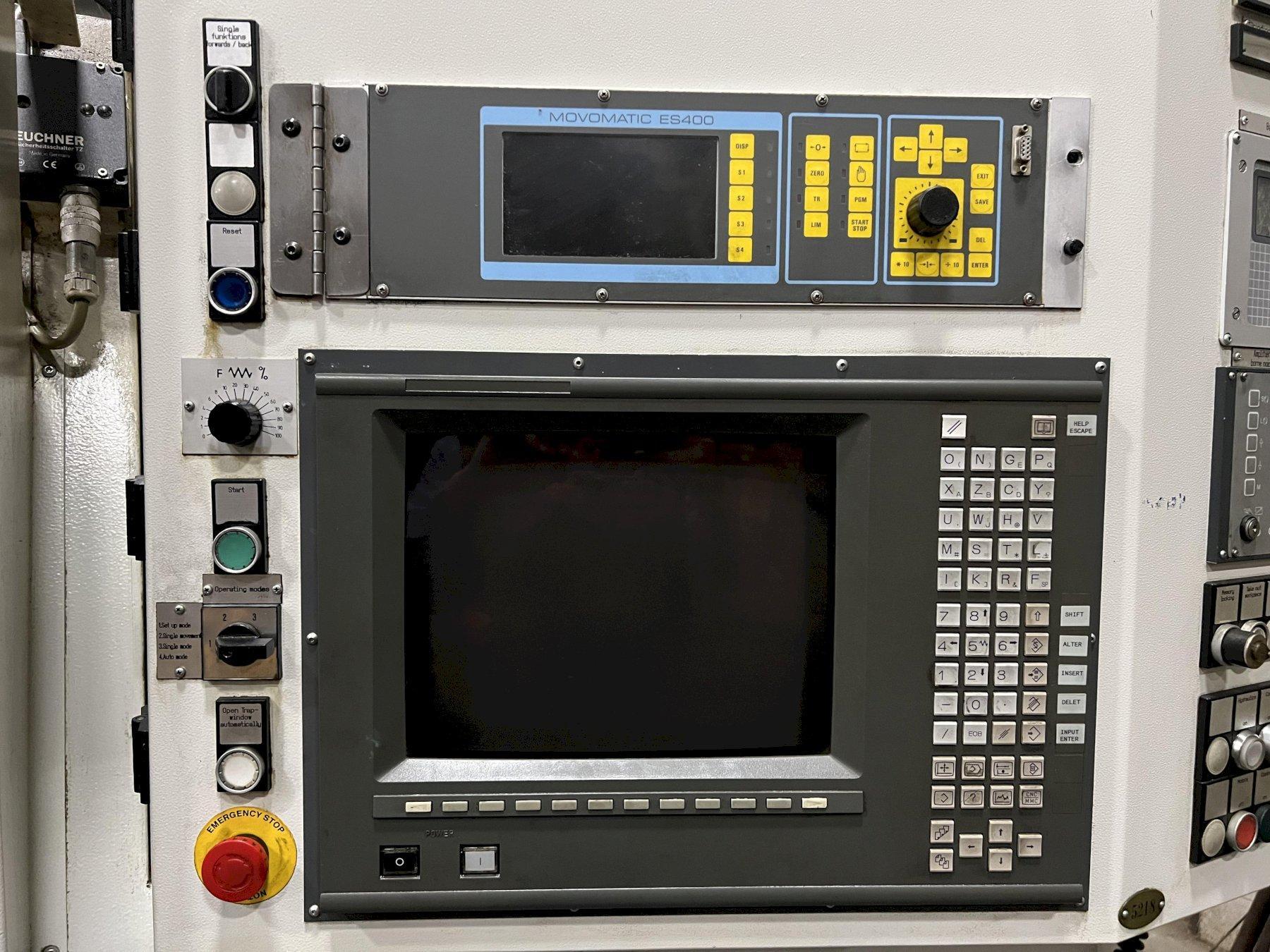

FANUC SERIES 16 CONTROL

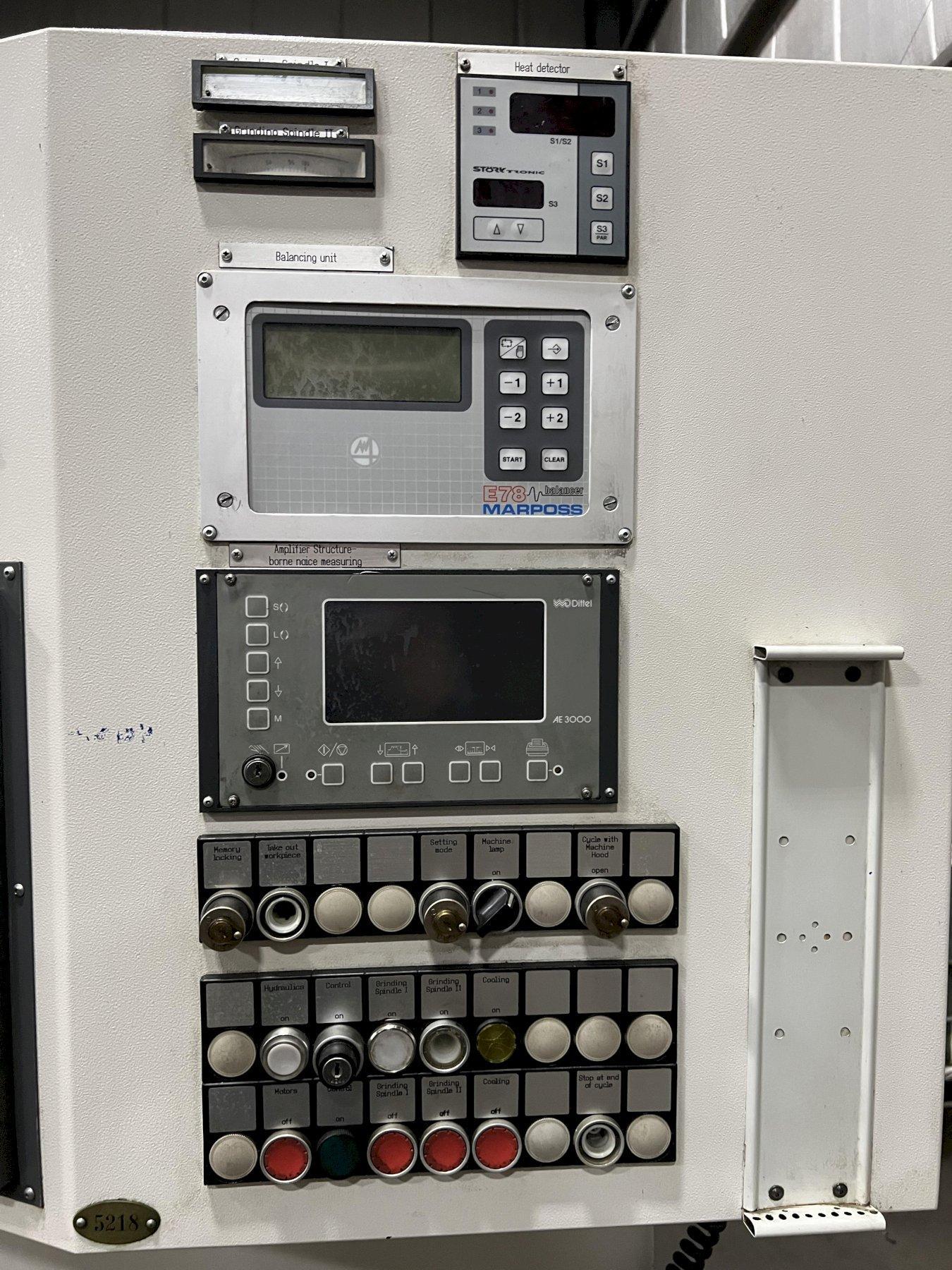

MARPOSS GAUGING
OBERLIN SUMP TANK
SPECIFICATIONS SUBJECT TO VERIFICATION
THESE DIMENSIONS ARE APPROXIMATIONS
CONTACT US FOR FURTHER INFORMATION
