11" X 19.7" COSEN C-500MNC, 13" ROUND, MITERING, DOUBLE VISE AUTOMATIC FEED, BUNDLE ATTACHMENT, SMART NC-20 CNC CONTROL, 2005

Brand
COSEN

Model
C-500MNC

Type
Saws, Band, Horizontal

Stock #
10409

Condition
Not specified

Year
2005

Request a Quote

Specifications

Rect-Cap (H) 11 inches
Rect-Cap (W) 19.7 inches
Rounds-Cap 13 inches
Power 5.5 horsepower
Type (Auto, Manual, Semi) automatic
Blade Width 1.3 inches
Blade Thickness .042 inches
Blade Length 184 inches
CNC Control yes
Type of CNC Control COSEN NC-20
Dimensions 114" X 102" X 87" TALL
Weight 4510 pounds

Equipped With

GENERAL SPECIFICATIONS:

MAKE......................... COSEN
MODEL........................ C-500MNC

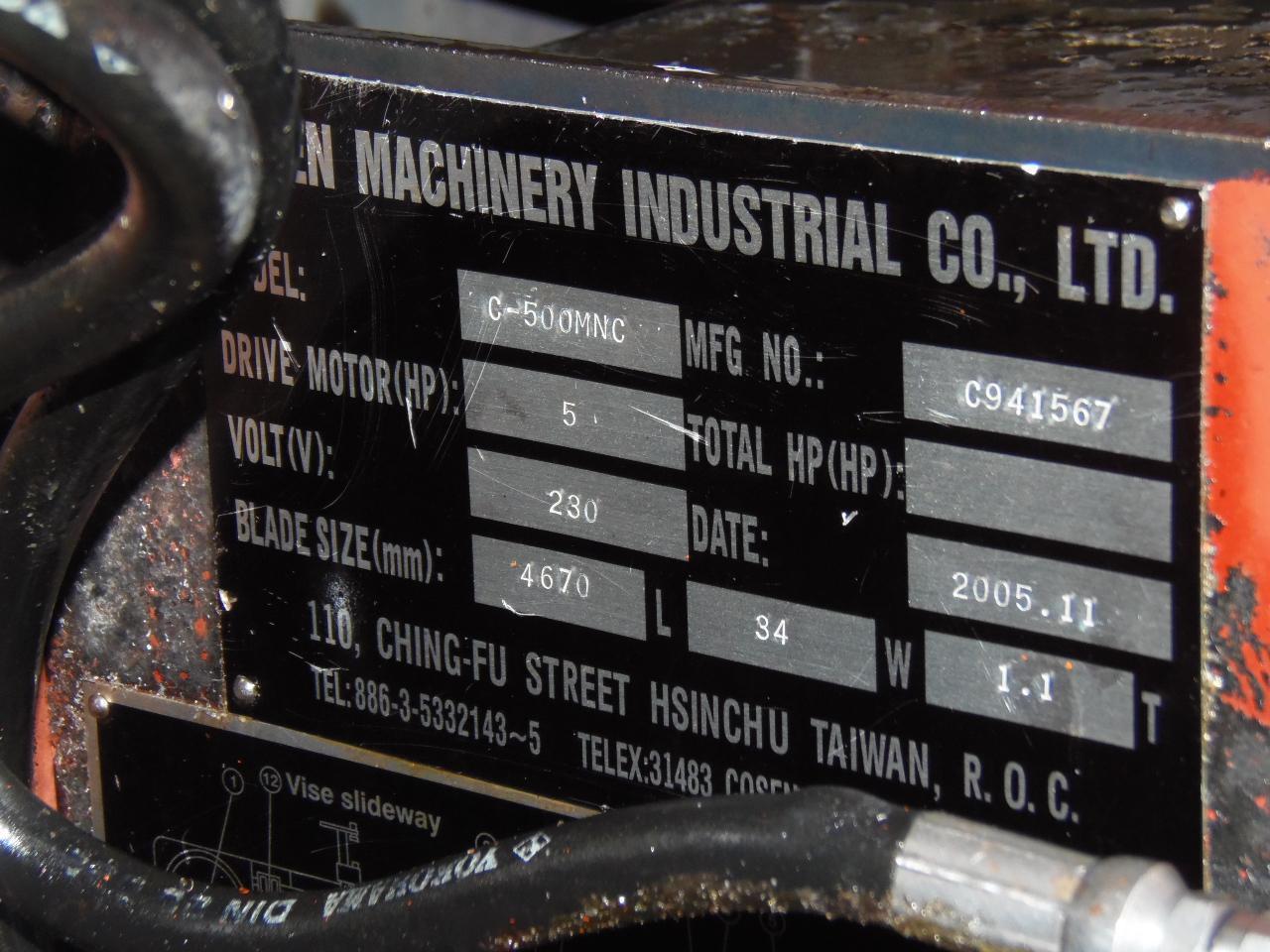

SERIAL NUMBER................ 0941567
AGE (YEAR)................... 2005
CAPACITY
     ROUND
         90 DEG.............. 13"
         45 DEG.............. 11.5"
     SQUARE
         90 DEG.............. 11" X 11"
         45 DEG.............. 10.5" X 10.5"
     RECTANGULAR
         90 DEG.............. 11" X 19.7"
         45 DEG.............. 10.5" X 10.5"
CONTROL MODEL................ SMART NC-20
SAW HEAD SWIVEL.............. 90 - 45 DEGREES
MAX AUTO SINGLE FEED LENGTH.. 23.9"
MAX. AUTO FEED LENGTH........ 650"
BLADE LENGTH................. 184"
BLADE WIDTH.................. 1.3"
BLADE THICKNESS.............. .042"
BLADE SPEED (60 HZ).......... 66 - 330 FT/MIN INF. VARY
VOLTAGE...................... WIRED FOR 220
HORSEPOWER................... 5.5
DIMENSIONS................... 94" X 102" X 60" TALL
WEIGHT....................... 3700 LBS

EQUIPPED WITH:

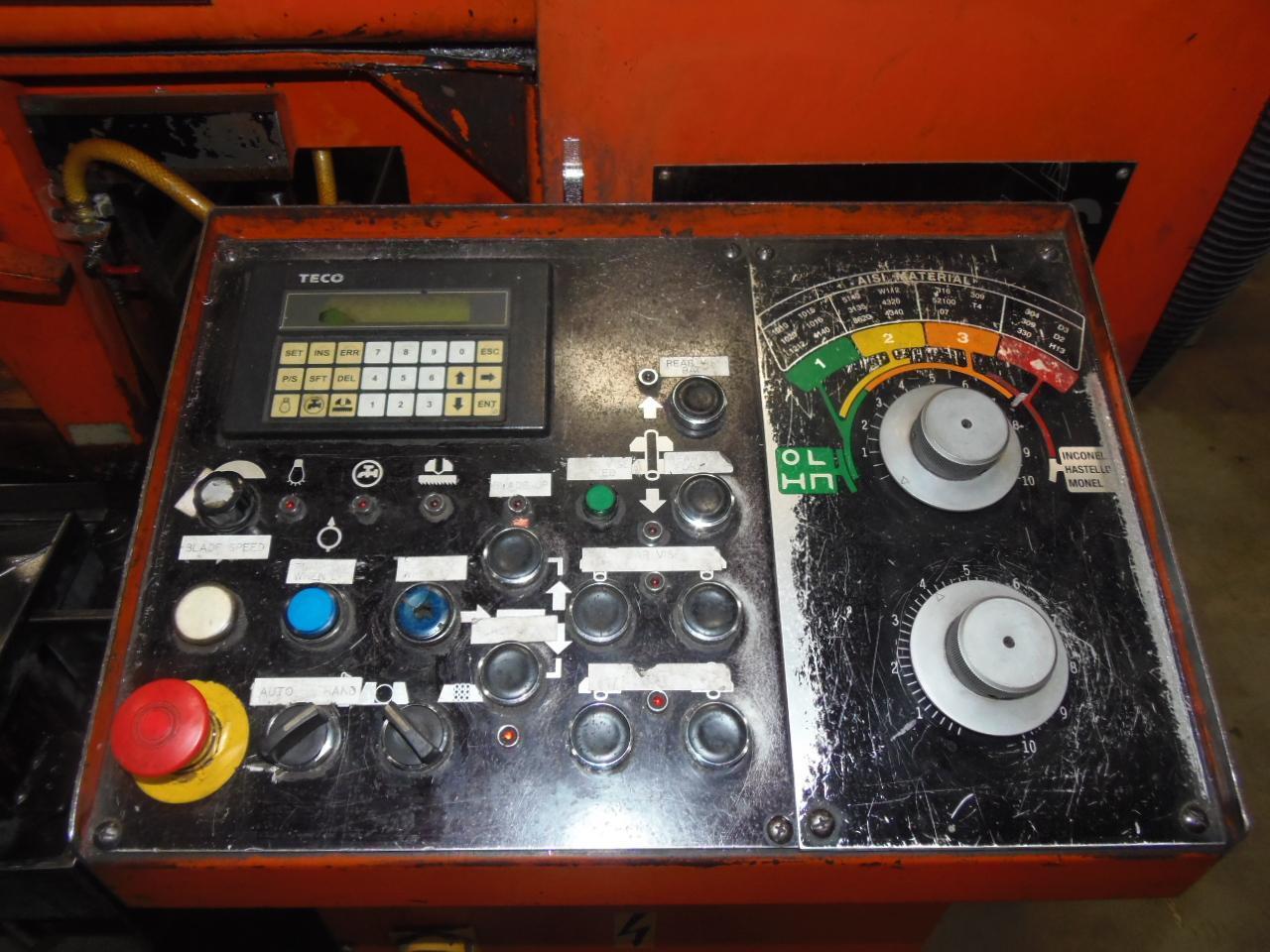

COSEN NC-20 CNC CONTROL
PROGRAMMABLE MITERING
CONTROL SET UP FOR 20 DIFFERENT JOBS INCLUDING QUANTITY AND LENGTH
AUTOMATIC KERF LOSS COMPENSATION
AUTO WORK HEIGHT AND AIR GAP ELIMINATOR
HYDRAULIC BLADE TENSION
SAW BLADE RETURN HEIGHT CONTROL
BLADE BREAKAGE SWITCH TO SHUT MACHINE OFF
